Polaris STM “MAXXX” DUAL SPRING TUNER — Install Guide

Polaris · Pro R (RZR)

2022+ Polaris Pro R-Sport/Premium/Ultimate 4 CYL

Specifications

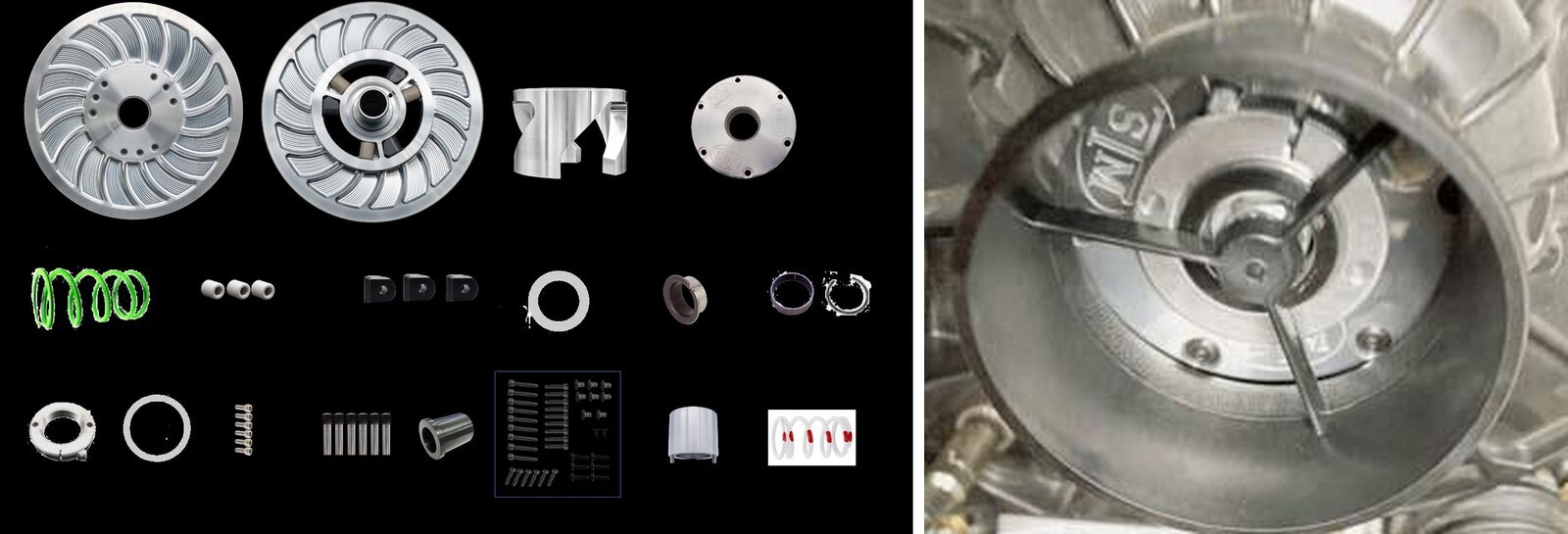

ITEM#        PART #                                    DESCRIPTION                                 QTY
  1         2001368            MOVABLE SHEAVE “PRO R” TUNER SECONDARY 4 CYL ENGINE                 1
  2     2001367 /2001316         FIXED SHEAVE “PRO R” TUNER SECONDARY 4 CYL ENGINE                 1
  5         1001696                               MAXXX TUNER HELIX                                1
  6         1001693             MAXXX DUAL SPRING COMPRESSION SPRING HELIX COVER                   1
  7           ATVSS                   KSS STYLE COMPRESSION SPRING (Outer Spring)                  1
  8         1001697                        MAXXX TUNER SECONDARY ROLLER                            3
 8B         1001698                        MAXXX TUNER SECONDARY BUTTON                            3
 10         1001060                         ADJUSTER NUT THRUST WASHER                             3
 11         24FDU558                        DUAL SPRING COVER BUSHING                              1
11B      4020.787/VH181              MOVABLE SHEAVE BUSHING w/RETAINING CLIP                       1
 12         1001059                                 ADJUSTER NUT                                   1
 13         1001049                        HELIX COVER HD SPRING WASHER                            1
 16       8-32x.5” SHCS                 BUTTON / ROLLER PIN RETAINING SCREW                        6
 17         1001699          MAXXX TUNER THREADED ROLLER / BUTTON PIN (M12x1.75”) (145 in / lbs)   6
 18         2001320                          TUNER HUB RETAINING INSERT                            1
 19         1001700             MAXXX TUNER SECONDARY FASTENER KIT -Torque spec on back page       1
 40         1001064                     TUNER SECONDARY ADJUSTER NUT TOOL                          1
 41            PATV                                 INNER SPRING                                   1
                      * * * Please visit website for item pricing * * *
                                       STM Powersports
                                        (248) 673-8408
                                   www.stmpowersports.com                         3/12/2025
               It’s important to completely read the directions before installing the clutch!
                                                                     Installation
          Remove the stock secondary clutch from the shaft. To install the STM Tuner Secondary put the machine in low, high
or reverse, slide the secondary over the shaft until you feel it bottom out. Rotate the secondary to align the splines and slide
it the rest of the way onto the shaft. FAILURE to correctly align the splines will cause damage to the internal splines on the
secondary.
          Once you are confident that the splines are aligned and the secondary if fully seated, install the #18 tuner hub
insert with the stock bolt. Use small amount of blue Loctite® on the stock bolt and torque to 55 ft/lbs. Install the belt using
the #40 tool and a ⅜” socket wrench, turn the #12 adjuster nut clockwise to open the sheaves, install the belt around the
primary clutch first, then around the secondary. Turn the adjuster nut counterclockwise until it is at the end of the shaft or
remove it completely, put the machine in neutral, spin the secondary so the belt will come to the top and become tight. Turn
the adjuster nut along with the #12 adjuster nut thrust washer clockwise until it contacts the #6 cover, go an additional ¼ to
½ turn and tighten the ¼-20 SHCS on the adjuster nut.
          Start the machine and shift from forward to reverse- if it is hard to shift turn the adjuster nut clockwise another ¼ to
½ turn. Repeat the steps until you achieve proper belt deflection (as tight as the belt can be without the machine being hard
to shift in and out of gear). Double check the torque on the stock bolt and make sure the ¼-20 SHCS bolt is tight.
Periodically check all fasteners and always use blue Loctite®.

CUT WHERE THE “Y” TOUCHES

BOLT KIT TORQUE SPECS

Specifications
             ¼-20 Helix Screw   125 in/lbs

SHCS

Specifications
             10-24 Helix Cover   45 in/lbs
                  Screw

THE OUTER RING AND REMOVE!

***Running the clutches without installing the clutch housing cover can cause premature wear and may lead to potential damage or failure. ***

For more tuning/set-up help please visit our website

WWW.STMPOWERSPORTS.COM and click on “Tech Info.”
