2014-'19 Polaris Ranger 900, 2017 Ranger 1000 Standard Cab & — Install Guide

Polaris · 2014-2019 Ranger · SKU 2262020001

What's in the Box

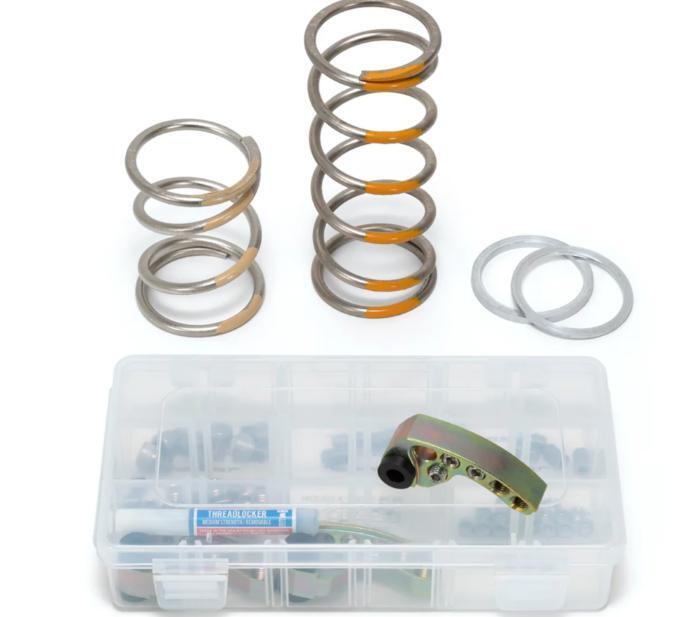

Polaris Ranger kit contents
Included parts
Primary Spring Qty 1
Secondary Spring Qty 1
Adjustable Weight Qty 3
Spring Shim Qty 2
Required tools
Metric Sockets
Belt Changing Tool
Allen Sockets
Clutch Puller (optional)

2014-2019 Polaris Ranger 900 Clutch Kit

Clutch Setup
      Operating RPM Stock                                         7200
      Operating RPM tuned                                         8200
              Seats                                           Two and Four
            Tire Size                                           25" - 29"
            Elevation                                          0-3000 Ft
               HP                                                60-78
         Primary Spring                                        Tan Stripe
        Secondary Spring                                      Orange Stripe
    Primary Spring Shim 1/16"                          Add 200 RPM Engagement
    Primary Spring Shim 1/8"                           Add 400 RPM Engagement
Primary Spring Shim 1/16" and 1/8"                     Add 600 RPM Engagement

Weight Configuration

Clutch Setup
             Hole 1                                              2 3/8"
             Hole 2                                              2 1/4"
             Hole 3                                              2 1/4"
             Hole 4                                                0
             Hole 5                                                0
