2014+ Sea Doo Spark Hull Removal — Install Guide

Sea-Doo · 2014+ Sea-Doo

What's in the Box

Included parts
Required tools
10mm Socket
10mm Wrench
T30 Socket

Installation

1
Remove engine access panel and knee panel on the left side of the hull.
2

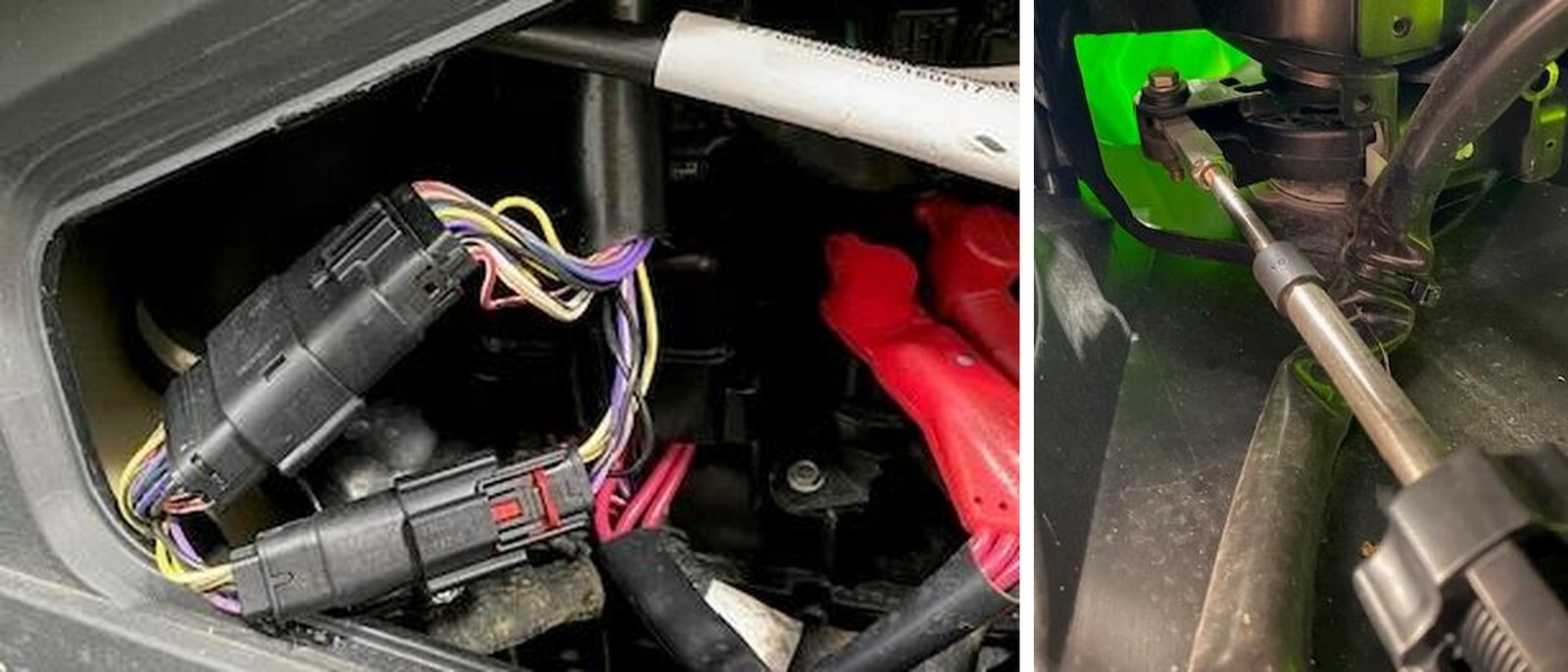

Through the engine access panel, disconnect the steering control (20 pin) plug and if equipped IBR (6 pin) plug. Do not use a screwdriver to pry off.
Sea-Doo Sea-Doo installation
3
Underneath the handlebars, through the knee panel you will locate the steering linkage. Remove the linkage with (2) 10mm sockets. Remove the steering linkage brace by removing (2) T30 head screws.
4

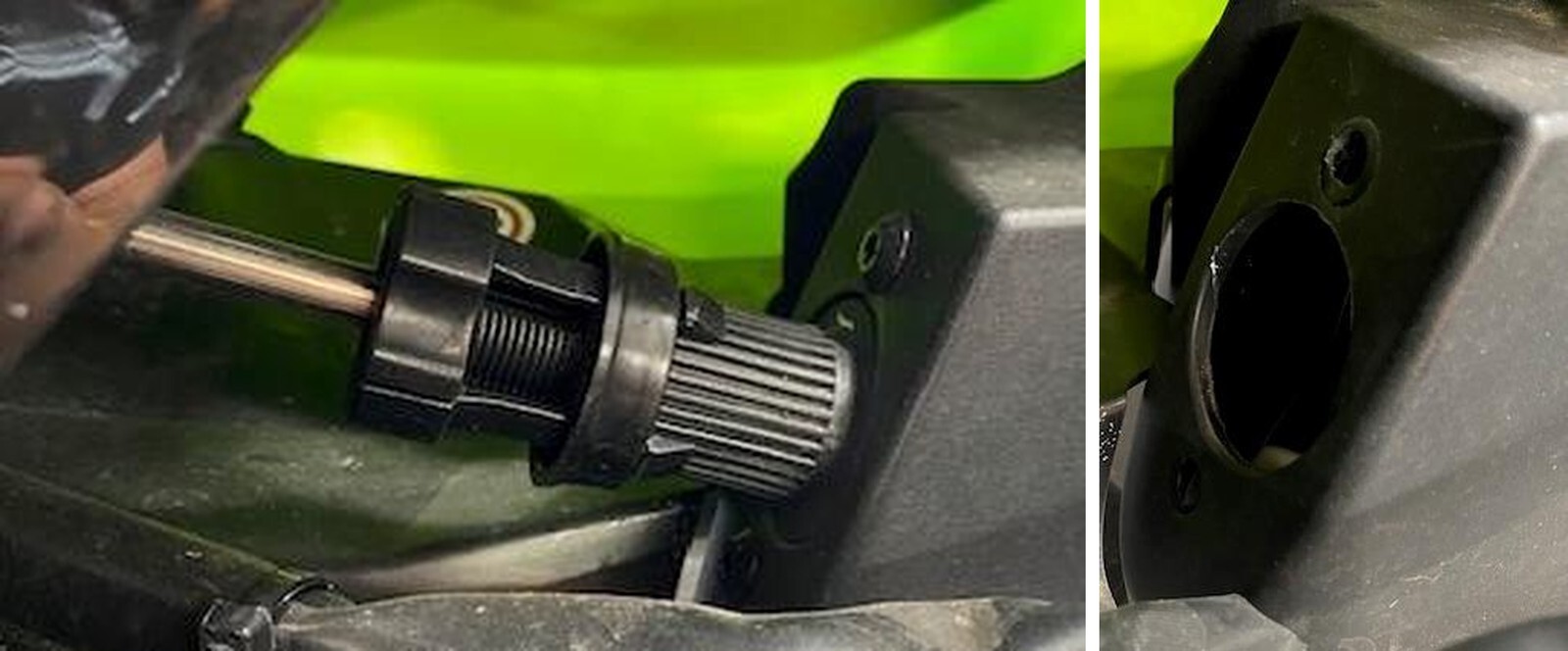

Once the steering linkage is loose, push it into the engine bay.
Sea-Doo Sea-Doo installation
5

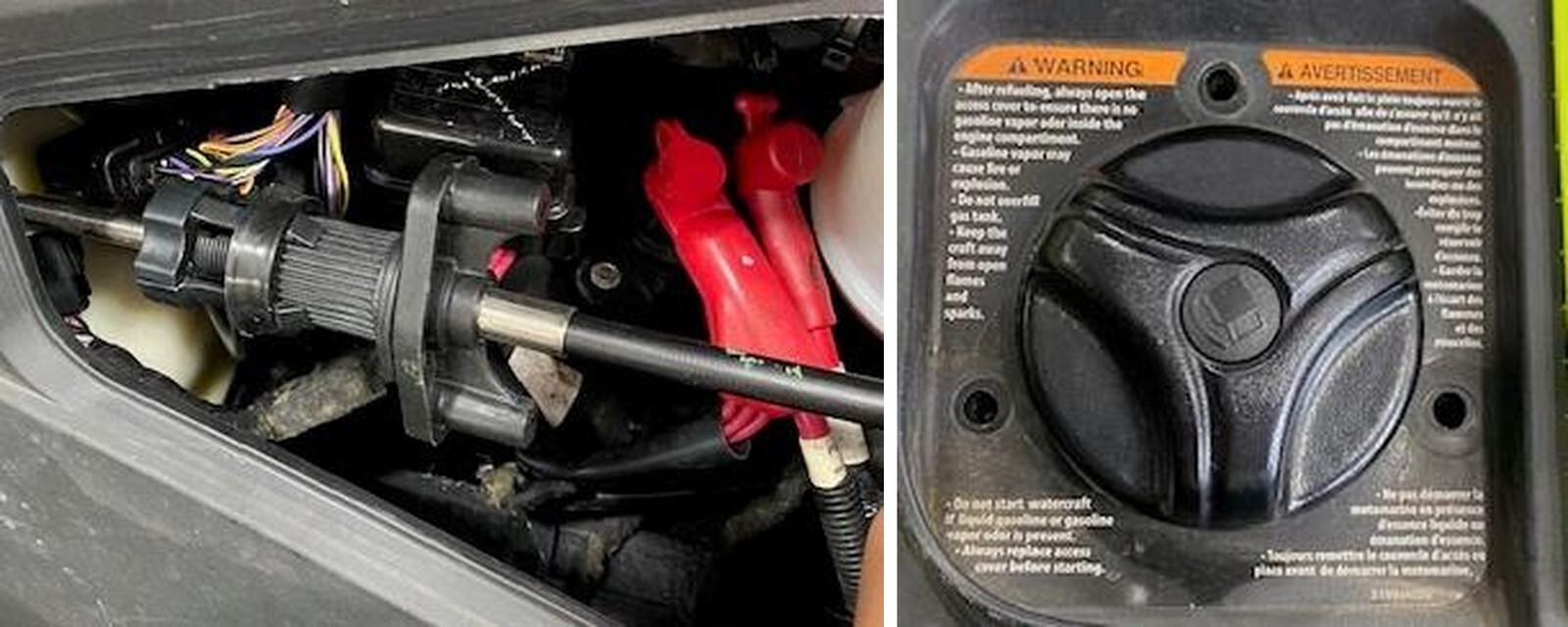

Remove the seat. Remove the (3) T30 screws around the fuel fill. Leave cap on.
6

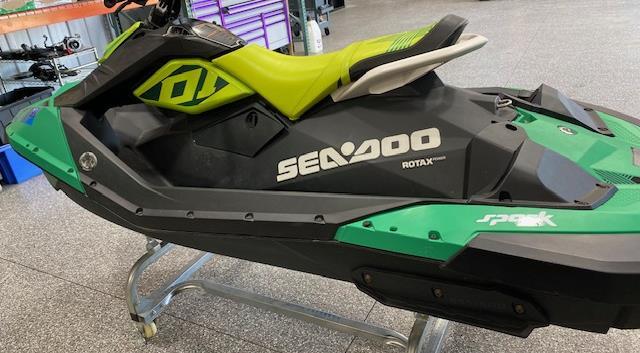

With a T30 socket, remove 23 screws holding the upper hull (black portion) on. (10) screws have a locknut underneath the lower hull. Use a 10mm socket.
Sea-Doo Sea-Doo installation
Sea-Doo Sea-Doo installation
Sea-Doo Sea-Doo installation
