2014+ Sea Doo Spark Oil Change — Install Guide

Sea-Doo · 2014+ Sea-Doo · SKU 804FC0240 (7100), 804FC0241 (300V)

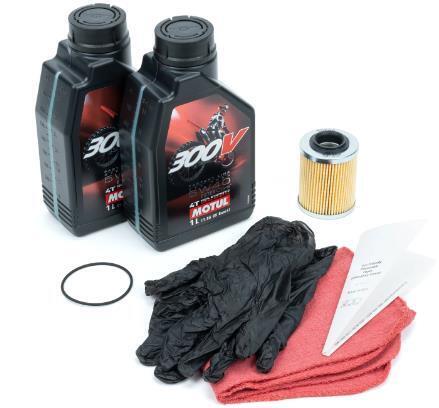

What's in the Box

Sea-Doo Sea-Doo kit contents
Included parts
Liters of Oil Qty 2
BRP Oil Filter Qty 1
Oil Filter Cap O-ring Qty 1
Paper Funnel Qty 1
Required tools
External Torx 8mm Socket
Siphon Pump

Installation

1
This procedure can be done with the upper hull intact. It is slightly easier to access the oil filter housing with the upper hull off.
2

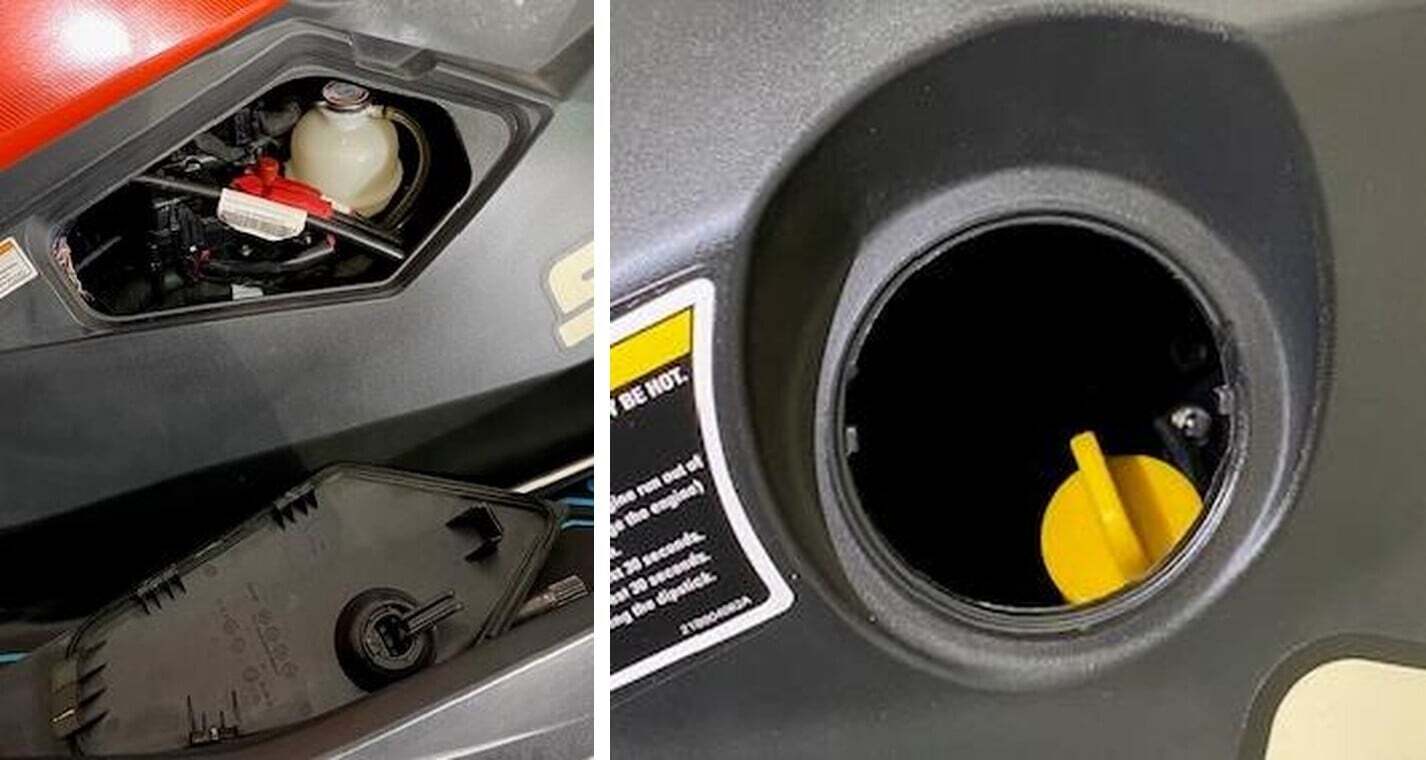

Remove the engine access panel located on the left side of the hull. Remove the dipstick access panel located on the right side of the hull.
Sea-Doo Sea-Doo installation
3

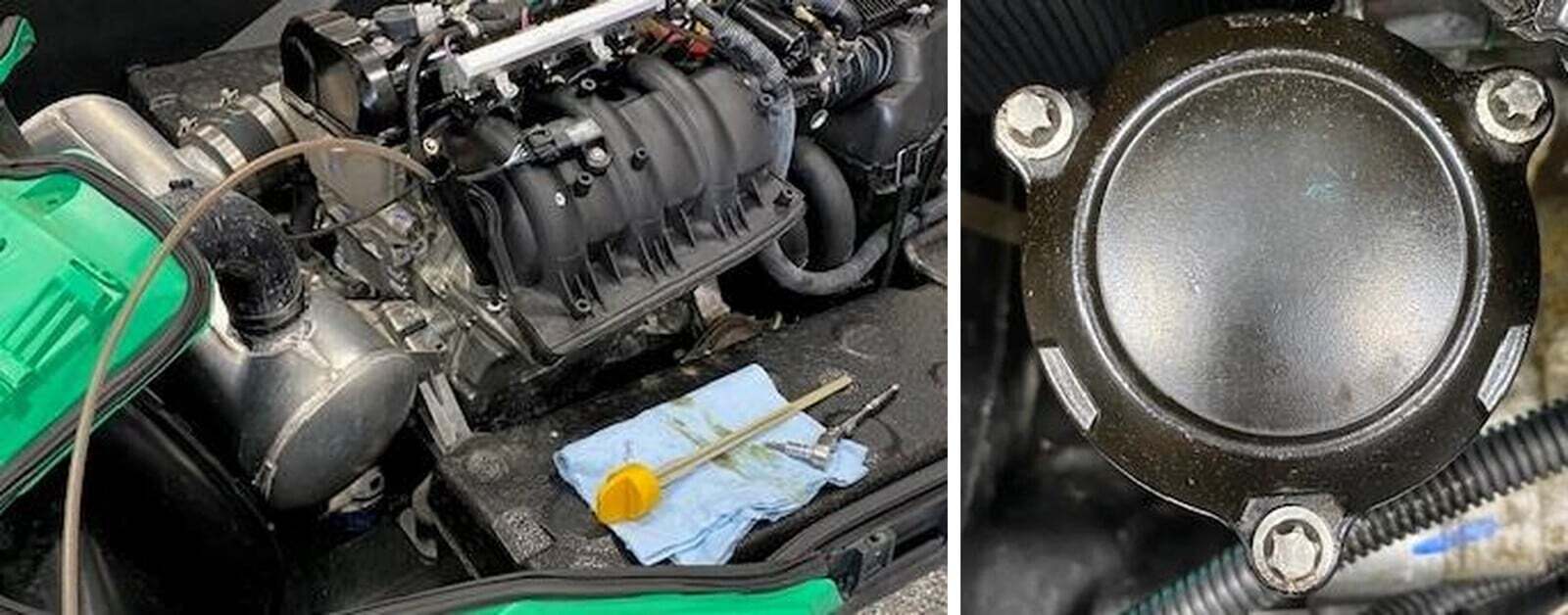

Insert the siphon tube into the oil dip stick tube until it bottoms out. Start siphoning oil.
4

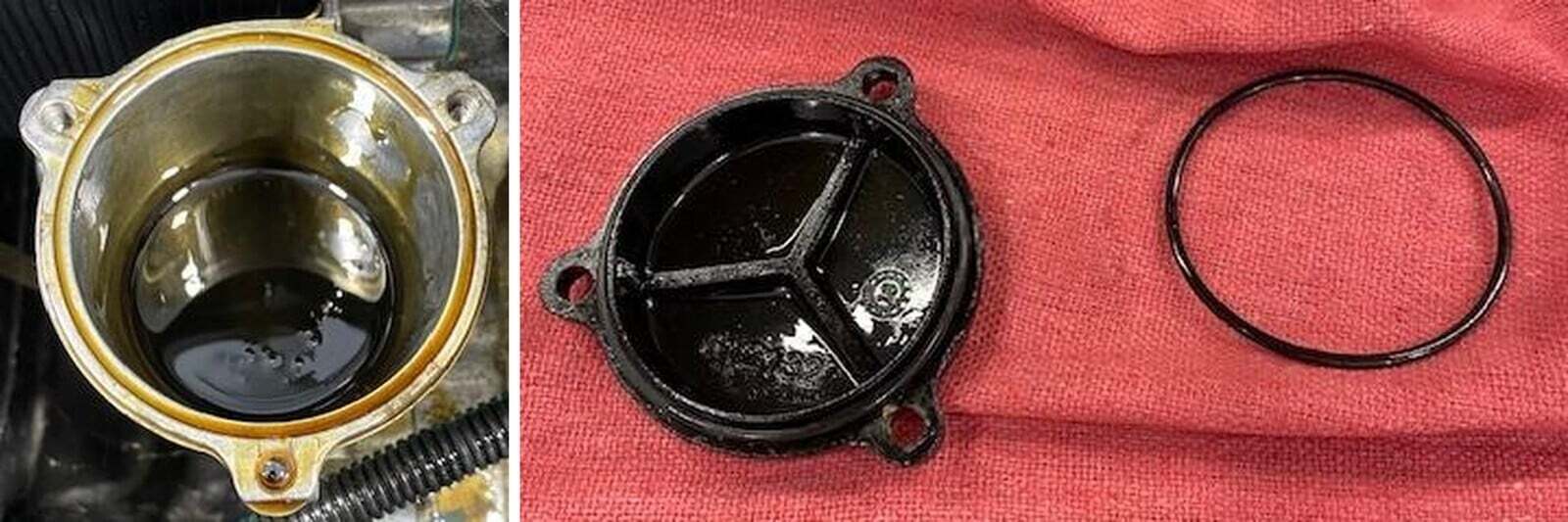

Locate the oil filter and remove the (3) E8 screws. Remove the oil filter and oil filter cap O-ring. It is a good idea to siphon out the oil filter housing.
Sea-Doo Sea-Doo installation
5
Install the new oil filter cap O-ring onto the cap. Apply a small amount of oil onto the O- ring.
6

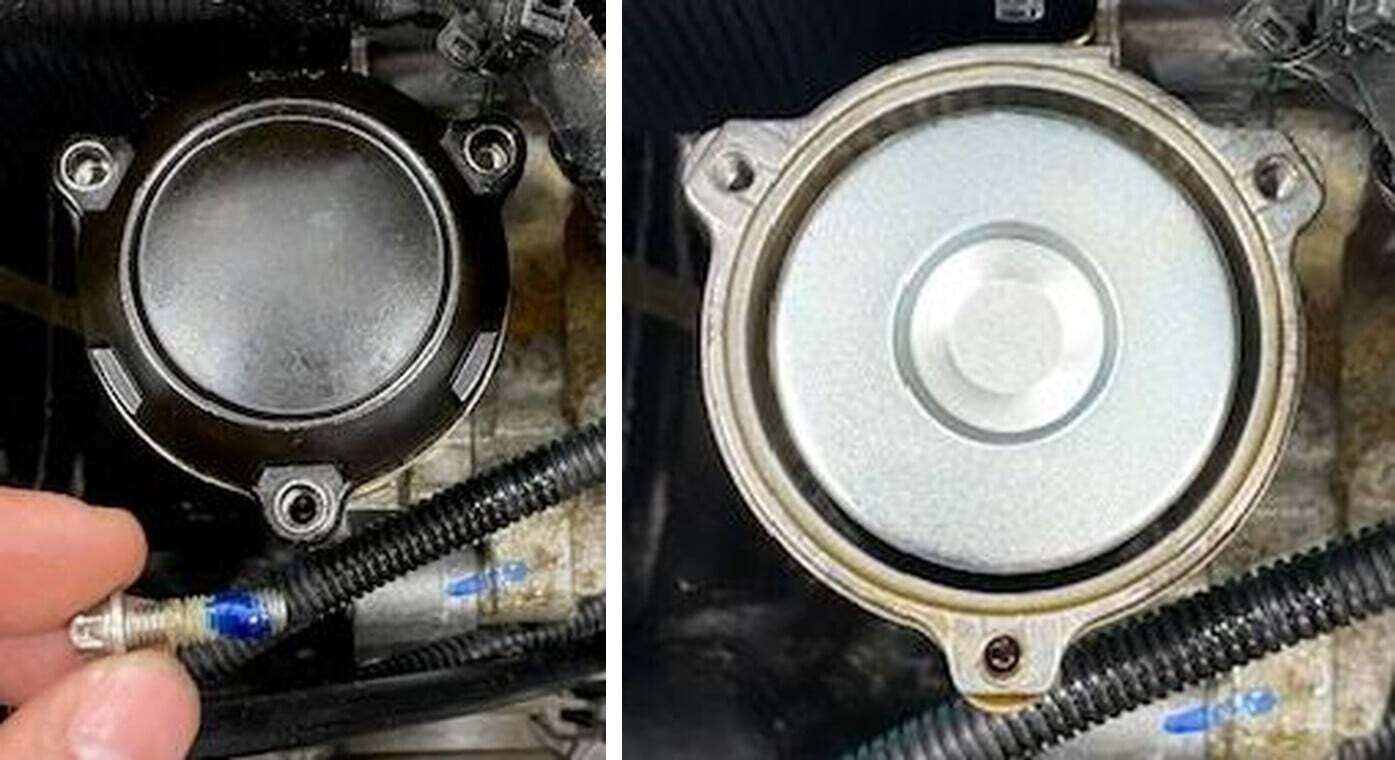

Install the new oil filter into the housing. Install the oil filter cap. Apply Loctite 243 (blue) on the threads on the screws. Torque to 80 in-lbs.
Sea-Doo Sea-Doo installation
7
You will only be able to siphon 2.0 liters of oil out of your spark. Leaving about a liter left in the engine. Pour in 1.5 liters of oil. Start the machine and let idle for 15-20 seconds. Check your oil dip stick and add accordingly. Do not over fill.
Sea-Doo Sea-Doo installation
Sea-Doo Sea-Doo installation
