Polaris 2016-2021 RZR 1000/General Shift-Tek Clutch Kit — Install Guide

Polaris · 2016-2021 RZR · SKU 401FP0001

Clutch Setup
                                   Stock         Stage 1/1.5     Stage 2         Stage 3
                Primary            Stock         Stock           Stock           Stock
                Spring
                    Hole 1              0          2. 1/4 ss        2. 1/4 ss            0
                Hole 2              2. 1/4 ss      2. 1/4 ss        2. 1/4 ss       2. 1/4 ss
                    Hole 3          2. 1/4 ss      2. 1/4 ss        2. 1/4 ss       2. 1/4 ss
                Hole 4              2. 3/16 ss     2. 3/16 ss      2. 3/16 ss      2. 3/16 ss
                    Hole 5              0                0               0               0
                Secondary             Stock          Stock           Stock            Stock
                Spring
                     Helix            Stock          Stock           Stock            Stock
                Operating          8200-8400      8200-8400       8200-8400        8200-8400

RPM

Clutch Setup
                   Tire Size        Stock 27”     Stock 27+”      Stock 27+”        Stock 29”
                Elevation            0-3000         0-3000          0-3000           0-3000

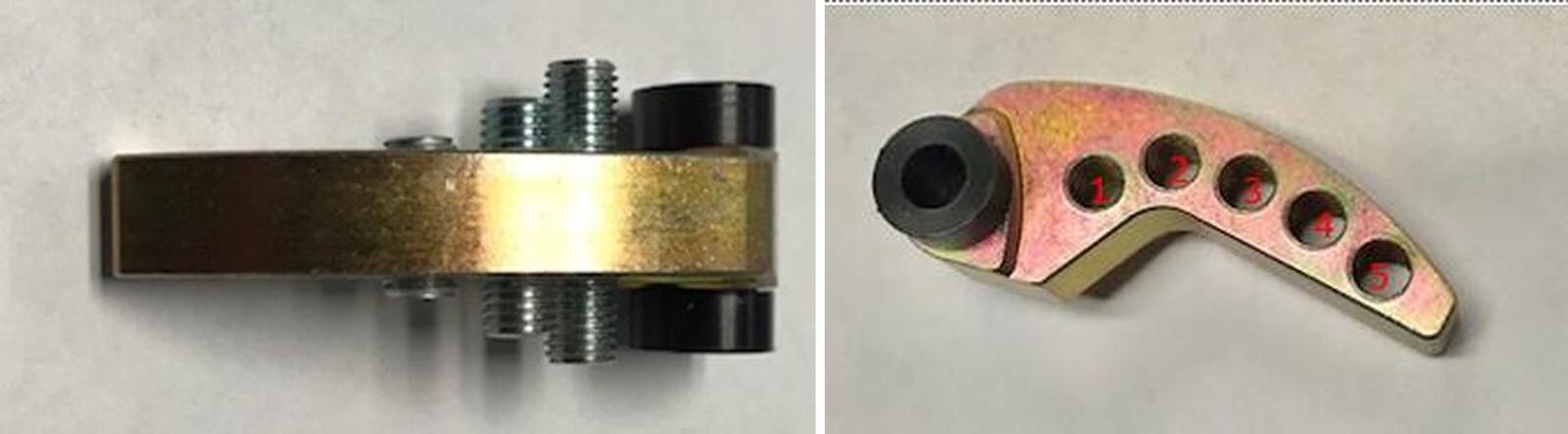

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
