Polaris 2016-2023 RZR XP 1000 Shift-Tek Clutch Kit — Install Guide

Polaris · 2016-2023 RZR · SKU 401FP0003

What's in the Box

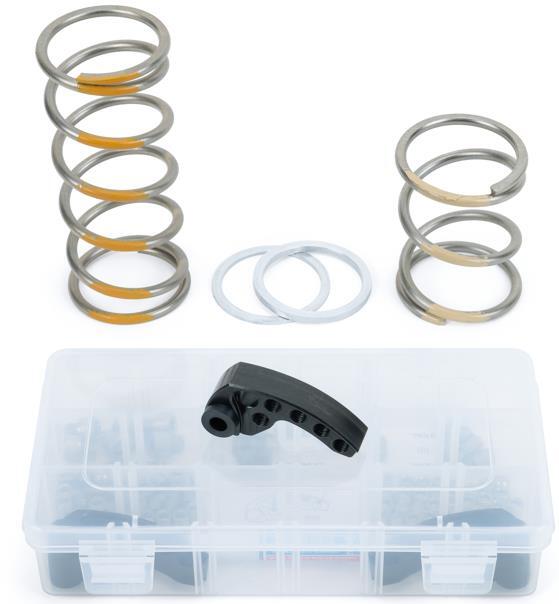

Polaris RZR kit contents
Included parts
Silver/Tan Primary Spring Qty 1
Adjustable Primary Clutch Qty 3
Weights
Variety of Different Weights Qty 1
Silver/Orange Secondary Qty 1
Spring
Required tools
10mm & T25 Socket
Torque Wrench
Blue Loctite
Allen Wrenches
Clutch Compressor Tool
Clutch Setup
                                  Stock                 Stage 1                 Stage 2
     Horsepower                     107                     112                    118
    Primary Spring               Silver/Tan             Silver/Tan              Silver/Tan
   Engagement RPM                  2000                    2000                   2000
    Operating RPM              8200-8400                8200-8400               8200-8400
        Hole 1                       0                       0                      0
        Hole 2                   (2) 1/4" SS            (2) 1/4" SS             (2) 1/4" SS
        Hole 3                   (2) 1/4" SS            (2) 1/4" SS             (2) 1/4" SS
        Hole 4                (2) 3/16" SS              (2) 3/16" SS           (2) 3/16" SS
        Hole 5                       0                       0                      0

Assembled Weight in

Clutch Setup
                                   52.0g                   52.0g                  52.0g
      Grams
   Secondary Spring          Silver/Orange             Silver/Orange          Silver/Orange
         Helix                     OEM                     OEM                    OEM
NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Clutch Setup
                                      4        3   2
                             5
                                                    1
