Can-Am 2017-2019 X3 V-Flow Intake Kit — Install Guide

Can-Am · 2017-2019 Maverick X3 · SKU 203FC0004

What's in the Box

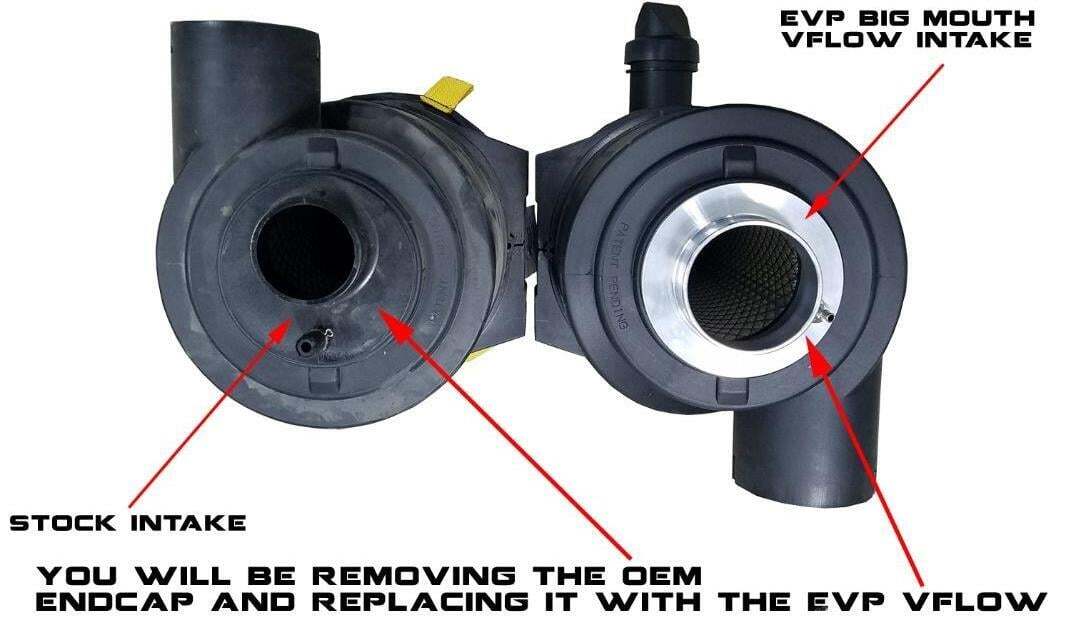

Can-Am Maverick X3 kit contents
Included parts
EVP Billet Intake Qty 1
EVP Silicone Connector Hose Qty 1
1/16” NPT Hose Barb Qty 1
50-70mm Pinch Clamp Qty 1
10.5mm Pinch Clamp
3/4"-3/4” Nylon Hose Adaptor Qty 1
Foam Gasket Qty 1
Required tools
Sawzall
Pliers
Rubber Blow Mallet
Sockets
Flat Blade Screwdriver
Side Cutters
Teflon Tape
Fine Grit Sandpaper

Installation

1
Remove engine access cover between the seats (between rear seats on 4-seater when released).
2
Loosen the clamp on the turbocharger that holds the rubber accordion style intake connector hose. Remove the small hose that goes from the boost control solenoid to the OEM filter canister end cap – cut the hose very close to the end cap side with a dykes or other suitable cutter.
3
Remove the OEM air filter canister – 1st loosen the inlet hose clamp, then remove the two bolts located behind the driver seat (behind the left rear seat on 4-seater) that secures the filter canister to the vehicle.
4
Open the filter canister by twisting the end cap counterclockwise and remove filter.
5
Remove the OEM end cap on the filter canister – see pictures below and on the next page.
6
Using a Sawzall or similar tool, cut off the existing mouth of the OEM airbox.
7

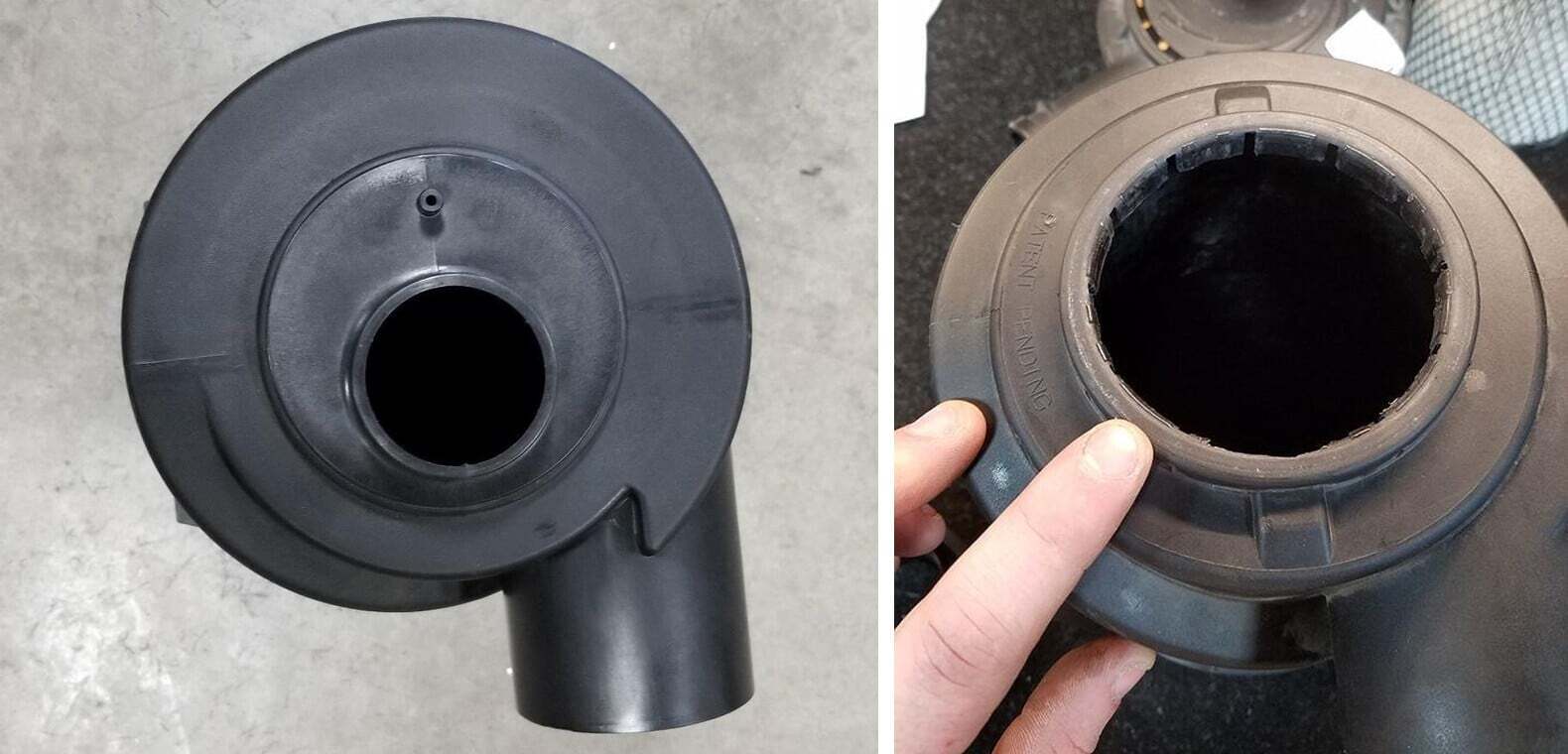

Carefully notch the end cap taking care not to cut the body of the airbox.
Can-Am Maverick X3 installation
8
Once the end cap is notched, you can break the end cap off in pieces.
9
The interior plastic sleeve that the OEM filter connects to may remain even after the end cap is removed. This sleeve also needs to be removed. Carefully notch this piece and remove. (See picture below).
10
Once the end cap is removed, use fine grit sandpaper to smooth any ridges and roughen up the surface. Slide the included foam gasket up against the flange of the V Flow Intake – this will seal the area between the V Flow Intake and the OEM filter canister.
11
Align the EVP V-Flow intake as shown below.
12

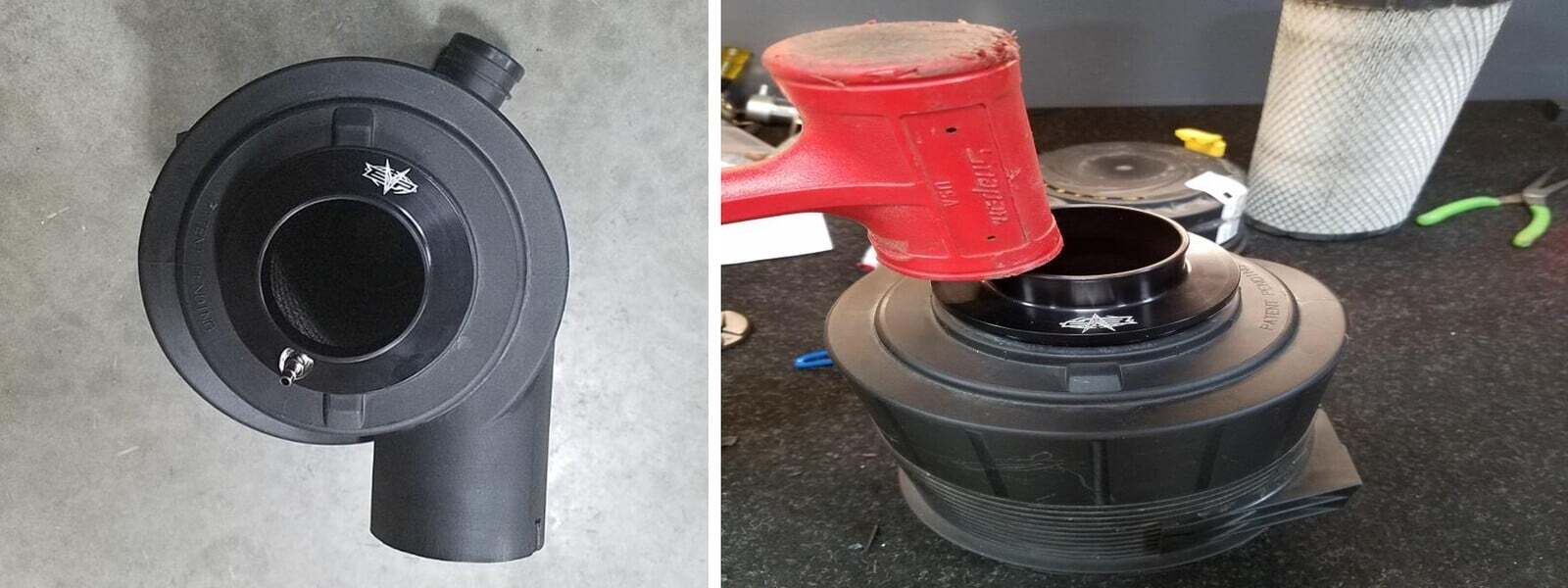

Using a rubber mallet or soft blow hammer, gently tap the EVP V-Flow intake into place.
13
Once the EVP V-Flow intake is properly seated and locked into place with the original tabs that held in place the OEM end cap, reinstall the air filter canister back into the machine. It is easiest if the OEM canister intake hose is installed first. Then reinstall the bolts to hold the canister in place – do not fully tighten.
14

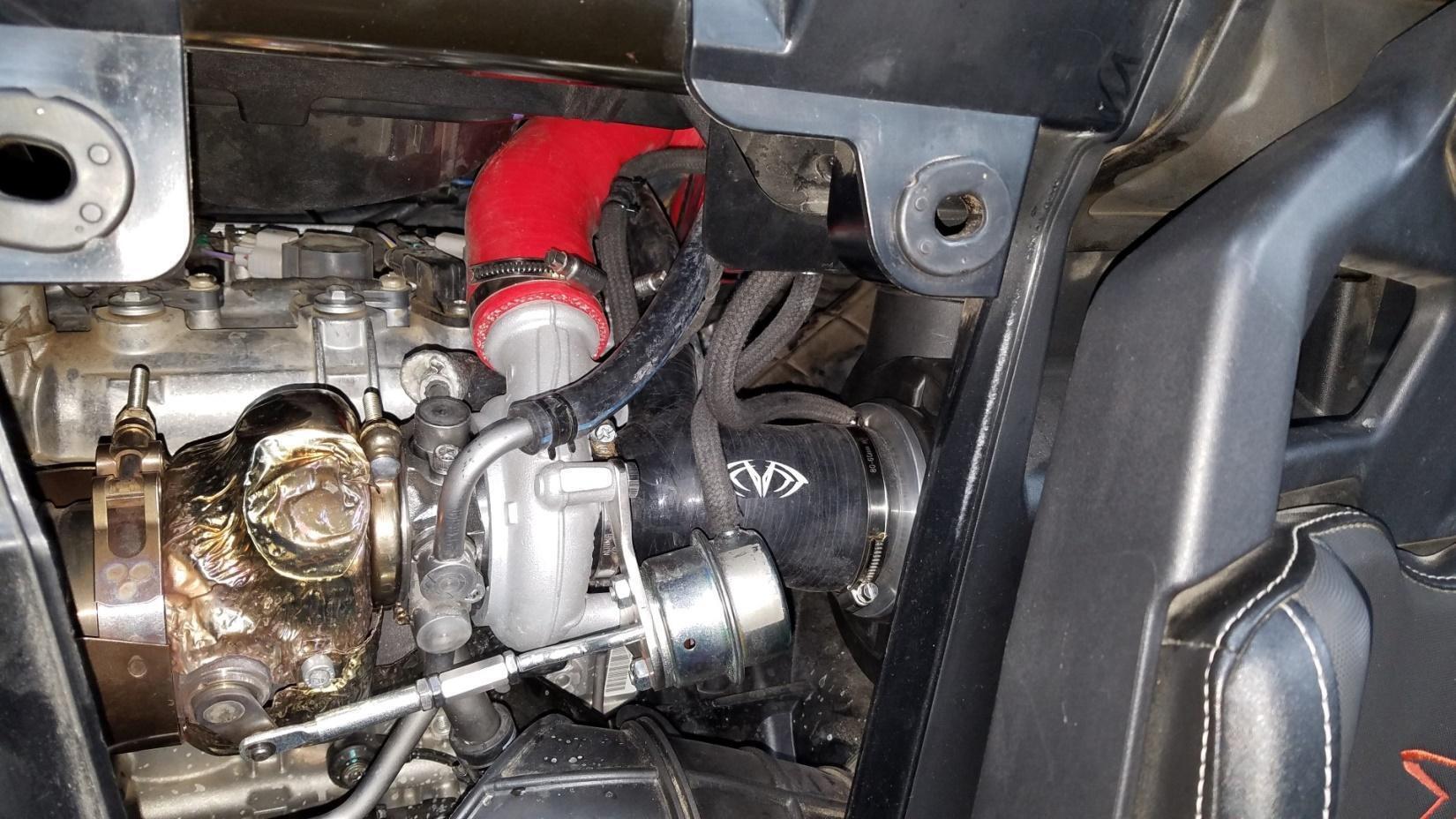

Install the supplied EVP silicone connector hose onto the factory turbo inlet and to the EVP V-Flow intake. Orient the breather port toward the rear of the machine. Install the included 3/4-3/4 hose adaptor into the breather port. Shorten the OEM breather hose as necessary so it is not kinked and is routed properly. Reuse OEM clamp to secure the breather hose onto the supplied hose barb. Reuse the OEM clamp on the turbo inlet and use the supplied 50-70mm clamp on the canister side – make sure the clamps are tight!
Can-Am Maverick X3 installation
15
Install the OEM boost control solenoid hose onto the EVP V-Flow intake 3/16 hose barb. Use the supplied 10.5 mm pinch clamp to secure the hose onto the barb.
16
Tighten canister bolts.
17
Reinstall OEM filter.
18
Reinstall OEM end cap – orient it the way it came off originally. Slide the filter band onto the seam of the filter canister.
19
Double check that all clamps are tight.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
