Can-Am 2017-2021 X3/Turbo R & 2020 Turbo RR Dynomite 275 & 310 — Install Guide

Can-Am · 2017-2021 Maverick X3 · SKU 2017-2020 X3 275 (600FC0011), 310 (600FC0012), 2020 Turbo R/RR 275

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
Parts included with Dynomite 275 Kit:
● Maverick X3 Dynomite Direct Replacement
Turbocharger
● DYNOMITE DM-275 and DM-310 Install Kit
● Maverick X3 Silicone Charge Tubes with BOV
Port
● Maverick X3 Blow Off Valve Kit
● Can Am X3 Injectors – Set of 3
● Maverick X3 Big Intake Outlet with New Silicone
Boot
● Maptuner X for BRP Vehicles (Includes Maptuner
X and BRP Cable)
Parts included with Dynomite 310 Kit:
● Dynomite 275 Kit
● Ultra-High Efficiency Intercooler – with Race Core
● Can Am Maverick X3 Head Stud Kit – Set of 8
Parts list for DM-275 and DM-310 Instal
1 Turbo Oil Feed Line
12” Fire sleeve for Oil Hose
1 2.5” T-bolt Clamp
1 2.0” T-bolt Clamp
1 27mm Pinch Clamp – Oil Drain Hose
1 20A Fuse
2 Bosch 4 BAR MAP Sensor
1 MAP Sensor Adaptor Harness
1 Fuel Pump Upgrade
1 Fuel Pump Adaptor Harness with Relay
8 18mm Pinch Clamps for Water Hoses
1 M8X1.25X40mm Stud
1 M8X1.25 Copper Flange Nut
24” 3/8” Silicone Water Hose
3” 3/8” Silicone Water Hose
9” 3/8” Silicone Water Hose
6” Fire sleeve for Water Hose
18” Fire sleeve for Water Hose
1 3/16” Black Nylon Elbow
7” 3/16” Vacuum Hose
2 Brass Splicer 3/8” Hose ID Barb – 3/8” Hose ID
1 3/8” Brass Elbow
Parts list for Rising Rate Fuel System Kit (DM-3
1 Corrugated Fuel Line 13.8” 1 Bosch 3 BAR Fue
1 Rising Rate Body and Bracket 1 5/16” Fuel Retu
1 1/4” NPT to 5/16” Barb 2 15.7mm Pinch Cl
Off
1 1/4” NPT to 5/16” 90 Deg Barb 1 10.0mm Pinch Cl
1 5/16” Brass T 2 13.3mm Pinch Cl
1 1/8” NPT Plug 2 6mm X 1.0 Nutze
1 Circlip 1-7/16 Internal 1 6mm X 1.0 Socke
2 M4X8MM Recessed Screw 1 In Tank Block O
1 Fuel Return Fitting and Grommet
1 EVP Camshaft set (exchange)
TURBO REMOVAL
Required tools
● Sockets (7mm, 8mm,
10mm, 11mm, and
13mm)
● T40 Torx
● Side cutter / wire cutter
● 4mm Allen
● 10mm wrench
Recommend Accessories:
● Boost gauge
● AFR gauge
Required Accessories:
● EVP or other Full Exhaust
l Kit:
40 KIT):
l Pressure Regulator
rn Block off Plug
amp – Fuel Return Block
amp – Return Line
amp – Tank Pressure Line
rts
t Head Cap Screw
ff Hose

Installation

1
Remove panel between the seats that allows access to the turbocharger.
2
Remove and label pressure lines from the boost control solenoid going to the wastegate actuator, intake, and air box.
3
Remove the worm drive clamp holding the intake tube onto the turbo.
4
Remove the worm drive clamp on the top of the air box.
5
Using a 13mm socket remove the 2 bolts behind the driver seat holding the air box to the firewall.
6
Remove the worm drive clamps or t-bolt clamps holding the charge tubes to the intercooler.
Can-Am Maverick X3 installation
7
Using a 10mm socket, remove the fasteners (4) holding the intercooler in place. Be sure to unplug the intercooler fan. Remove intercooler assembly from vehicle.
8
Remove the nut on the V-band clamp holding the exhaust onto the turbo.
9
Remove the worm drive clamps holding the heat shielding on to the mid-pipe. Remove heat shields from mid-pipe.
10
Remove oil drain line from turbocharger by cutting the OEM clamp.
11
Remove the charge tube from the turbo outlet.
12
Remove oil supply line from top of the turbocharger.
Can-Am Maverick X3 installation
13
Remove the nut securing the water line to the bottom of the exhaust manifold.
14
Using soft grip vise grips or hose clamps pinch off the soft coolant lines that supply and return water to the turbo.
15
Remove the OEM clamps holding the soft coolant line to the hard line on top and bottom. Using a side cutter, cut clamps securing soft water lines to the hard lines.
16
Remove socket head cap screw securing hard water lines to turbocharger and remove the hard line.
17
Remove bolts securing exhaust manifold heat shields – lower heat shield can be removed. Upper heat shield must stay on until the turbo is loose.
18
Using a 10mm socket or T40 Torx remove the fasteners holding the exhaust manifold to the engine and remove the turbo from the vehicle.
Can-Am Maverick X3 installation
19
Remove oil pressure sensor and OEM oil line (be sure to save the copper washers).
1
Slide supplied fire sleeve over the supplied oil hose. Sensor Reinstall oil pressure through the banjo side of the EVP oil supply hose. Re-use copper washers (install a copper washer on both sides of the banjo fitting).
2

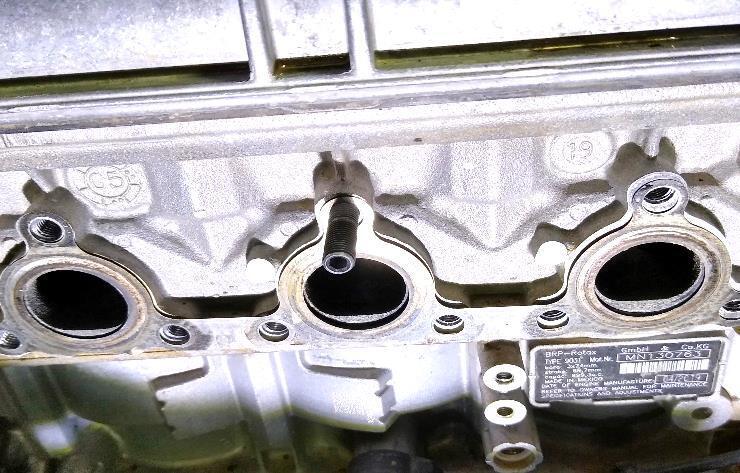

Install the provided stud into the top hole of the center exhaust port, thread stud in and back it out one full turn (See Fig. 1) Figure 1.
3
Reinstall the OEM exhaust gasket and install new turbo charger, reusing OEM fasteners.
4

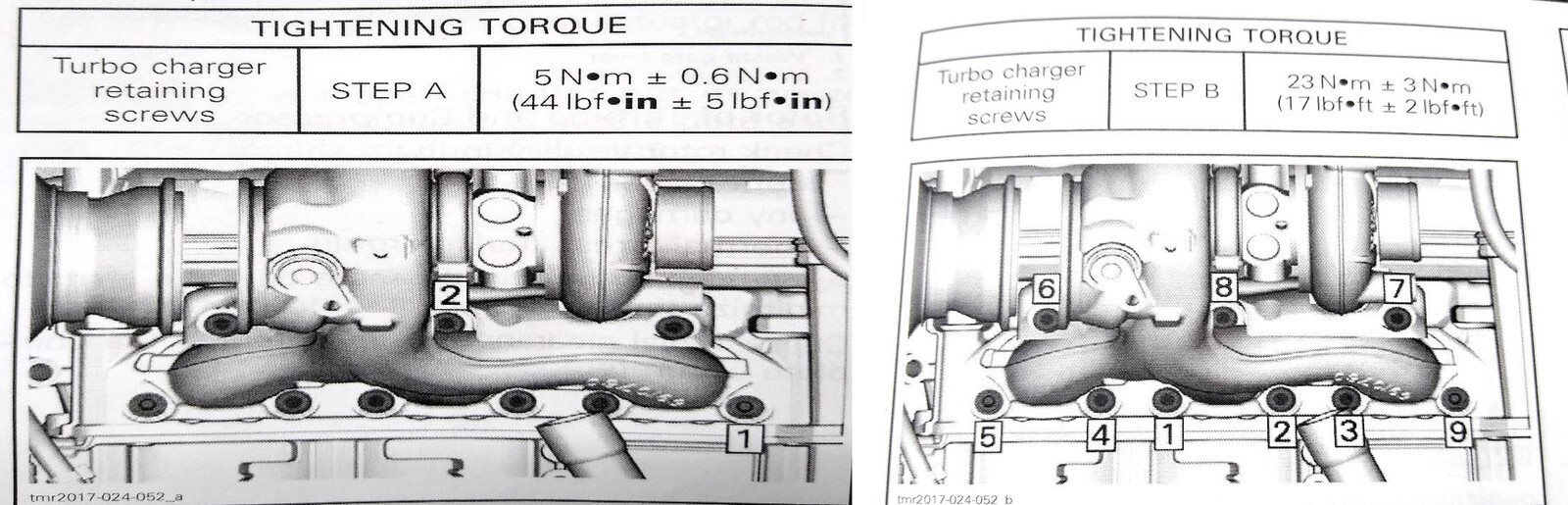

Torque (2) of the retaining screws to 44 in-lb (about 4 ft-lb), following the order shown in Figure 2.
5
Torque retaining screws to 17 ft-lb, following the order shown in Figure 3. On the final torque sequence take a 4mm Allen wrench and hold stud while tightening copper nut with 10mm wrench as close to 17 ft-lb as you can. (make sure you have at least 2 threads protruding from nut).
Can-Am Maverick X3 installation
6
Connect the oil line to the fitting on the top of the turbo and tighten.
7
Use a 27mm pinch clamp to secure the oil line onto the turbo charger.
8
Using the provided 24” coolant line with fire sleeve and 3/8 brass fitting, connect the supplied line to the lower coolant line on the passenger side. Use an 18mm pinch clamps to secure. Be sure to route the coolant line between the oil drain and motor.
9

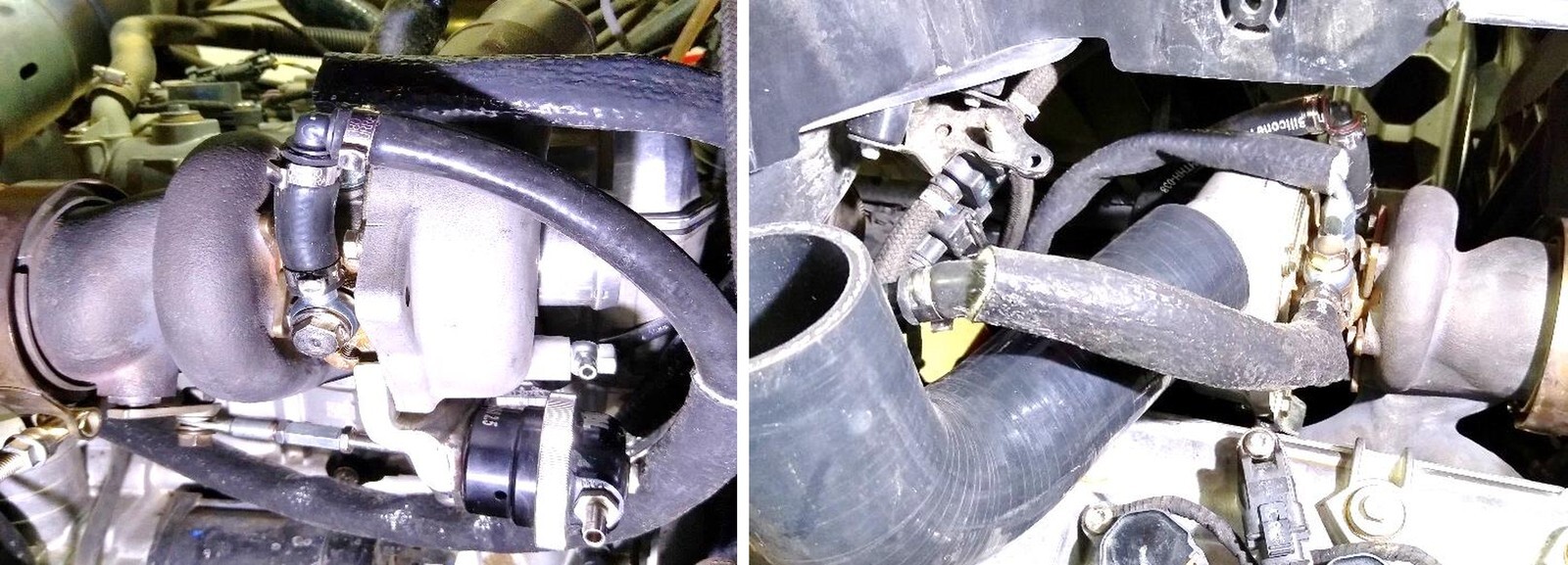

Connect coolant lines to the turbo as shown in Figure 4. Figure 4.
10
Cut 4” off existing upper coolant line. Using the supplied 9” coolant line with fire sleeve, connect line to the existing coolant line on the top using the supplied brass fitting. Connect line to the turbo as shown in Figure 5. Secure all connections with 18mm pinch clamps.
11
Install the new upper charge tube onto the turbo.
Can-Am Maverick X3 installation
12
Reinstall the intercooler and connect the charge tubes and intercooler fan.
13
Connect the new V-flow to the air box and reinstall the air box to the firewall. Tighten the clamps on the v-flow. (See V-flow instructions for further detail).
14
Connect the 3 lines from the boost control solenoid to their corresponding locations.
15
Reinstall exhaust - be sure to install the EVP supplied heat shield for the turbo exhaust housing. Additional heat shielding may be required. It is up to the customer and/or installer to determine what additional shielding may be required.
1
Remove plastics covering fuel tank. See picture below for location.
2
Unplug electrical connector going into the top of the pump.
Can-Am Maverick X3 installation
3

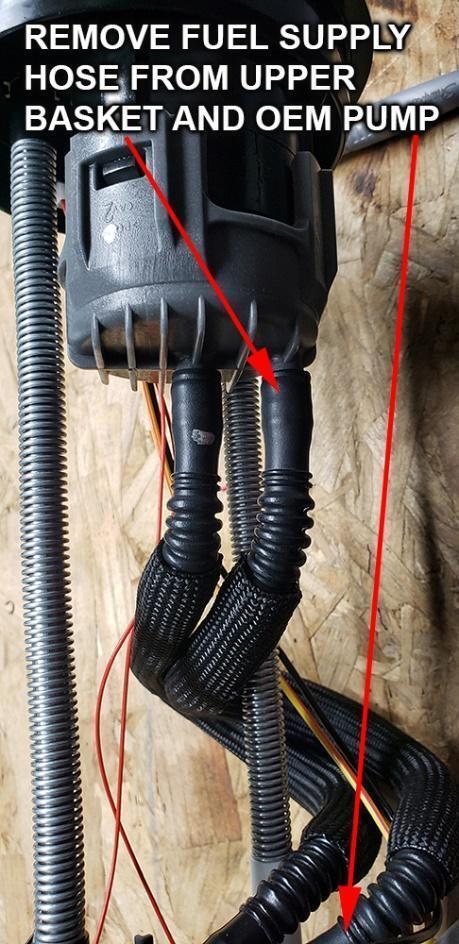

Unhook fuel hose by removing the red clip from the connection. Then push down on the fitting while pushing in on the back side of the fitting – then lift the fitting off the pump assembly.
4

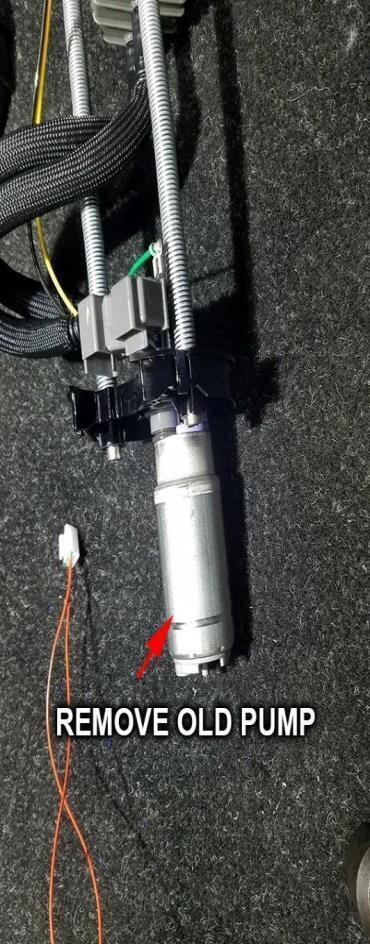

Rotate pump assembly cap counterclockwise and remove. Remove assembly. (see the pictures on the next few pages for clarification) NOTE: Your fuel pump assembly must be the 172 HP Turbo R or 195 HP RR versions. If you have a 2017 X3 or a 120 Base Model that has not been updated to the Turbo R or RR pump assembly, this must be purchased separately!
5

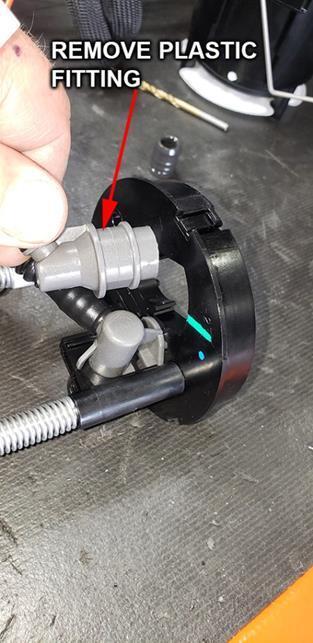

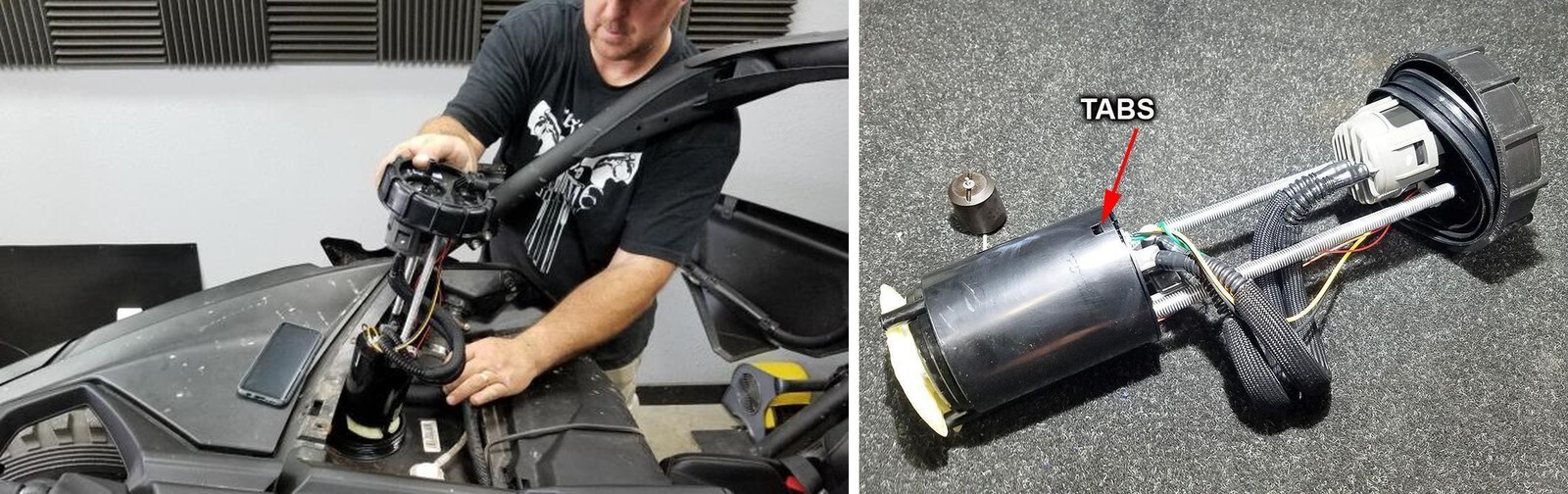

With the fuel pump on a workbench and all the fuel drained out of the pump assembly, press in on the tabs to release the housing covering the tank.
9

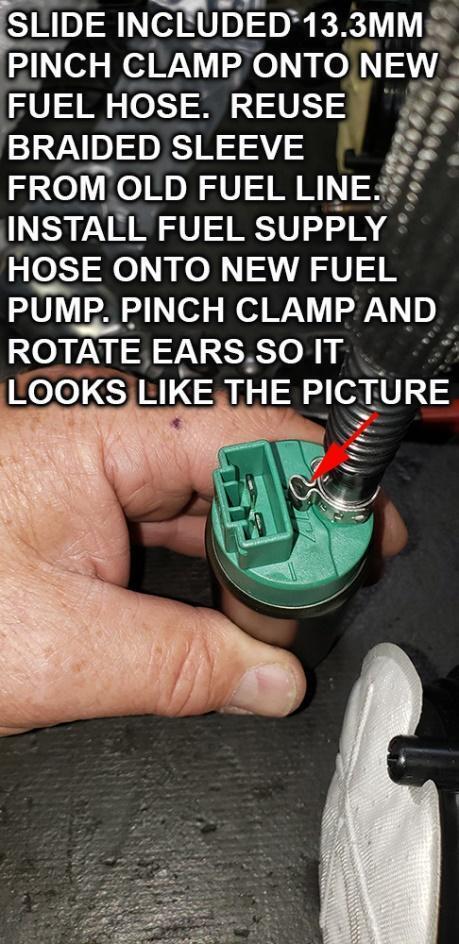

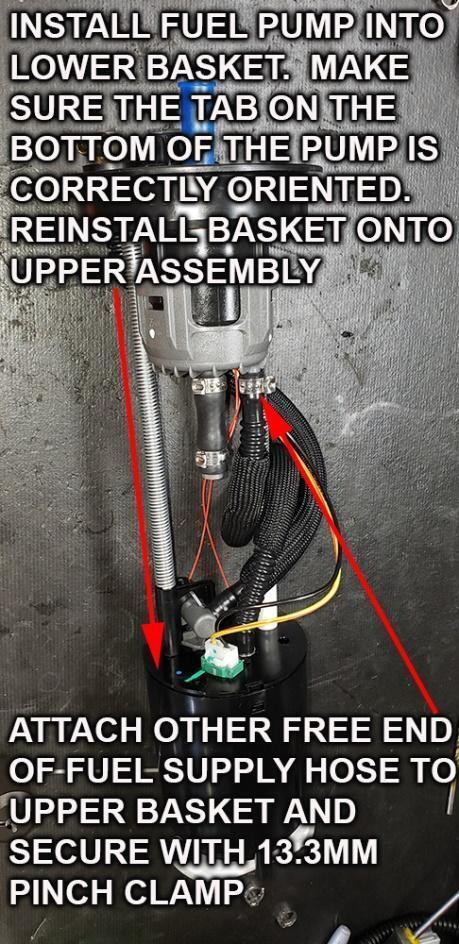

Install the EVP supplied fuel pump into the plastic housing that was removed in.
5
On the previous page. Make sure the pump is oriented and fitted correctly into the bottom of the housing - when properly oriented, the pump will drop into place and it will not rotate.
10
Plug the electric connection into the pump.
Can-Am Maverick X3 installation
11
Carefully align the tabs and reinsert the cap into the housing – do not force it – if it does not fit in with moderate pressure, something is not correct – recheck. See picture below of fuel line and electrical connection.
12
Reinstall pump assembly.
13
INSTALL EVP PLUG N PLAY FUEL PUMP RELAY HARNESS.
14
Connect the yellow wire with the ring terminal and the relay to one of the bolts that secure the fuel pump protector strap to the frame. Make sure the ring terminal is grounded to the frame.
15
Replace OEM fuel pump fuse with the supplied 20 amp in location F5.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
