Can-Am 2017+ Maverick X3 Billet Aluminum Engine Gear Kit — Install Guide

Can-Am · 2017+ Maverick X3 · SKU 804FC0166

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
EVP Aluminum Oil Pump Gear, 22 tooth Qty 1
EVP Aluminum Oil Pump Gear, 25 tooth Qty 1
EVP Aluminum Oil Pump Gear, 26 tooth Qty 1
EVP Aluminum Oil Pump Gear, 28 tooth Qty 1
EVP Aluminum Oil Pump Gear, 29 tooth Qty 1
EVP Aluminum Oil Pump Gear, 31 tooth Qty 1
Required tools
Torque Wrench
Motor Oil
Oil Filter
Crank-Stop Tool
Mag Cover Gasket
BRP Flywheel Puller
Loctite 648 (Green in color)
Loctite 271 (Red in color)

Installation

1

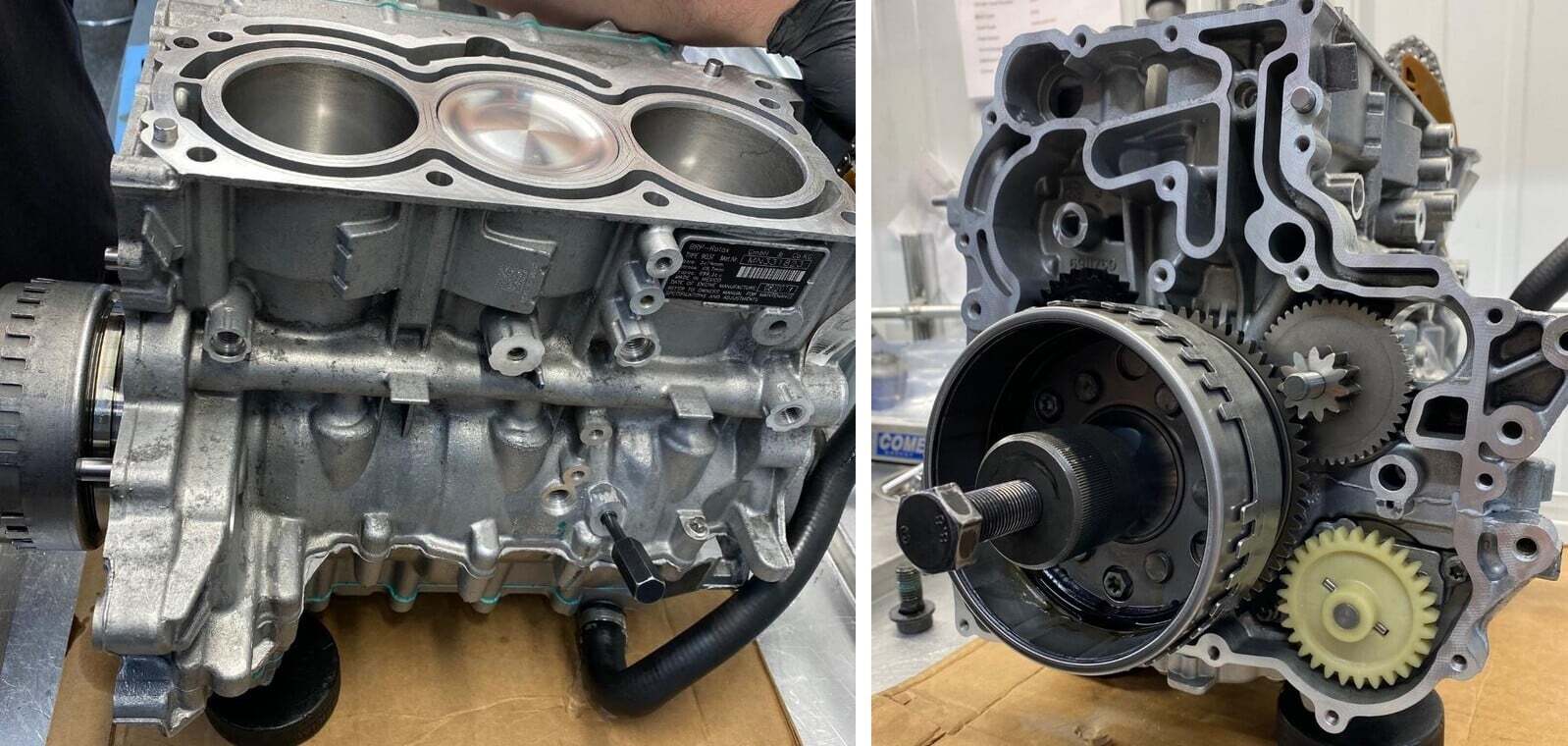

This job can be done with the motor in the vehicle, however for these installation instructions we pulled the motor, you must drain motor oil, remove oil filter, remove mag cover.
2

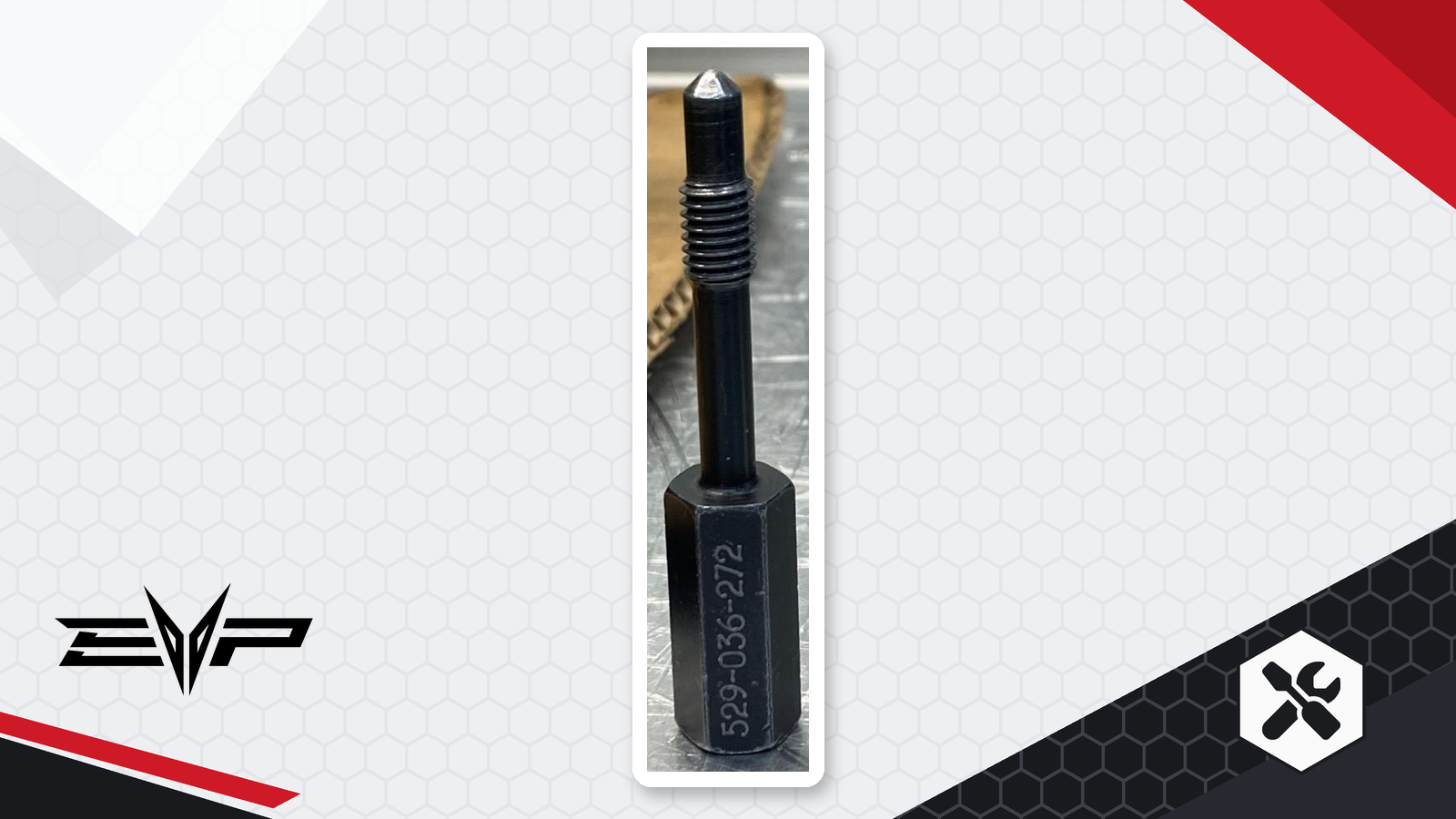

Find Top-Dead-Center (TDC). Install BRP Crank-Stop (PN:529-036-272) into block before removing flywheel. (Figure 1). IF you don’t have this tool, you can use 8 x 1.25 x 30mm long bolt. MUST FILE TIP DOWN TO A POINT. (Figure 2).
Can-Am Maverick X3 installation
3
Remove flywheel from the crack shaft, using a Flywheel puller and shaft protector. (Figure 3).
4

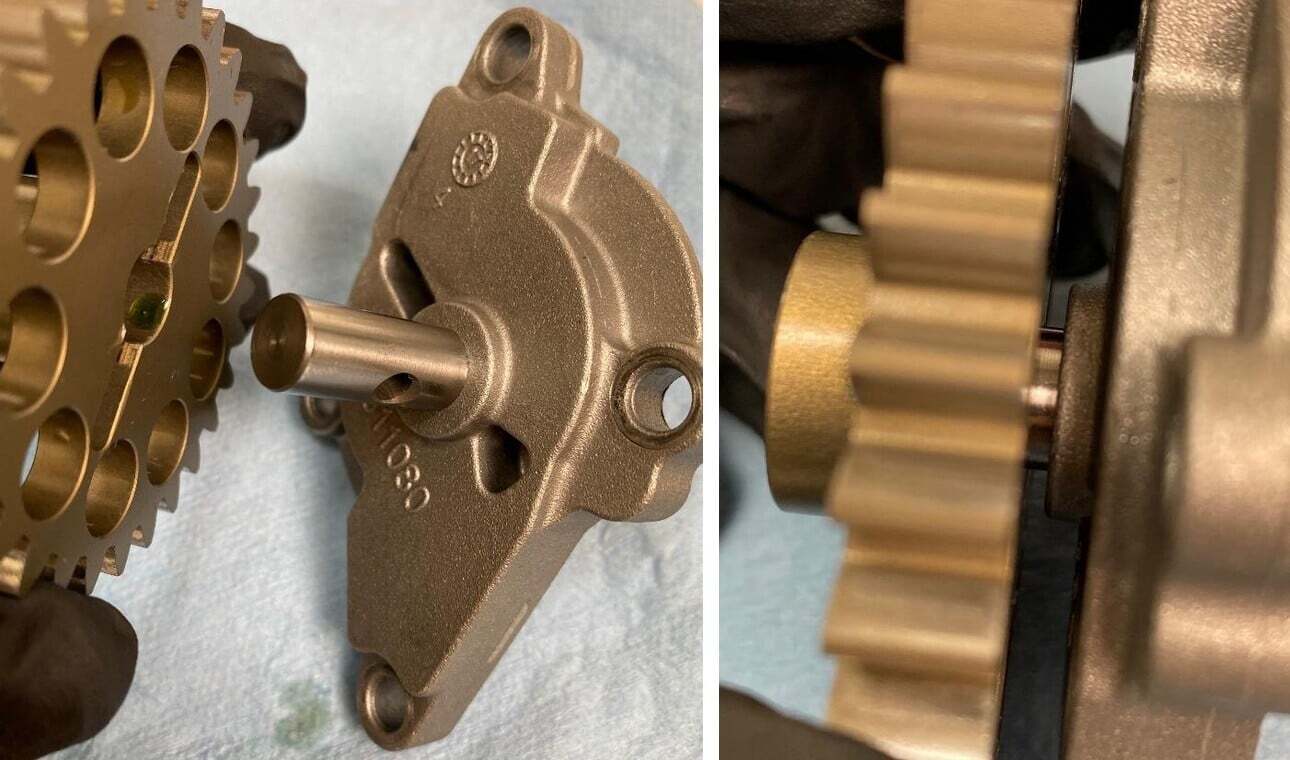

Remove and replace one gear at a time; total of (3) idle gears (torque to 80 in/lb using Loctite 271 on bolt threads) and (3) working gears (snap pins), (Use Loctite 648 on the gears) (Figure 4-5). When applying Loctite 648, please follow the procedure below. applied to the gears. Apply 2-3 small drops on the back side of the gear, let the Loctite tack up for 3 minites. Slide the gear onto the shaft and install onto the pin. Make sure no loctite seeps behind the gear onto the cover. This is crucial.
  • All of the gears that are secured with pins need to have Loctite Shaftlock.
Can-Am Maverick X3 installation
5
Once all (6) gears have been replaced, slide the flywheel and crankshaft key back onto the crank. Torque flywheel bolt to 111 ft/lb.
6
Replace Mag Cover Gasket, EVP PN: 804RC0014.
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
