Polaris 2018+ XP 1000 Ranger Shift-Tek Essential Clutch Kit — Install Guide

Polaris · 2018+ RZR · SKU 401FP0016

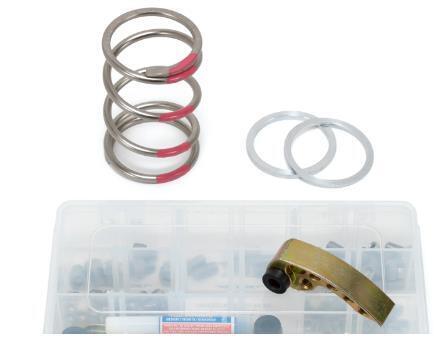

What's in the Box

Polaris RZR kit contents
Included parts
Silver/Pink Primary Spring Qty 1
Adjustable Primary Clutch Weights Qty 3
Variety of Different Weights Qty 1
Primary Spring Shim Qty 2
Required tools
10mm & 17mm Socket
Torque Wrench
Blue Loctite
Allen Wrenches
Clutch Compressor Tool

Installation

1
Remove the primary and secondary outer cover. Remove the drive belt. (Figure 1).
2
Loosen all (6) M6 primary clutch cover bolts with a 10mm socket. Only take (4) all the way out. NOTE: Apply pressure to the primary clutch cover when removing the last (2) bolts.
3

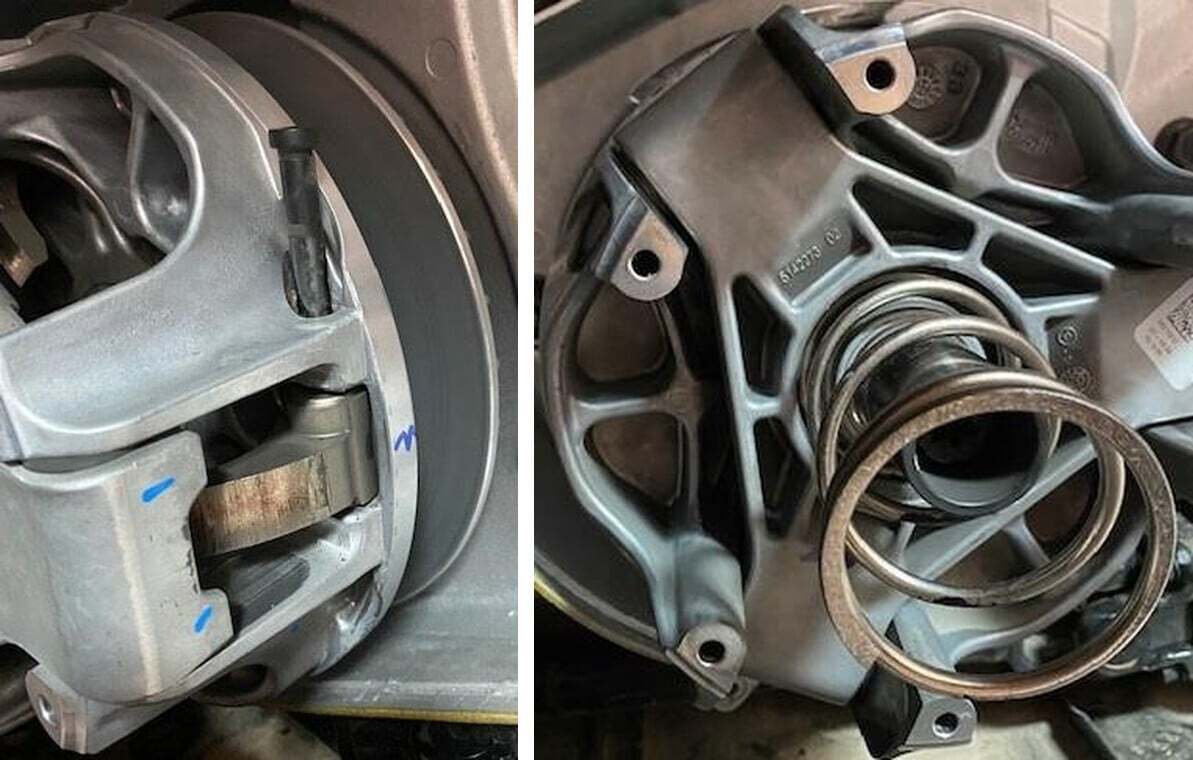

Remove the OEM spring. Next you will need a small Allen wrench and a 10mm socket to loosen the pins holding the OEM weights in. Perform this task one at a time.
Polaris RZR installation
4

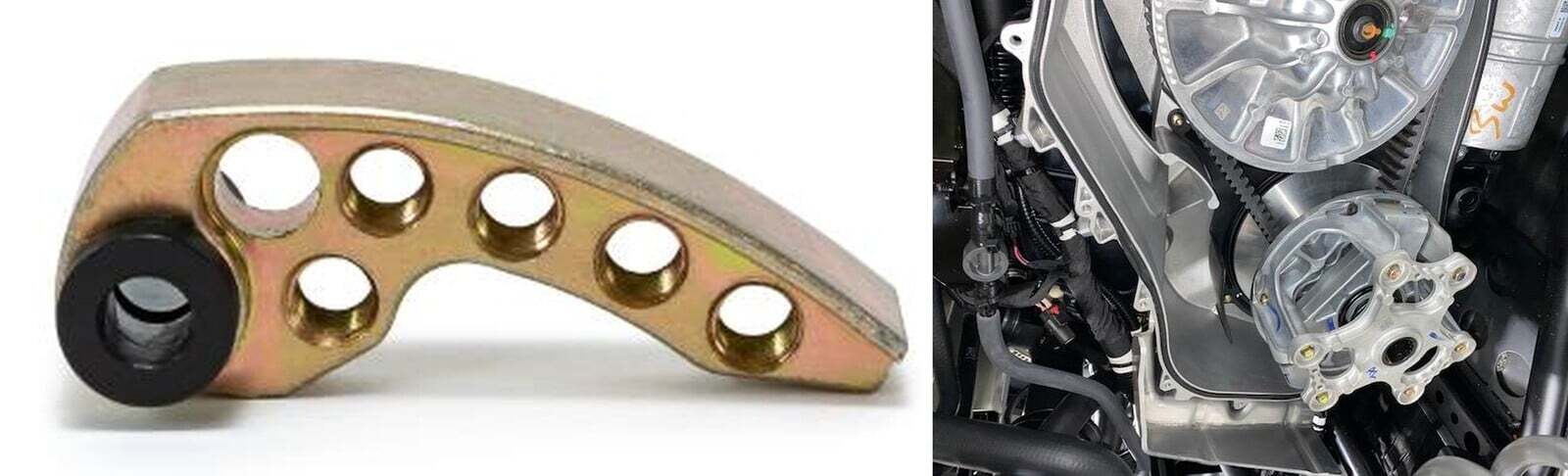

Tighten the pin holding the weights till it stops. DO NOT over tighten the pins. The weights should move freely with ease.
5
Place the EVP spring onto the primary clutch. Place the primary clutch cover onto the spring and compress. Torque the M6 bolts down to 100in-lbs (8.3 ft-lbs).
Polaris RZR installation
