Can-Am 2020 X3 Turbo RR Stage 1-5x85 ECU Programming — Tuning Guide

Can-Am · 2020 Maverick X3 · SKU Stage 1 (004FC0083), Stage 2 (004FC0084), Stage 3 (004FC0085), Stage 3R

What's in the Box

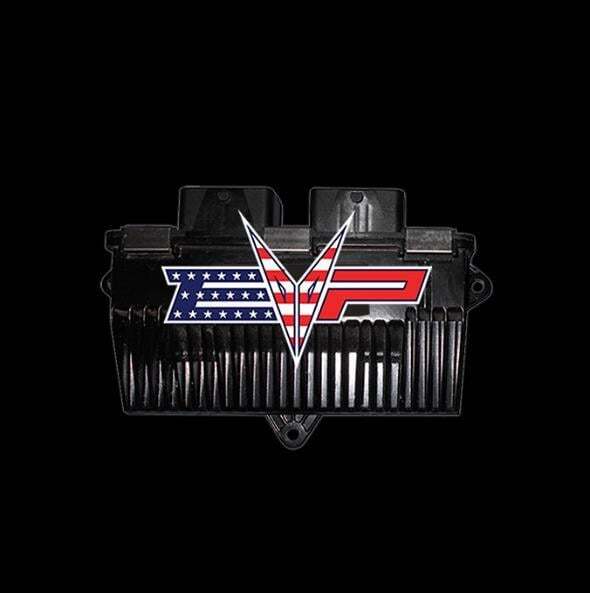

Can-Am Maverick X3 kit contents
Included parts
WASTEGATE ADJUSTMENT PROCEDURE
10mm
Mity
Flat
Required tools
Open End Wrench
vac (MV8255)
Head Screwdriver

Installation

1

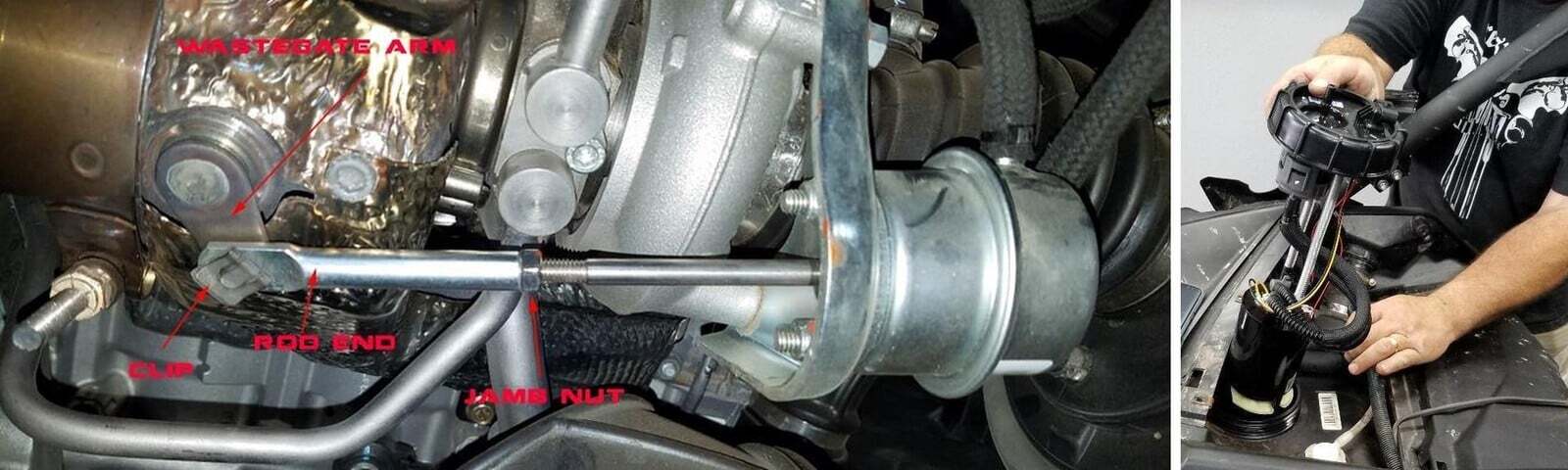

Remove panel between the seats that allows access to the turbocharger.
2
Using a small flat blade screwdriver, remove the retaining clip that holds the wastegate actuator rod onto the wastegate arm. (Do not lose the retaining clip.).
3
Using a 10mm wrench, loosen the jamb nut on the wastegate rod. (Careful not to bend the wastegate rod) (If the jamb nut is too tight you may have to remove the wastegate actuator from the turbo.).
4
Screw the rod end clockwise to shorten the arm to raise the crack pressure. Conversely, lengthen the rod to lower the crack pressure. Check crack pressure with Mityvac. Please see our YouTube video for the correct way to do this https://youtu.be/qOg2MnBfl08.
5
Check the pressure 3 times to make sure it is correct.
6
Put the wastegate rod end back onto the wastegate arm.
Can-Am Maverick X3 installation
7
Reinstall the clip and tighten the jamb nut.
1
Remove plastics covering fuel tank. See picture below for location.
2
Unplug electrical connector going into the top of the pump.
3
Unhook fuel hose by removing the red clip from the connection. Then push down on the fitting while pushing in on the back side of the fitting – then lift the fitting off the pump assembly.
4
Rotate pump assembly cap counterclockwise and remove. Remove assembly. (see the pictures on the next few pages for clarification).
5
With the fuel pump on a workbench and all the fuel drained out of the pump assembly, press in on the tabs to release the housing covering the tank.
Can-Am Maverick X3 installation
6

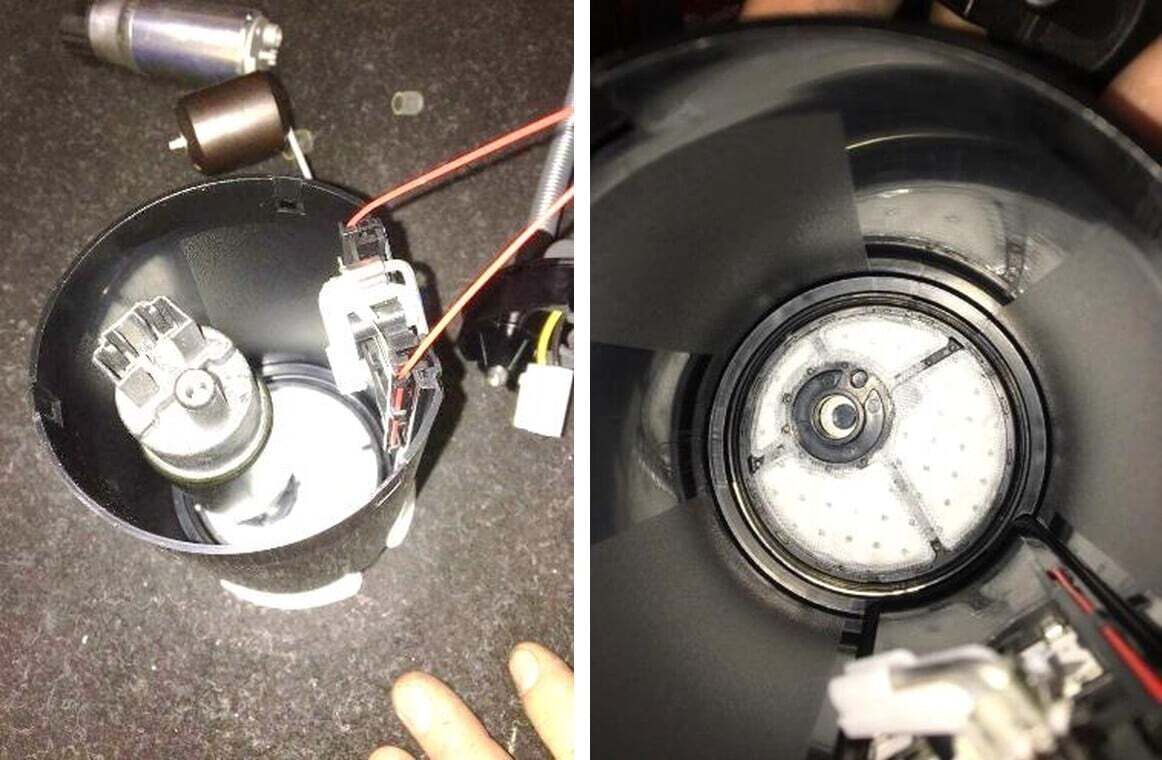

Below is what the assembly looks like with the housing off.
7

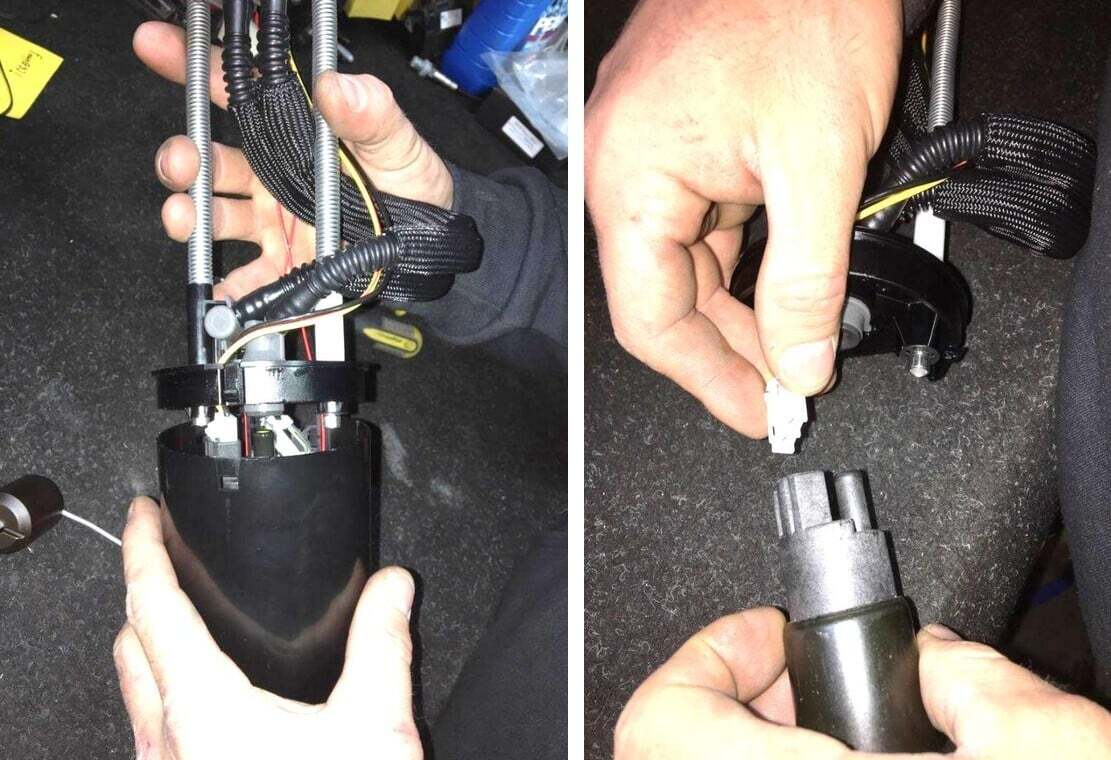

Pull the pump out of its seat and disconnect the electrical connection.
8

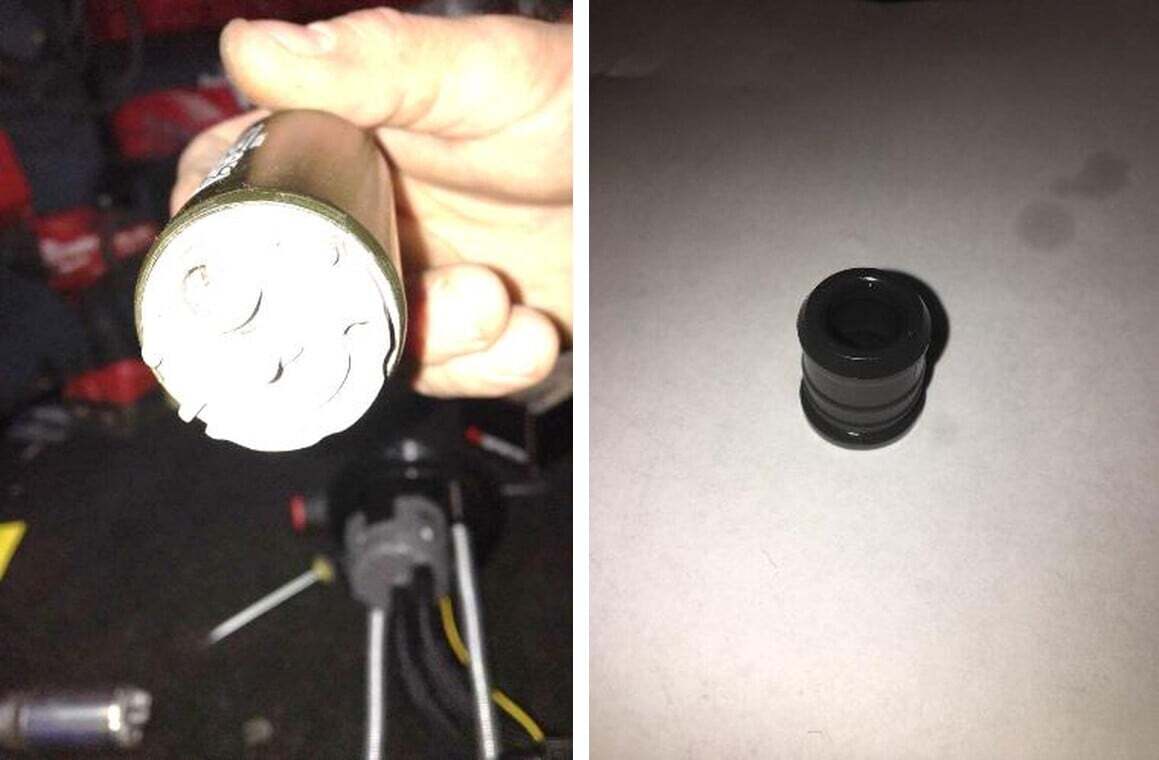

Install the EVP supplied fuel pump into the plastic housing that was removed in step 5 on the previous page. Make sure the pump is oriented and fitted correctly into the bottom of the housing - when properly oriented, the pump will drop into place and it will not rotate.
9
Plug the electric connection into the pump.
10
Carefully align the tabs and reinsert the cap into the housing – do not force it – if it does not fit in with moderate pressure, something is not correct – recheck. See picture below of fuel line and electrical connection.
11
Reinstall pump assembly.
Can-Am Maverick X3 installation
12
INSTALL EVP PLUG N PLAY FUEL PUMP RELAY HARNESS.
13
Connect the yellow wire with the ring terminal and the relay to one of the bolts that secure the fuel pump protector strap to the frame. Make sure the ring terminal is grounded to the frame.
14
Replace OEM fuel pump fuse with the supplied 20 amp in location F5.
Can-Am Maverick X3 installation
