Can-Am 2021 X3 Turbo RR Dynomite 310 2.0 Turbo Kit — Install Guide

Can-Am · 2021 Maverick X3 · SKU 2021 310 (600FC0030)

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
2021 X3 RR DM-310 2.0 Turbocharger Assembly Qty 1
2021 X3 RR Dynomite Install Kit Qty 1
2021 Dynomite Bench Flash Qty 1
EVP Charge Tube Kit Qty 1
X3 1000cc Injectors, Set of 3 (2020+ Only- Injector Adaptors) Qty 1
EVP Blow Off Valve 2.0 Kit Qty 1
High Pressure Fuel Pump Kit Qty 1
X3 Spark Plugs, Set of 3 Qty 1
Turbo Water Coolant Kit Qty 1
X3 Head Stud Kit, 9mm Qty 1
X3 Race Intercooler Qty 1
Plenum Reinforcement Brace Qty 1
Dynomite Turbo Oil Feed Line Qty 1
5/8" Fire sleeve for Oil Hose Qty 12"
X3 Turbo Heat Shield Qty 1
27mm Pinch Clamp – Oil Drain Hose Qty 1
20 AMP Fuse Qty 1
Grams 265LPH Fuel Pump Upgrade Qty 1
18mm Pinch Clamps for Water Hoses Qty 6
M8X1.25X40mm Stud Qty 1
M8X1.25 Copper Flange Nut Qty 1
3/8" Silicone Water Hose Qty 24"
3/16" 90 Degree Hose Barb Qty 2
3/8" Silicone Water Hose Qty 9"
3/4" Fire sleeve for Water Hose Qty 6"
3/4" Silicone Water Hose Qty 18"
3mm ID Vacuum Hose Qty 7"
3mm ID Vacuum Hose Qty 7"
Brass Splicer 3/8" Hose ID Barb – 3/8" Hose ID Qty 2
5/16" Corrugated Fuel Line 13.8" Qty 1
13.3mm Pinch Clamp Qty 2
11.3mm Pinch Clamp Qty 6
Required tools
Torque Wrench
Anti-Seize/ Penetrating Lube
Flat Head Screwdriver
Metric Socket Set
Metric Open End Wrench Set
Pinch Clamp Tool
Motor Oil
Engine Coolant
Torx Sockets

Installation

1
Remove panel between the seats that allows access to the turbocharger.
2
Remove and label pressure lines from the boost control solenoid going to the wastegate actuator, intake, and air box.
3
Remove the worm drive clamp holding the intake tube onto the turbo.
4
Remove the worm drive clamp on the top of the air box.
5
Using a 13mm socket remove the 2 bolts behind the driver seat holding the air box to the firewall.
6
Remove the worm drive clamps or t-bolt clamps holding the charge tubes to the intercooler.
7
Using a 10mm socket, remove the fasteners (4) holding the intercooler in place. Be sure to unplug the intercooler fan. Remove intercooler assembly from vehicle.
8
Remove the nut on the V-band clamp holding the exhaust onto the turbo.
9
Remove the worm drive clamps holding the heat shielding on to the mid-pipe. Remove heat shields from mid-pipe.
Can-Am Maverick X3 installation
10
Remove oil drain line from turbocharger by cutting the OEM clamp.
11
Remove the charge tube from the turbo outlet.
12
Remove oil supply line from top of the turbocharger.
13
Remove the nut securing the water line to the bottom of the exhaust manifold.
14
Using soft grip vise grips or hose clamps pinch off the soft coolant lines that supply and return water to the turbo.
15
Remove the OEM clamps holding the soft coolant line to the hard line on top and bottom. Using a side cutter, cut clamps securing soft water lines to the hard lines.
16
Remove socket head cap screw securing hard water lines to turbocharger and remove the hard line.
17
Remove bolts securing exhaust manifold heat shields – lower heat shield can be removed. Upper heat shield must stay on until the turbo is loose.
18
Using a 10mm socket or T40 Torx remove the fasteners holding the exhaust manifold to the engine and remove the turbo from the vehicle.
Can-Am Maverick X3 installation
19
Remove oil pressure sensor and OEM oil line (be sure to save the copper washers).
1
Slide supplied fire sleeve over the supplied oil hose. Sensor Reinstall oil pressure through the banjo side of the EVP oil supply hose. Re-use copper washers (install a copper washer on both sides of the banjo fitting).
2

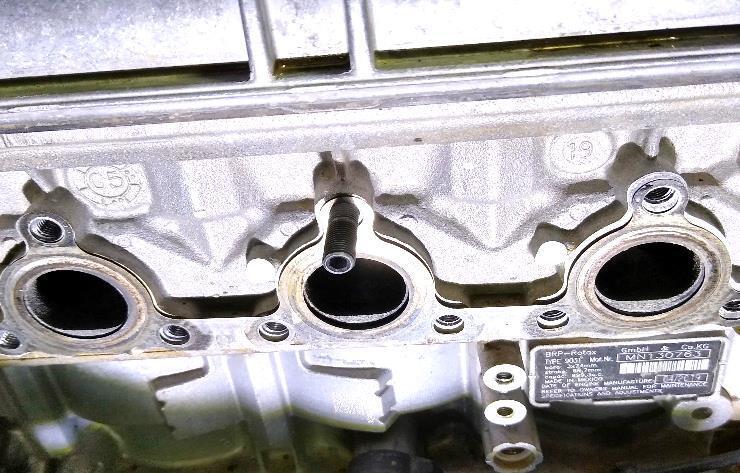

Install the provided stud into the top hole of the center exhaust port, thread stud in and back it out one full turn (See Fig. 1) Figure 1.
3
Reinstall the OEM exhaust gasket and install new turbo charger, reusing OEM fasteners.
4

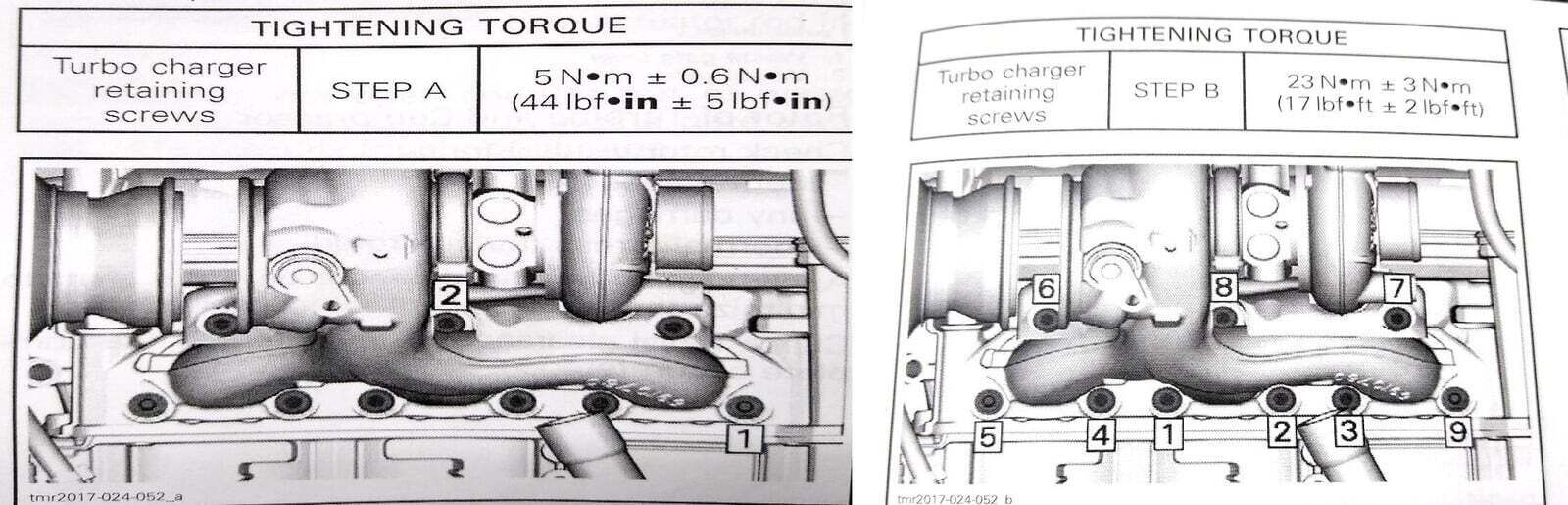

Torque (2) of the retaining screws to 44 in-lb (about 4 ft-lb), following the order shown in Figure 2.
5
Torque retaining screws to 17 ft-lb, following the order shown in Figure 3. On the final torque sequence take a 4mm Allen wrench and hold stud while tightening copper nut with 10mm wrench as close to 17 ft-lb as you can. (make sure you have at least 2 threads protruding from nut).
6
Connect the oil line to the fitting on the top of the turbo and tighten.
7
Use a 27mm pinch clamp to secure the oil line onto the turbo charger.
8
Using the provided 24” coolant line with fire sleeve connect the supplied line to the lower coolant line on the passenger side. Use 18mm pinch clamps to secure. Be sure to route the coolant line between the oil drain and motor.
Can-Am Maverick X3 installation
9

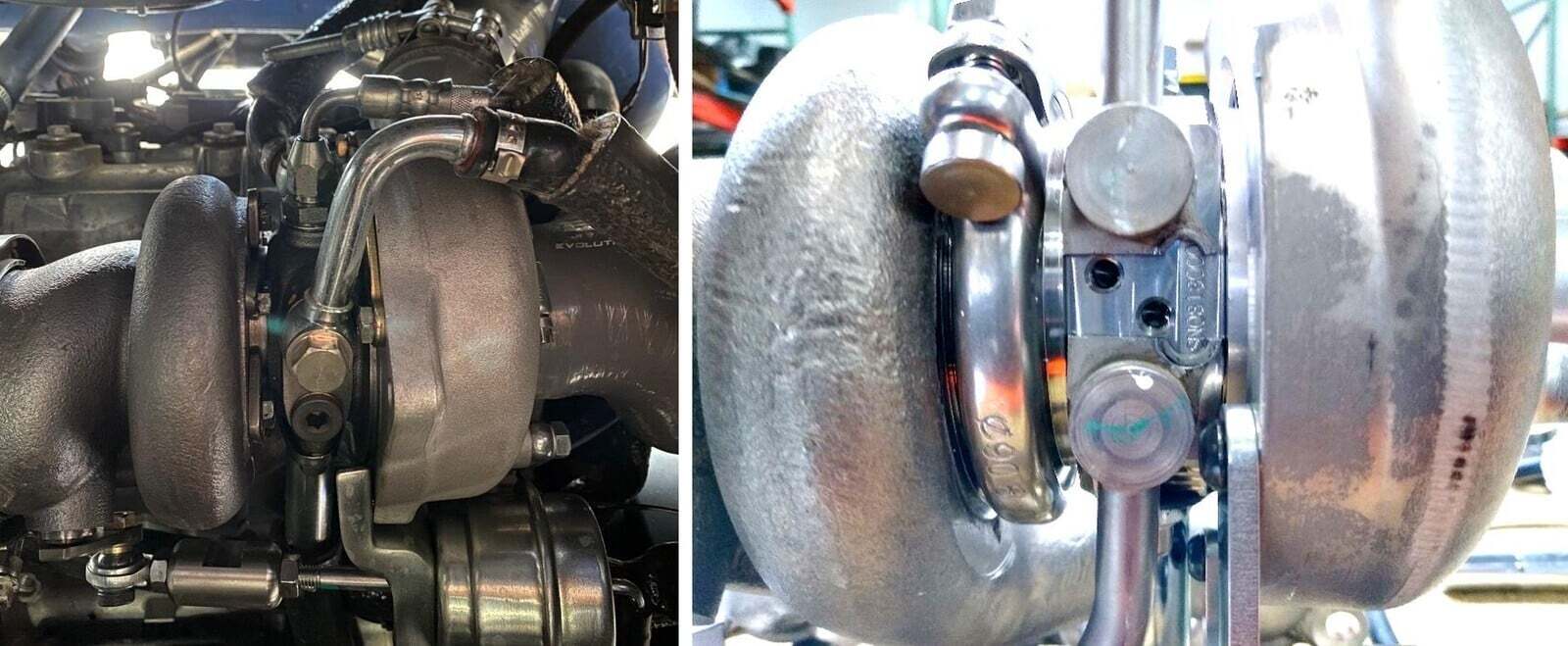

Connect coolant lines to the Figure 4 turbo as shown in Figure 4.
10
Using the supplied 9” coolant line with fire sleeve, connect line to the existing coolant line on the turbo. Connect line to the turbo as shown in Figure 5. Secure all connections with 18mm pinch clamps.
11
Install the new upper charge tube onto the turbo.
12
Reinstall the intercooler and connect the charge tubes and intercooler fan.
13
Connect the new V-flow to the air box and reinstall the air box to the firewall. Tighten the clamps on the v-flow. (See V-flow instructions for further detail).
14
Connect the 3 lines from the boost control solenoid to their corresponding locations.
15
Reinstall exhaust - be sure to install the EVP supplied heat shield for the turbo exhaust housing. Additional heat shielding may be required. It is up to the customer and/or installer to determine what additional shielding may be required.
1
Remove plastics covering fuel tank. See picture below for location.
2
Unplug electrical connector going into the top of the pump.
Can-Am Maverick X3 installation
3
Unhook fuel hose by removing the red clip from the connection. Then push down on the fitting while pushing in on the back side of the fitting – then lift the fitting off the pump assembly.
4

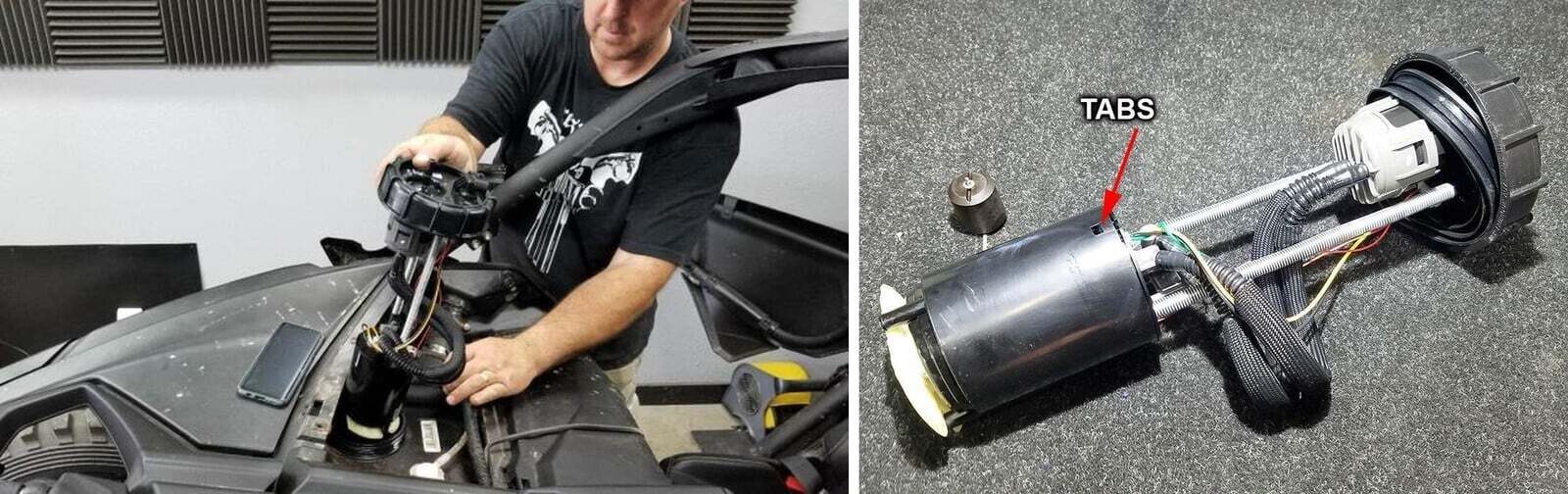

Rotate pump assembly cap counterclockwise and remove. Remove assembly. (see the pictures on the next few pages for clarification) NOTE: Your fuel pump assembly must be the 195 HP RR versions.
5

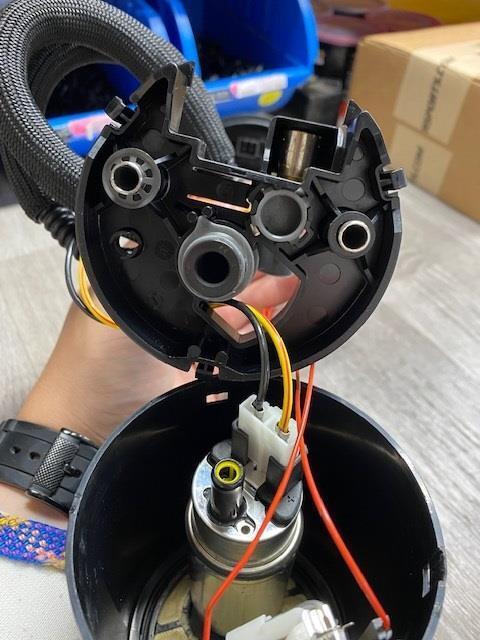

With the fuel pump on a workbench and all the fuel drained out of the pump assembly, press in on the tabs to release the housing covering the tank.
6

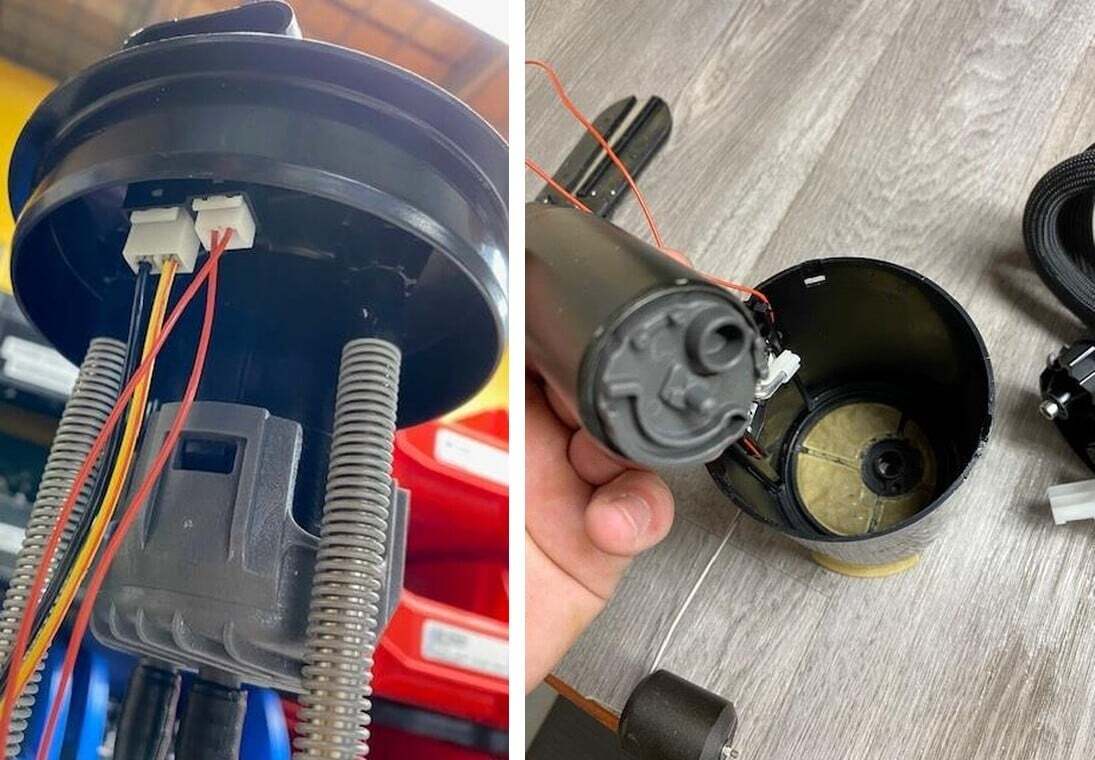

Unplug both white connectors from the top of the fuel pump assembly.
9
Install the EVP supplied fuel pump into the plastic housing the same way that was removed. Make sure the pump is oriented and fitted correctly into the bottom of the housing - when properly oriented, the pump will drop into place and it will not rotate.
10
Plug the electric connection into the pump.
11
Carefully align the tabs and reinsert the cap into the housing – do not force it – if it does not fit in with moderate pressure, something is not correct – recheck. Reconnect the top two white electrical connectors.
12
Reinstall pump assembly.
13
Replace OEM fuel pump fuse with the supplied 20 amp in location F5.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
