Polaris 2021+ XP Turbo/S & Pro XP & Turbo R Shift-Tek Mag Weight & — Install Guide

Polaris · 2021+ Pro XP (RZR) · SKU 402FP0087 (Weights Only), 402FC0097 (Ultimate Kit)

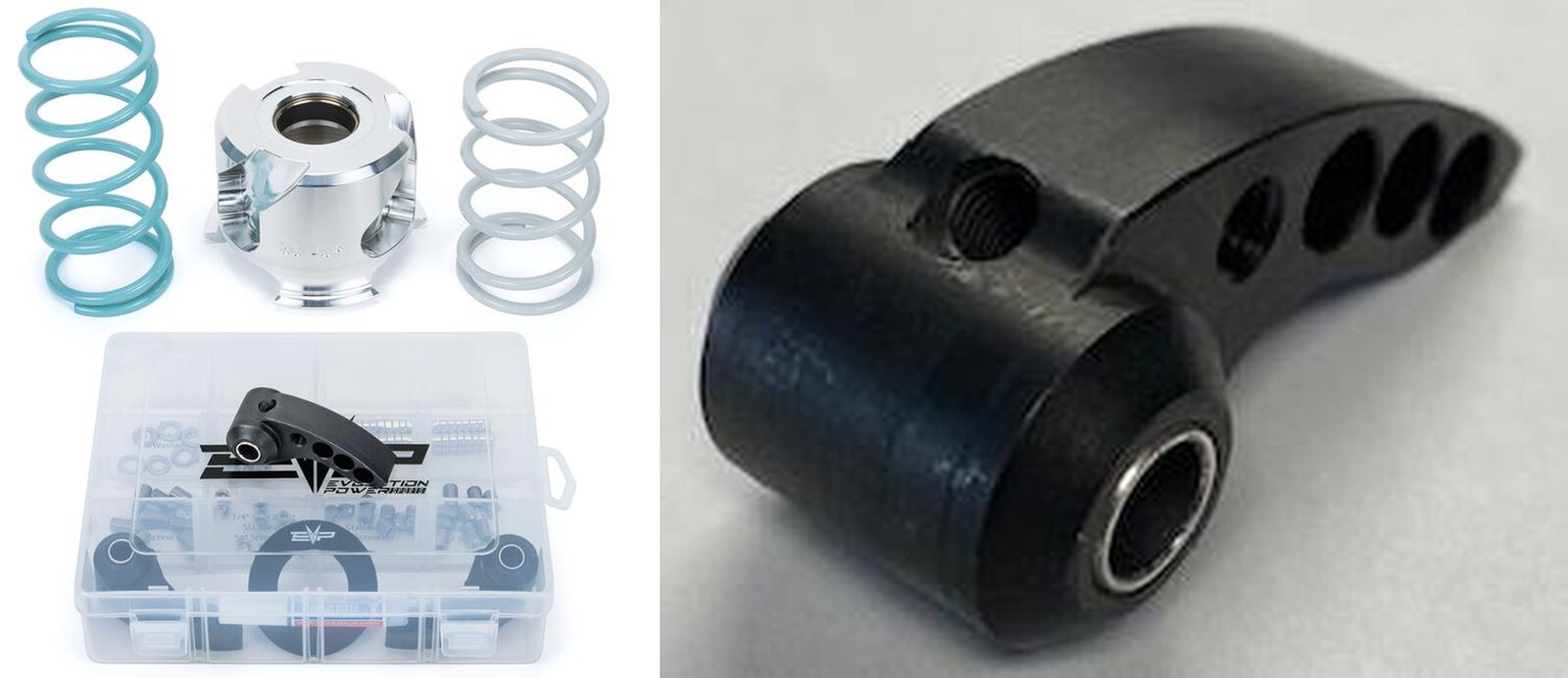

Ultimate Clutch Kit

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.

2021 XP Turbo/S Clutching Set Up (Without FPCM)

Clutch Setup
                           2-91        3-93        4-96
               Stock                                         5RWI-X85      P 270
                         2RWI-91     3RWI-93     4RWI-96
Horsepower      168         180         185        188          196         270
  Primary
               Silver      Silver      Silver      Silver      Silver      Silver
   Spring
Engagement
               2200        2200        2200        2200        2200        2200
 RPM (Low)
Engagement
               2600        2600        2600        2600        2600        2600
RPM (High)
 Operating
             8400-8600   8400-8600   8400-8600   8400-8600   8400-8600   8400-8600

RPM

Hole 1

Clutch Setup
                 0           0           0           0           0       (2) 3/8” SS

Hole 2

Clutch Setup
                 0        1 Mag       1 Mag       1 Mag       1 Mag      (2) 3/8” SS

Hole 3

Clutch Setup
                 0        2 Mag       2 Mag       2 Mag       2 Mag      (2) 3/8” SS

Hole 4

Clutch Setup
                 0           0           0           0           0       (2) 3/8” SS

Hole 5

Clutch Setup
                 0           0           0           0           0       (2) 3/8” SS

Assembled Weight in

Clutch Setup
               68.7g       111g        111g        111g        111g        81.4g
  Grams

Secondary

Clutch Setup
  Spring     Turquoise   Turquoise   Turquoise   Turquoise   Turquoise   Turquoise

Helix

Clutch Setup
             EVP 38-48   EVP 38-48   EVP 38-48   EVP 38-48   EVP 38-48   EVP 38-48

2021 XP Turbo/S Clutching Set Up (With FPCM)

Clutch Setup
               Stock       2-91        3-93        4-96          5-E85       5RWI-X85                P 270
                         2RWI-91     3RWI-93     4RWI-96
Horsepower      168         200         207         213           208           221                   270
  Primary
               Silver      Silver      Silver      Silver        Silver        Silver                Silver
   Spring
Engagement
               2200        2200        2200        2200          2200          2200                  2200
 RPM (Low)
Engagement
               2600        2600        2600        2600          2600          2600                  2600
RPM (High)
 Operating
             8400-8600   8400-8600   8400-8600   8400-8600    8400-8600      8400-8600          8400-8600

RPM

Hole 1

Clutch Setup
                 0           0        1 Mag       1 Mag         1 Mag         1 Mag                  3 Mag

Hole 2

Clutch Setup
                 0        1 Mag       1 Mag       2 Mag         1 Mag         3 Mag                  4 Mag

Hole 3

Clutch Setup
               1 Mag      2 Mag       1 Mag       2 Mag         1 Mag         3 Mag                  4 Mag
  Hole 4                             (2) 3/16”
                 0           0                   (2) 1/4 SS   (2) 3/16” SS   (2) 1/4 SS         (2) 3/8” SS

SS

Hole 5

Clutch Setup
                 0           0           0           0             0             0               1/2” SS

Assembled Weight in

Clutch Setup
               109g        111g        112g        115g          112g          117.2                 125.5g
  Grams

Secondary

Clutch Setup
  Spring     Turquoise   Turquoise   Turquoise   Turquoise     Turquoise     Turquoise          Turquoise

Helix

Clutch Setup
             EVP 38-48   EVP 38-48   EVP 38-48   EVP 38-48    EVP 38-48      EVP 36-42          EVP 38-48

2020 Pro XP Clutching Set Up

Clutch Setup
                           2-91         3-93         3-96
               Stock                                            4RWI-X110    5RWI-X85         P 280
                         2RWI-91      3RWI-93      3RWI-96
Horsepower      181         217          228          237          250          257            280
  Primary
               Silver      Silver       Silver       Silver       Silver       Silver         Silver
   Spring
Engagement
               2200        2200         2200         2200         2200         2200            2200

RPM

Operating

Clutch Setup
             8400-8600   8400-8600    8400-8600    8400-8600    8400-8600    8400-8600      8400-8600

RPM

Clutch Setup
   Hole 1        0        1 Mag        1 Mag        2 Mag         3 Mag       3 Mag           5 Mag
  Hole 2      1 Mag       2 Mag        3 Mag        3 Mag         3 Mag       4 Mag           5 Mag
  Hole 3      1 Mag       2 Mag        3 Mag        3 Mag         3 Mag       4 Mag           5 Mag
  Hole 4         0       (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS     (2) 3/8 SS
  Hole 5         0           0            0            0        (1) 1/2 SS   (1) 1/2 SS     (1) 1/2 SS

Assembled

Clutch Setup
Weight in      110g        115g         117.2        118.5       122.0g       124.0g          130.0g
  Grams

Secondary

Clutch Setup
             Turquoise   Turquoise    Turquoise    Turquoise    Turquoise    Turquoise      Turquoise
  Spring
  Helix      EVP 36-42   EVP 36-42    EVP 36-42    EVP 36-42    EVP 36-42    EVP 36-42      EVP 36-42

2021+ Pro XP & Turbo R Clutching Set Up

Clutch Setup
                           2-91         3-93         3-96
               Stock                                            4RWI-X110    5RWI-X85         P 280
                         2RWI-91      3RWI-93      3RWI-96
Horsepower      181         217          228          237          250          257            280
  Primary
               Silver      Silver       Silver       Silver       Silver       Silver         Silver
   Spring
Engagement
               2200        2200         2200         2200         2200         2200            2200

RPM

Operating

Clutch Setup
             8400-8600   8400-8600    8400-8600    8400-8600    8400-8600    8400-8600      8400-8600

RPM

Clutch Setup
  Hole 1         0        1 Mag        1 Mag        2 Mag         3 Mag       3 Mag           5 Mag
  Hole 2      1 Mag       2 Mag        3 Mag        3 Mag         3 Mag       4 Mag           5 Mag
  Hole 3      1 Mag       2 Mag        3 Mag        3 Mag         3 Mag       4 Mag           5 Mag
  Hole 4         0       (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS   (2) 1/4 SS     (2) 3/8 SS
  Hole 5         0           0            0            0        (1) 1/2 SS   (1) 1/2 SS     (1) 1/2 SS

Assembled

Clutch Setup
Weight in      110g        115g         117.2        118.5       122.0g       124.0g          130.0g
  Grams

Secondary

Clutch Setup
             Turquoise   Turquoise    Turquoise    Turquoise    Turquoise    Turquoise      Turquoise
  Spring
  Helix      EVP 38-48   EVP 38-48    EVP 38-48    EVP 38-48    EVP 38-48    EVP 38-48      EVP 38-48

5

Clutch Setup
                                           4        3
                                                          2
                                                                1

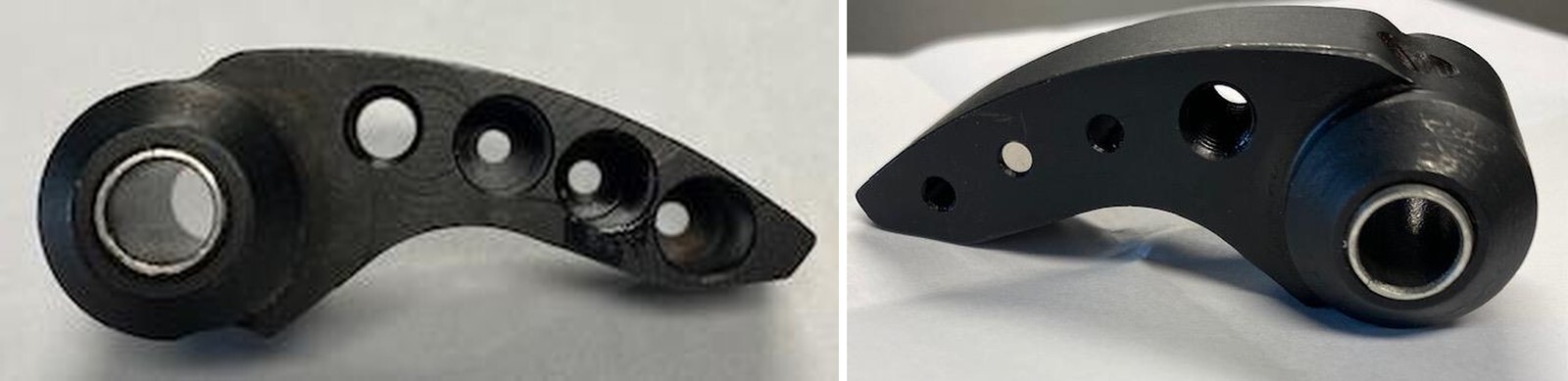

Hole 5 Threaded

Hole 4 Threaded

Make sure magnets are fully seated.

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement. When adding magnets make sure the holes and magnets are clear of debris. If magnets are stuck, use back window to push the magnets out.

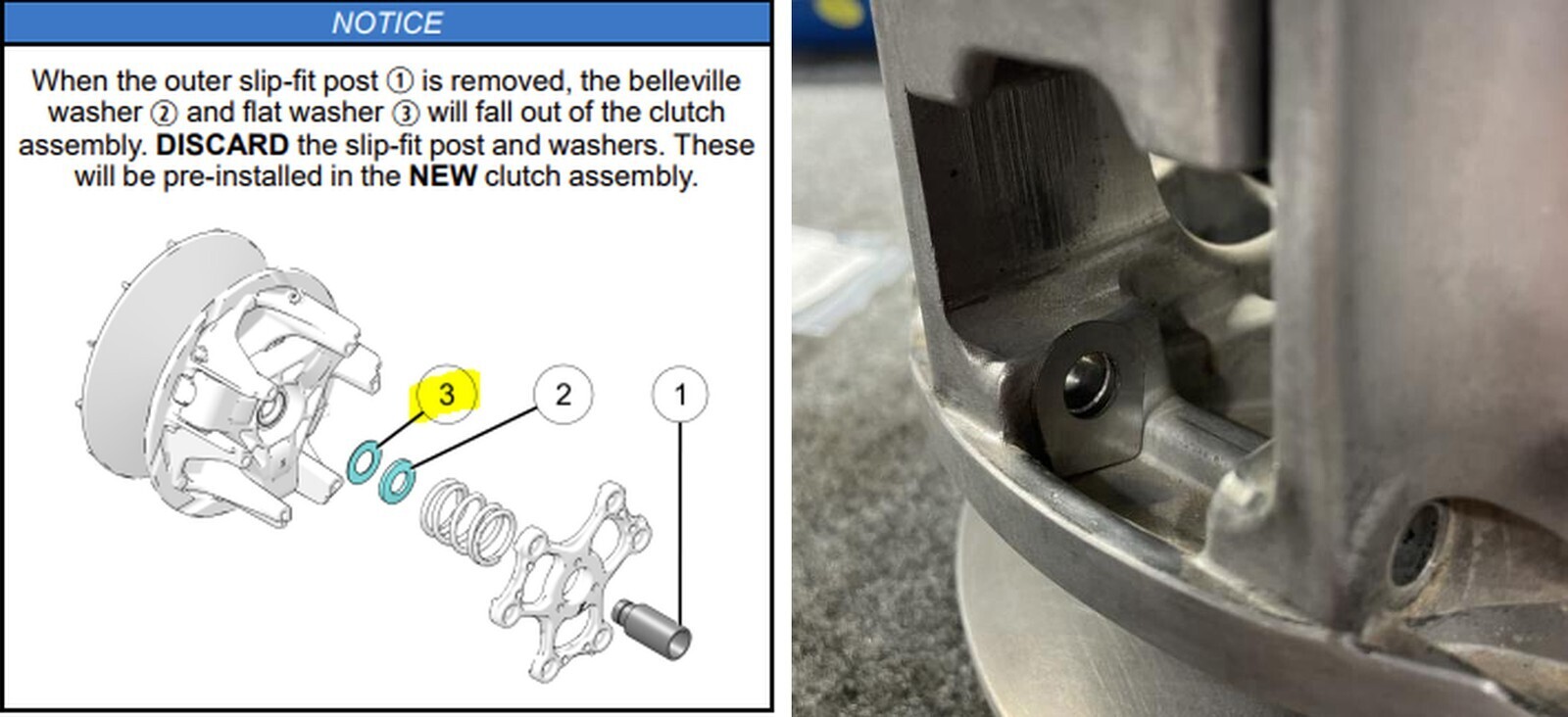

Notethe OEM limiter washer in 2020 was .090” and some 2021 models have a thicker .130” washer. Remove the primary clutch cover and remove the slip-fit post. You will notice an O-ring, limiter washer (flat washer) and Belleville washer. Only remove part number 3 in the diagram. Install supplied EVP limiter washer, reinstall the conical washer, slip fit post and clutch cover.

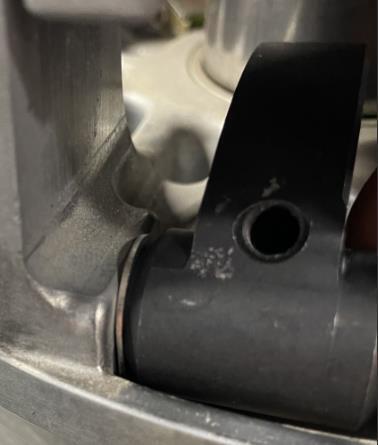

NoteInstall (1) washer on the pin, depending on what rotation of the clutch, you want the washer on the outside. See below.
