2022 Can Am X3 Shift-Tek-P Essential Clutch Kits — Install Guide

Can-Am · 2022 Maverick X3 · SKU Sand 40-45 (402FC0057), Trail 41-52 (402FC0027)

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
Helix Assembly
No Mar Tip
Belt Sheave Tool
Required tools
Clutch Service Tool Kit
Screwdriver(s)
13,17,19,22mm Sockets
Impact Driver
6mm Allen Socket
Red Loctite
Torque Wrench

Installation

1
Remove CVT outer clutch cover and belt.
2

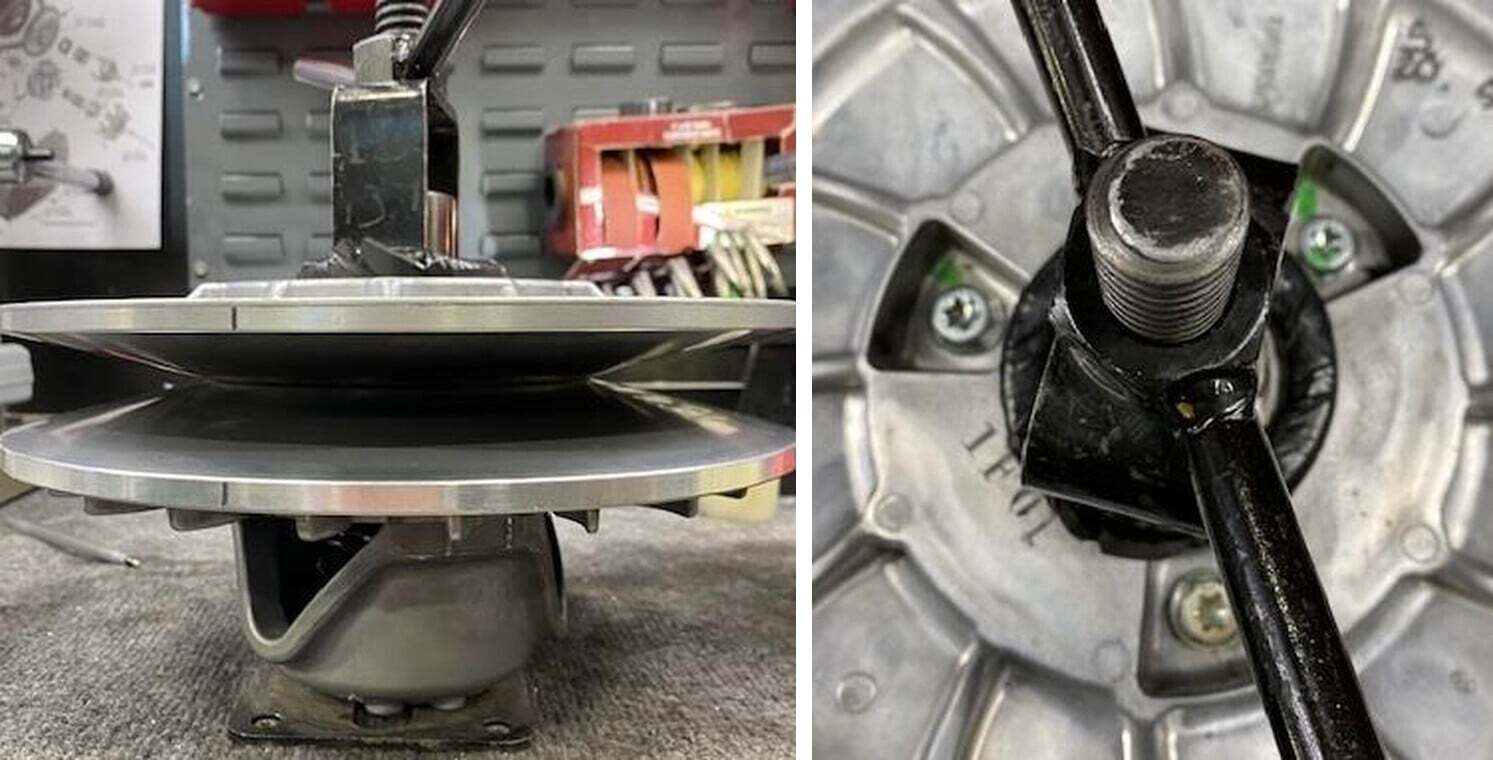

Remove the secondary clutch with a 17mm socket and impact, mount it into a clutch compression tool. With a sharpie make alignment marks on both sheaves. (Figure 1).
3
Use 13mm socket to take 3 fasteners out of the helix and carefully loosen the spring compression tool to remove tension. (Figure 2).
4
Pull off both sheaves, remove spring cup and spring from the OEM helix.
5
Grab the new helix, make sure the helix cap is adjusted to -45 degrees, if not loosen (3) Allen screws and clock the helix cap. Tighten the (3) Allen screws back down.
6
Reassemble the secondary clutch on the clutch compression tool in this order: Helix assembly, stock spring in hole 4 (EVP Purple Spring hole 5), spring cap, both sheaves in alignment. When compressing make sure the rollers are in line with the helix ramps. You may need to adjust with your hands while compressing.
Can-Am Maverick X3 installation
7
Apply Red Loctite onto the threads of the (3) 13mm bolts holding the helix to the sheaves.
6
Reinstall the clutch on the vehicle and torque secondary bolt to 52 ft-lbs.
7
Using the Can Am belt changing tool with EVP non-marring tip reinstall belt, spin secondary to get belt back to the top of the clutch.
8
Before removing the belt changing tool, apply a small amount of pressure to EVP helix cover and loosen the (3) 6mm Allen screws enough to clear the machined grove.
9

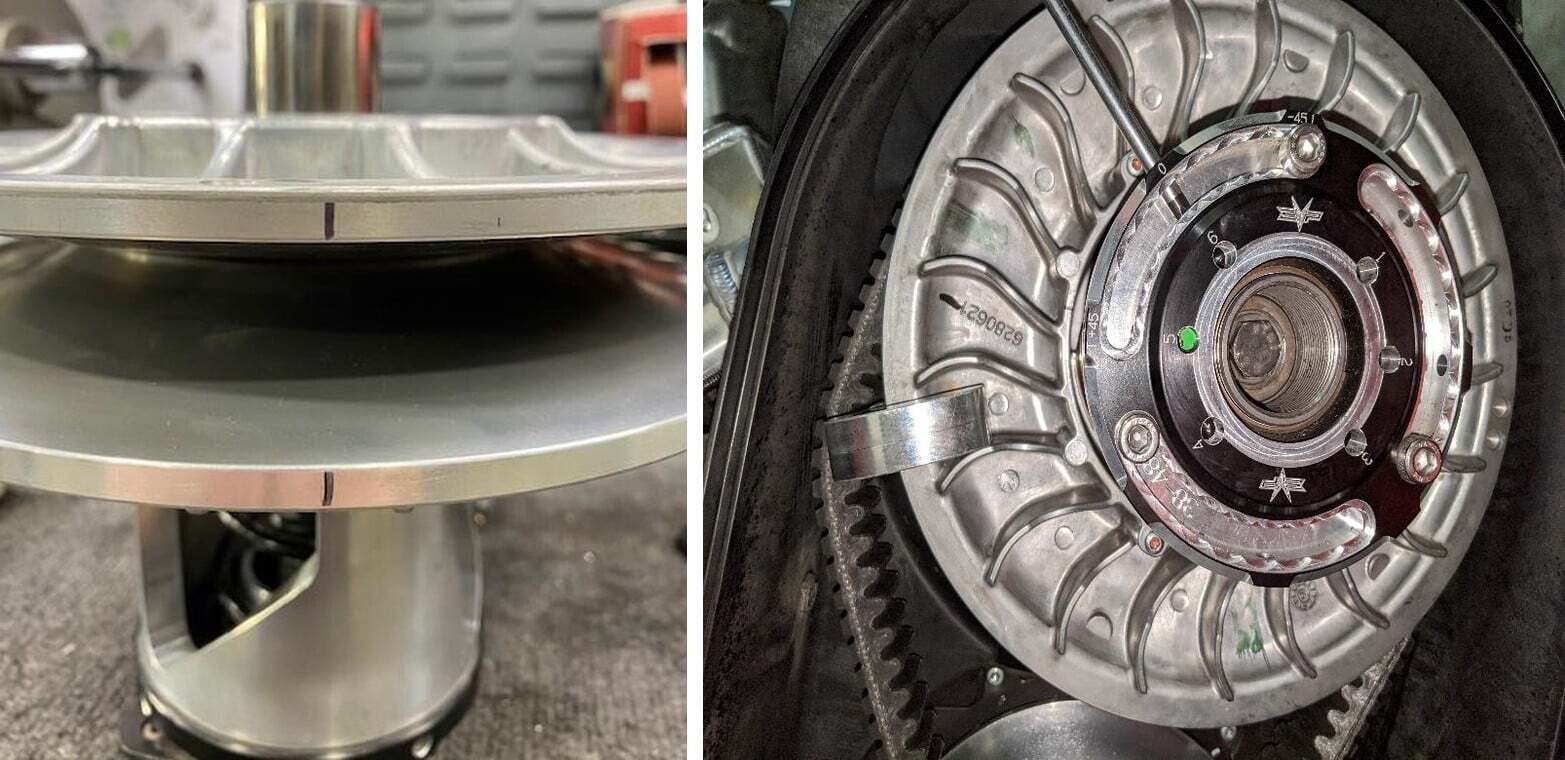

Put the EVP sheave holder between the fins on the secondary clutch and use a screwdriver to rotate the helix cover clockwise to desired tension. Use the 6mm Allen to tighten the screws back down. (See picture on next page).
Can-Am Maverick X3 installation
