Polaris 2022+ Pro R Intake Silicone Tube Kit — Install Guide

Polaris · 2022+ Pro R (RZR) · SKU Lifted Lime (100FP0143), Race Red (100FP0144), Orange (100FP0145), Black

What's in the Box

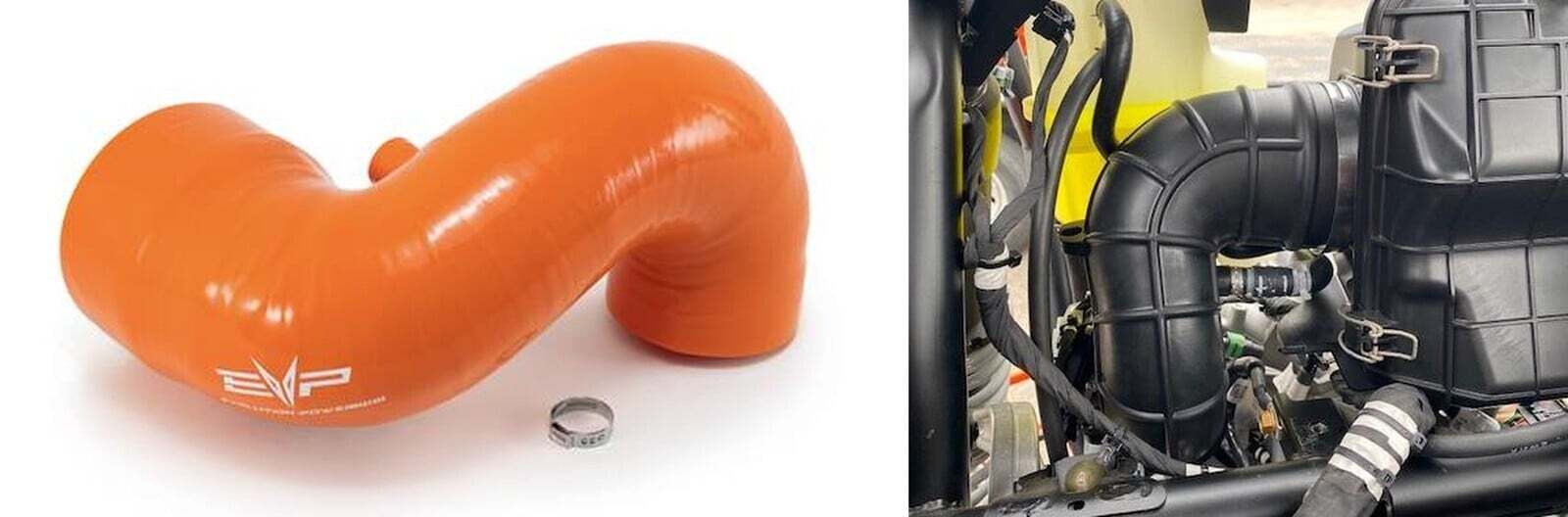

Polaris Pro R (RZR) kit contents
Included parts
EVP Wire Re-Enforced Qty 1
Silicone Tube
24.1mm Pinch Clamp Qty 1
Required tools
8mm Socket or Screwdriver
Pinch Clamp Tool
Cutter/Pliers

Installation

1
Remove driver and passenger seat from the vehicle. If a 4 seat vehicle, remove the rear passenger seats.
2
Remove both top and bottom firewall pieces. (For photos we removed the bed but you DO NOT need to).
3
Remove the valve cover hose from the intake tube barb. With an 8mm socket or screwdriver, loosen both clamps holding the intake tube to the air box and throttle body.
Polaris Pro R (RZR) installation
4

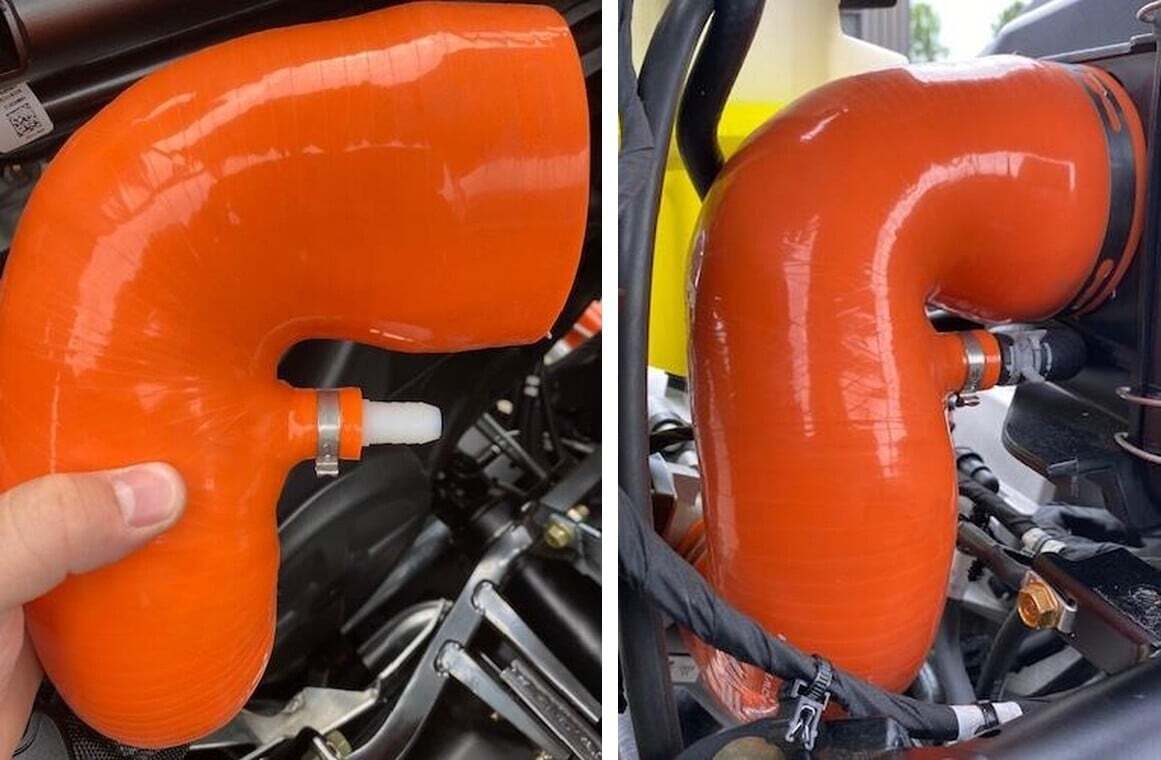

Remove the OEM intake tube. Remove the valve cover barb from the OEM tube and place it into the EVP silicone tube. Crimp the supplied pinch clamp holding the barb in place. Reuse the two OEM hose clamps.
5
Install the new EVP silicone intake tube. Reinstall the valve cover breather hose and clamp. Tighten down both the throttle body and air box clamps.
6
Reinstall the firewall and seats back into the car.
Polaris Pro R (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
