Polaris 2022+ Pro R Shift-Tek Low Engagement Clutch Kit — Install Guide

1

Remove both driver and passenger seats (rears if a 4 seater). Remove both firewall panels.

2

Remove the primary and secondary outer cover. Remove the drive belt. (Figure 1).

3

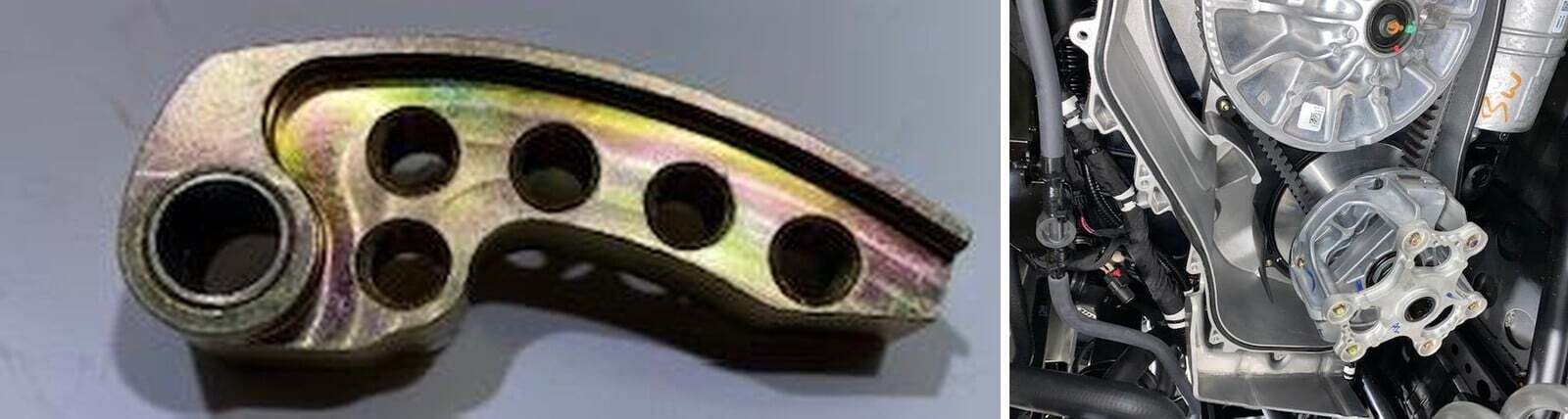

You can keep the primary clutch on the vehicle. Loosen all (6) M6 primary clutch cover bolts with a 10mm socket. Only take (3) all the way out. NOTE: Apply pressure to the primary clutch cover when removing the last (3) bolts.

3

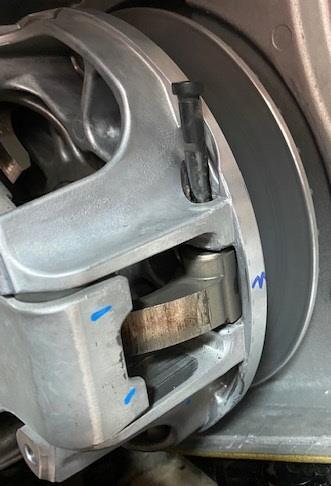

You will need a small Allen wrench and a 10mm socket to loosen the pins holding the OEM weights in. Perform this task one at a time.

4

Tighten the pin holding the weights till it stops. DO NOT over tighten the pins. The weights should move freely with ease.

5

Place the EVP spring onto the primary clutch. Place the primary clutch cover onto the spring and compress. Torque the M6 bolts down to 100in-lbs (8.3 ft-lbs).

6

Reinstall the CVT cover, firewalls, and seats.
