Can-Am 2023 Can Am X3 Turbo (135hp) Shift-Tek-P-Clicker Ultimate Clutch Kit — Install Guide

Can-Am · 2023 Maverick X3 · SKU 402FC0065 (Weights Only), 402FC0069 (Ultimate Kit)

What's in the Box

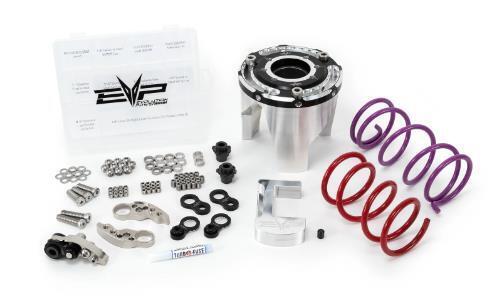

Can-Am Maverick X3 kit contents
Included parts
41-52 Helix Assembly
Shift-Tek-P Clicker Clutch Kit
Shift-Tek-P Red Spring
Required tools
Screwdriver(s)
13,17,19,22mm Sockets
Impact Driver
6mm Allen Socket
Red & Blue Loctite
Torque Wrench
Torx Sockets
Hammer

PDrive Clicker Weights with OEM Spring

Clutch Setup
             Stock     3-91        3R-93        3RWI-91       4RWI-X100      5RWI-X85
Horsepower    135      208          219           208            250           260
  (Crank)
  Primary    Stock     Stock           Stock      Stock         Stock          Stock
   Spring
Engagement   1900      2800            2800       2800           2800          2800

RPM

Clutch Setup
 Operating   7400      8000-       8000-        8000-8100     8000-8100      8000-8100
    RPM                8100        8100
   Hole 1    N/A                   (2) 1/4"
                     (2) 1/4" SS                (2) 1/4" SS   (2) 3/16" ss   (2) 1/4"ss

SS

Clutch Setup
  Hole 2     N/A                   (2) 1/4"
                         0                      (2) 1/4" SS        0             0

SS

Clutch Setup
Pivot Bolt   N/A        1.0"           1.0"        1.0"         1.25"          1.25"
   Pivot     N/A         0              0           0           (2) 2g        2g + 3g
  Washer
  Clicker    N/A         3              3           3              3             4
 Position
Assembled    N/A
Weight in               74.g           76.1g      76.1g         80.5g          82.5g
  Grams
Secondary    N/A       EVP          EVP         EVP Purple    EVP Purple     EVP Purple
  Spring              Purple       Purple
   Helix     N/A      41-52        41-52          41-52         41-52          41-52
  Hole on    N/A      Hole 5       Hole 5         Hole 5        Hole 5         Hole 5
 Helix Cap
 Helix Cap   N/A         0              0           0              0             0
 Clocking

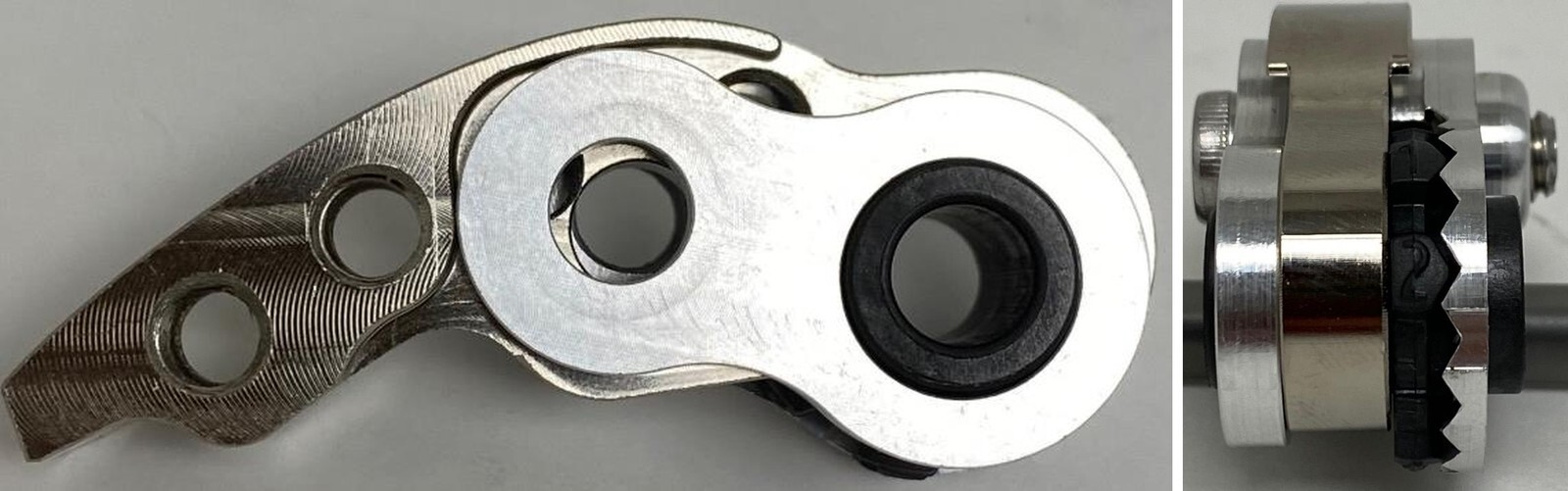

                                   1           Pivot
                                                                Axle
                        2

PDrive Clicker Weights with Red Spring

Clutch Setup
                Stock       3-91         3R-93        3RWI-91       4RWI-X100        5RWI-X85
 Horsepower      135        208           219           208            250             260
   Primary       N/A        Red           Red           Red           Red              Red
    Spring
 Engagement
                N/A         3600         3600           3600           3600             3600

RPM

Clutch Setup
  Operating                              8000-
                N/A      8000-8100                   8000-8100       8000-8100       8000-8100
     RPM                                 8100
    Hole 1      N/A       (2) 1/4"ss   (2) 1/4"ss    (2) 1/4"ss      (2) 1/4"ss      (2) 3/8" ss
    Hole 2      N/A            0            0             0          (2) 1/4"ss      (2) 3/8" ss
  Pivot Bolt    N/A         1.00"        1.00"         1.00"           1.25"            1.25"
     Pivot
                N/A           0            2g            2g            (2) 2g          2g + 3g
    Washer
    Clicker
                N/A           3            3             3               3               3
   Position
  Assembled
  Weight in     N/A           g            g             g               g             86.5g
    Grams
  Secondary                               EVP
                N/A      EVP Purple                  EVP Purple      EVP Purple      EVP Purple
    Spring                               Purple
     Helix      N/A         41-52        41-52         41-52           41-52           41-52
    Hole on
                N/A        Hole 5        Hole 5        Hole 5          Hole 5          Hole 5
   Helix Cap
   Helix Cap
                N/A           0            0             0               0               0
   Clocking

**NOTE: Always install a set screw on both sides of the weight arm. Install the screws with the provided thread locker, making sure the screws are installed with an equal amount of thread engagement. ** Stock weights with stock spring: 1800rpm engagement ** Stock weights with red spring: 2300rpm engagement ** EVP clicker weights with stock spring: 2800rpm engagement ** EVP clicker weights with red spring: 3600rpm engagement

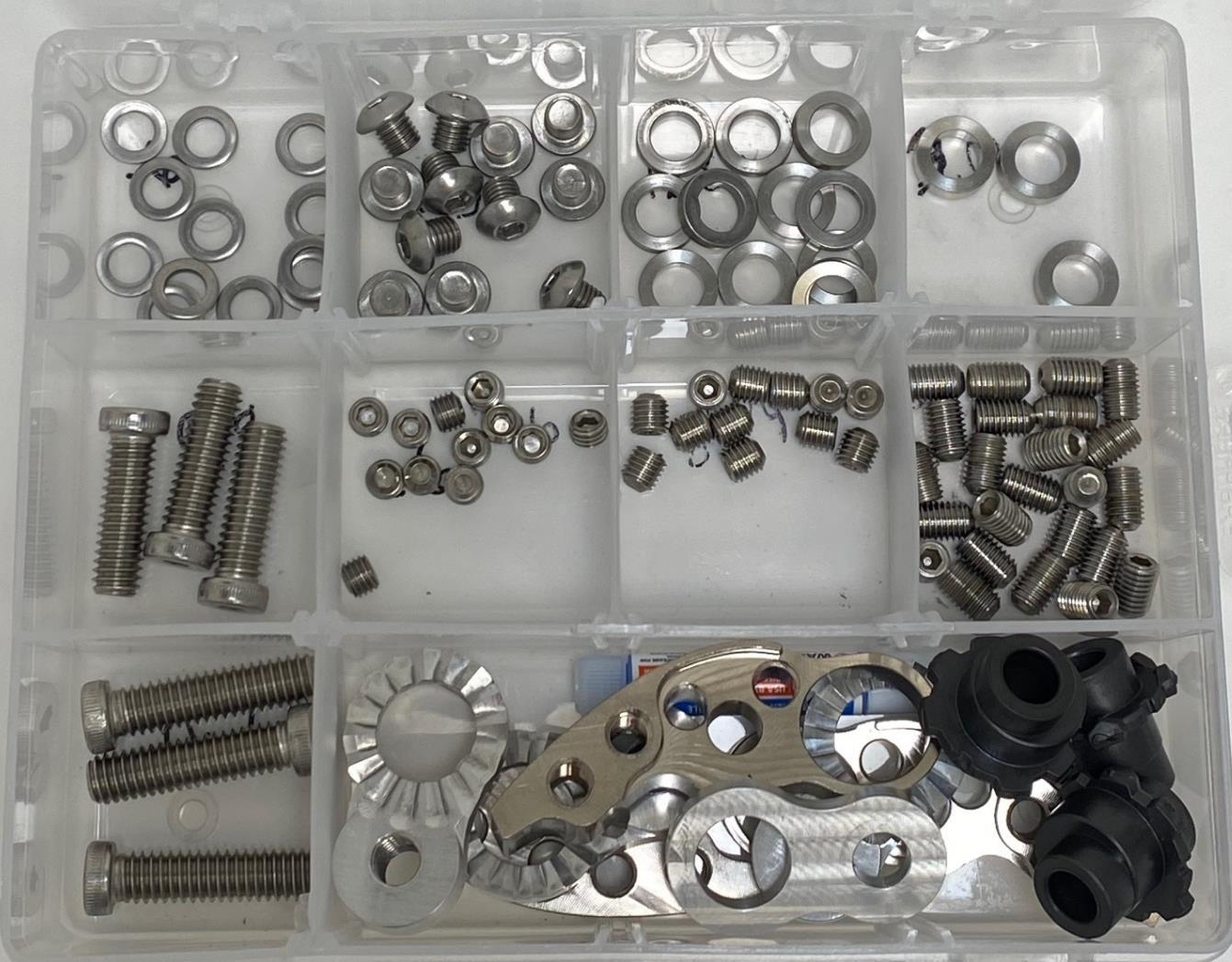

Button Head

Clutch Setup
Washer 1/4”                          Pivot Washer
              Cap Screw 1/4"                              Pivot Washer
                                           2g
                                                                3g

Pivot Screw 1.0”

Clutch Setup
                 Set Screw              Set Screw            Set Screw
                   3/16”                  1/4”                 3/8”

Weights, left & right hand

Clutch Setup
Pivot Screw   levers, clickers, and thread
   1.25”                  locker

**Each clicker cam has numbers 1-5. Each number will modify maximum engine RPM by about 100rpm’s. All three clickers must be set to the same setting.

**Lower numbers decrease engine RPM in steps of 100 RPM and higher numbers increase in steps of 100 RPM

**Example: Ramp cam is set at position 3 and changed to position 5. So maximum engine RPM is increased by 200 RPM.
