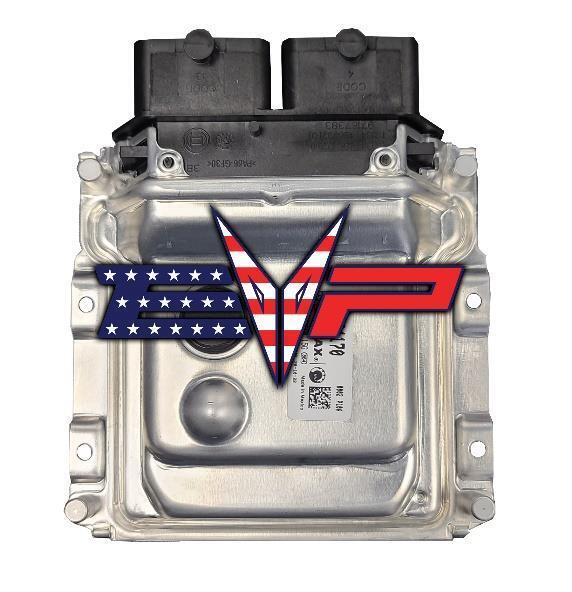

What's in the Box
Installation
1

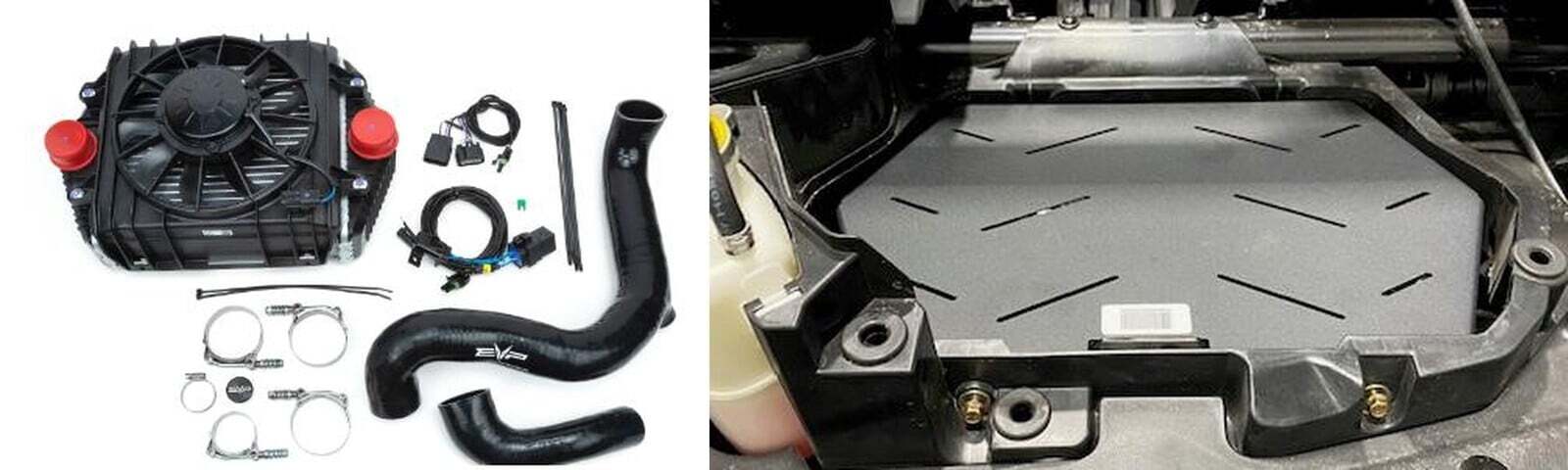

Remove the intercooler and intake plastic shrouds. Remove the intercooler blank by loosening (4) 10mm screws. (2) are located behind the turbocharger access panel.
2
Loosen and remove the clamps securing the charge tube. Remove the charge tube from the throttle body and intercooler. It may be easier to remove some CVT duct work. This will allow more room around the throttle body.
3

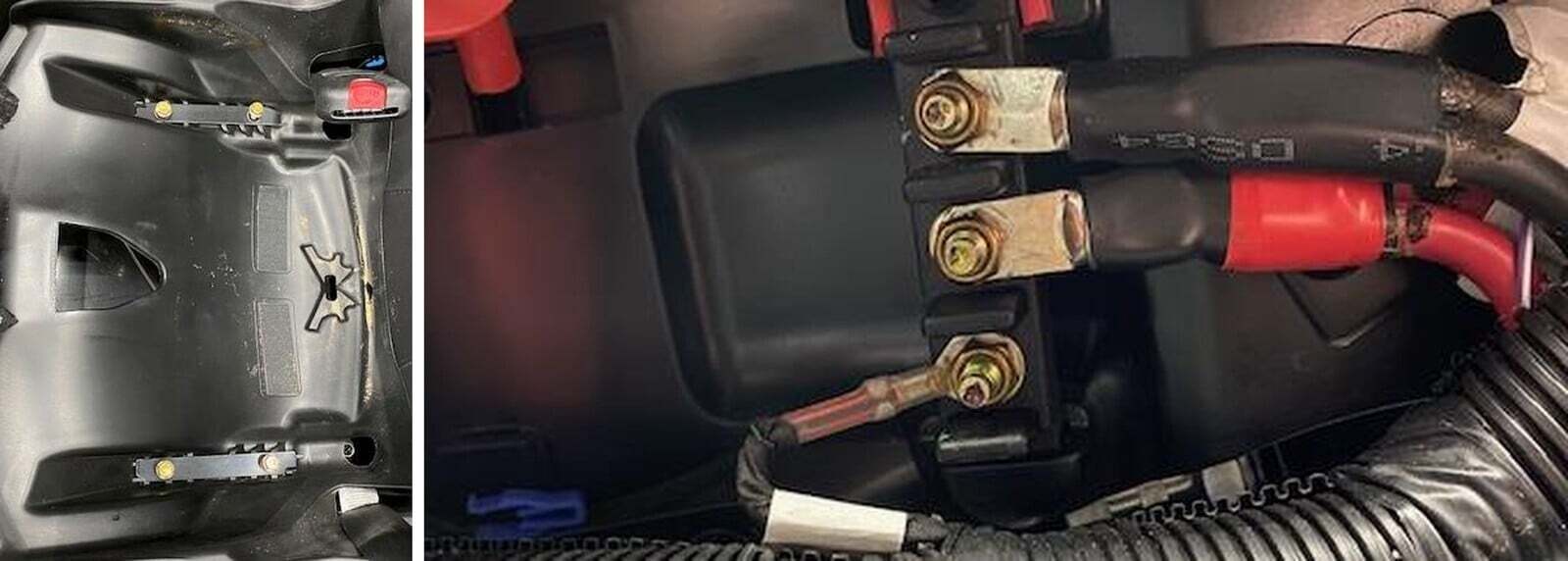

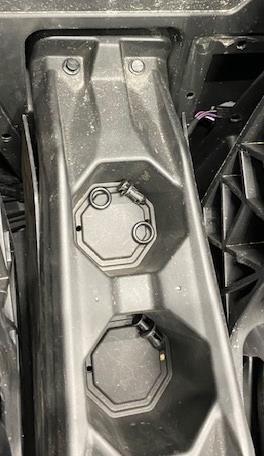

Locate the front passenger seat. Lift up the bottom seat cushion, you will find (4) screws and (2) plates. With a 13mm socket remove all (4) screws. You can now move the seat around. Next, remove the passenger side of the center counsel. You must pop (3) clips.
4

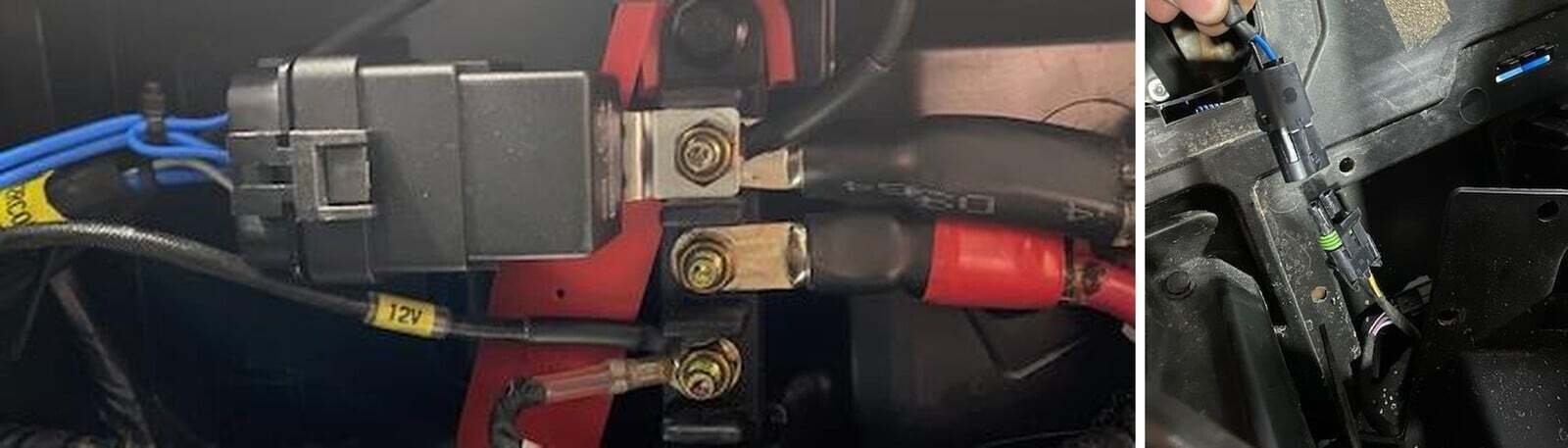

Locate the bus bar located in the middle of the center counsel. From top to bottom: Ground, 12v battery power, key on power labeled Acc_1. Mount up the supplied harness as shown below. Use a 10mm socket.
4
Final: You can mount the relay anywhere or mount it with the ground stud as shown below.
5
Run the 2-contact connector (for the intercooler fan) through the center console to the ECU tray. Located behind the drivers seat (rear passenger in 4 seater). Inside the ECU tray you will find the OEM intercooler 2 pin connector. Connect them. Make sure the OEM connectors are clean.
6

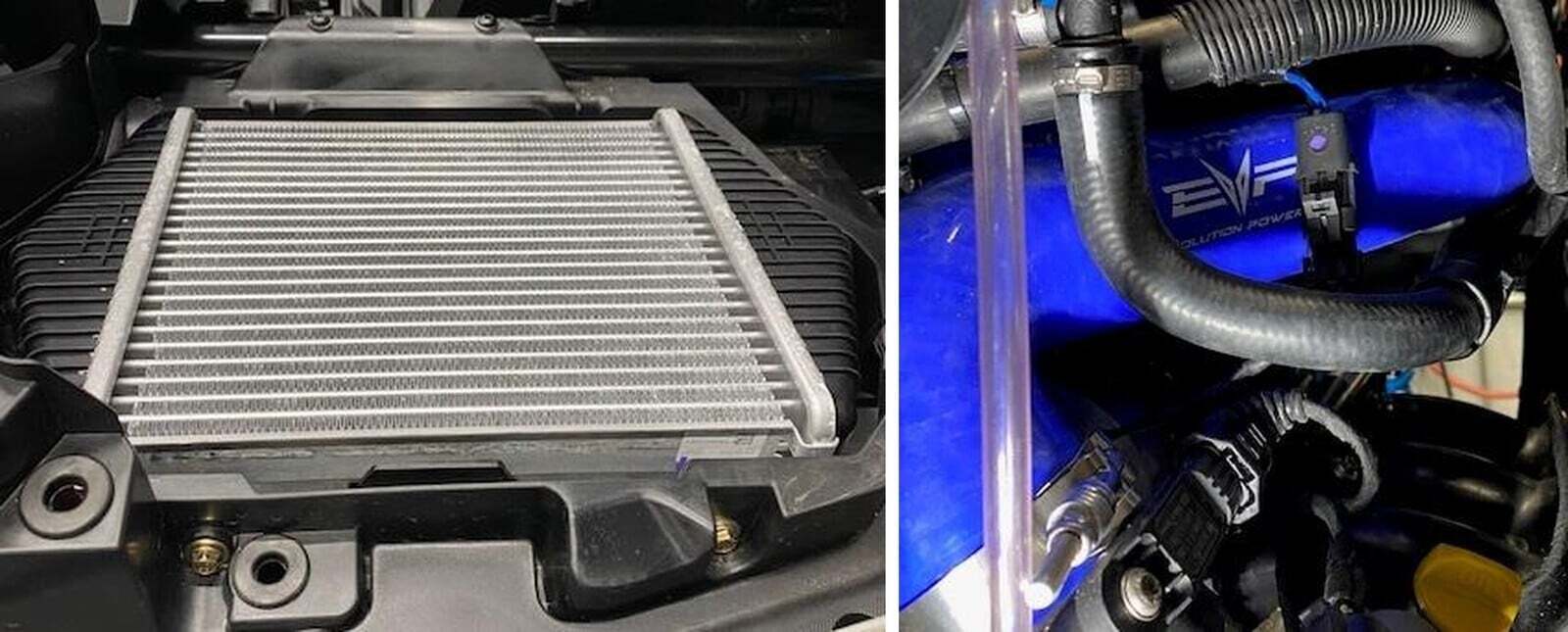

Install the charge tubes onto the vehicle. It is easier to install the upper charge tube onto the turbocharger, and lower charge tube onto the throttle body. Install the intercooler into the car. Connect both charge tubes to the intercooler and reuse the (4) 10mm screws to fasten down the intercooler. Use an 11mm socket to tighten all charge tube clamps.
7
Connect the fan pigtail to the 2 pin connector on the OEM harness. It may be zip tied to the bottom of the bed.
8
Remove the upper dash on the passenger side. There will be (2) push darts and (5) T- 30 screws.
9
Remove the fuel pump assembly bracket using a 10mm socket.
10
Remove the silver safety clip on the electrical connector, then remove plug. Remove the blue safety clip on the fuel connector, press the black quick connect and remove the fuel hose.
11
Remove the fuel pump nut, be careful not to damage it. The fuel pump assembly has springs so the hat might spring up about one inch. NOTE: If you are changing fuel octane, now is the time to drain your fuel tank!
12

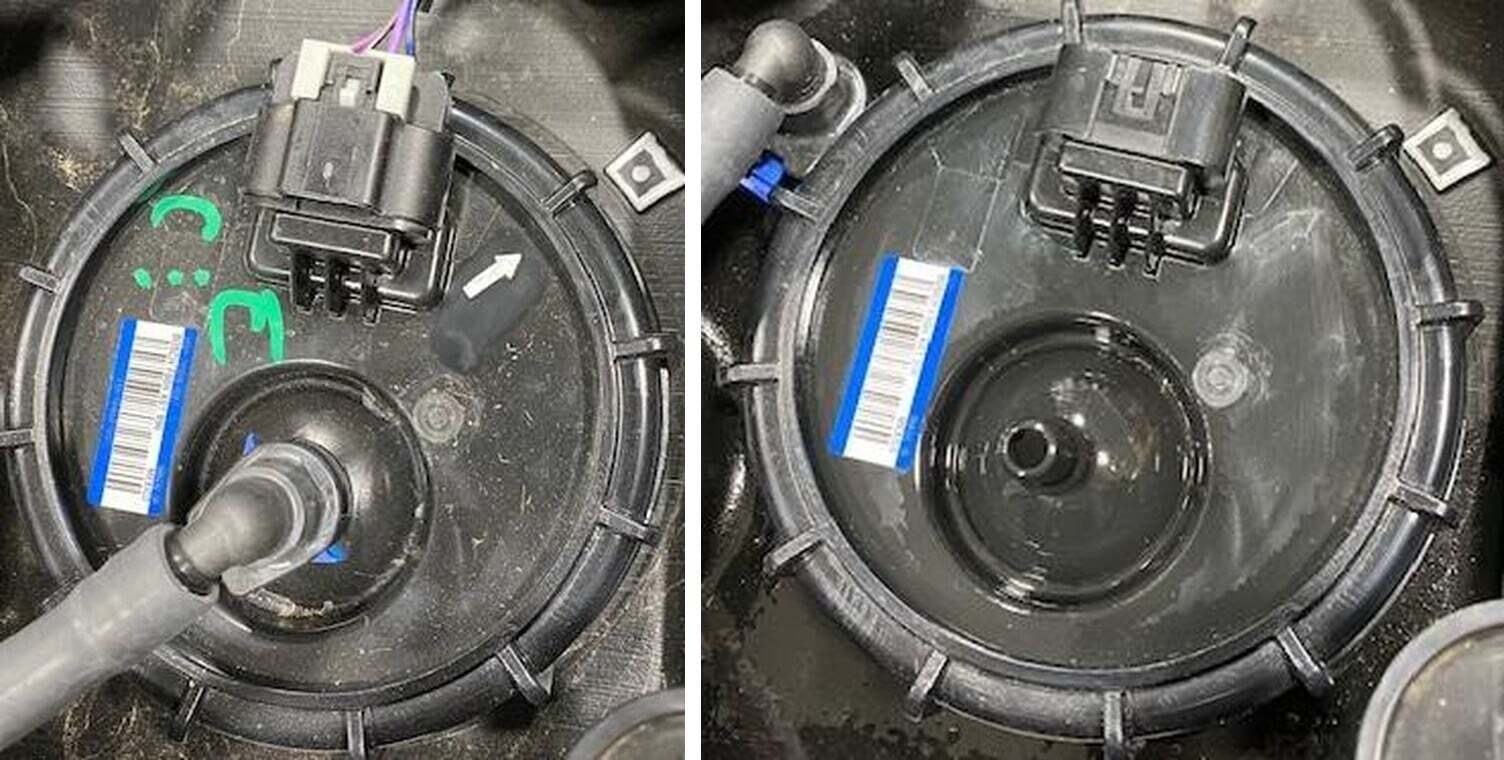

Unplug the fuel pump electrical connector, it wont be able to be removed at this point, as long as its unplugged.
13
Carefully push down 1 tab at a time on the surge tank, work your way around the top of the surge tank hat. Total of (3) tabs. DO NOT BREAK THE TABS!. Once complete you can slowly pull the top surge tank away from the lower half. BE CAREFUL!
14

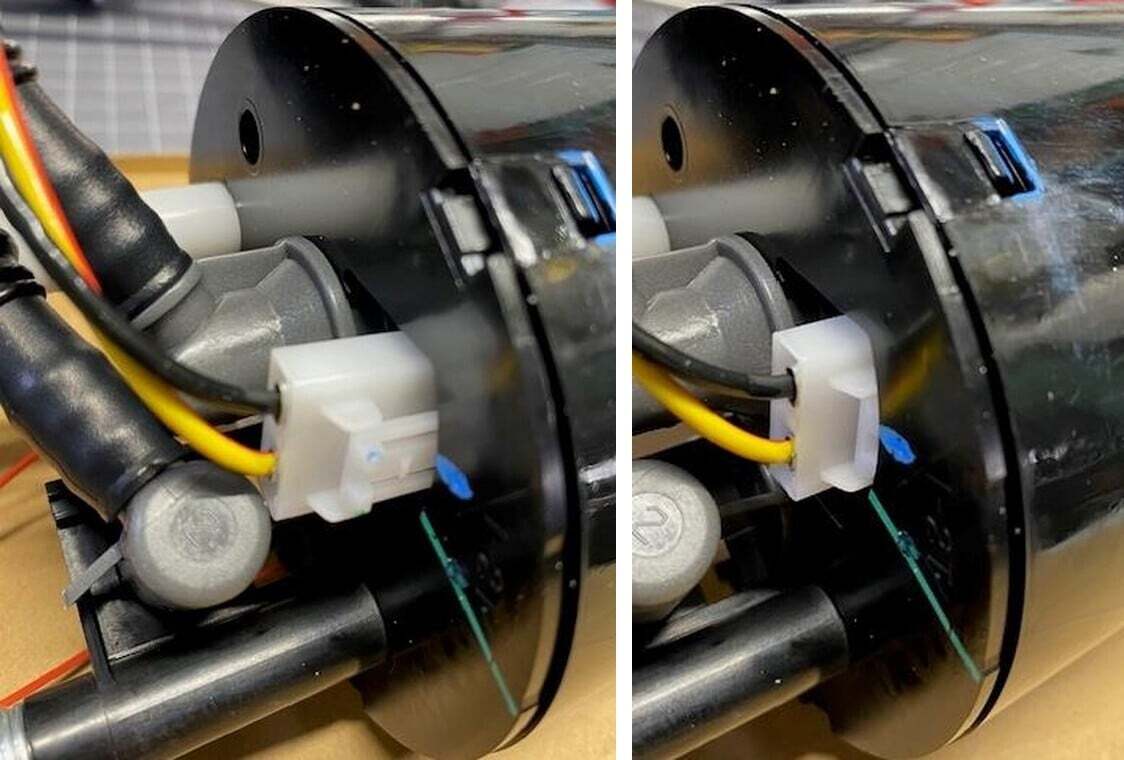

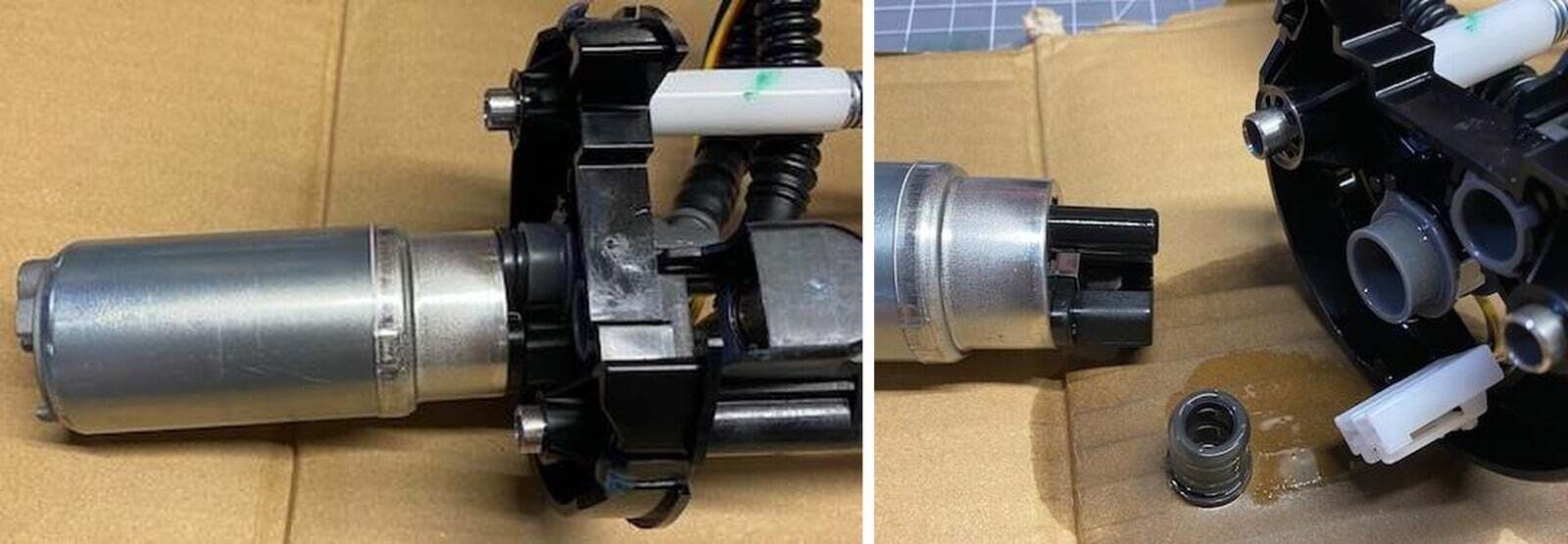

Slide the top hat away from the surge tank. The fuel pump may come with the hat or stay in the surge tank. Remove the fuel pump and rubber gromet from the lid. Reinstall the rubber gromet into the lid of the fuel hat with dielectric grease. Install the supplied 265LPH fuel pump. Reinstall the lid to the basket and install the fuel pump assembly back into the car.
15

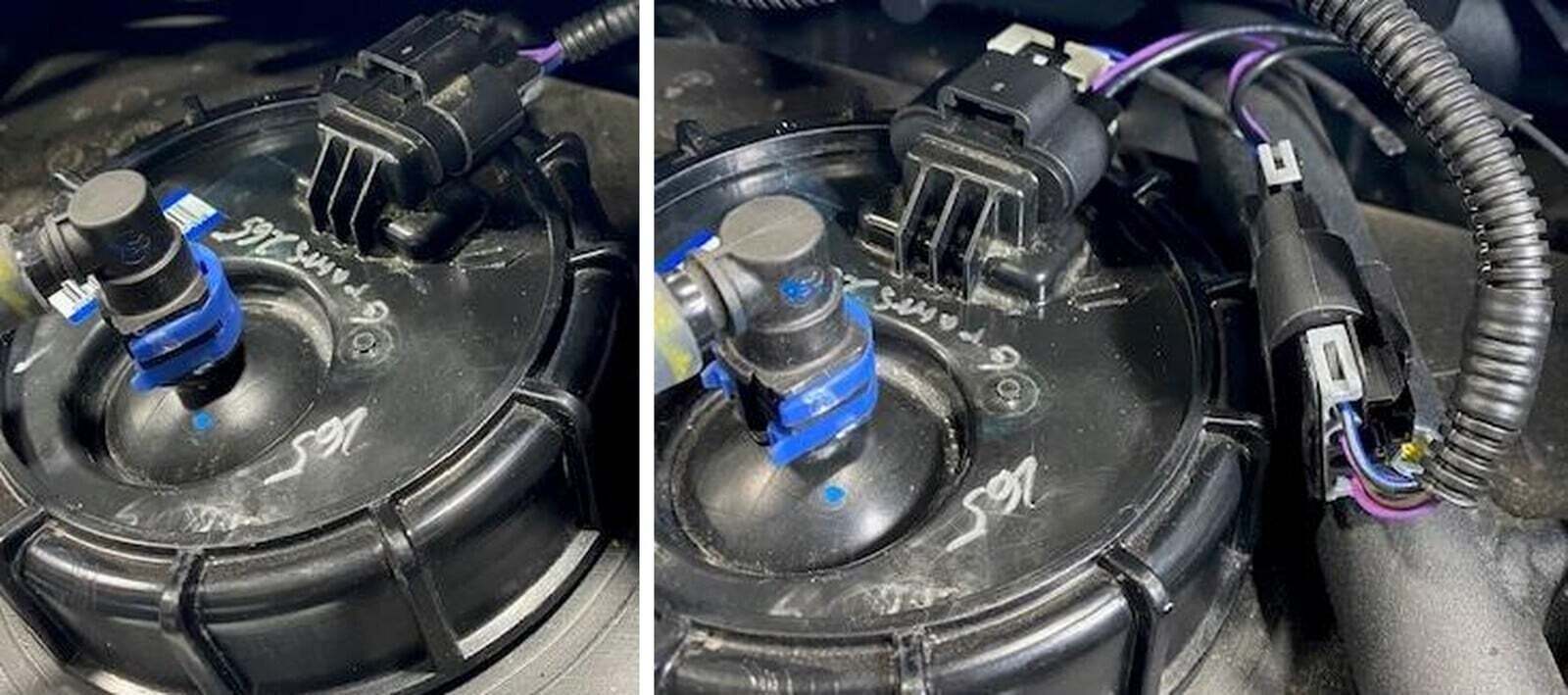

Locate the fuel pump connector, push back the grey lock and remove the connector. Install the supplied EVP fuel pump pigtail. One connector will go the OEM harness and one connector will go to the fuel pump assembly. Reinstall the grey clip on both male connectors.
16

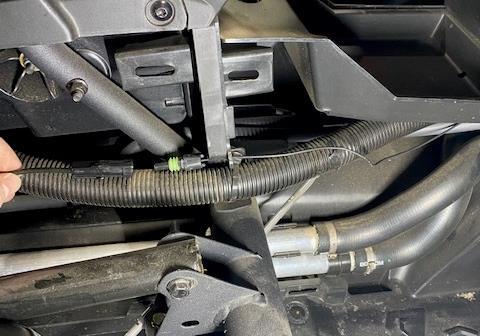

On the other end of the fuel pump harness you will find a 1 contact connector. Route that through the dash and into the cab (next to the coolant lines). Plug into the other 1 contact connector coming from the relay harness. Zip tie any excess wire.
17

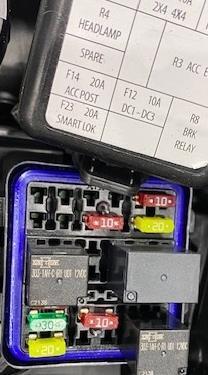

Located on the dashboard is a fuse box. Open the fuse box and remove the 20amp fuse in box F14 and replace it with the supplied 30amp fuse.
18
Zip tie any access wires underneath the center counsel. Keep wires away from heat sources. Reinstall the center counsel panel and passenger seat. Reinstall the turbocharger access panel and CVT duct work.
1

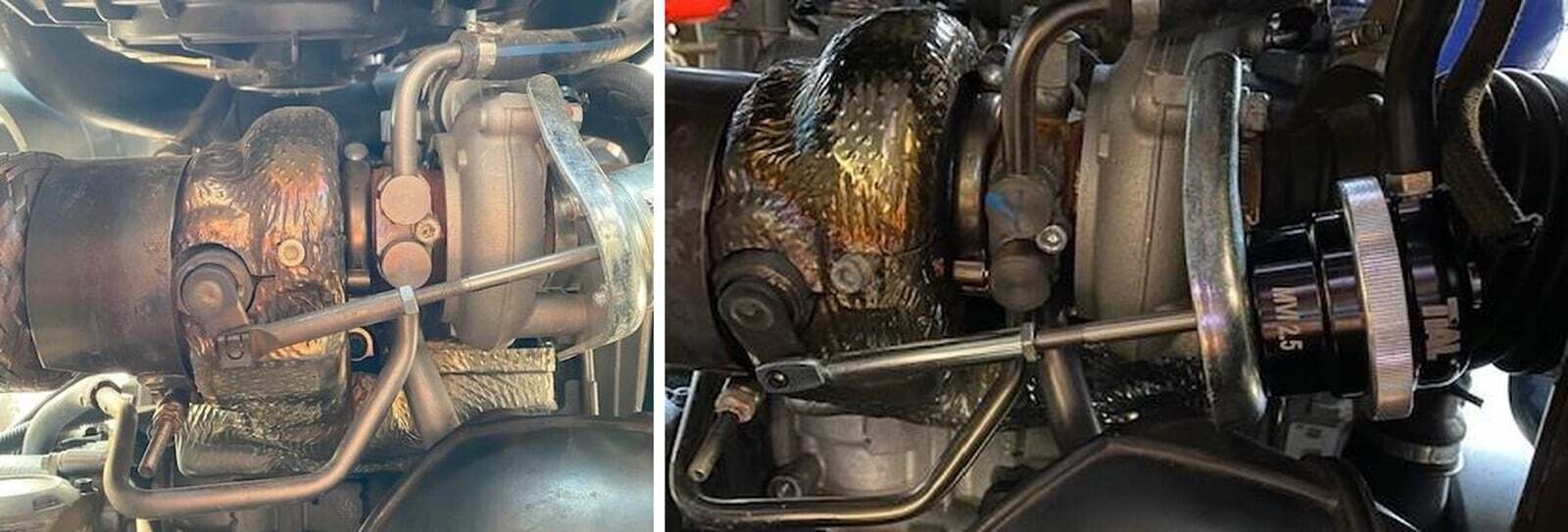

With the turbocharger access panel remove, find the wastegate. Remove the wastegate clip (be careful not to lose the clip). Remove the wastegate line and both nuts holding the wastegate to the bracket.
2
Install the new wastegate onto the OEM wastegate bracket. Set your crack pressure to your tune package. Reinstall the wastegate rod clip and vacuum line.
3

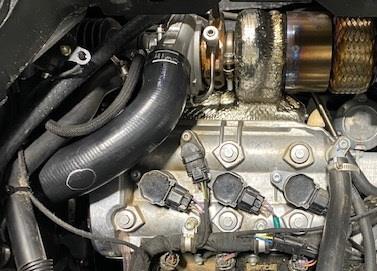

With brake cleaner, spray around all (3) injector ports and fuel rail. Wipe debris away with a rag. Turbo and Turbo R models press the metal clip down and remove the connector from the injector. Remove the fuel hose from the fuel rail. Push the connector in and spread left/right side away from the fuel rail. Remove the fuel rail, keep the O- rings with the fuel hose. Remove the (2) fuel rail screws.
4

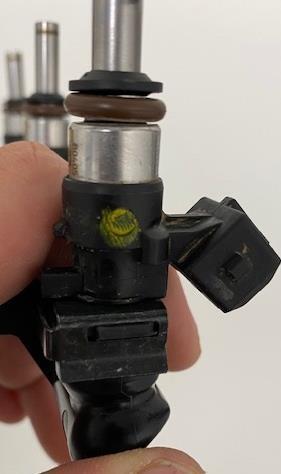

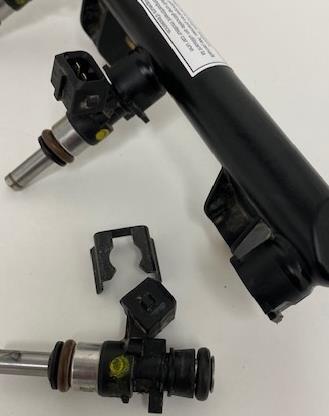

Remove the injector clip, once the clip is removed you can pull the injector out of the fuel rail. Install the EVP injectors, use dielectric grease on the o-rings allowing for easier installation. Place the injector clip back onto the fuel rail, make sure the clip is in both grooves. Reinstall the fuel rail in reverse order.
Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
