Polaris 2024+ RZR XP 1000 Ultimate Shift-Tek Clutch Kit — Install Guide

Polaris · 2024+ RZR · SKU 402FP0101

What's in the Box

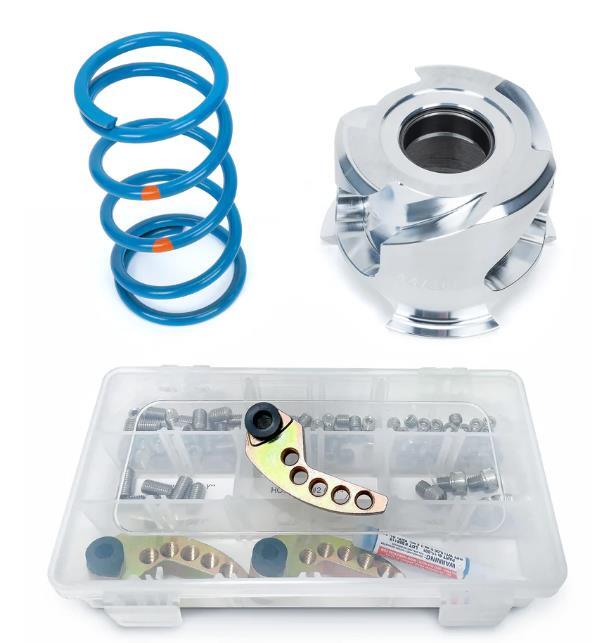

Polaris RZR kit contents
Included parts
Blue/Orange Secondary Spring Qty 1
Adjustable Primary Clutch Qty 3
Weights
Variety of Different Weights Qty 1
44/36 Helix Qty 1
Required tools
10mm & T25 Socket
Torque Wrench
Blue Loctite
Allen Wrenches
Clutch Compressor Tool
Clutch Setup
                                            Stock                   Stage 1
                 Horsepower                   114                      119
                Primary Spring                OEM                     OEM
               Engagement RPM                 2000                    2000
                Operating RPM              8300-8400               8300-8400
                     Hole 1                (2) 3/8" SS              (2) 3/8" SS
                     Hole 2                (2) 3/8" SS              (2) 3/8" SS
                     Hole 3                (2) 1/4" SS              (2) 1/4" SS
                     Hole 4                     0                       0
                     Hole 5                     0                       0

Assembled Weight in Grams

Clutch Setup
               Secondary Spring           Blue/Orange             Blue/Orange
                     Helix                 EVP 44/36                EVP 44/36

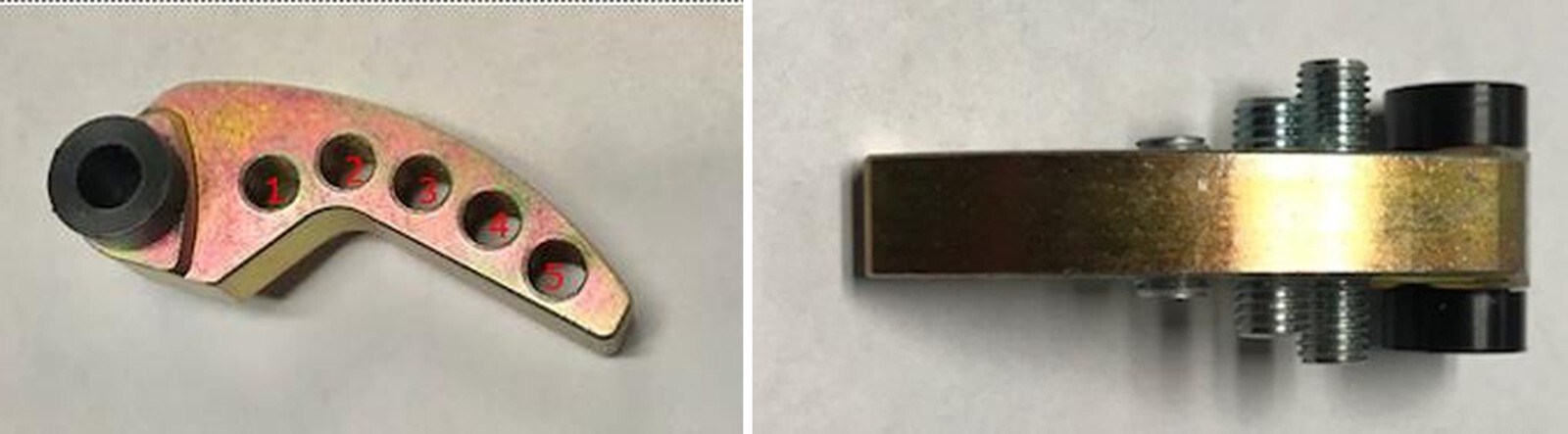

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Polaris RZR
