Polaris 2024 XP 1000 Clutch Kit — Install Guide

Polaris · 2024 RZR · SKU 401RP0006

What's in the Box

Polaris RZR kit contents
Included parts
Shift-Tek Weight Kit Qty 1
Required tools
10mm Socket
Allen Wrenches
Clutch Setup
                                     Stage 1 (28-30” Tire)           STAGE 1 (30+” Tire)
        PRIMARY SPRING                   Stock 50/250                   Stock 50/250
             HOLE 1                           0                               0
             HOLE 2                      2. 1/4" ss                      2. 1/4" ss
             HOLE 3                      2. 1/4" ss                      2. 1/4" ss
             HOLE 4                      2. 3/16" ss                          0
             HOLE 5                           0                               0
      SECONDARY SPRING                 Stock 190/341                   Stock 190/341
           HELIX                        Stock 42-71                     Stock 42-71
       OPERATING RPM                     8300-8400                       8300-8400

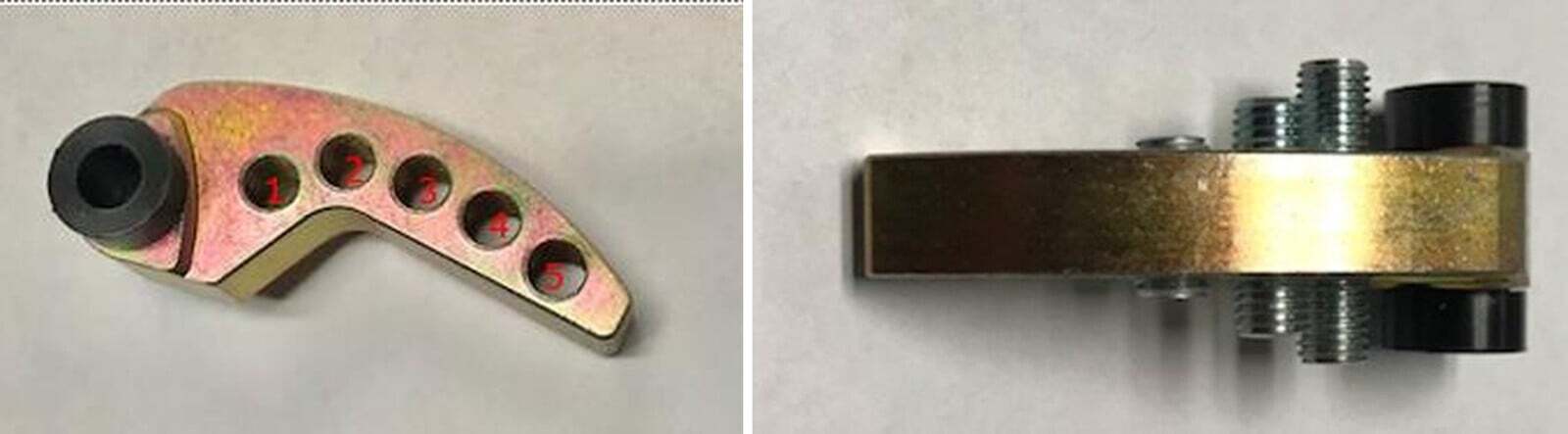

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Polaris RZR

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
