2026 Kawasaki H2 Secondary TAPP Clutch — Install Guide

Kawasaki · 2026 H2 / Z1 · SKU 2282030006 (44/50/38 With Orange Spring)

What's in the Box

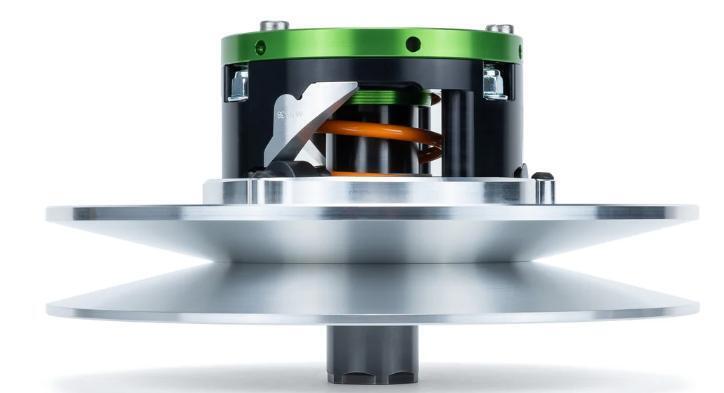

Kawasaki H2 / Z1 kit contents
Included parts
H2 Tapp Secondary Qty 1
Secondary Washer Qty 1
LH Secondary Bolt Qty 1
Required tools
EVP Belt Changing Tool
Torque Wrench
10, 19mm Socket

Installation

1
Remove the left rear shock. (See service manual Chapter 14- Page 18).
2
Remove (10) clutch cover bolts and gasket.
3
Install the (3) M10-1.25 hex bolts into the OEM secondary. Remove the drive belt.
4
With a 19mm socket and impact driver, remove the secondary clutch bolt. NOTE: BOLT IS REVERSE THREAD. RIGHT HAND ORIENTATION TO LOOSEN.
5
The OEM secondary comes packed full of grease. It is recommended to remove the grease from the shaft and clutch housing.
6
Install the TAPP secondary onto the shaft, make sure it is fully installed.
7
Install the supplied TAPP secondary washer and bolt. Torque to 100 ft-lb. THIS IS A LEFT-HANDED THREAD. COUNTERCLOCKWISE TO TIGHTEN.
Kawasaki H2 / Z1 installation
