Can-Am Can Am Defender XMR Sport/Trail (401FC0010) — Install Guide
Can-Am · Defender
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams

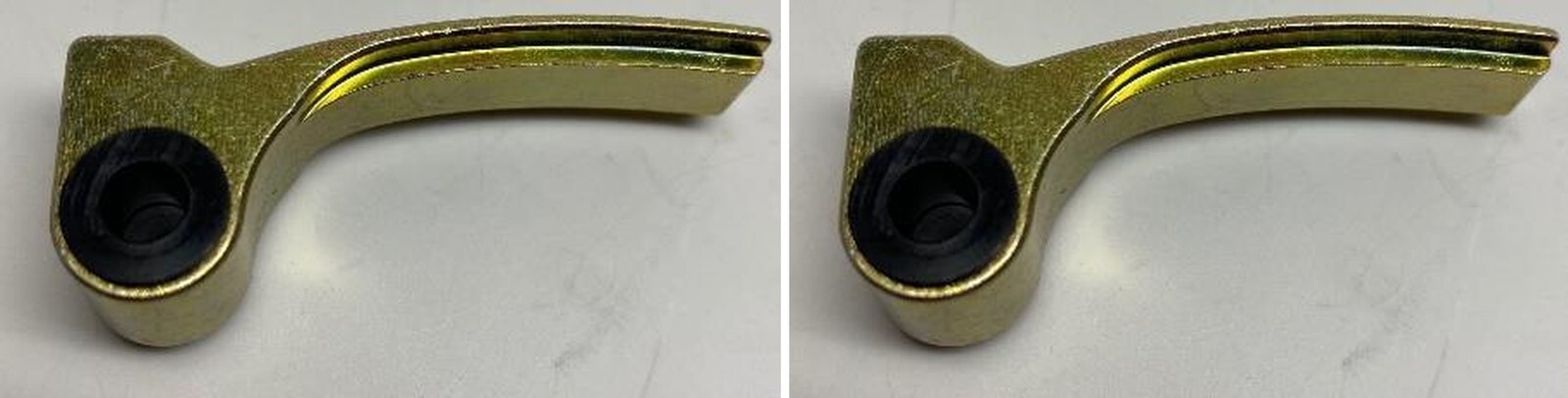

2019-2021 XMR Untuned (4) Gold Fixed 48.8g
Can Am Defender XMR Sport/Trail (401FC0009)
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams
2019-2021 XMR Tuned (6) Gold Fixed 48.8g
Can Am Defender Non XMR (401FC0008)
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams
2016-2021 Non XMR Untuned (3) Adjustable 37.8g
Can Am Defender Non XMR (401FC0000)
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams
2016-2019 Non XMR Tuned (3) Adjustable Adjustable 37.8g
(3) Non-Adjustable Non-Adjust 32.4g
Operating RPM: 7200 2
1 3

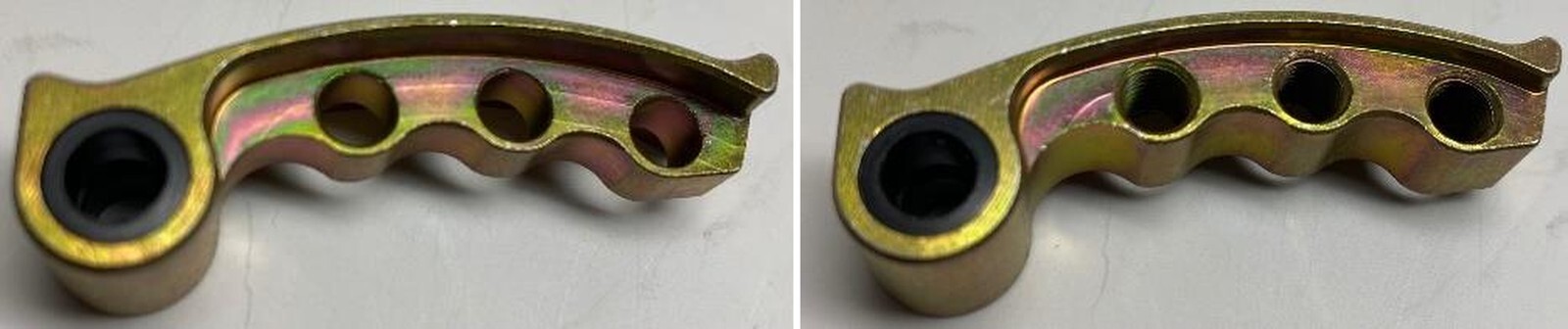

Adjustable Weights
Clutch Setup
1 Weight 3/16 1/4 3/8
37.8g .6g .8g 1.5g
Tune Hole 1 Hole 2 Hole 3
2 Seat, 30” Tire (2)1/4 ss (2) 1/4 ss (2) 1/4 ss
2 Seat, 33”+ Tire (2) 1/4 ss (2) 3/16 ss (2) 3/16 ss
4 Seat, 30”+ Tire (2) 1/4 ss (2) 1/4 ss (2) 1/4 ss
Can Am Defender Non XMR (401FC0015)
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams
2020+ Non XMR Tuned (4) Adjustable Adjustable 37.8g
(2) Non-Adjustable Non-Adjust 32.4g
Operating RPM: 6800 2
1 3
Adjustable Weights
Clutch Setup
1 Weight 3/16 1/4 3/8
37.8g .6g .8g 1.5g
Tune Hole 1 Hole 2 Hole 3
2 Seat, 30” Tire (2)1/4 ss (2) 1/4 ss (2) 1/4 ss
2 Seat, 33”+ Tire (2) 1/4 ss (2) 3/16 ss (2) 3/16 ss
4 Seat, 30”+ Tire (2) 1/4 ss (2) 1/4 ss (2) 1/4 ss
Can Am Defender Non XMR Turbocharger (401FC0015)
Clutch Setup
Year Model Tune Clutch Weights 1 Weight in Grams
2020+ Non XMR Turbo Tuned (4) Adjustable Adjustable 37.8g
(2) Non-Adjustable Non-Adjust 32.4g
Operating RPM: 2
1 3
7300-7500
Adjustable Weights
Clutch Setup
1 Weight 3/16 1/4 3/8
37.8g .6g .8g 1.5g
Tune Hole 1 Hole 2 Hole 3
2 Seat, 28”- 30” Tire (2)1/4 ss 0 0
2 Seat, 33”- 35” Tire (2) 3/16 ss 0 0
4 Seat, 28” - 30” Tire 0 0 0
4 Seat, 33”- 35” Tire 0 0 0
