Can Am Shift-Tek Helix & Spring — Install Guide

Can-Am · (general)

What's in the Box

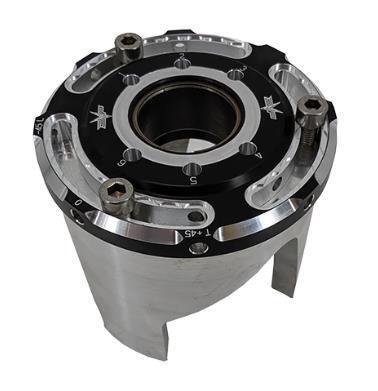

Can-Am (general) kit contents
Included parts
Shift-Tek Helix Assembly
(Optional): Spring
Helix Wrench
Secondary Holder
Installation of the Helix and Spr
Required tools
Belt Changing Tool
M6 Allen Socket
Ratchet
Clutch Compression Tool
17mm Socket
Torque Wrench
Red Loctite
ing

Installation

1

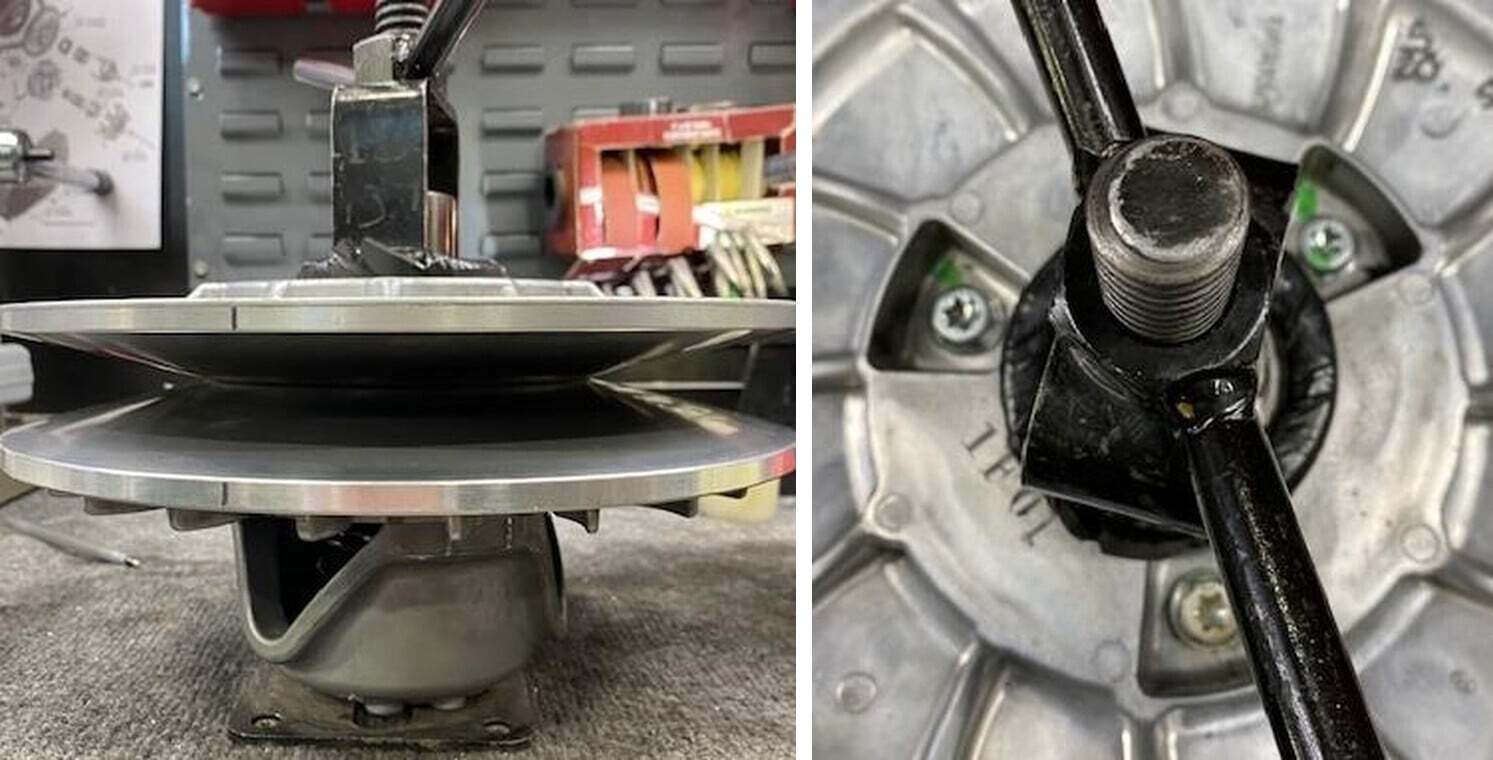

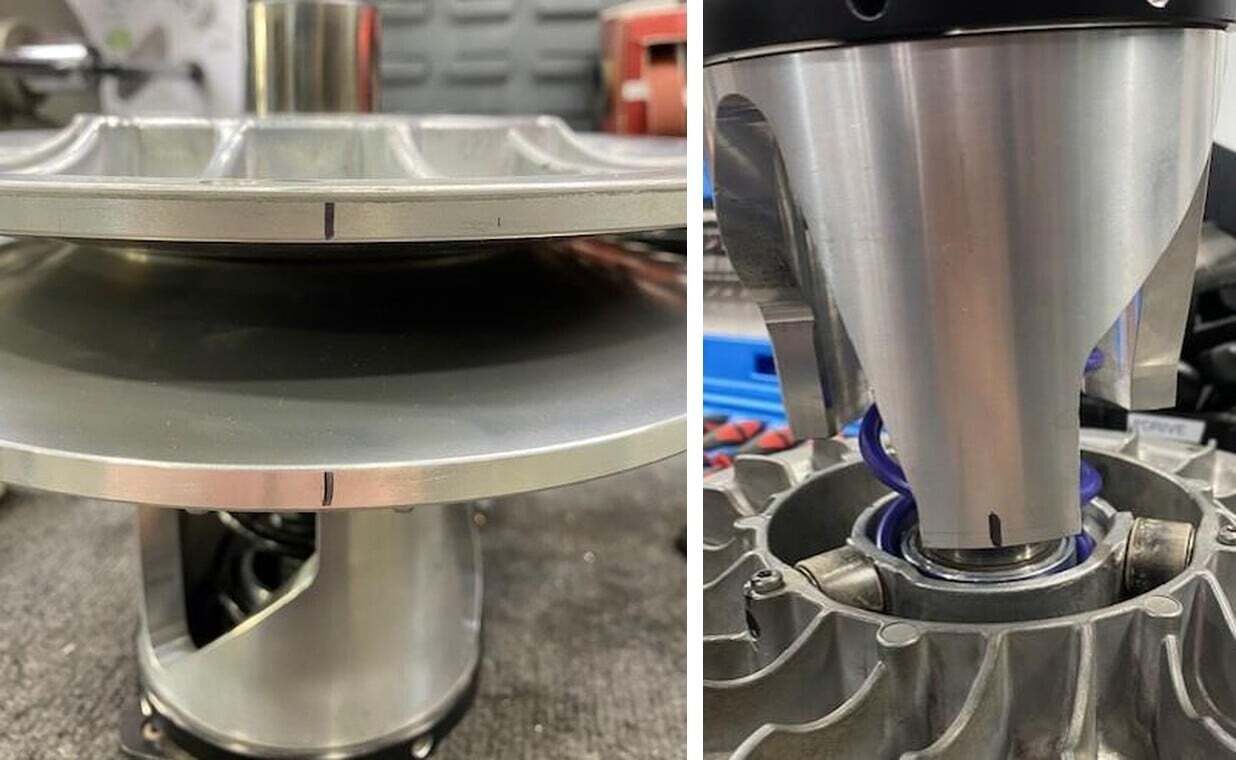

Remove the secondary clutch with a 17mm socket and impact, mount it into a clutch compression tool. With a sharpie make alignment marks on both sheaves. (Figure 1).
2
Use 13mm socket to take 3 fasteners out of the helix and carefully loosen the spring compression tool to remove tension. (Figure 2).
3
Pull off both sheaves, remove spring cup and spring from the OEM helix.
Can-Am (general) installation
4

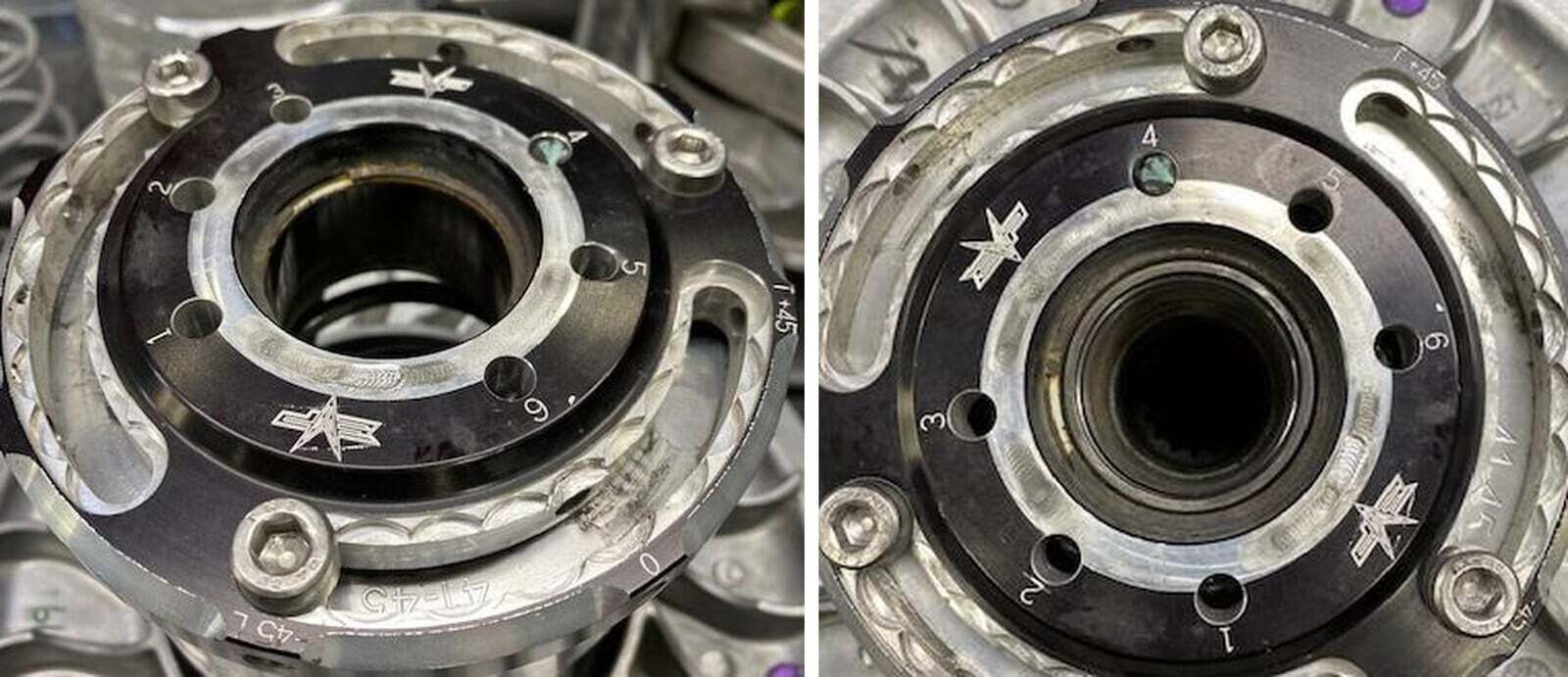

Grab the new helix, make sure the helix cap is adjusted to -45 degrees, if not loosen (3) Allen screws and clock the helix cap. Tighten the (3) Allen screws back down.
5

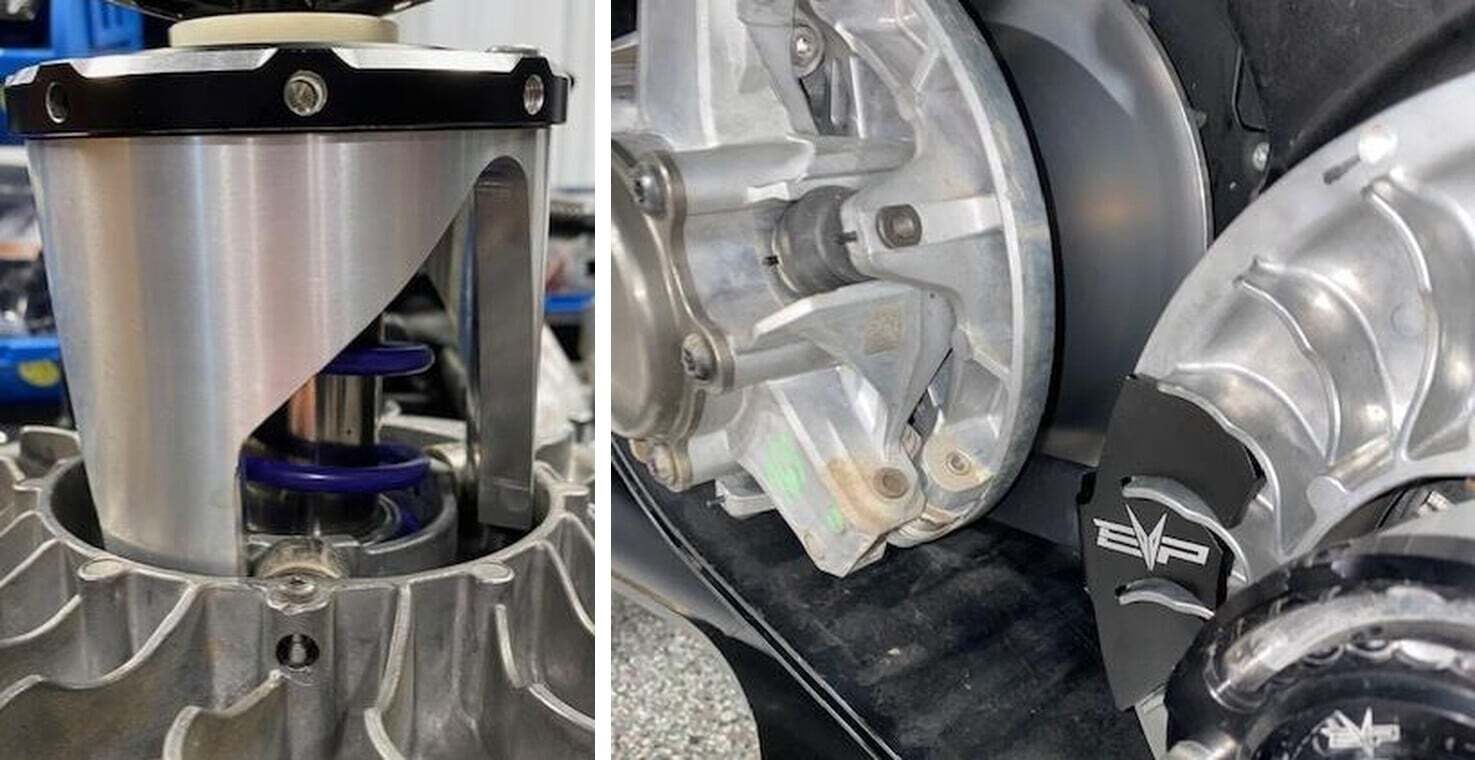

Reassemble the secondary clutch on the clutch compression tool in this order: Helix assembly, stock spring in hole 4 (EVP Purple Spring hole 5), spring cap, both sheaves in alignment. When compressing make sure the rollers are in line with the helix ramps. You may need to adjust with your hands while compressing.
6
You want the helix fingers in between the rollers as shown. As you compress the spring you want to rotate the helix clockwise, so the finger of the helix is on the roller. This sets torsion on the spring.
Can-Am (general) installation
7
Apply Red Loctite onto the threads of the (3) 13mm bolts holding the helix to the sheaves.
8
Reinstall the clutch on the vehicle and torque secondary bolt to 52 ft-lbs.
9
Install the secondary holding tool onto the secondary, align the tool in between the fins. Allow the handle to rest against the primary bearing.
Can-Am (general) installation
10
Install the helix wrench into a slot around the Shift-Tek helix cap.
11
Loosen all (3) M6 Allen head cap screws (do not remove). Apply pressure onto the helix wrench. You can now turn the helix cap to add or subtract torsion pressure on the spring. Once complete tighten the (3) M6 Allen head cap screws.
12
Remove the helix wrench and secondary holder. Install the belt back onto the clutches. Remove the belt changing tool and spin the secondary a total of 5 times.
Can-Am (general) installation
