Can Am Shift-Tek Secondary Clutch Tools — Install Guide

Can-Am · (general) · SKU Helix Wrench (4002010016), Secondary Holder (4002010017)

What's in the Box

Can-Am (general) kit contents
Included parts
Can Am Shift-Tek Secondary Clutch
SKU(s): Helix Wrench (4002010016),
Helix Wrench
Secondary Holder
(Optional): EVP Belt Changing
Tool
Required tools
Secondary Holder (4002010017)
Belt Changing Tool
M6 Allen Socket
Ratchet

Installation

1
Remove the CVT belt off the machine. Keep the secondary compressed using the OEM belt changing tool or EVP Quick Belt Changing Tool (4002010007).
2

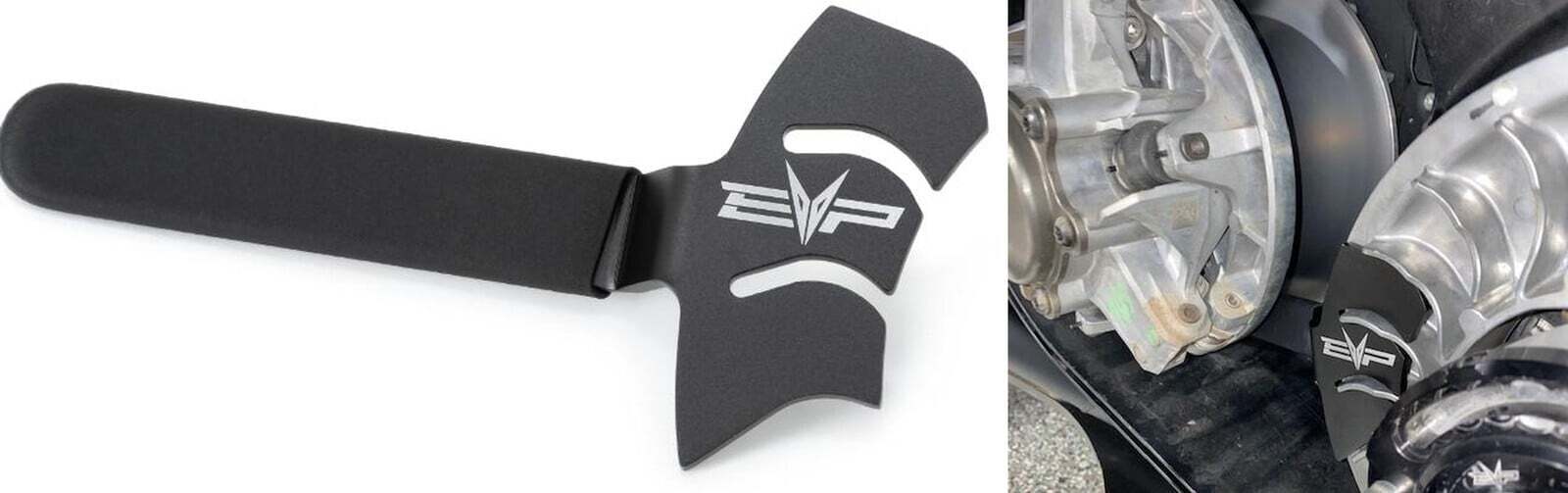

Install the secondary holding tool onto the secondary, align the tool in between the fins. Allow the handle to rest against the primary bearing.
3

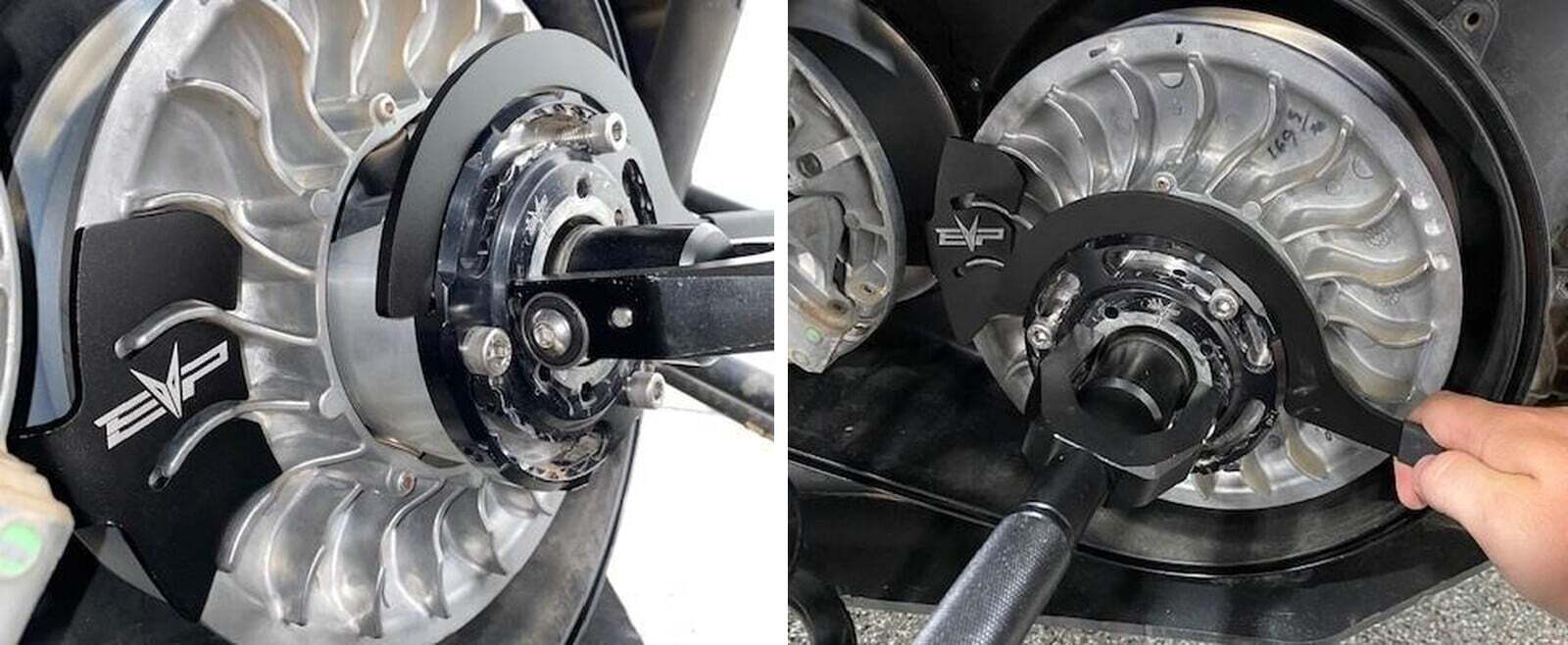

Install the helix wrench into a slot around the Shift-Tek helix cap.
Can-Am (general) installation
4
Loosen all (3) M6 Allen head cap screws (do not remove). Apply pressure onto the helix wrench. You can now turn the helix cap to add or subtract torsion pressure on the spring. Once complete tighten the (3) M6 Allen head cap screws.
5
Remove the helix wrench and secondary holder. Install the belt back onto the clutches. Remove the belt changing tool and spin the secondary a total of 5 times.
Can-Am (general) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
