Can-Am Can Am X3 Shift-Tek-P-Clicker Trail Ultimate Clutch Kit — Install Guide

Can-Am · Maverick X3 · SKU 402FC0096 (Weights Only), 402FC0098 (Ultimate Kit)

What's in the Box

Can-Am Maverick X3 kit contents

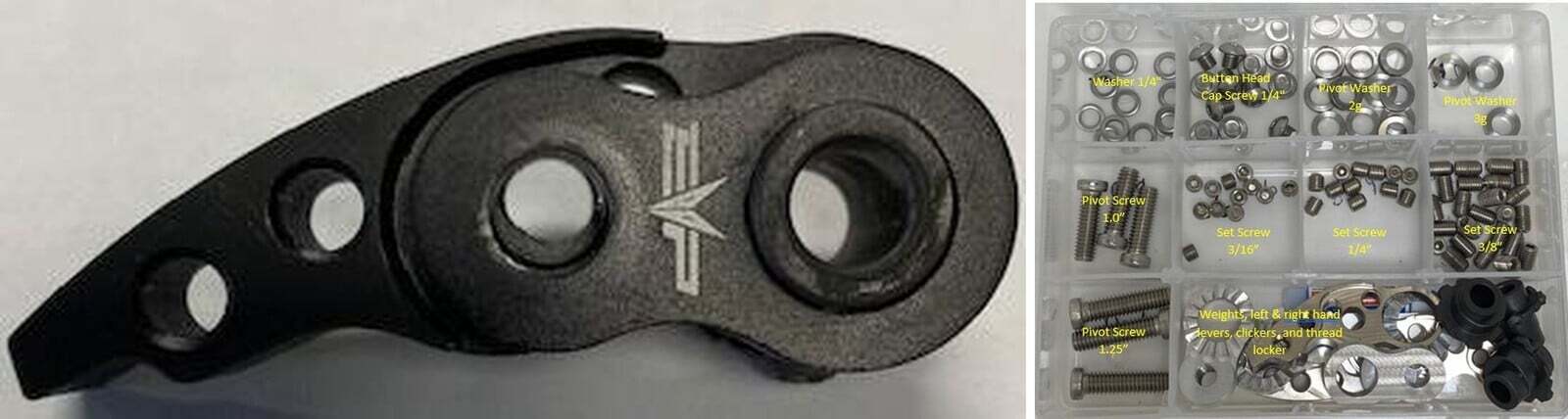

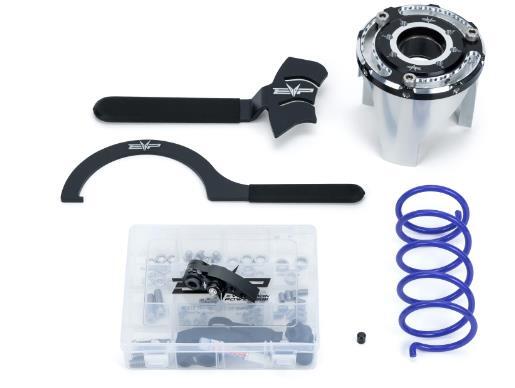

Included parts
41-52 Helix Assembly
Shift-Tek-P Trail Clutch Kit
Shift-Tek Purple Spring
Required tools
Clutch Service Tool Kit
Screwdriver(s)
13,17,19,22mm Sockets
Impact Driver
6mm Allen Socket
Red & Blue Loctite
Torque Wrench
Torx Sockets
Hammer

Installation

1
Remove the primary clutch from the crankshaft. Remove the sway bar using a 19mm socket and 21mm open-end wrench. Remove the primary clutch bolt using a 22mm socket. Install the Can-Am clutch puller (875FC0001) using an impact and 19mm socket. You will hear it “POP” off the crank.
2

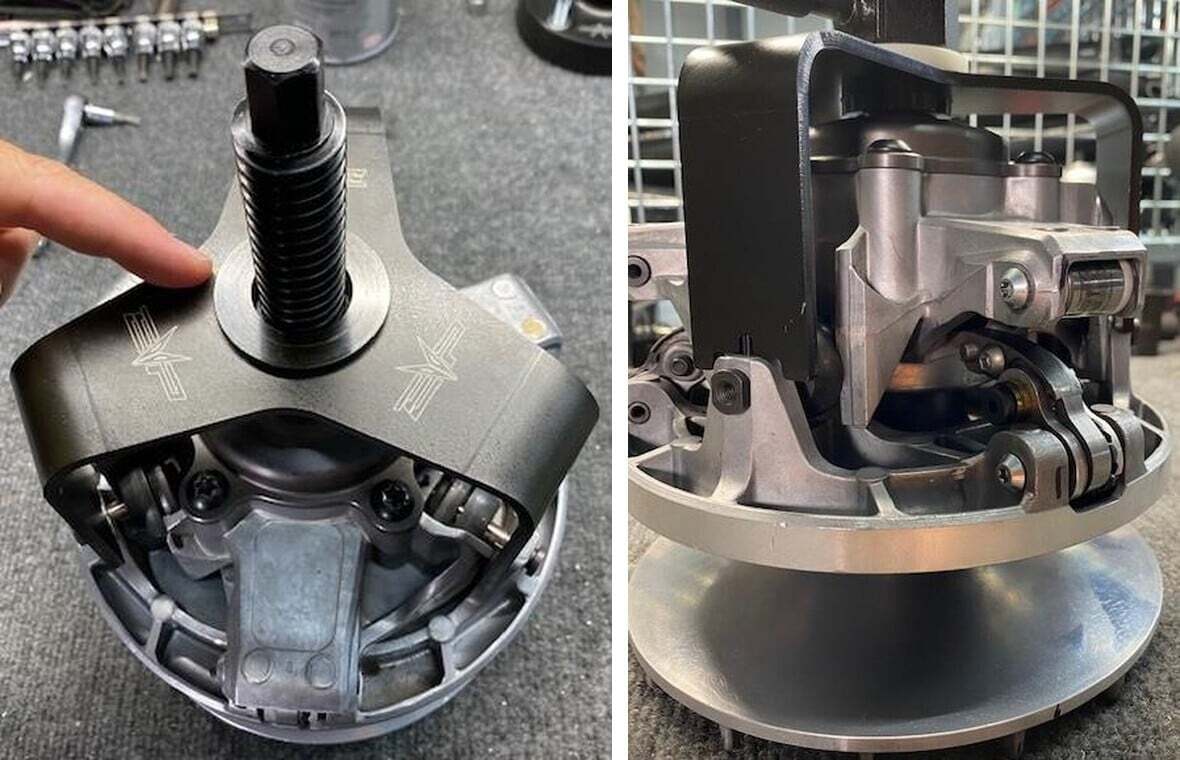

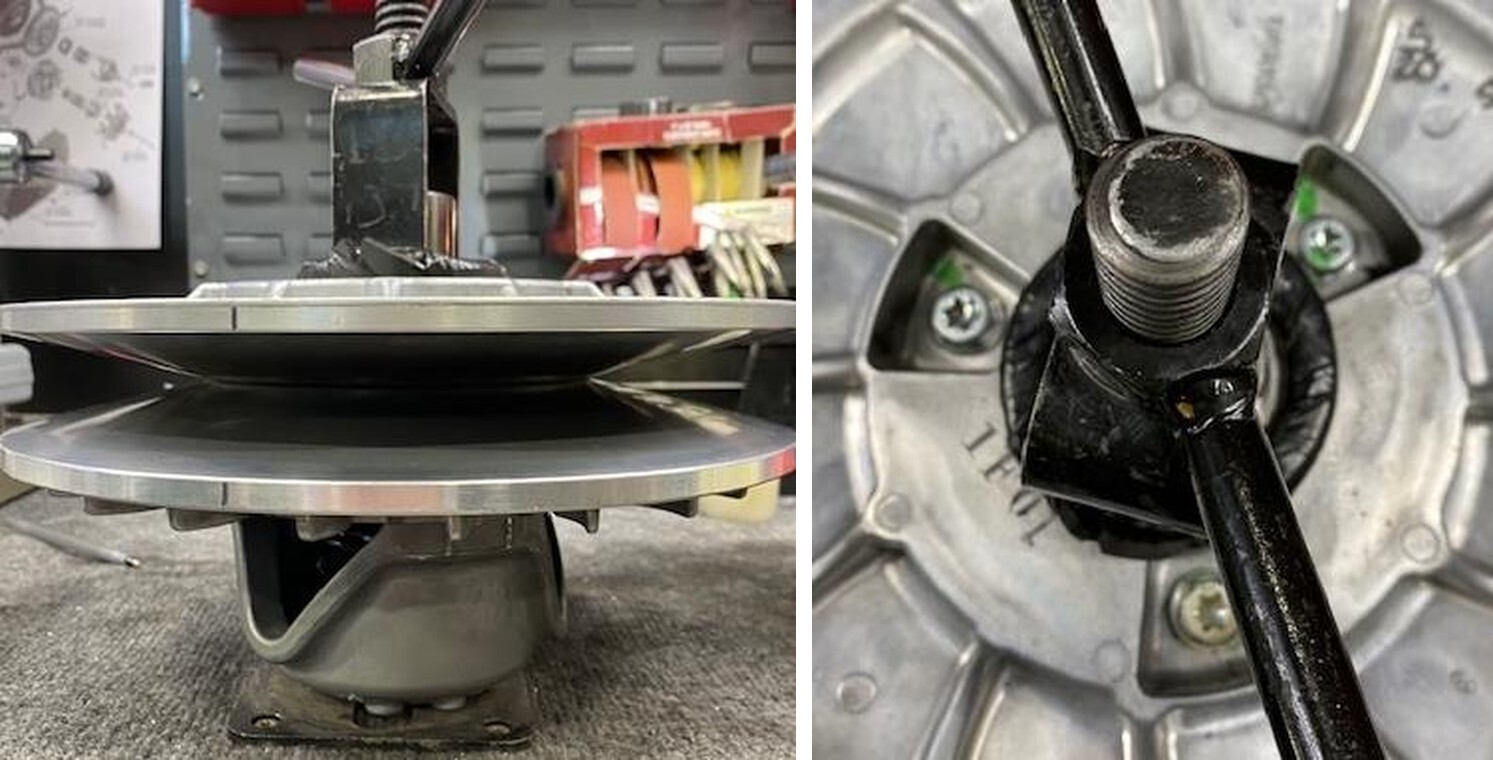

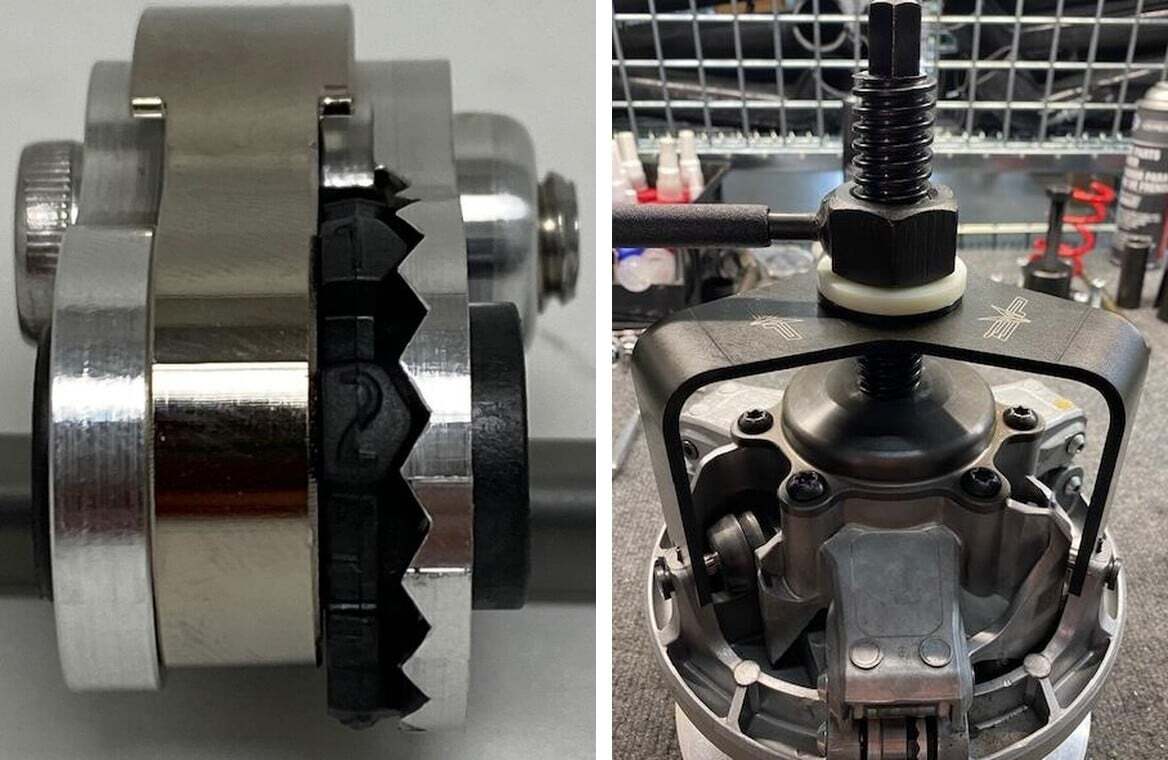

Apply some grease to the threads on tools Can Am Primary Clutch Threaded Rod & Handle for Threaded Rod. Thread tool Can Am Primary Clutch Threaded Rod into the clutch until it bottoms out on the governor cup. Install the 3 Arm Primary Compressor Tool onto the towers of the moveable sheave. Install the Center Tool Bushing and 1/4" Nylon Bushing into the 3-Arm Primary Compressor Tool. Compress it with the Handle for Threaded Rod.
Can-Am Maverick X3 installation
3

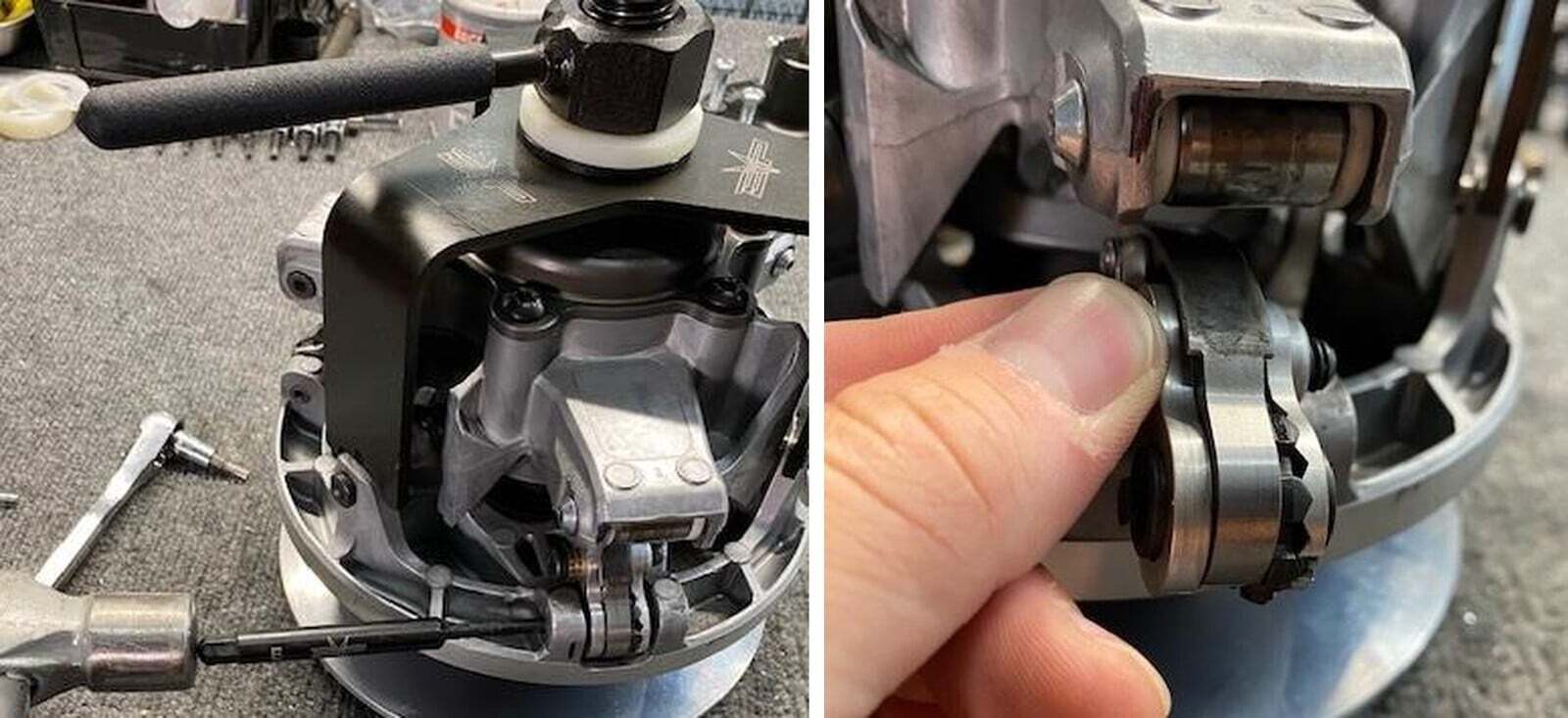

With a T25 socket remove the screws highlighted in the red box. Roller being on top, weight being on the bottom.
4
Once the screw is removed, thread in Axle Removal Tool from the left side-in. The left side castings are tapered where the axle seats. Hit the Axle Removal Tool with a hammer. Once the axle is past the taper, it will freely pull out. Remove the weight and roller once axle is removed (See figure 4-5).
Can-Am Maverick X3 installation
5
Installation will be in reverse order. Slide the axles in from the right side to left. Install the T25 screws and torque to 4 ft-lbs. When tightening the T25 screw, it will pull the axle into the taper. Use a medium thread locker on the T25 screws. Once complete, loosen the handle on the threaded rod and remove all tools from the clutch.
1

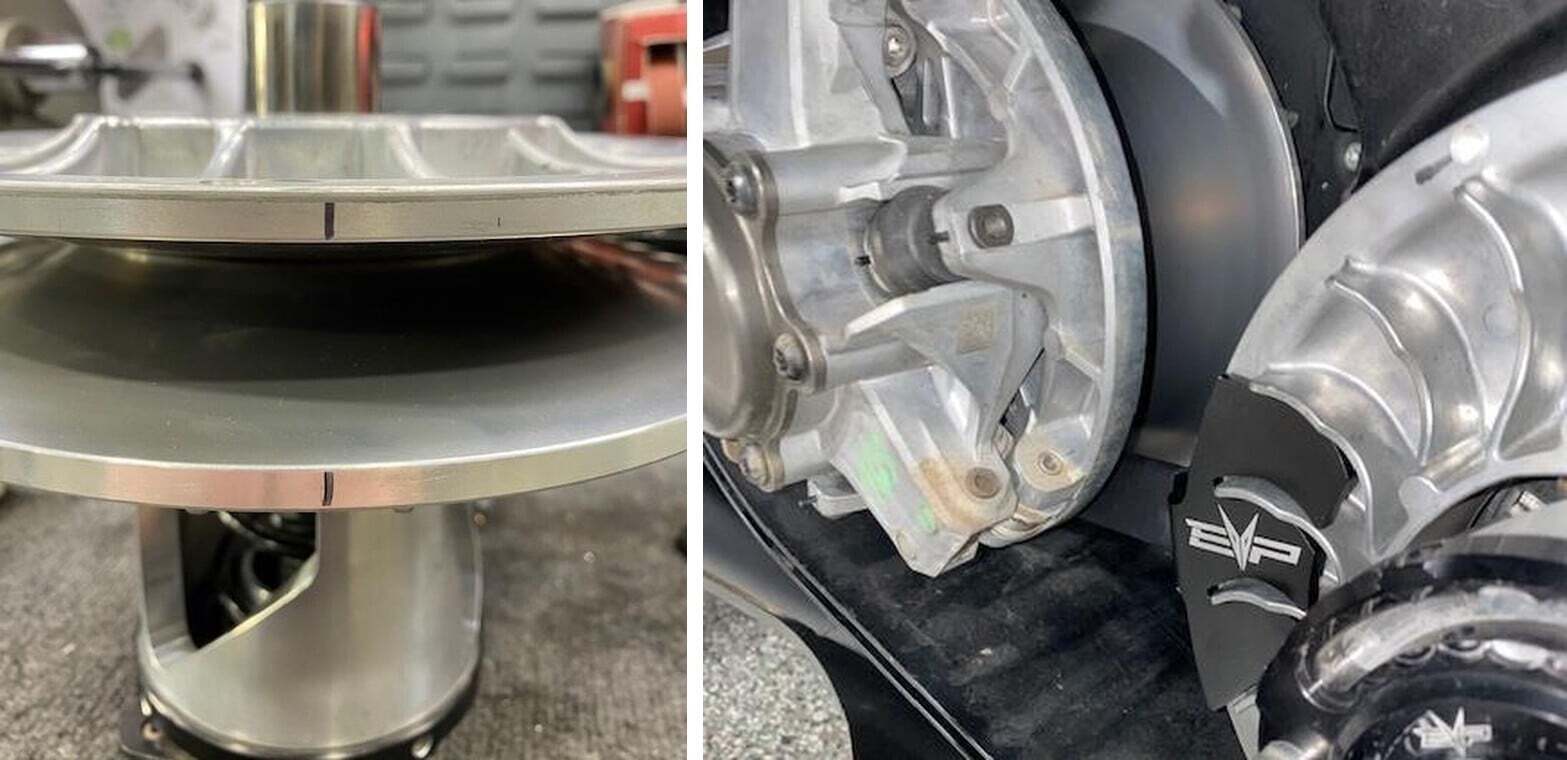

Remove the secondary clutch with a 17mm socket and impact, mount it into a clutch compression tool. With a sharpie make alignment marks on both sheaves. (Figure 1).
Can-Am Maverick X3 installation
2
Use 13mm socket to take 3 fasteners out of the helix and carefully loosen the spring compression tool to remove tension. (Figure 2).
3
Pull off both sheaves, remove spring cup and spring from the OEM helix.
Can-Am Maverick X3 installation
4

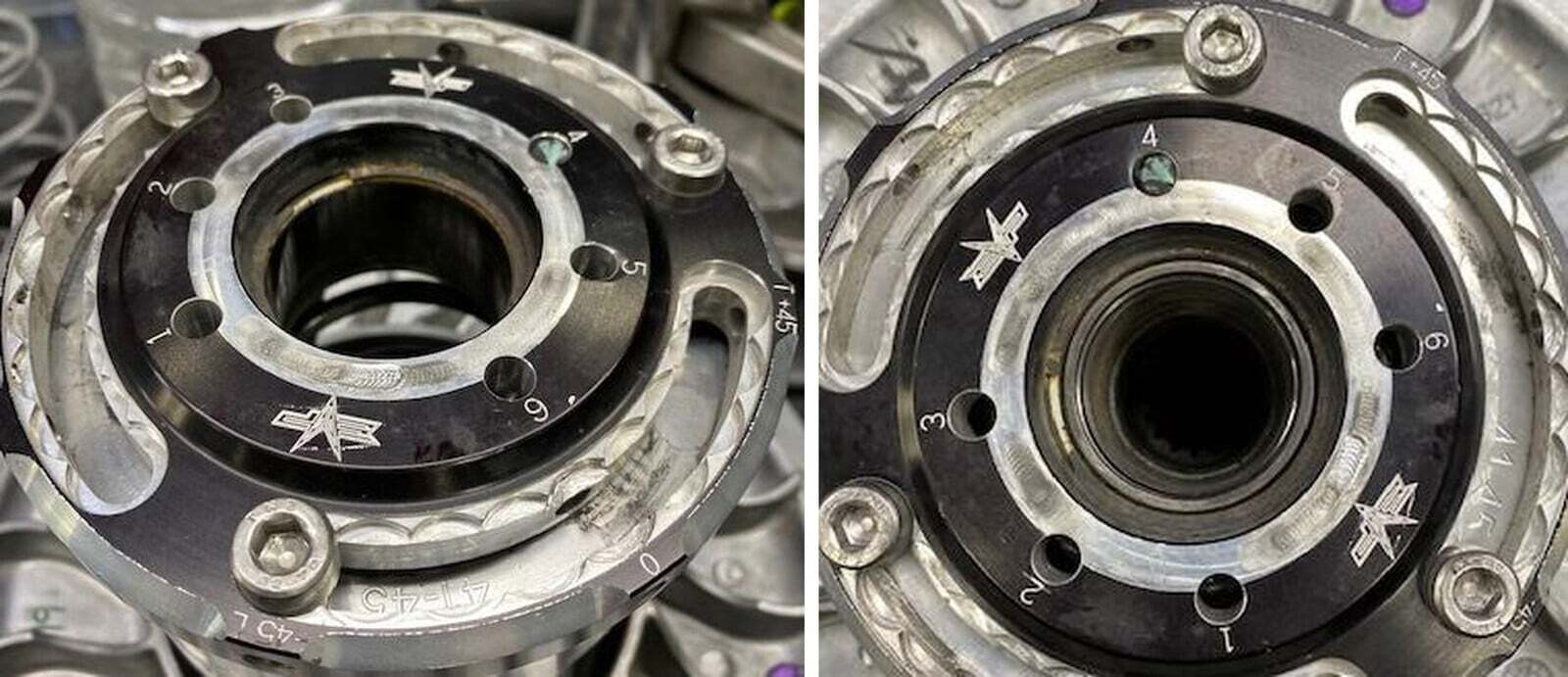

Grab the new helix, make sure the helix cap is adjusted to -45 degrees, if not loosen (3) Allen screws and clock the helix cap. Tighten the (3) Allen screws back down.
5
Reassemble the secondary clutch on the clutch compression tool in this order: Helix assembly, stock spring in hole 4 (EVP Purple Spring hole 5 depending on clutch setup sheet), spring cap, both sheaves in alignment. When compressing make sure the rollers are in line with the helix ramps. You may need to adjust with your hands while compressing.
Can-Am Maverick X3 installation
6
Apply Red Loctite onto the threads of the (3) 13mm bolts holding the helix to the sheaves.
7
Reinstall the clutch on the vehicle and torque secondary bolt to 52 ft-lbs.
Can-Am Maverick X3 installation
8

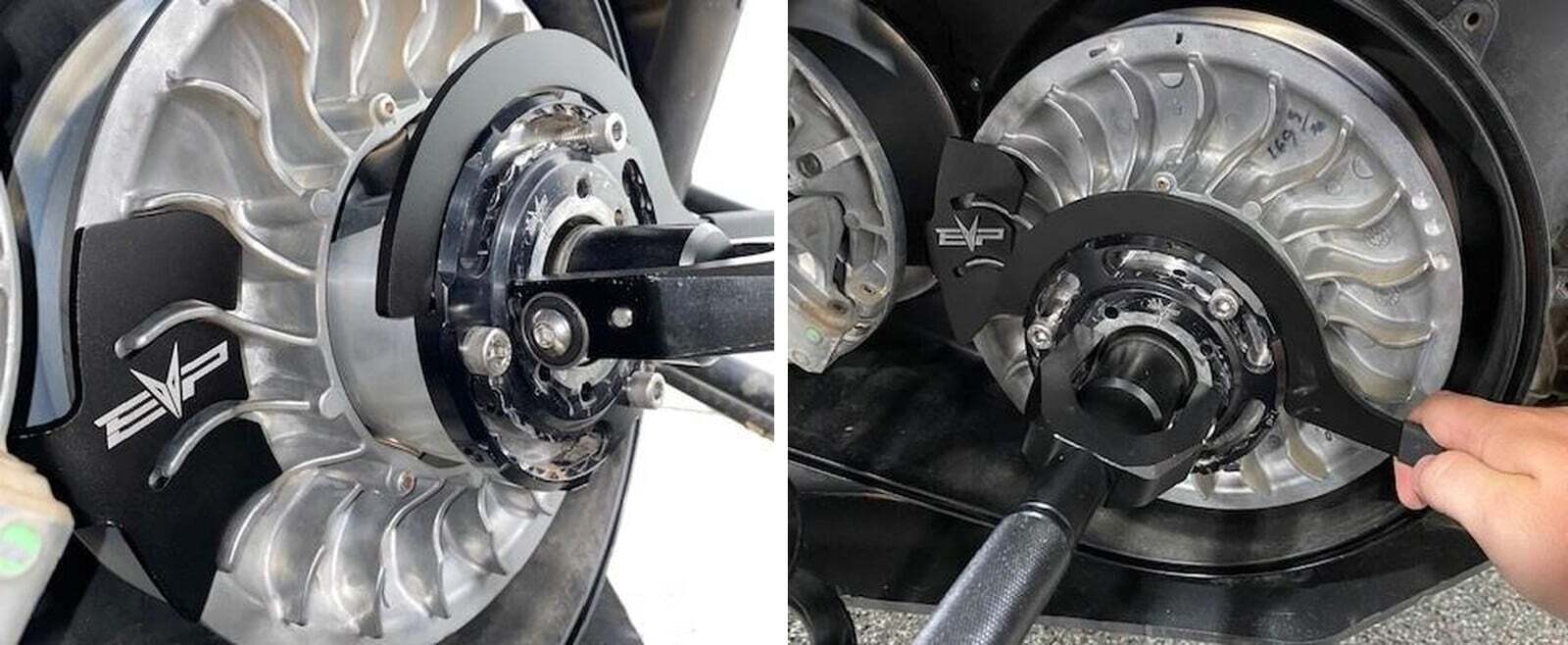

Install the secondary holding tool onto the secondary, align the tool in between the fins. Allow the handle to rest against the primary bearing.
9
Install the helix wrench into a slot around the Shift-Tek helix cap.
Can-Am Maverick X3 installation
10
Loosen all (3) M6 Allen head cap screws (do not remove). Apply pressure onto the helix wrench. You can now turn the helix cap to add or subtract torsion pressure on the spring. Once complete tighten the (3) M6 Allen head cap screws.
11
Remove the helix wrench and secondary holder. Install the belt back onto the clutches. Remove the belt changing tool and spin the secondary a total of 5 times.
Can-Am Maverick X3 installation
