Can-Am Can Am X3 Shift-Tek-P-Clicker Ultimate Clutch Kit — Install Guide

Can-Am · Maverick X3 · SKU 402FC0065 (Weights Only), 402FC0069 (Ultimate Kit)

What's in the Box

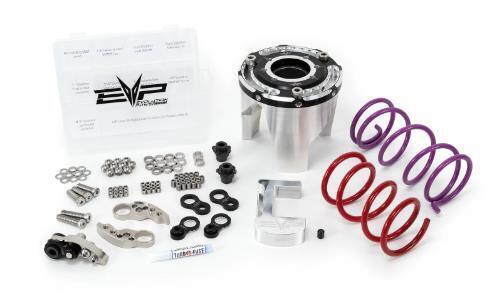

Can-Am Maverick X3 kit contents
Included parts
41-52 Helix Assembly
Shift-Tek-P Clicker Clutch Kit
Shift-Tek-P Red Spring
Required tools
Screwdriver(s)
13,17,19,22mm Sockets
Impact Driver
6mm Allen Socket
Red & Blue Loctite
Torque Wrench
Torx Sockets
Hammer

PDrive Clicker Weights with OEM Spring

Clutch Setup
             Stock   3R-91      3R-93      3R-95      4X100     5X85      P 300      P 330        P 360
Horsepower    205     219        226        233        255       260       300        330          360
  Primary    Stock   Stock      Stock      Stock      Stock     Stock     Stock      Stock        Stock
   Spring
Engagement   1900     2800       2800       2800       2800      2800      2800       2800         2800

RPM

Clutch Setup
 Operating   7400     8000-     8000-      8000-      8000-     8000-     8400-      8400-        8400-
    RPM               8100      8100       8100       8100      8100      8600       8600         8600
   Hole 1    N/A                                                                       (2)
                                                                                     Button     (2) Button
                     (2) 1/4"     (2)        (2)        (2)       (2)     (2) 3/8"    Head      Head 1/4"
                        SS      3/16" ss   3/16" ss   1/4"ss    1/4"ss       ss       1/4"         with
                                                                                      with       Washer
                                                                                     Washer
  Hole 2     N/A                                                                                (2) Button
                                                                  (2)     (2) 3/8"   (2) 3/8"   Head 1/4"
                        0          0          0           0
                                                                1/4"ss       ss         SS         with
                                                                                                 Washer
Pivot Bolt   N/A      1.0"       1.0"      1.25"       1.25"     1.25"     1.25"      1.25"        1.25"
   Pivot     N/A       0          2g       (2) 2g     2g + 3g   2g + 3g   2g + 3g    2g + 3g      2g + 3g
  Washer
  Clicker    N/A        3          3          3           4       3          3          3            3
 Position
Assembled    N/A
Weight in             73.3g       77g       80.5g     82.5g      84g      86.5g       90g          93.3g
  Grams
Secondary    N/A      EVP        EVP        EVP        EVP       EVP       EVP        EVP          EVP
  Spring             Purple     Purple     Purple     Purple    Purple    Purple     Purple       Purple
   Helix     N/A     41-52      41-52      41-52      41-52     41-52     41-52      41-52        41-52
  Hole on    N/A     Hole 5     Hole 5     Hole 5     Hole 5    Hole 5    Hole 5     Hole 5       Hole 5
 Helix Cap
 Helix Cap   N/A        0          0          0           0       0          0          0            0
 Clocking
                                    1             Pivot
                                                                  Axle
                            2

PDrive Clicker Weights with Red Spring

Clutch Setup
                Stock    3R-91    3R-93    3R-95     4X100     5X85      P 300     P 330      P 360
 Horsepower      205      219      226      233       255       260       300       330        360
   Primary       N/A      Red      Red      Red       Red      Red        Red       Red        Red
    Spring
 Engagement     N/A      3600     3600      3600      3600      3600      3600      3600      3600

RPM

Clutch Setup
  Operating     N/A      8000-    8000-    8000-     8000-     8000-     8400-    8400-       8400-
     RPM                 8100     8100     8100      8100      8100      8600     8600        8600
    Hole 1      N/A                                                                (2)
                          (2)       (2)      (2)       (2)       (2)       (2)   Button
                        1/4"ss    1/4"ss   1/4"ss    1/4"ss    3/8" ss   3/8" ss Head w
                                                                                 Washer
    Hole 2      N/A                                                        (2)     (2)
                                                       (2)       (2)     Button Button
                           0        0        0
                                                     1/4"ss    3/8" ss   Head w Head w
                                                                         Washer Washer
 Pivot Bolt     N/A      1.00"    1.00"    1.25"     1.25"     1.25"      1.25"   1.25"
    Pivot       N/A
                           0       2g      2g + 3g   2g + 3g   2g + 3g   2g + 3g   2g + 3g
   Washer
   Clicker      N/A
                           3        3        3         3         3         3         3
  Position
 Assembled      N/A
 Weight in               75.5g    77.3g    82.5g      84g      86.5g     89.0g     92.3g
   Grams
 Secondary      N/A      EVP      EVP       EVP       EVP       EVP       EVP       EVP       EVP
   Spring               Purple   Purple    Purple    Purple    Purple    Purple    Purple    Purple
    Helix       N/A     41-52    41-52     41-52     41-52     41-52
   Hole on      N/A     Hole 5   Hole 5    Hole 5    Hole 5    Hole 5
  Helix Cap
  Helix Cap     N/A        0        0        0         0         0
  Clocking

**NOTE: Always install a set screw on both sides of the weight arm. Install the screws with the provided thread locker, making sure the screws are installed with an equal amount of thread engagement. ** Stock weights with stock spring: 1800rpm engagement ** Stock weights with red spring: 2300rpm engagement ** EVP clicker weights with stock spring: 2800rpm engagement ** EVP clicker weights with red spring: 3600rpm engagement

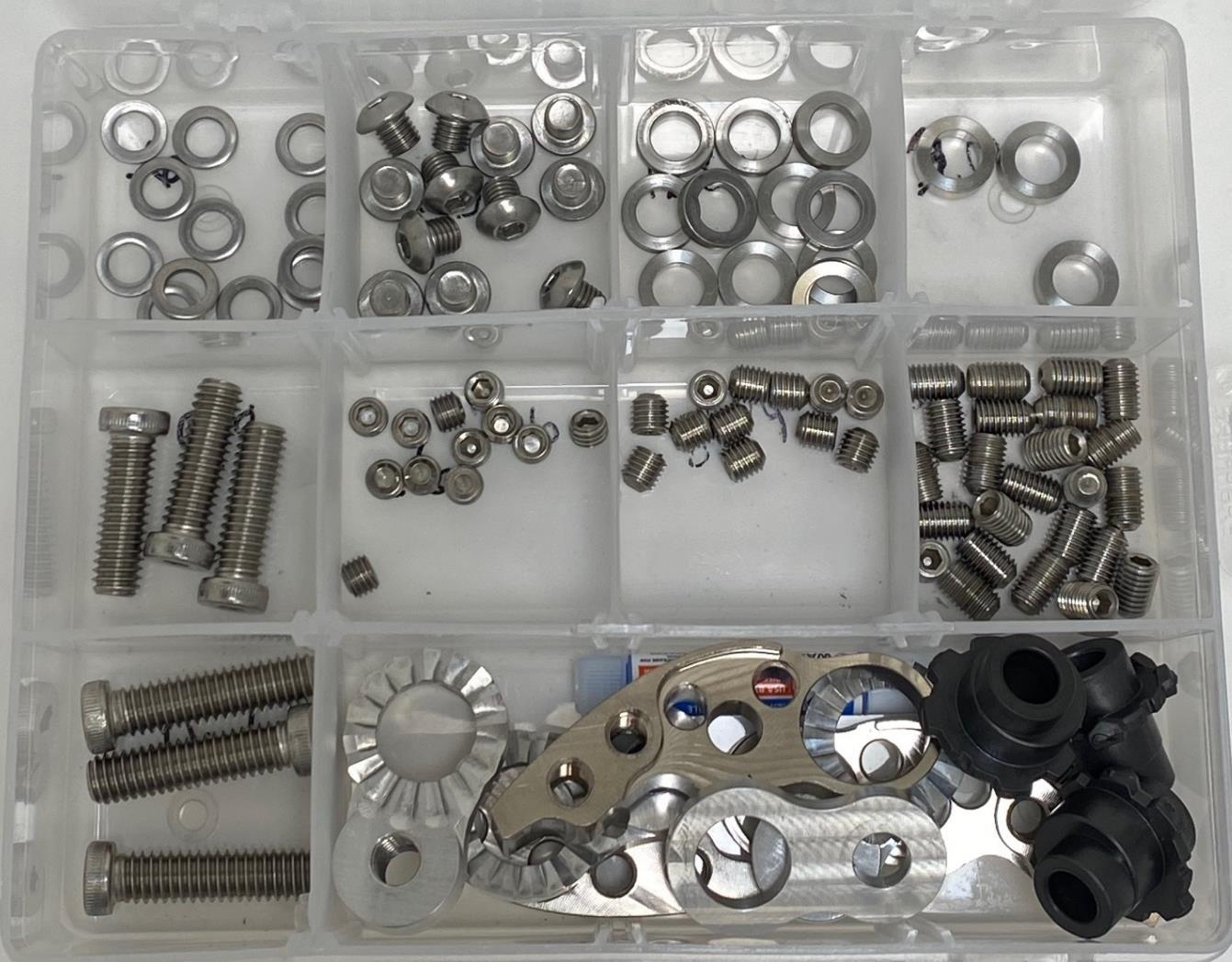

Clutch Setup
 Washer 1/4"   Button Head
                                      Pivot Washer
               Cap Screw 1/4"                             Pivot Washer
                                            2g
                                                                3g

Pivot Screw 1.0”

Clutch Setup
                  Set Screw              Set Screw            Set Screw
                    3/16”                  1/4”                 3/8”

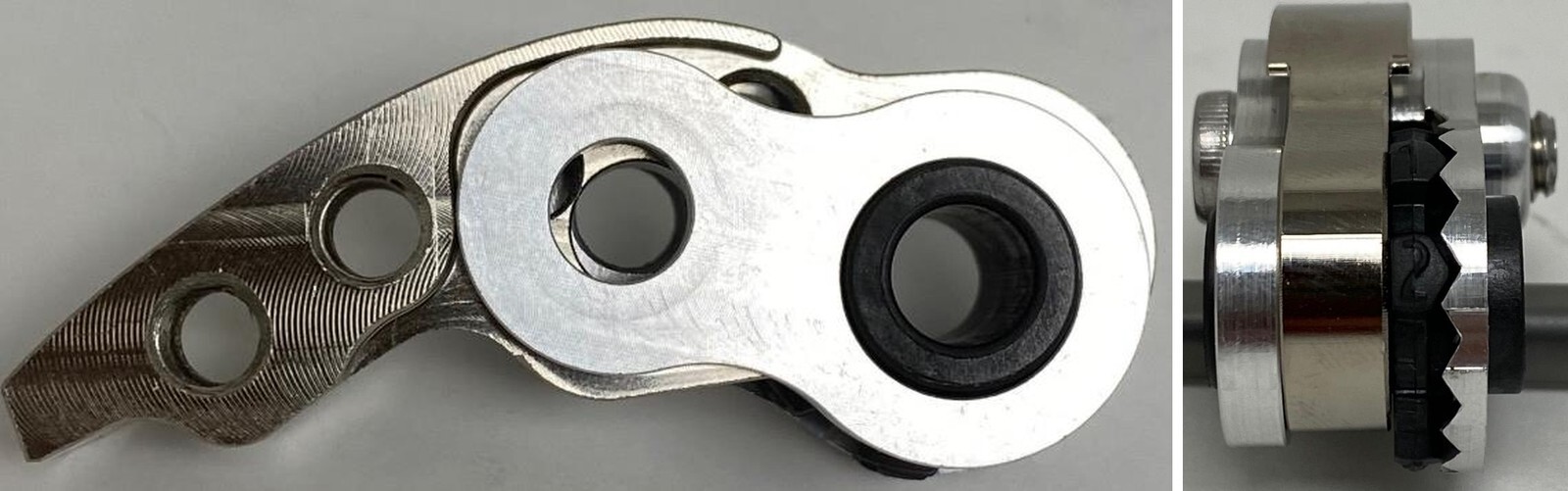

Weights, left & right hand

Clutch Setup
Pivot Screw    levers, clickers, and thread
   1.25”                   locker

**Each clicker cam has numbers 1-5. Each number will modify maximum engine RPM by about 100rpm’s. All three clickers must be set to the same setting.

**Lower numbers decrease engine RPM in steps of 100 RPM and higher numbers increase in steps of 100 RPM

**Example: Ramp cam is set at position 3 and changed to position 5. So maximum engine RPM is increased by 200 RPM.

Can-Am Maverick X3
Can-Am Maverick X3

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
