Can Am X3 “Shocker” Electric Side Dump Race Bypass Pipe — Install Guide

Can-Am · Maverick X3 · SKU (2.5”) 301DC0016, (3”/2.5” Flange) 301DC0064, (3”) 301DC0076

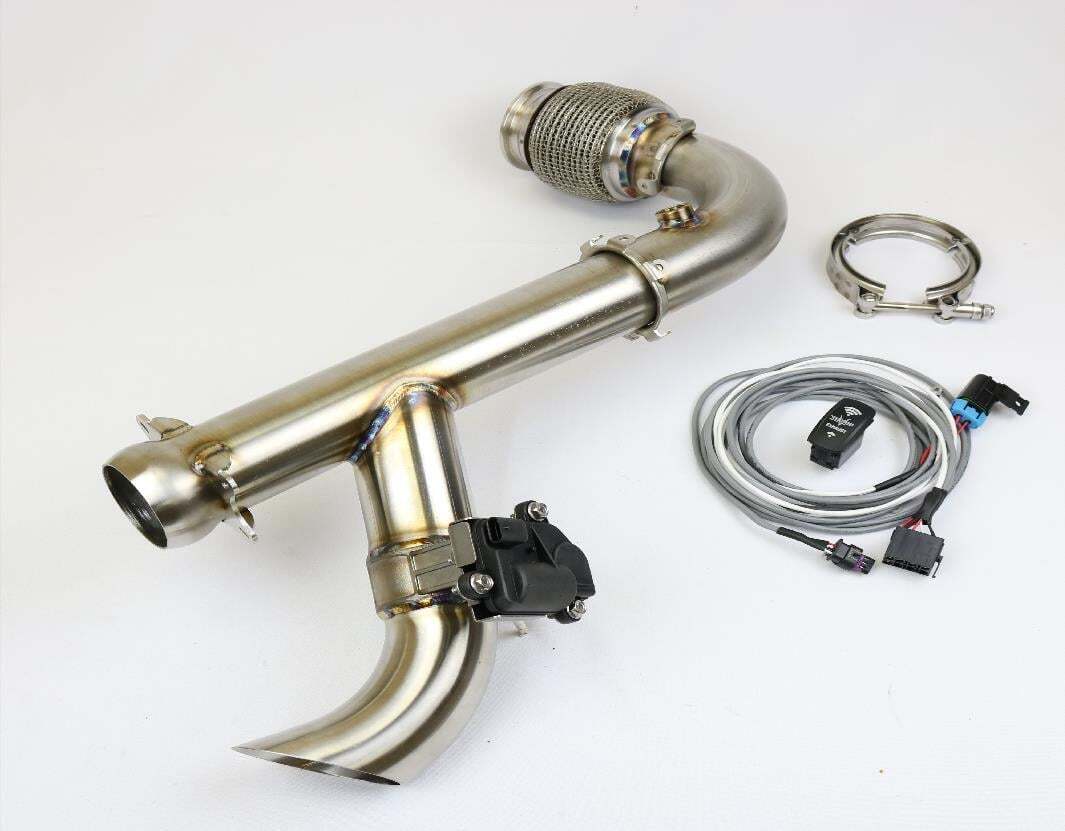

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
Shocker Side Dump Race Qty 1
Bypass Pipe
Wiring Harness Qty 1
Zip Ties Qty 10
Required tools
High Temp Anti-Seize
17mm Open End Wrench
Spring Puller
T30 Torx
Side Cutter
10mm Socket

Installation

1
Remove the rear valance by removing (5) T30 Torx bolts. (3) on the top and (2) on the bottom.
2

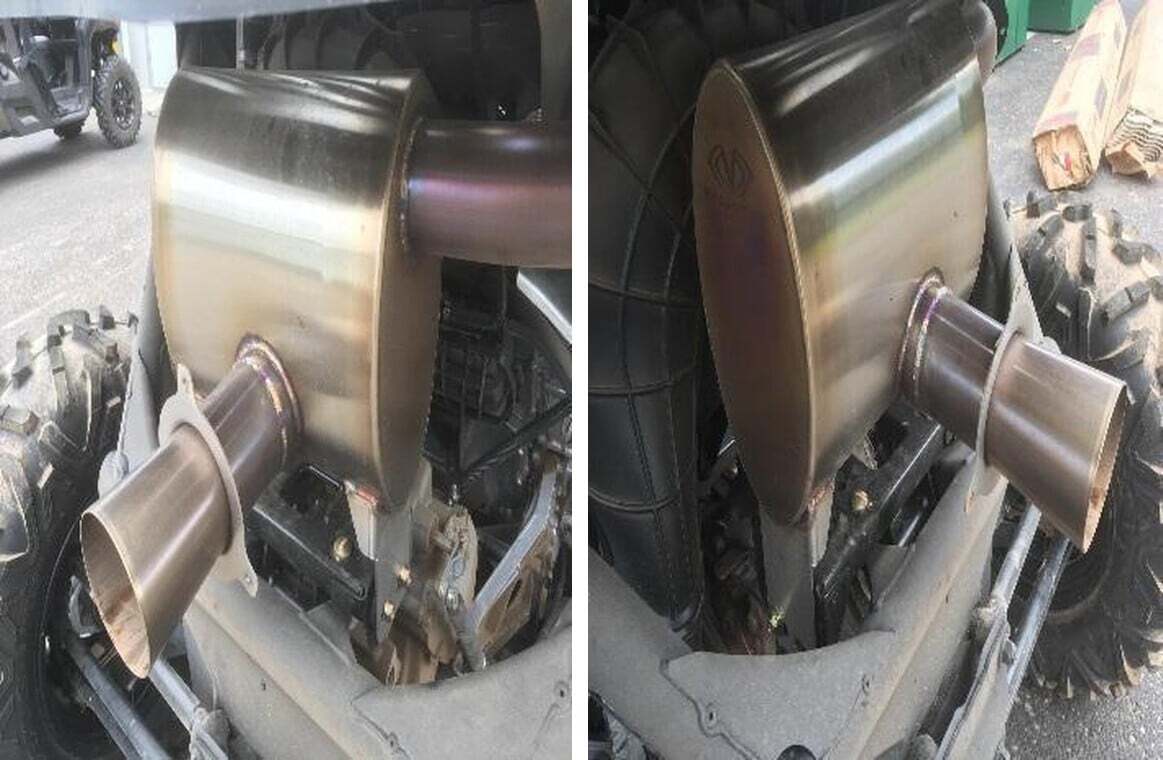

Remove the (4) muffler springs and (4) mounting bolts. (Figures 1-3).
3
Locate and disconnect the 02-sensor wire from the wire harness.
4
Remove the 02 sensor (22mm wrench) from the exhaust pipe. Pay close attention to the tip of the sensor to prevent damage or contamination.
5

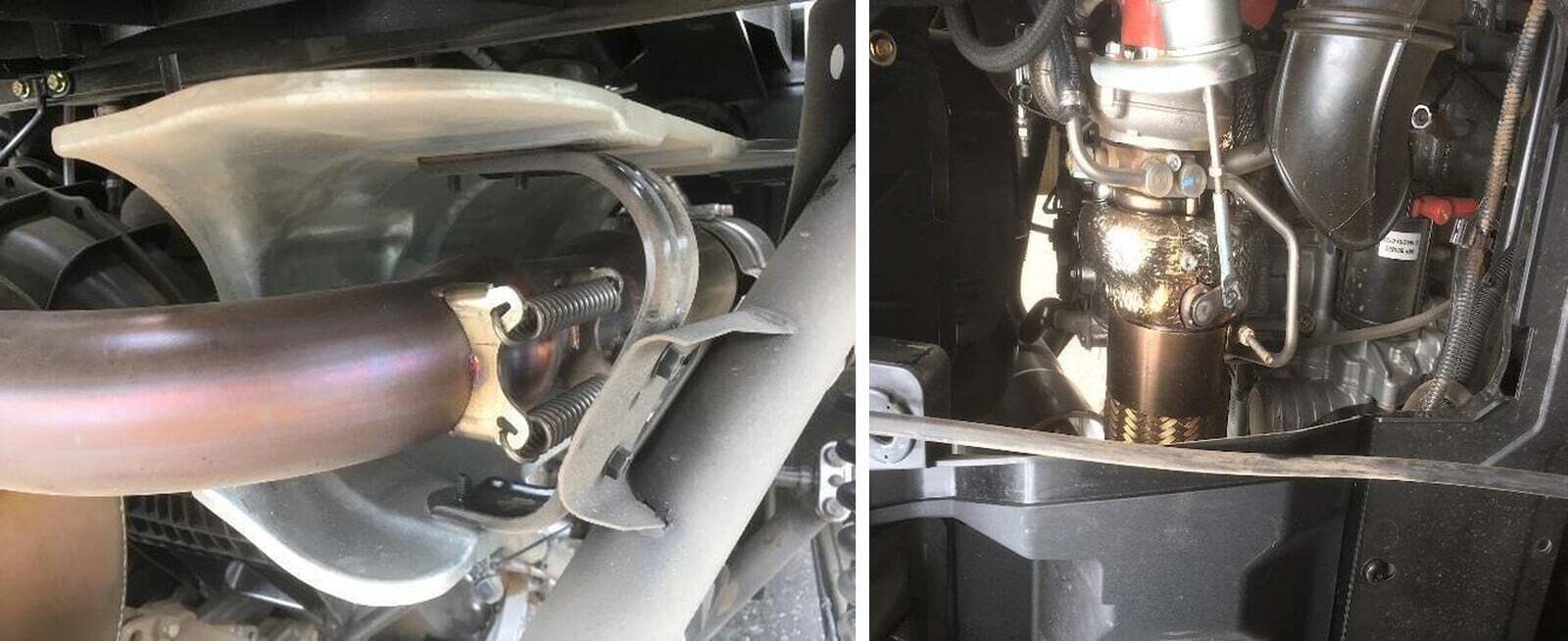

Remove the two heat shield panels and clamps (8mm socket) from the exhaust. These will be reinstalled later.
Can-Am Maverick X3 installation
6
Loosen the v-band clamp (11mm socket) connecting the exhaust to the turbo. This clamp can be accessed through the access panel in the cabin of the car. (Figure 4).
7

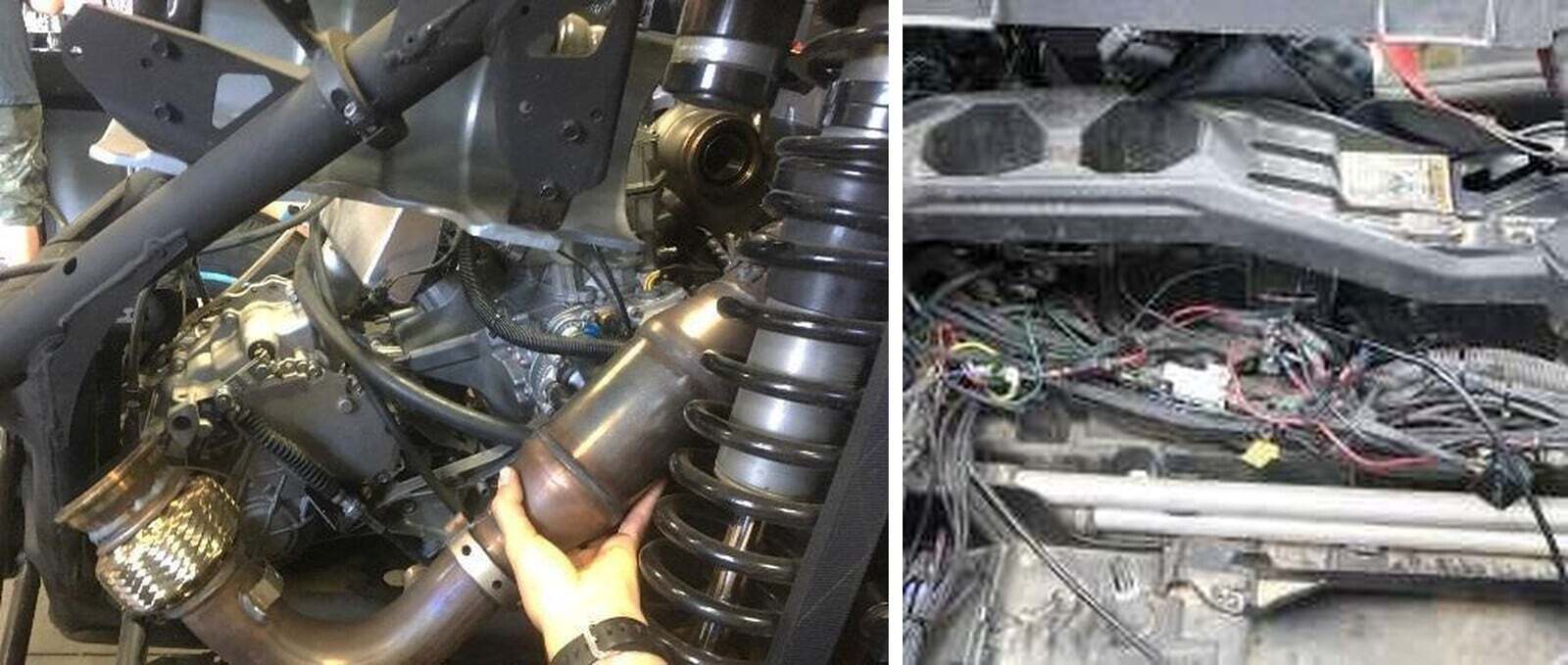

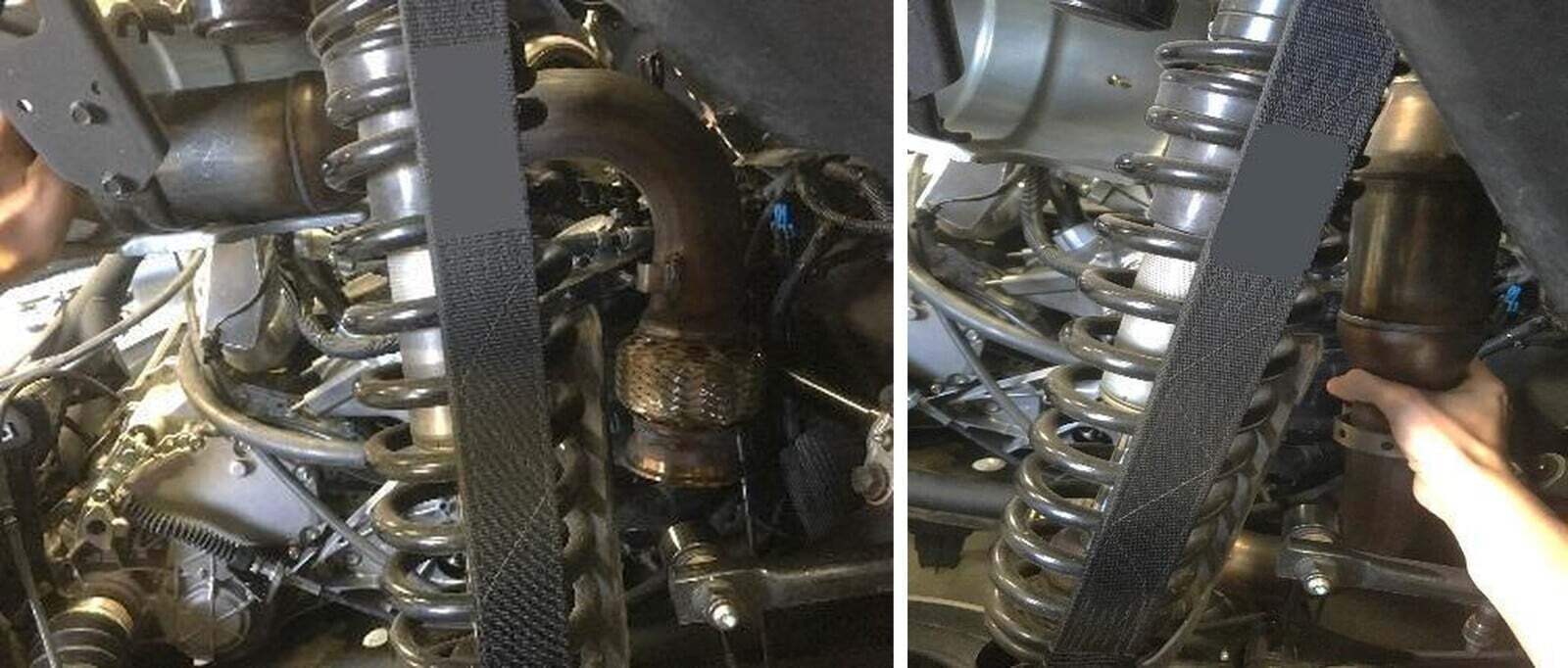

To remove the exhaust pipe, slide it toward the front of the car, over the mount. Next, pivot the turbo side down until it is vertical. Finally, twist the entire exhaust pipe out of the shielding and remove from the vehicle. Follow the images below. NOTE: These images were taken with the rear cargo rack removed for better visual instruction, the rack can be left on when removing the exhaust. (Figure 4-9).
8
Insert the shocker pipe (following the removal steps) loosely secure the v-band clamp, attaching the shocker exhaust to the turbo with the exhaust gasket in place. Place anti- seize to the clamp nut.
9
Attach the heat shield panels.
10
Install the 02 sensor into the shocker exhaust with high temp anti-seize applied to the threads.
Can-Am Maverick X3 installation
11
Reinstall the muffler and loosely mount using the (4) OEM bolts (13mm socket). Secure the muffler to the shocker with the (4) OEM springs.
12
With the springs installed and all other mounts loosely in place, tighten the V-band clamp to 8 ft/lbs (97 in/lbs). Next tighten the heat shield clamps and muffler mounting hardware.
13
Attach the rear valance with the OEM (5) T30 Torx bolts.
1
Select an unused rocker switch position on your dash and remove the cover plate. Route the rocker switch plug attached to the harness to that location and connect the rocker switch.
2
Remove the passenger seat from the vehicle. (18mm socket, 13mm socket, 13mm wrench).
Can-Am Maverick X3 installation
3
To gain access to the power accessory bar. Remove the left-hand lateral console panel. (Figure 1).
4
Route the wiring harness to the power accessory bar and connect the positive ring terminal to key power and the negative ring terminal to the negative terminal. (Figure 2).
5
Route the remaining side of the harness back to the actuator on the exhaust. Use the supplied cable ties to loosely secure the harness to the chassis, be sure to secure the harness away from hot and or moving components.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
