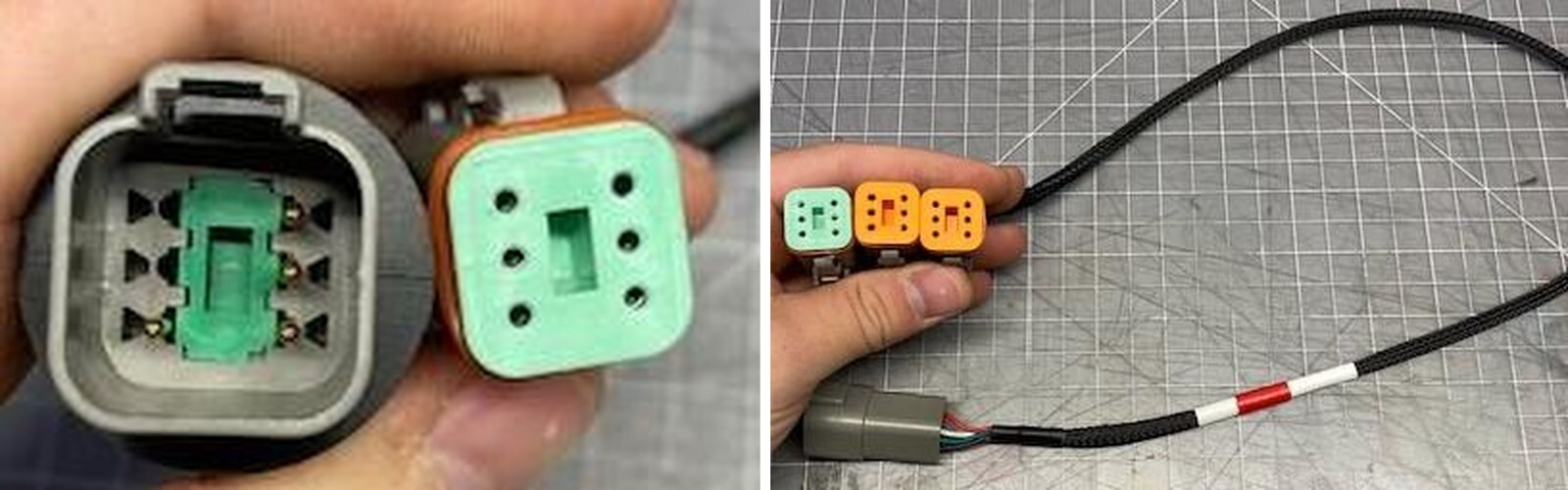

NoteDiagnostic-Port-Replicator with red stripe over white label means it has been re-pinned to work with the BRP-2 cable as a BRP-1 cable. ONLY use the last male connector (green wedge lock) for the CodeShooter (Figure 1). The other two male connectors (orange wedge lock) can still be used for accessories like AFR/Belt temperature modules. Just remember green wedge lock to green wedge lock. (Figure 2).

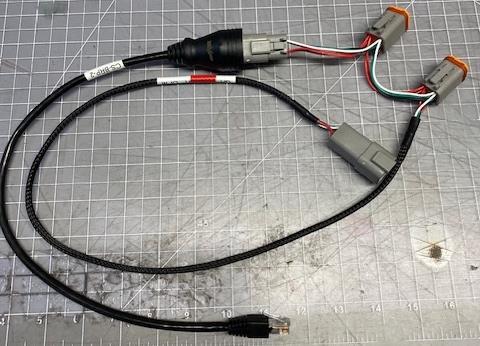

CodeShooter BRP-2 cable connected to diagnostic port
Female 6 pin to can am diagnostic port
