Can Am Commander 1000R Shift-Tek Clutch Kit — Install Guide

Can-Am · Commander · SKU 402FC0027, 401FC0009

What's in the Box

Can-Am Commander kit contents
Included parts

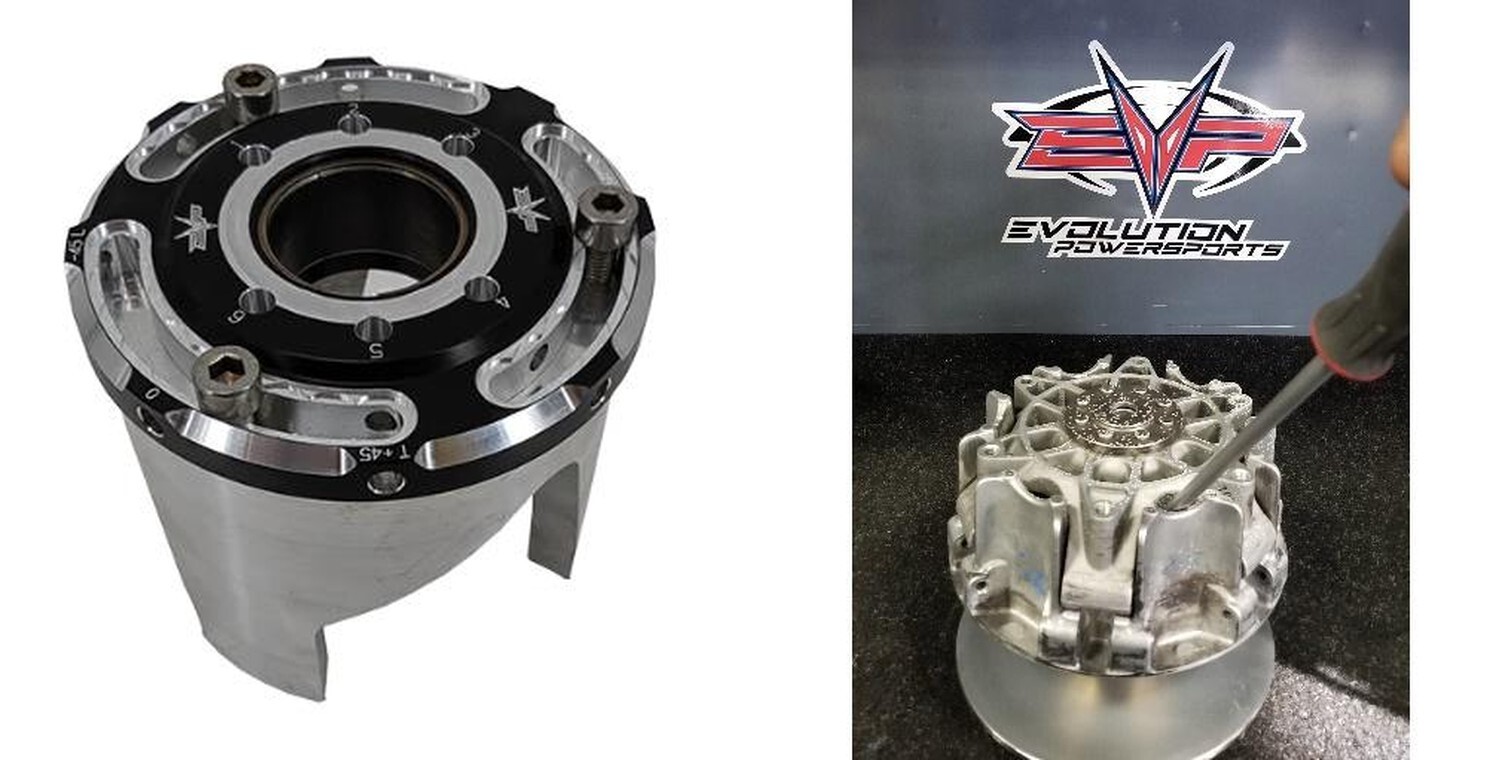

Shift-Tek Helix Assembly
Helix Wrench
Secondary Holder
6 Primary Clutch Weights
Clutch Weight Removal and Installation
Required tools
Belt Changing Tool
M6 Allen Socket
Ratchet
Clutch Compression Tool
17mm Socket
Torque Wrench
8 mm Socket
T-25 Socket
Blue Loctite

Installation

1
Remove clutch cover and belt. Install the No-Mar tip on the belt changing tool.
2
OEM cam arm removal, use a T25 Torx bit on one end of the pin and an 8mm socket on the other and remove the nut.
3
Remove the pin.
4
Use a magnet to retrieve the cam arm – be careful to save the washers that are installed on both sides of the arm – these will be needed if you ever use the stock weights again. They are NOT needed for the installation of the EVP weights.
Can-Am Commander installation
5

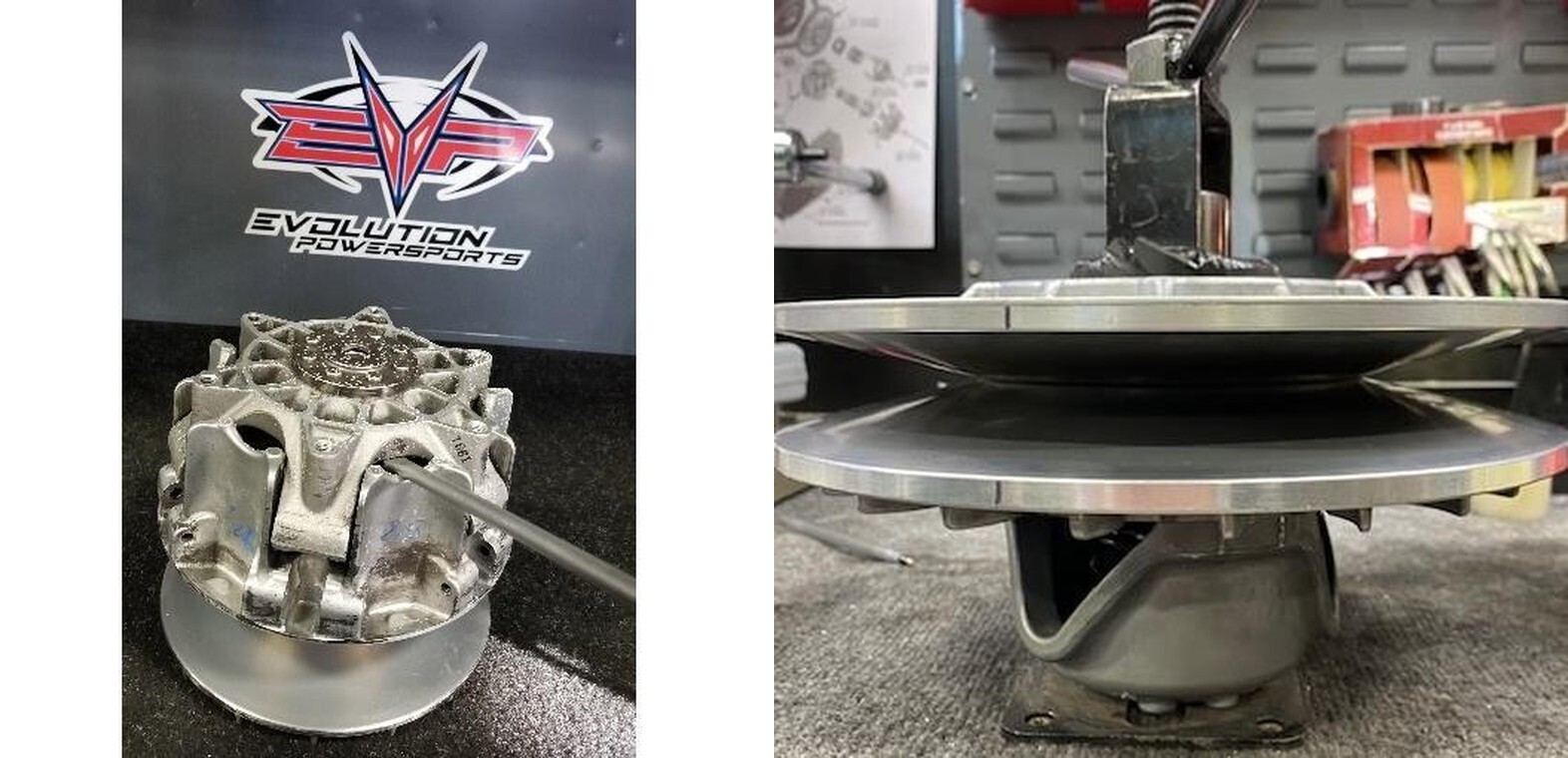

For removing the stock cam arms and installing the adjustable arms the clutch will have to be compressed slightly to slide the cam arms into place. See picture below on where to do this.
6
To install the new cam arms, slide an arm into the location where the previous arm was installed. Use a magnet to position the arm so the pin can be reinstalled. Reinstall nut onto pin.
1

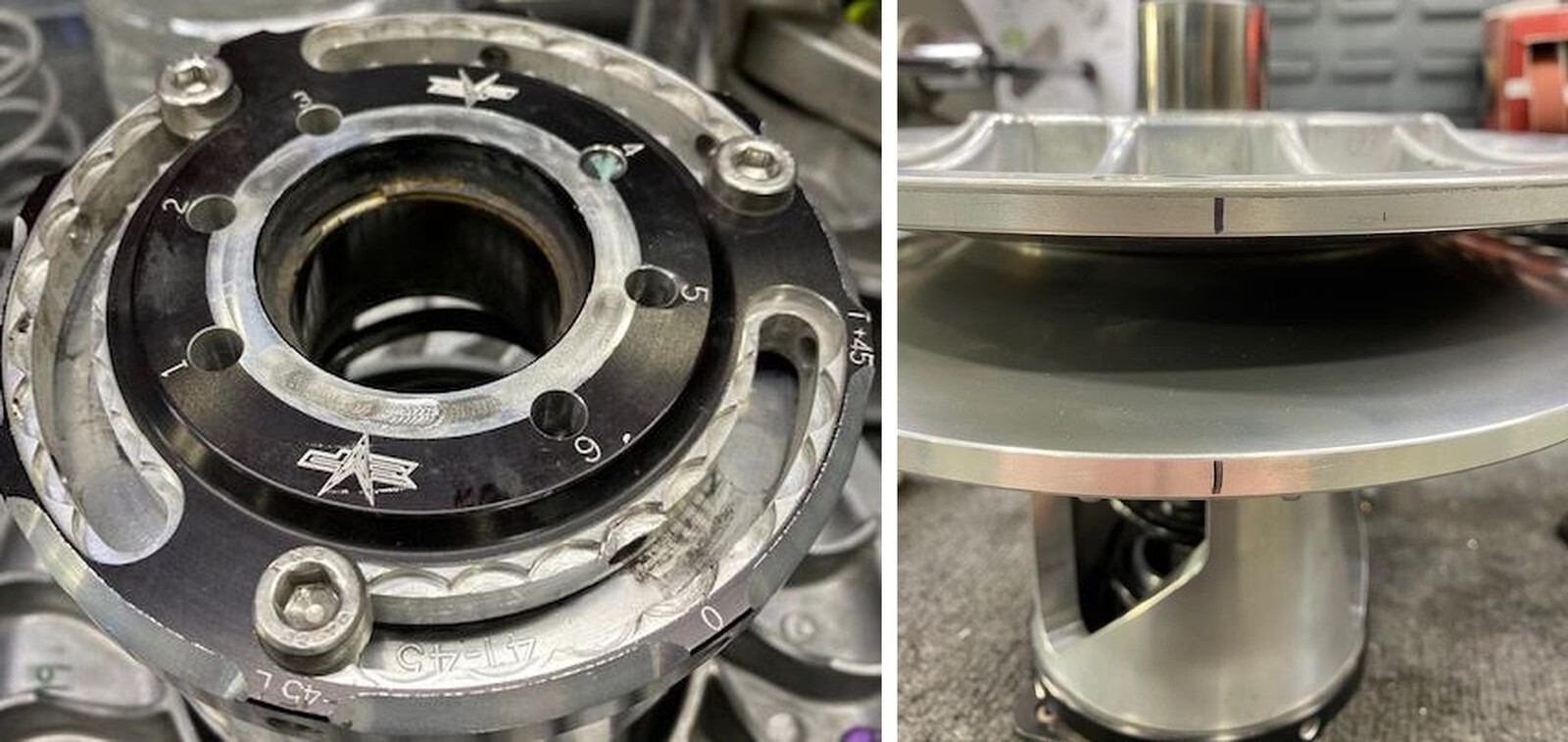

Remove the secondary clutch with a 17mm socket and impact, mount it into a clutch compression tool. With a sharpie make alignment marks on both sheaves. (Figure 1).
2
Use 13mm socket to take 3 fasteners out of the helix and carefully loosen the spring compression tool to remove tension. (Figure 2).
Can-Am Commander installation
3

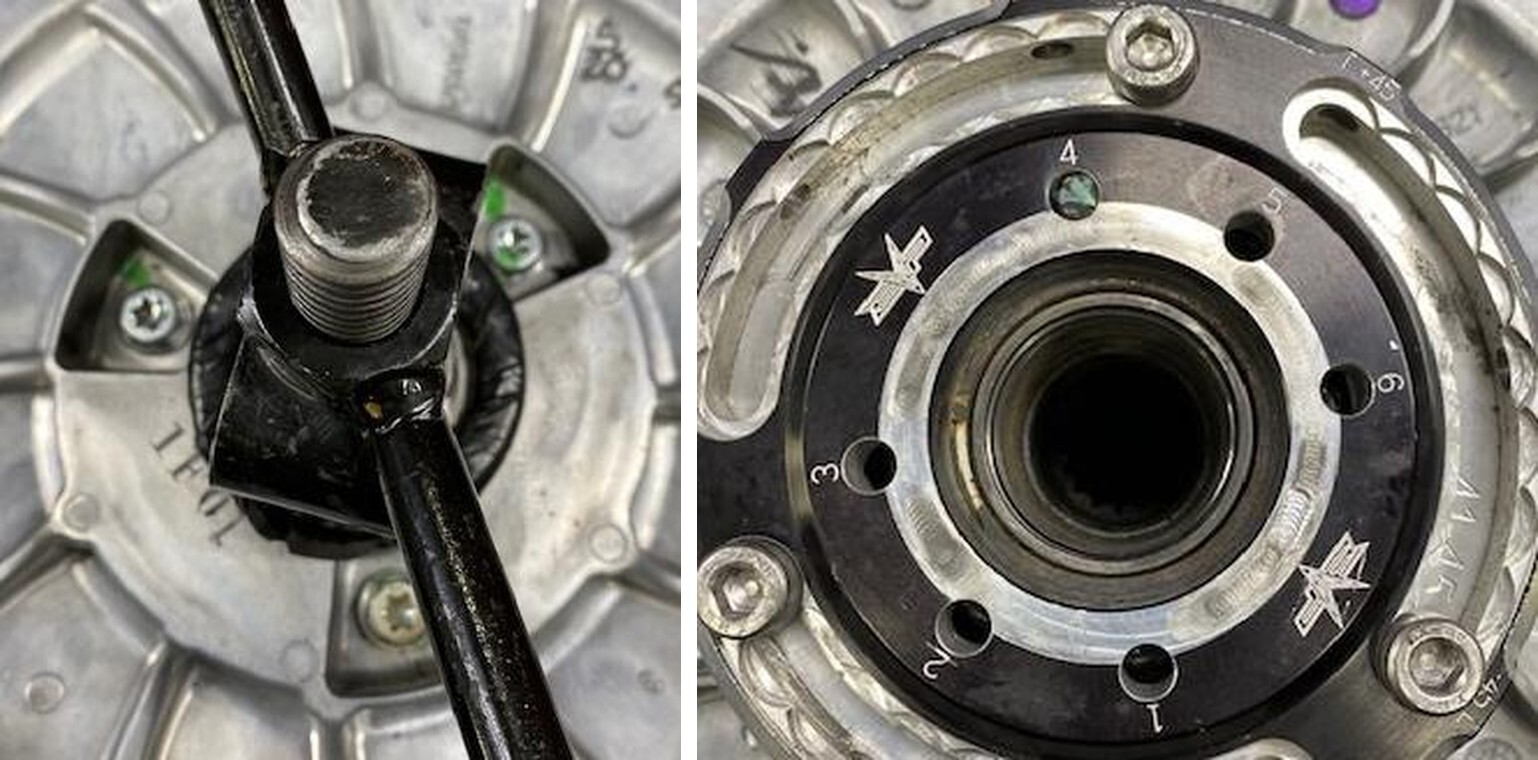

Pull off both sheaves, remove spring cup and spring from the OEM helix.
4
Grab the new helix, make sure the helix cap is adjusted to -45 degrees, if not loosen (3) Allen screws and clock the helix cap. Tighten the (3) Allen screws back down.
5
Reassemble the secondary clutch on the clutch compression tool in this order: Helix assembly, place the spring in hole 4 of the spring cap, both sheaves in alignment. When compressing make sure the rollers are in line with the helix ramps. You may need to adjust with your hands while compressing.
6
Apply Blue Loctite onto the threads of the (3) 13mm bolts holding the helix to the sheaves.
Can-Am Commander installation
7
Reinstall the clutch on the vehicle and torque secondary bolt to 52 ft-lbs.
8

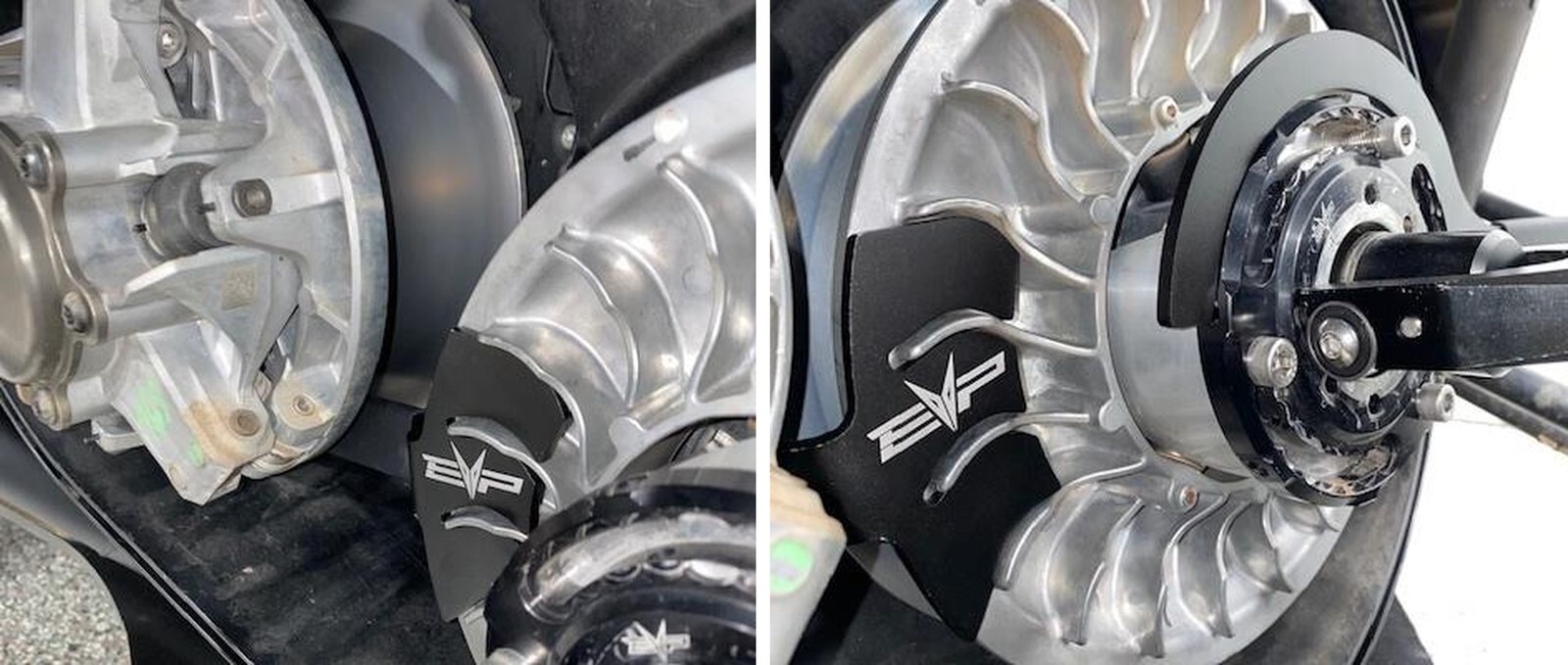

Install the secondary holding tool onto the secondary, align the tool in between the fins. Allow the handle to rest against the primary bearing.
9
Install the helix wrench into a slot around the Shift-Tek helix cap.
10
Loosen all (3) M6 Allen head cap screws (do not remove). Apply pressure onto the helix wrench. You can now turn the helix cap to add or subtract torsion pressure on the spring. Set to “0” degrees. Once complete tighten the (3) M6 Allen head cap screws.
Can-Am Commander installation
11
Remove the helix wrench and secondary holder. Install the belt back onto the clutches. Remove the belt changing tool and spin the secondary a total of 5 times. NOTE: Remove the sound dampening material from the inside of the clutch cover. This will allow room for the clutch cover to fit.
Can-Am Commander installation
