Polaris EVP Front Grille for Pro XP, Turbo R & Pro R — Install Guide

Polaris · Pro R (RZR) · SKU 925FP0208 (Single Grille), 925FP0207 (Three Grilles)

What's in the Box

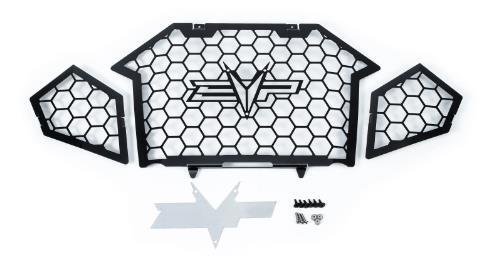

Polaris Pro R (RZR) kit contents
Included parts
Grille Qty 1
Backing Plate Qty 1
Hardware Kit Qty 1
Required tools
Push Dart Tool
T-40 Socket
1/16” Allen Wrench
1/4" Socket
7/64” Drill Bit

Installation

1

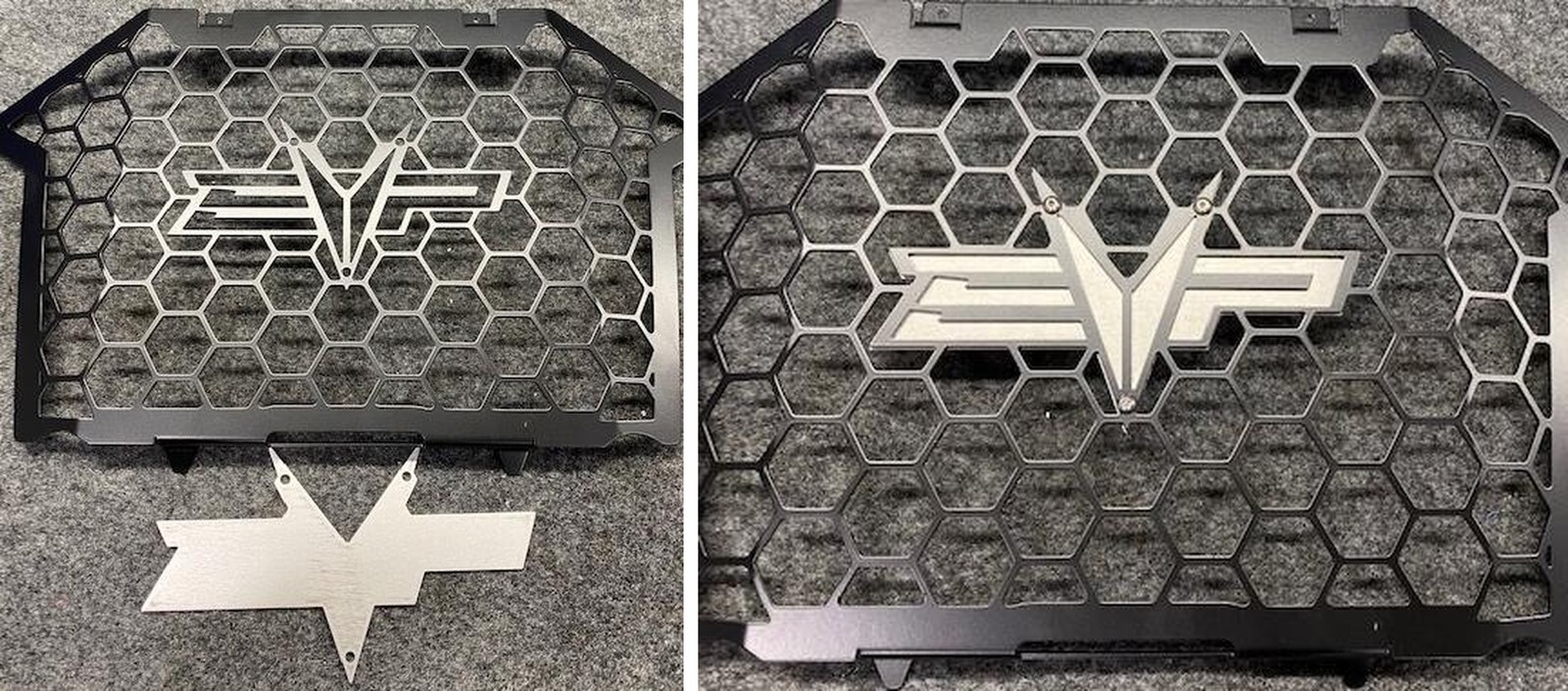

Install the backing plate to the grille, use supplied hardware.

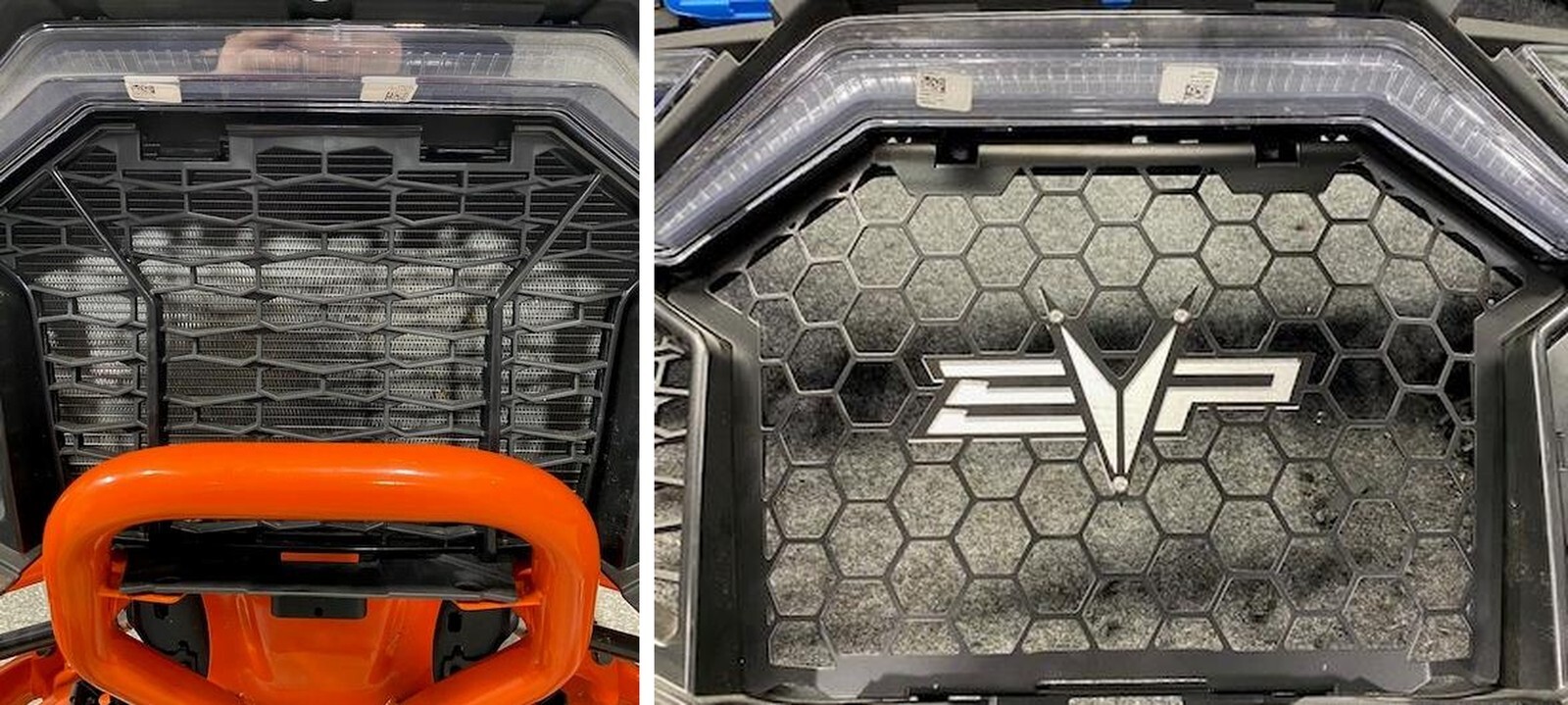

Polaris Pro R (RZR) installation
2
If replacing just the center grille, unclip the OEM grille from the top two tabs, remove grille. Install the new grille and drill two 5/64” piolet holes and install supplied hardware using a philips screwdriver.
Polaris Pro R (RZR) installation
3

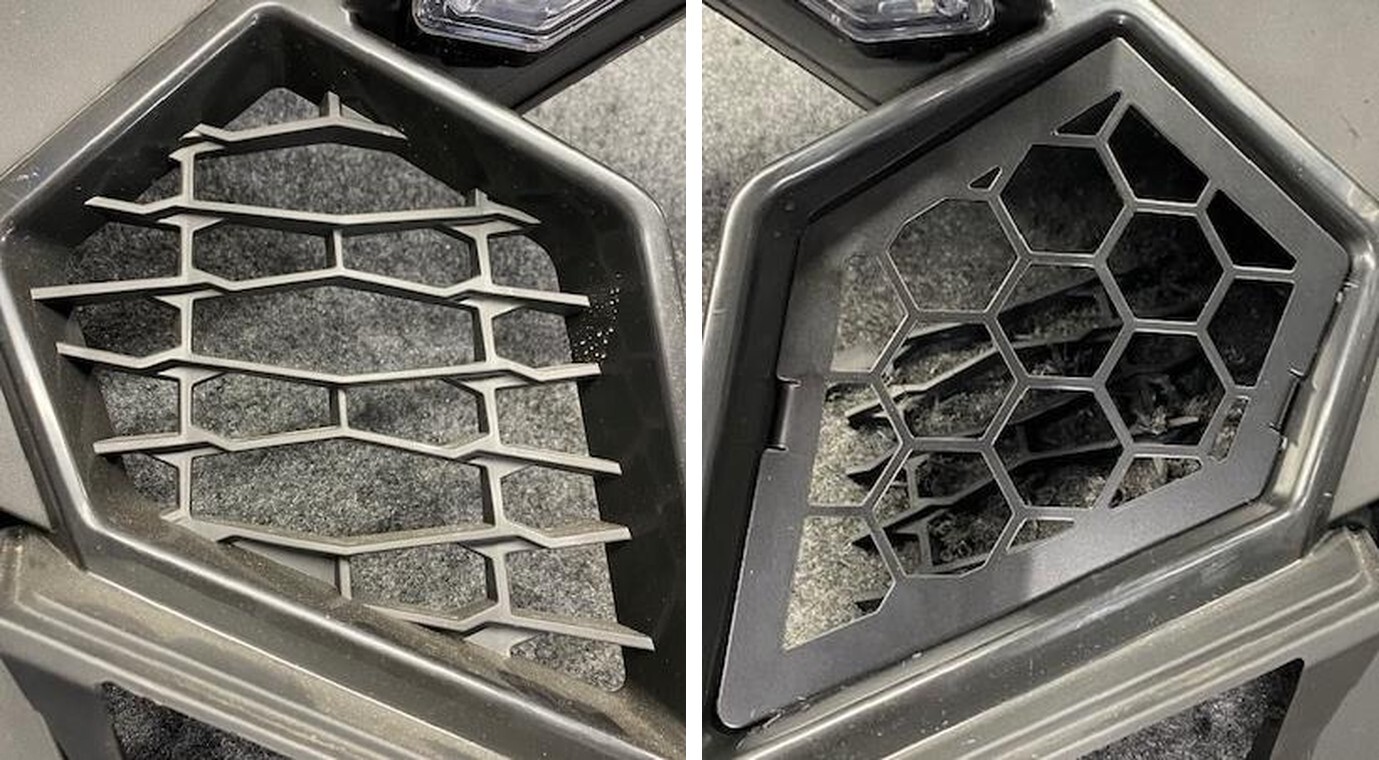

If you are replacing the two side grilles, you can overlay the new grilles on the OEM grilles or cut out the OEM grilles. For these instructions we removed the front clip and cut out the side grilles. Again use a 5/64” drill bit for piolet holes for mounting the grille inserts.
Polaris Pro R (RZR) installation
4
Reinstall the front clip if you removed it for installation. You DO NOT need to remove the front clip, it makes it easier to trim the plastic.

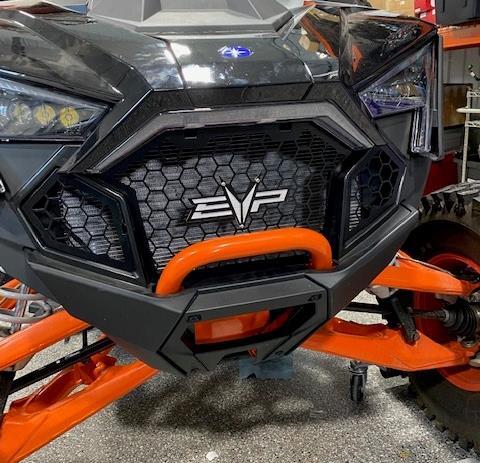

Polaris Pro R (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
