EVP Steering Wheel and Quick Release Hub Kit — Install Guide

SKU 925FC0265, 925FU0274

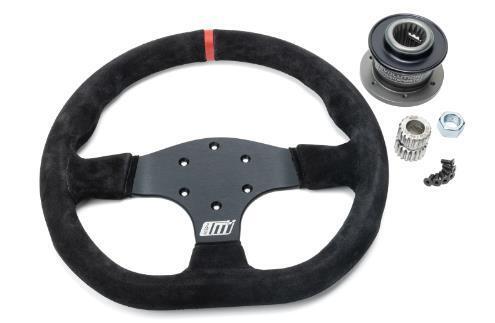

What's in the Box

kit contents
Included parts
Steering Wheel Qty 1
Quick Release Hub Kit Qty 1
Required tools
Steering Wheel puller or Two Jaw
Puller
24mm Socket
Flat Head Screwdriver
1/8 Hex Key
Torque Wrench

Installation

1

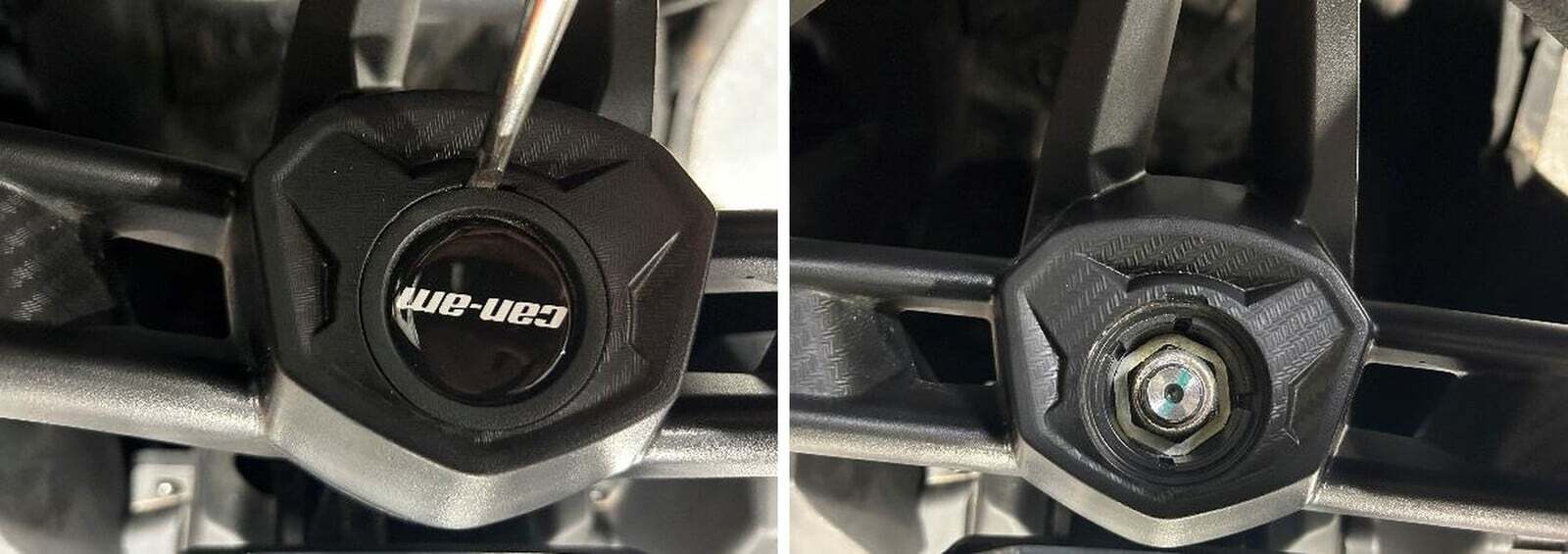

Use a flat blade screwdriver to remove the center steering wheel Cover.
2
Use a 24mm socket and ratchet to remove the steering wheel nut.
3

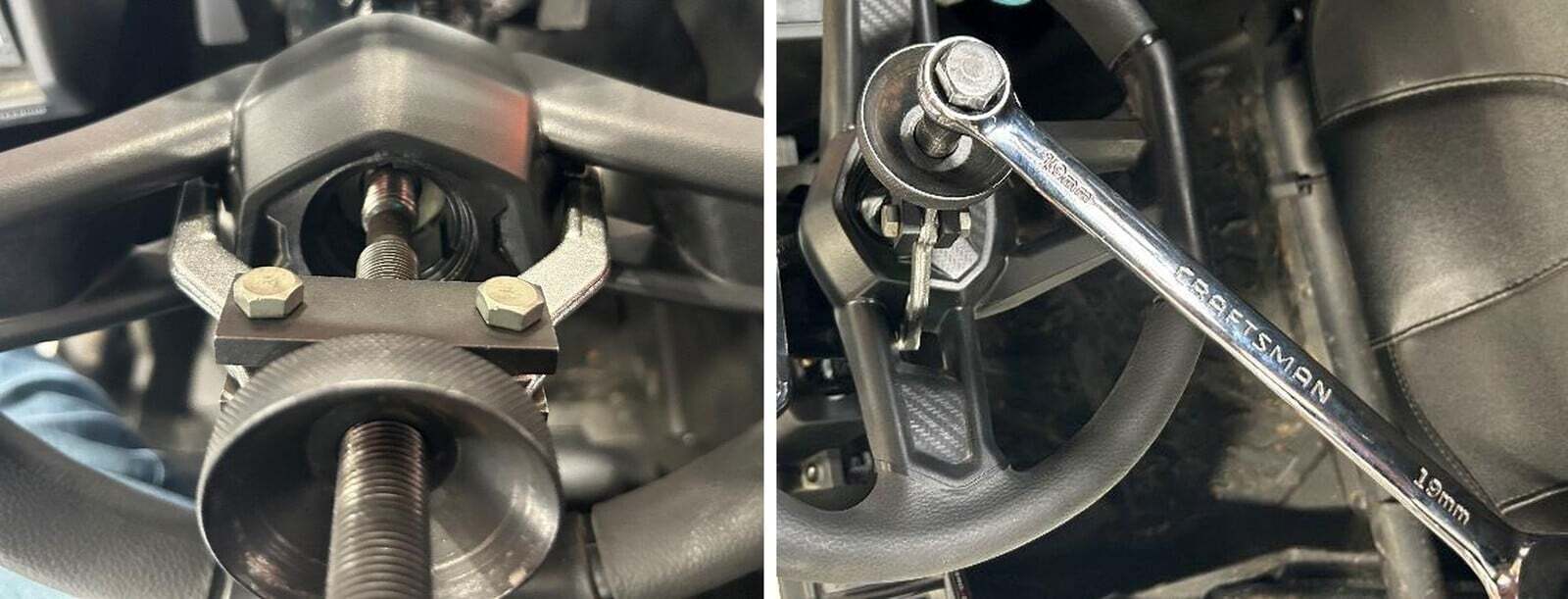

Install the steering wheel puller that is appropriate for your steering wheel and remove the wheel.
installation
4

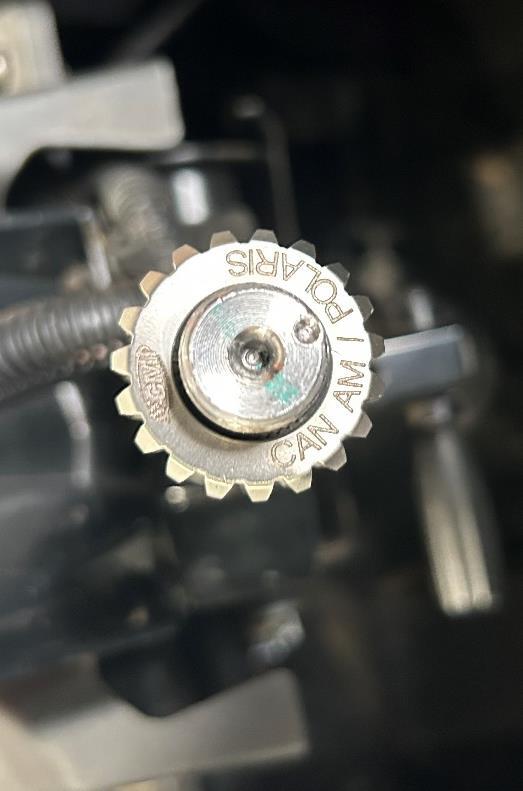

Clean the steering shaft splines and install the splined couple on the steering shaft so the letters face the driver.
5
Install the coupler nut so the machined surface faces the splined coupler and torque to 66 Ft Lbs. (Polaris) and 44Ft Lbs. (Can Am).
6
Pull up on the black collar, align the splines with from the quick release hub with the splined coupler. Release the collar and make sure the hub has clicked into position.
installation
7
– Center the steering wheel over the hub, install the 6 10-32 screws and torque to 30 In Lbs.
installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
