Kawasaki Kawaski H2 Front Grill — Install Guide

Kawasaki · H2 / Z1 · SKU 4252030001

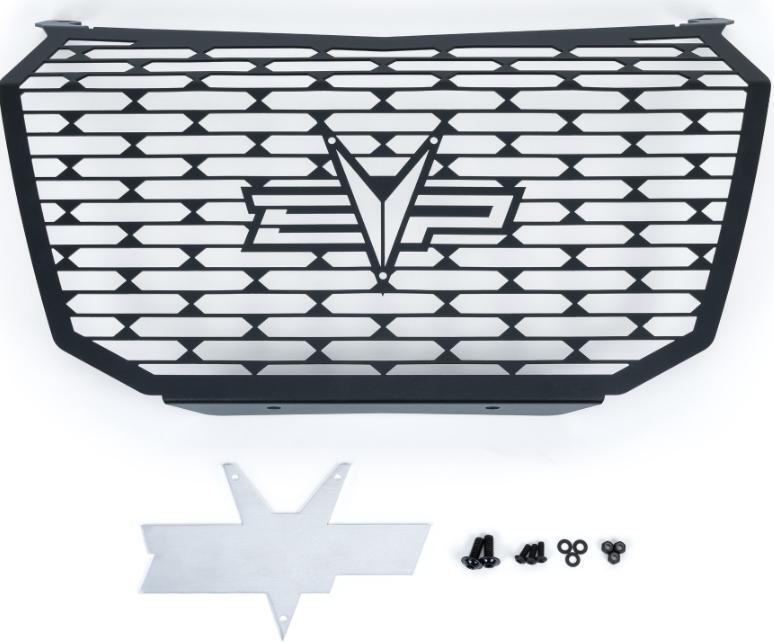

What's in the Box

Kawasaki H2 / Z1 kit contents
Included parts
Hardware Kit Qty 1
Grill Qty 1
Emblem Qty 1
Required tools
3/16, 1/4 Drill bits
Allen wrenches
Drill
Push dart removal tool

Installation

1

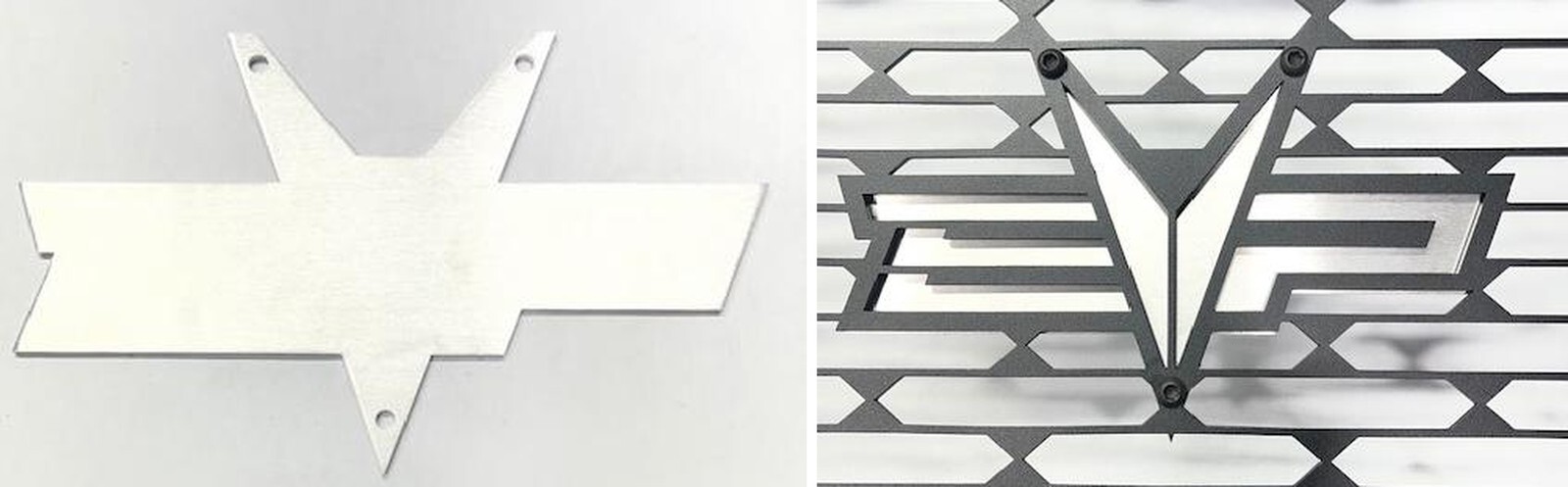

Assemble backer plate to grill using supplied M4 hardware.
2

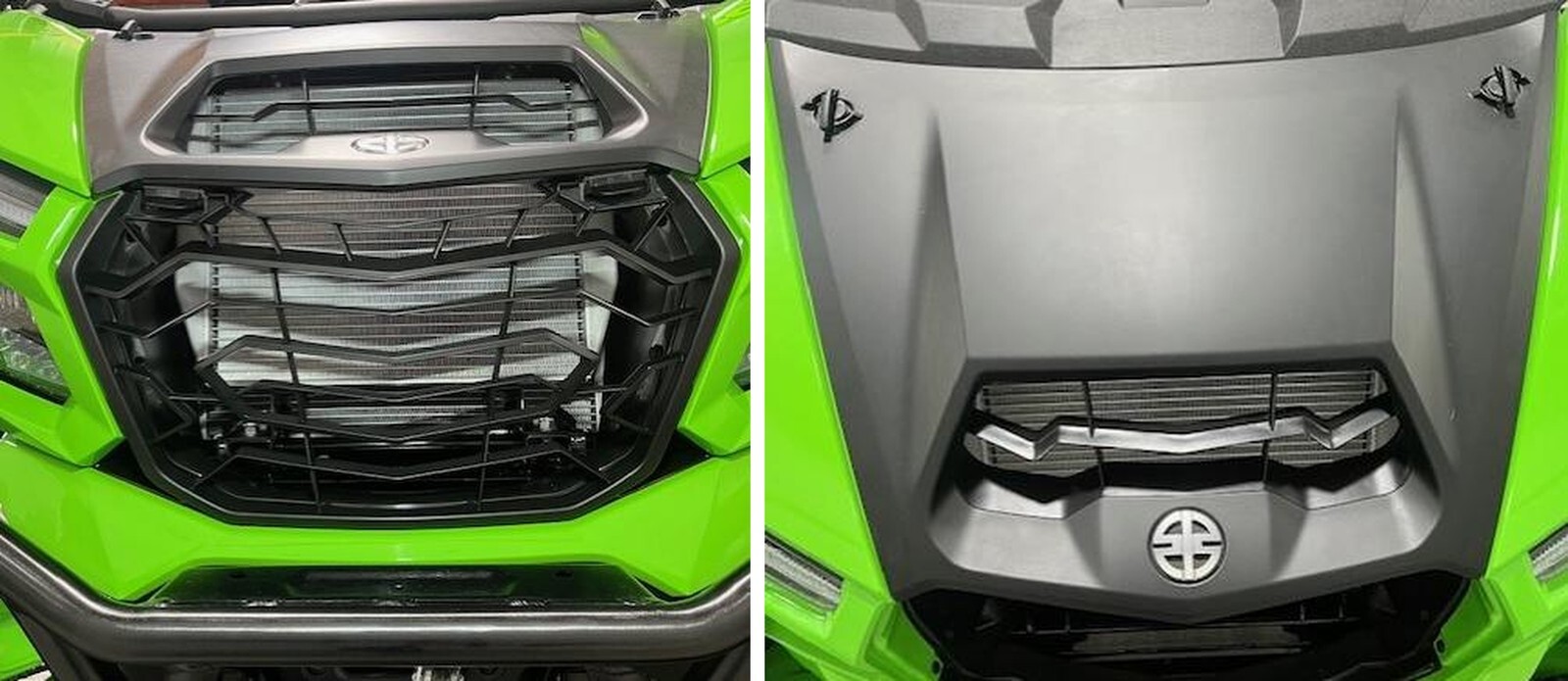

Remove OEM grill by pressing down on both top clips.
Kawasaki H2 / Z1 installation
3

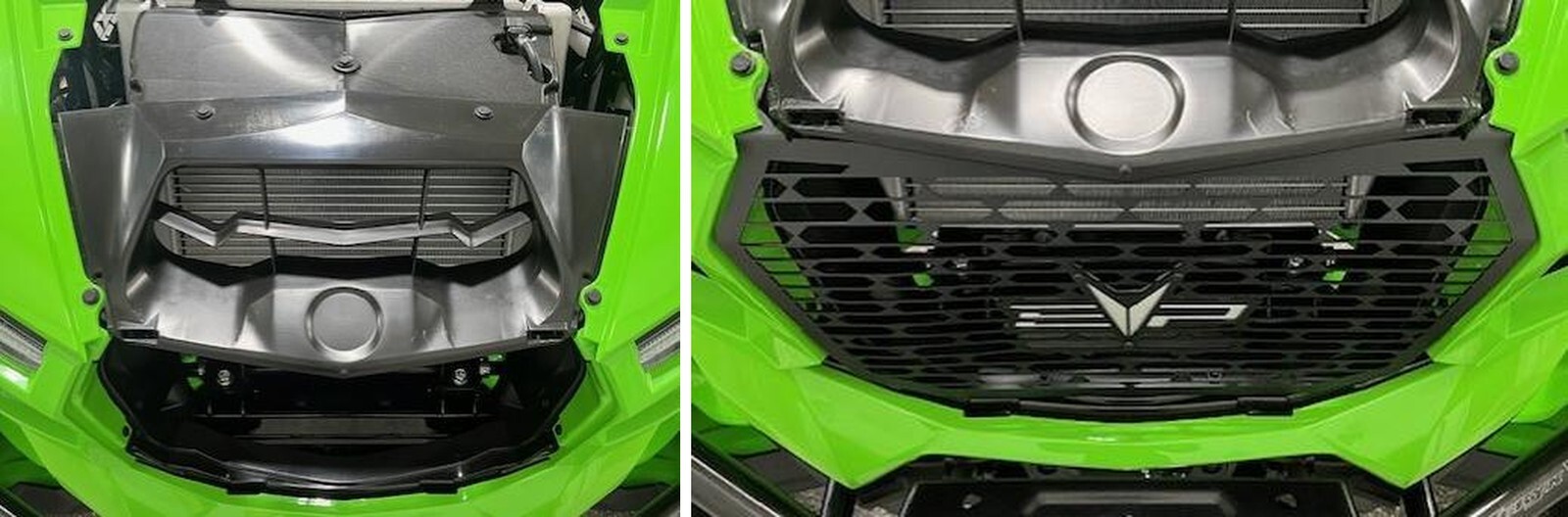

Remove front hood by loosening the (2) half turns.
4
Remove push darts, slightly lift fenders and slide grill under and reinstall push darts.
Kawasaki H2 / Z1 installation
5

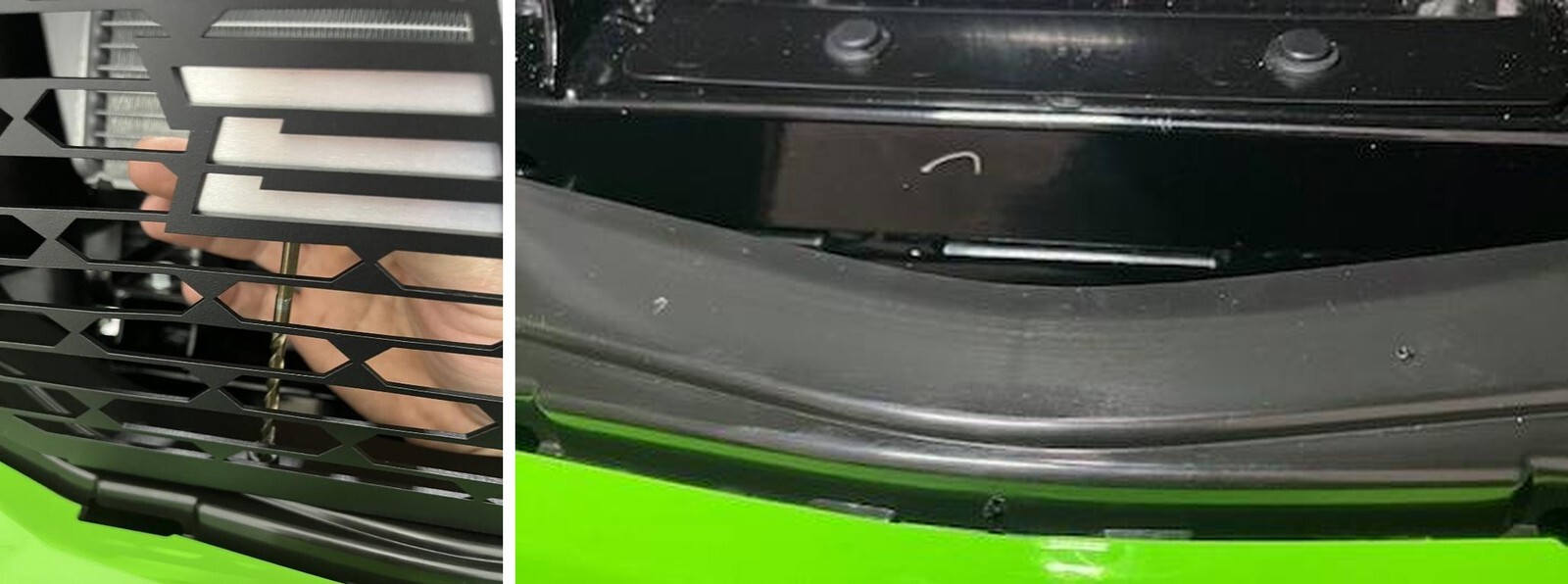

Mark (2) bolt holes by hand with a 3/16” drill bit or silver sharpie through the Nutzerts.
6

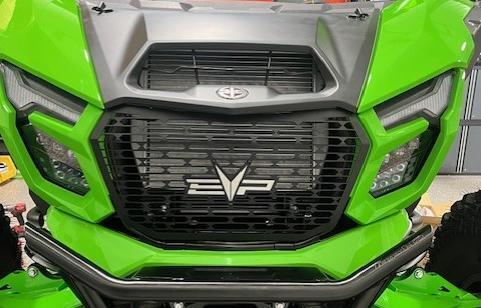

Remove the grill, drill the holes you just marked with a 1/4" drill bit, reinstall the grill and thread supplied M6 bolts up from bottom.
Kawasaki H2 / Z1 installation
Kawasaki H2 / Z1 installation
Kawasaki H2 / Z1 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
