Ski-Doo (BRP) Maptuner X BRP — Install Guide

Ski-Doo (BRP) · (snowmobile)

Installation

1

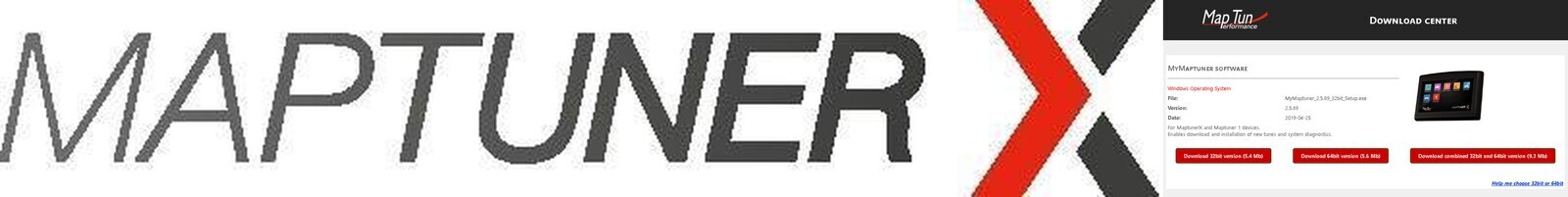

Download and install the MyMaptuner program from: Https://maptuner.se/download/ Choose the version that corresponds to your Windows installation (32 or 64 bit). If you are unsure of how many bits it is your operating system is, follow the instructions below:
2
Once My Maptuner is installed on your computer, run the program.
3

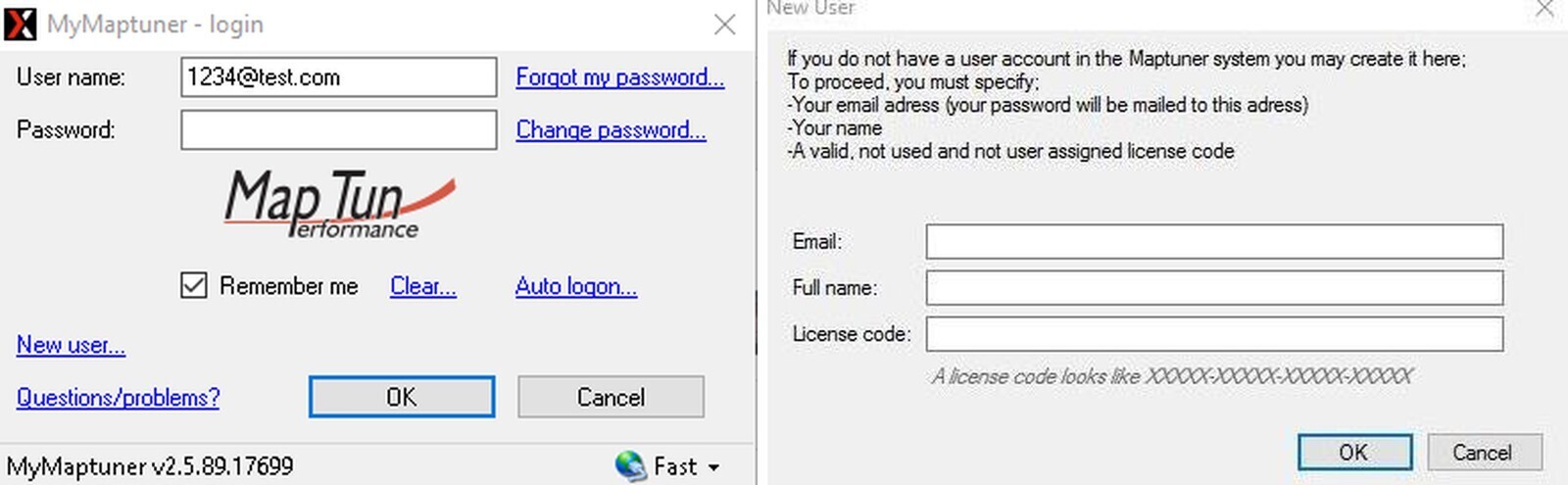

Click “New User” on the login screen.
Ski-Doo (BRP) (snowmobile) installation
4
Enter your email address – this will be your username and is also where your login password is sent, so make sure this is entered correctly!
5
Enter your first and last name and license code that was at the top of the second page (usually emailed to you) Once complete, select OK.
6
Connect your MaptunerX to PC and click on “Synchronize”. MaptunerX will now go online and update to latest firmware.
Ski-Doo (BRP) (snowmobile) installation
7

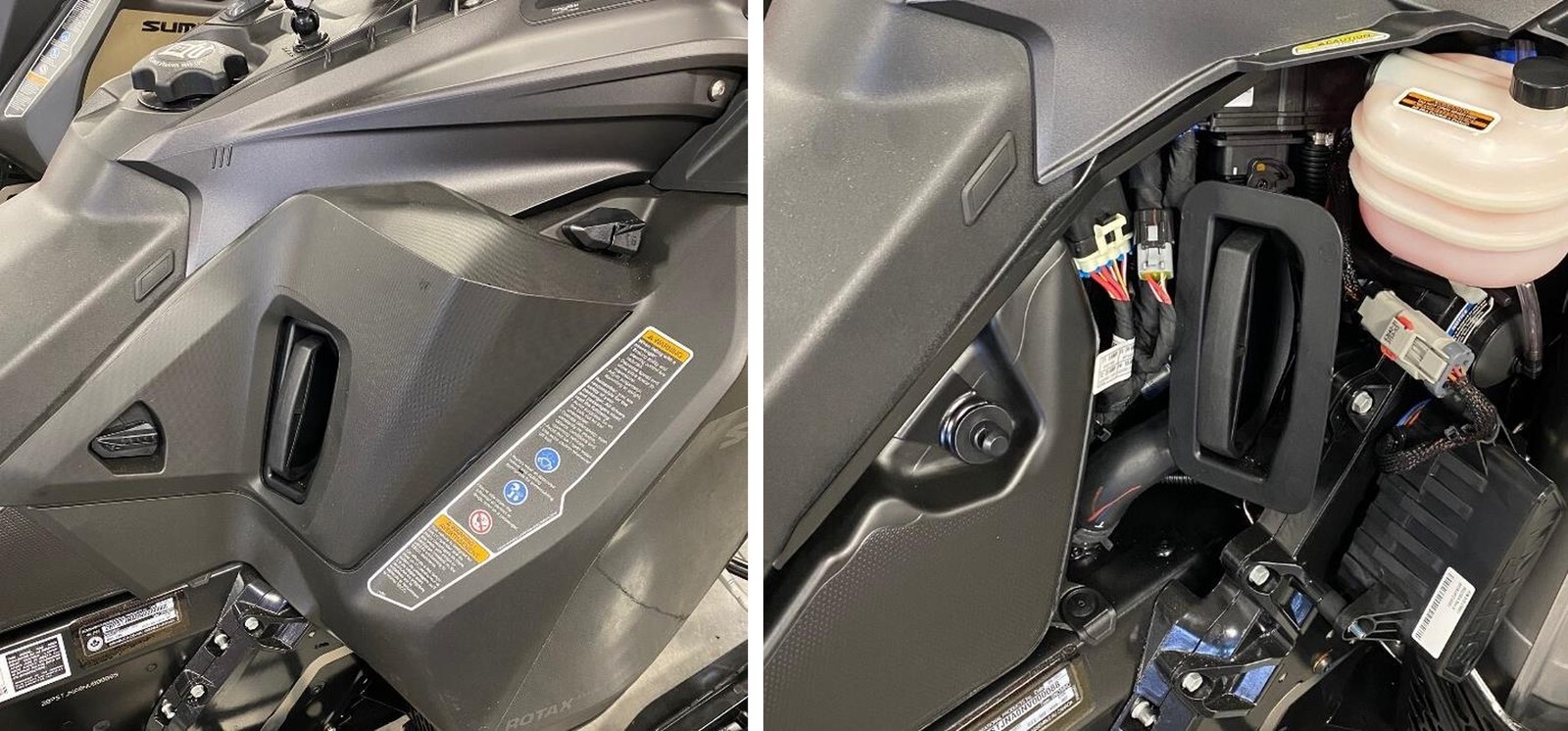

Disconnect MaptunerX from PC and connect to your vehicles OBD- connector.
8

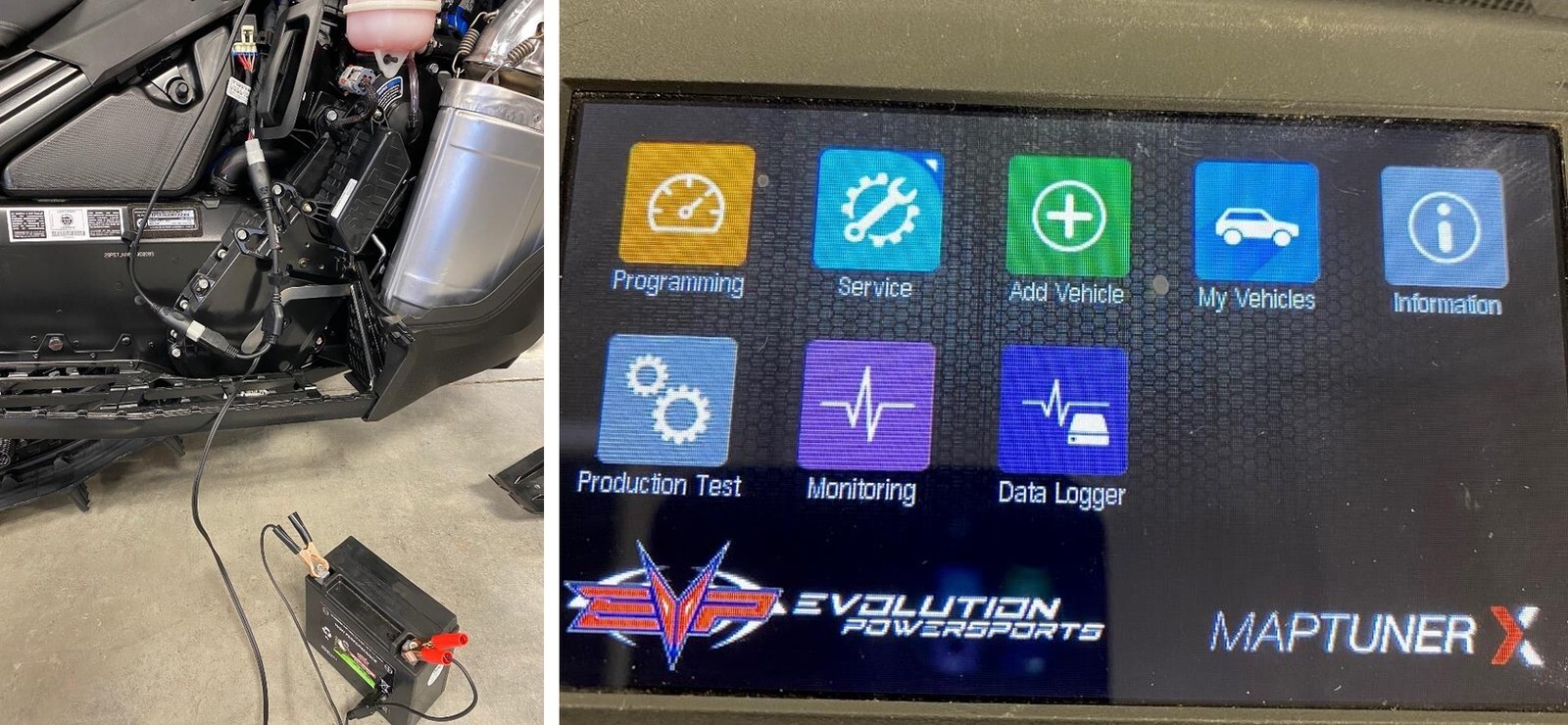

Turn the vehicle to the “ON” position – on Skidoo 900 ACE push the start button so the dash lights up, DO NOT start the vehicle. On 2-stroke models, connecting the cable terminals to the battery will power the Maptuner.
9
The Maptuner screen will power up and have a few icons on the screen. Click “Add Vehicle” icon and follow the on-screen instructions. It will take 30-60 seconds to fully register a vehicle.
Ski-Doo (BRP) (snowmobile) installation
10
Once complete, disconnect Maptuner from the vehicle and bring it to your computer.
11
Synchronizing puts your vehicle specifications and vin# on our server – this ensures the correct tuning for your vehicle is selected. My Maptuner will download a Stage 1 tune by default.
12
After step 11 is complete, there is no need for a PC computer anymore unless you are upgrading/updating tunes, adding another vehicle or adding features. In other words, the tuningfiles are stored on your Maptuner and your vehicle can be flashed anytime or anywhere without internet or a PC. If you have multiple vehicles, they can also be flashed in this same manner.
Ski-Doo (BRP) (snowmobile) installation
13
You may now program your vehicle by connecting your Maptuner to the diagnostic port again.Switch the key to the “ON” position or press “START” momentarily to light up the dash.
14
Once Tuning is complete you can erase your vehicle error codes.
Ski-Doo (BRP) (snowmobile) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as providedby 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for usein connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations- exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
