Can-Am Maverick R Billet Paddle Shifters — Install Guide

Can-Am · Maverick R · SKU 925FC0746

What's in the Box

Included parts
Left Paddle Shifter Qty 1
Right Paddle Shifter Qty 1
Mounting Bracket Qty 2
M4 x 8mm Flat Head Screw Qty 4
Required tools
10, 11, 14mm Socket
T-30 Socket
Anti-seize
Magnet

Installation

1
Remove (3) T-15 screws off the OEM bracket.
2

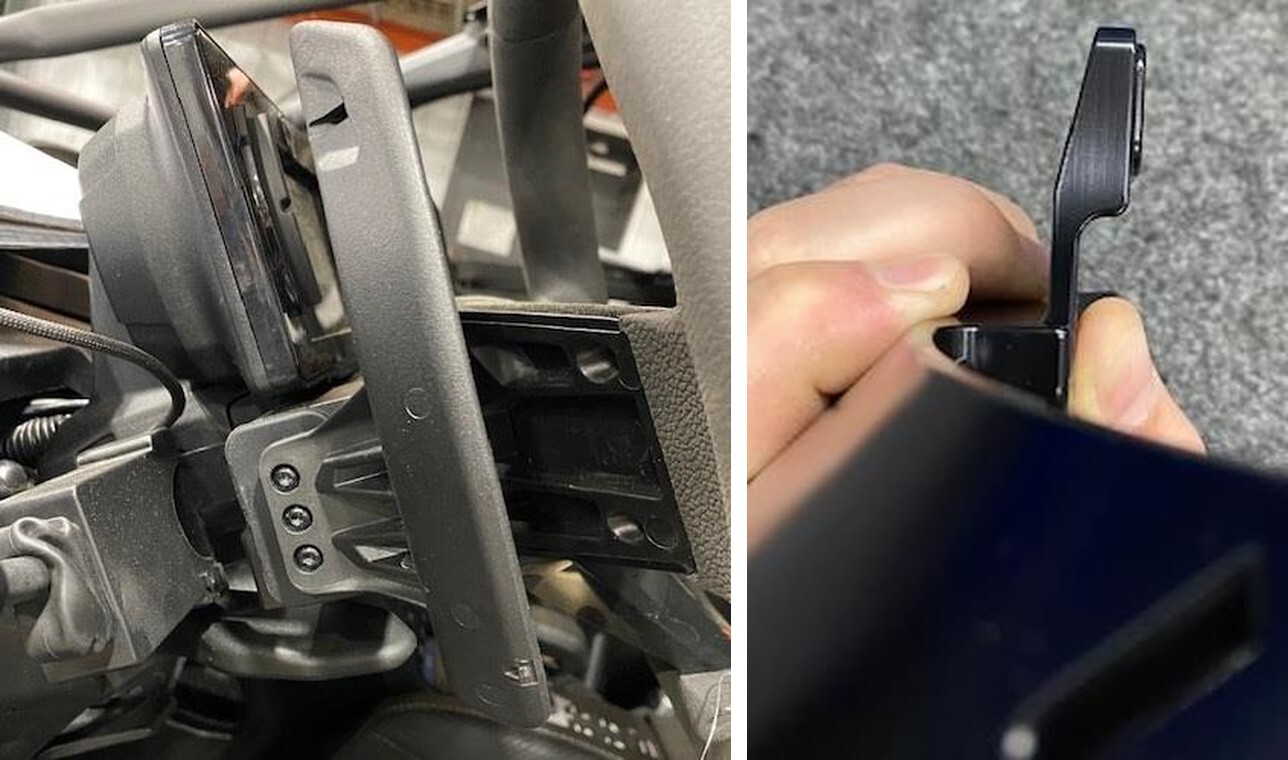

Install a bracket onto each paddle shifter as seen below. Use supplied hardware.
Can-Am Maverick R installation
3
When installing the paddle shifter to the steering wheel console, there are (3) positions you can use for mounting. This will bring the shifters closer/farther away from the steering wheel.
4

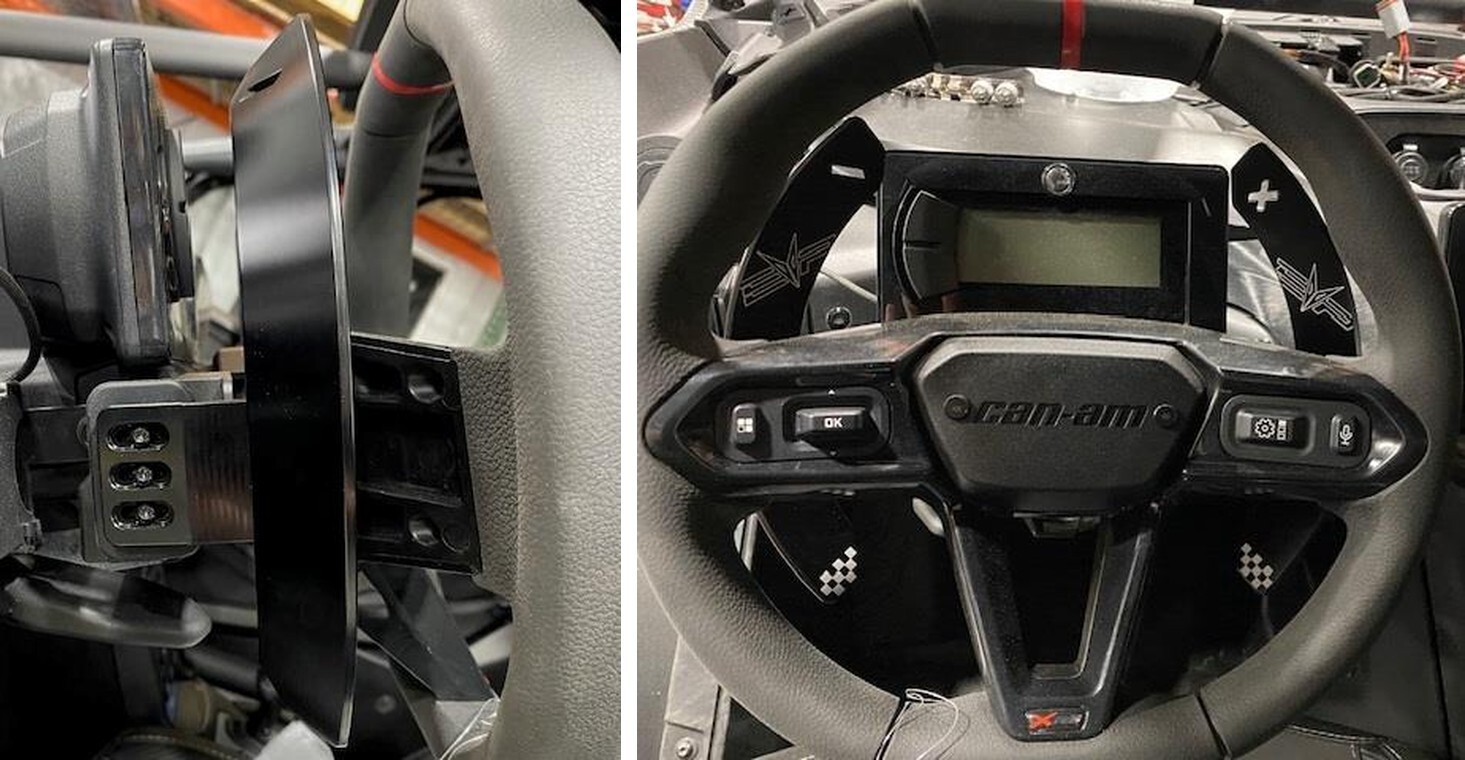

Install the new bracket using OEM hardware. DO NOT OVER TIGHTEN INTO THE PLASTIC!!! IF YOU RUN INTO THIS ISSUE PLASE CALL IN TO TECH AND GET SPECIAL SCREWS.
Can-Am Maverick R installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
