Can-Am Maverick R Bulletproofing Plenum Kit

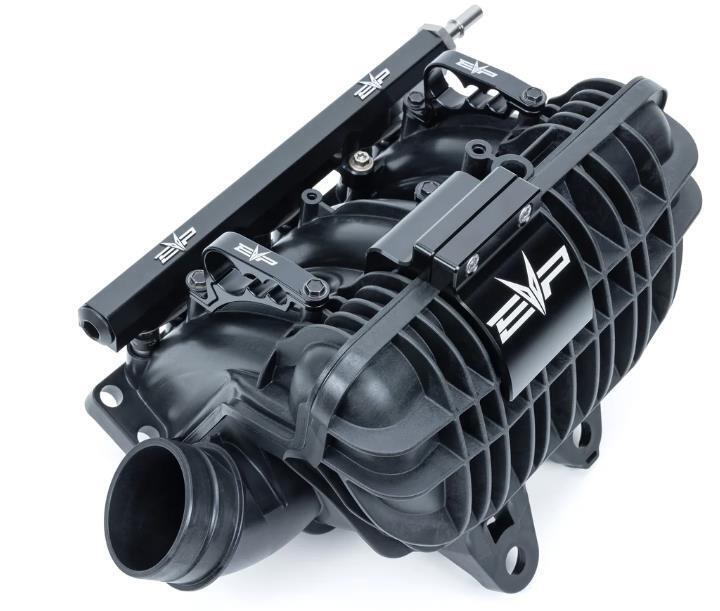

What's in the Box

Included parts

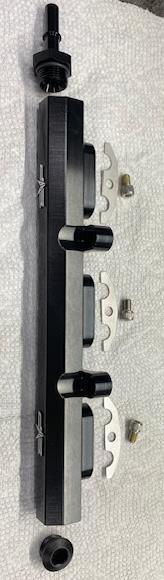

Maverick R Fuel Rail Assembly Qty 1

Maverick R Plenum Hose Qty 1

Separator Assembly

Maverick R Plenum Clamp Qty 1

Assembly

For these instructions we removed the bed a

section of instructions is not needed but do

Required tools

8, 10mm Socket

T-30 Socket

8an Wrench

Brake Cleaner & Dielectric Grease

nd intercooler for better photos. This

es allow for more room. Skip to step 9.

Installation

Remove wind dam. (2) push darts and (2) T-30 screws. Pop the front grill out of (4) grommets.

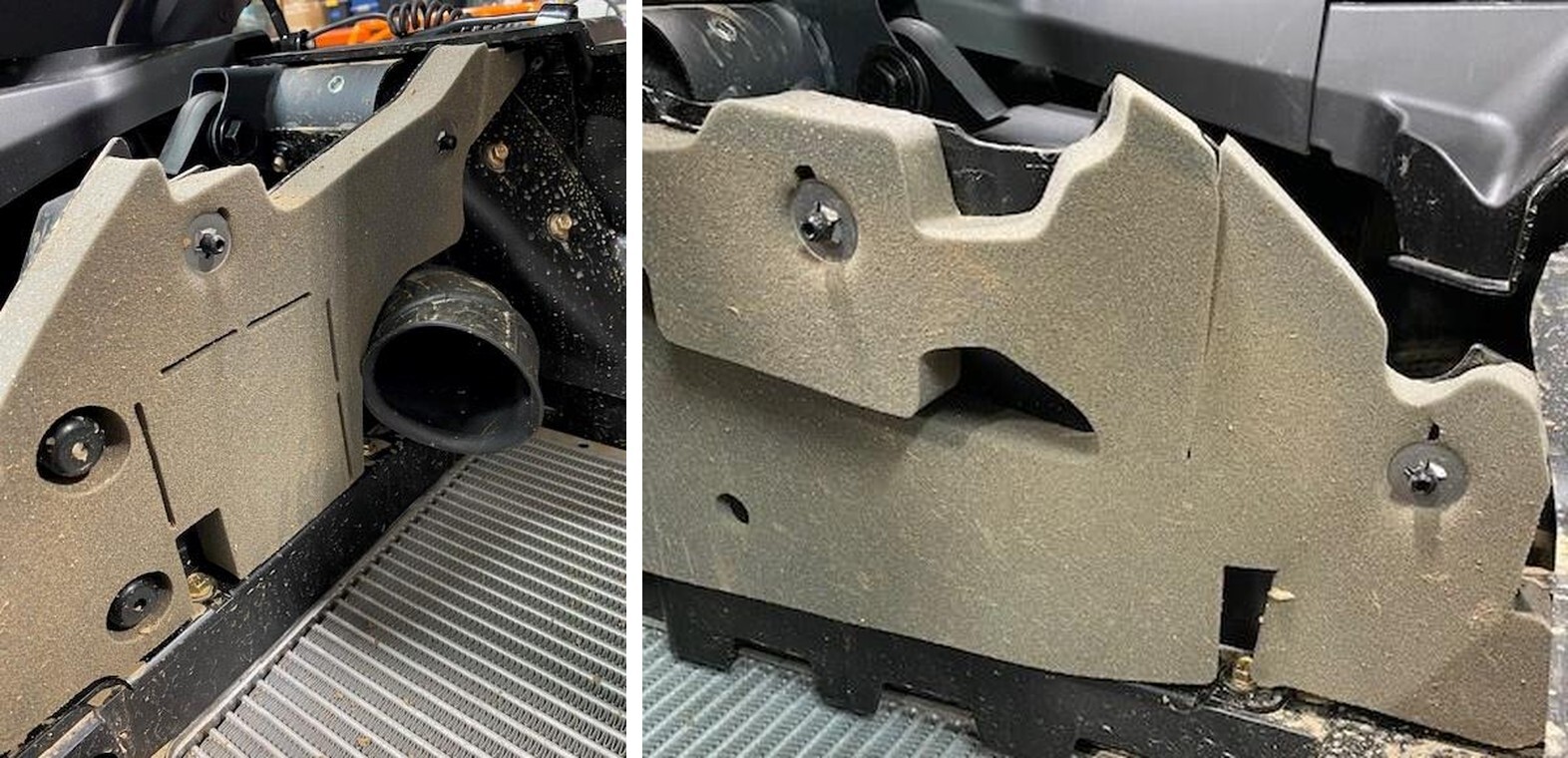

Remove the driver side foam insert. (4) 10mm screws, (1) T-30, push out the intake duct.

Remove the passenger side foam insert. (3) 10mm screws, (1) T-30.

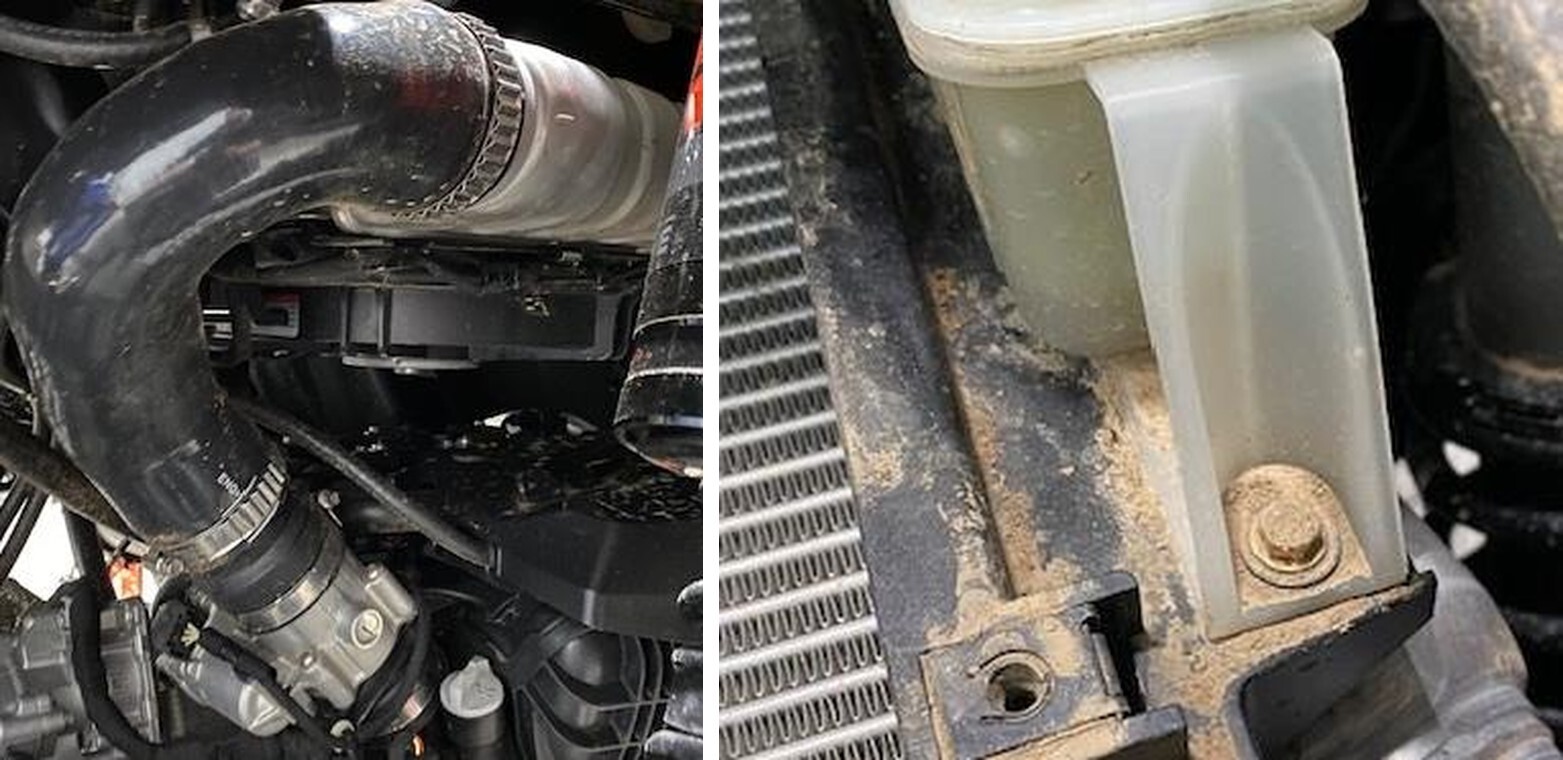

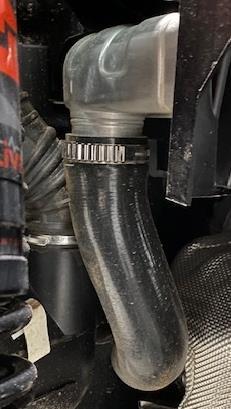

Remove the charge tubes from the intercooler.

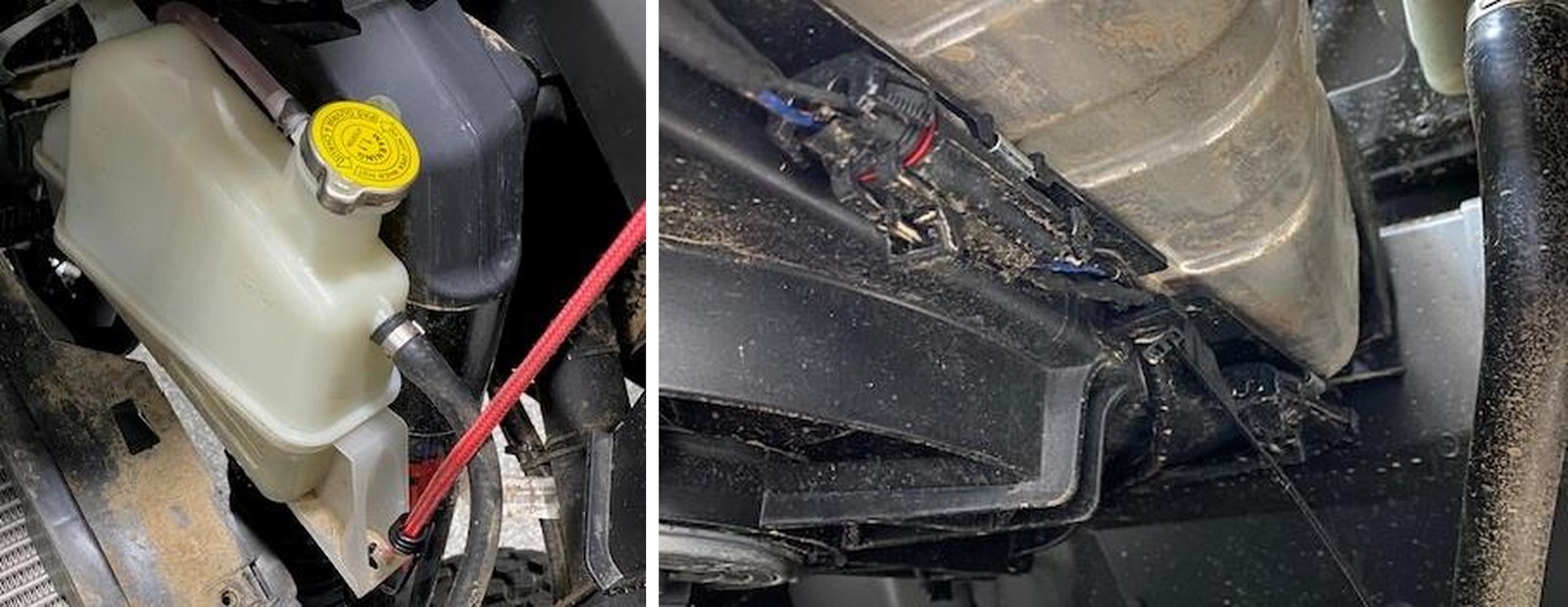

Remove (1) 10mm screw holding the coolant reservoir to the intercooler tray. Pull the reservoir back from the firewall, out of the clip. Strap the reservoir up.

Disconnect both intercooler fans from the OEM harness.

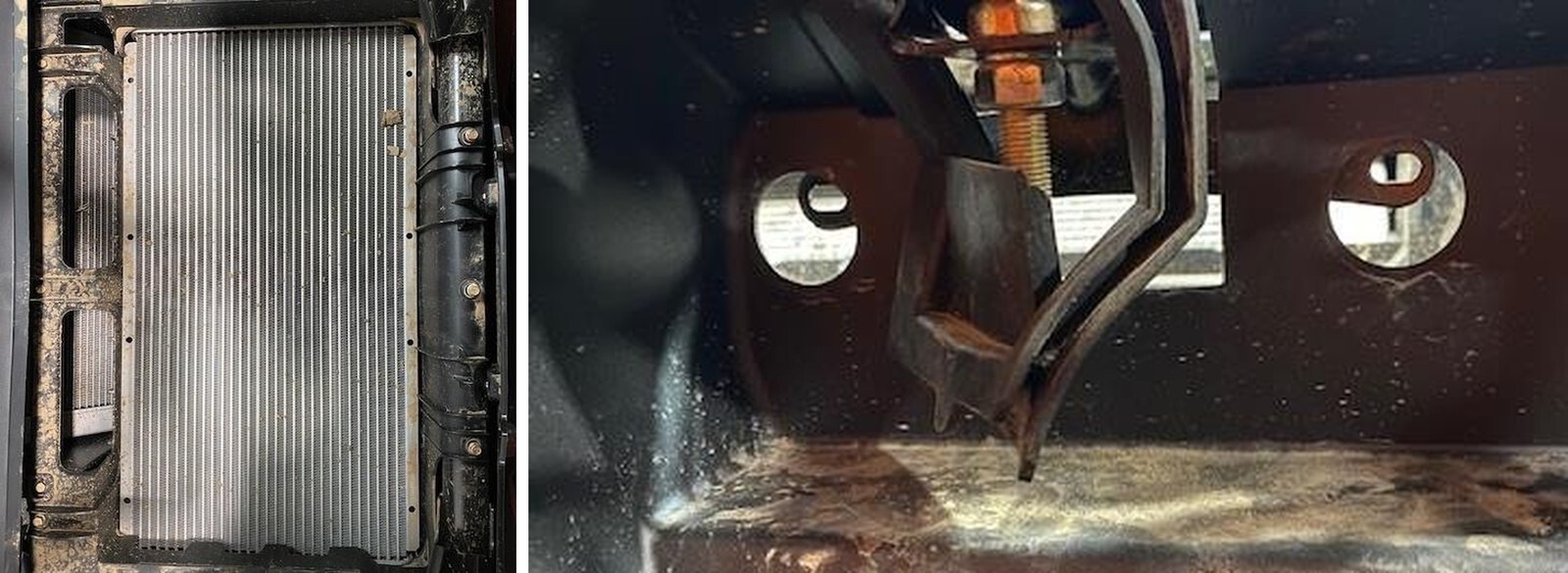

Remove (6) 10mm screws on the intercooler tray. Behind the seats, remove (4) rubber plugs and access (4) 10mm screw. Total of 10 screws.

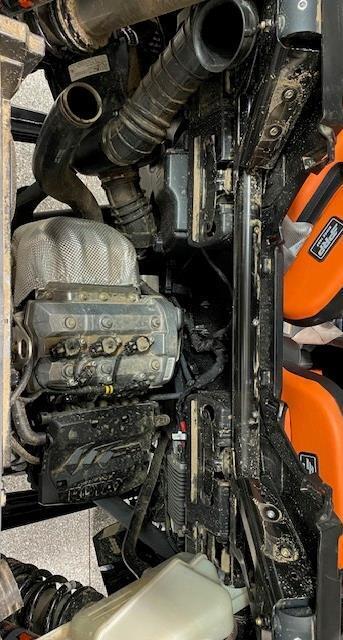

Remove the intercooler.

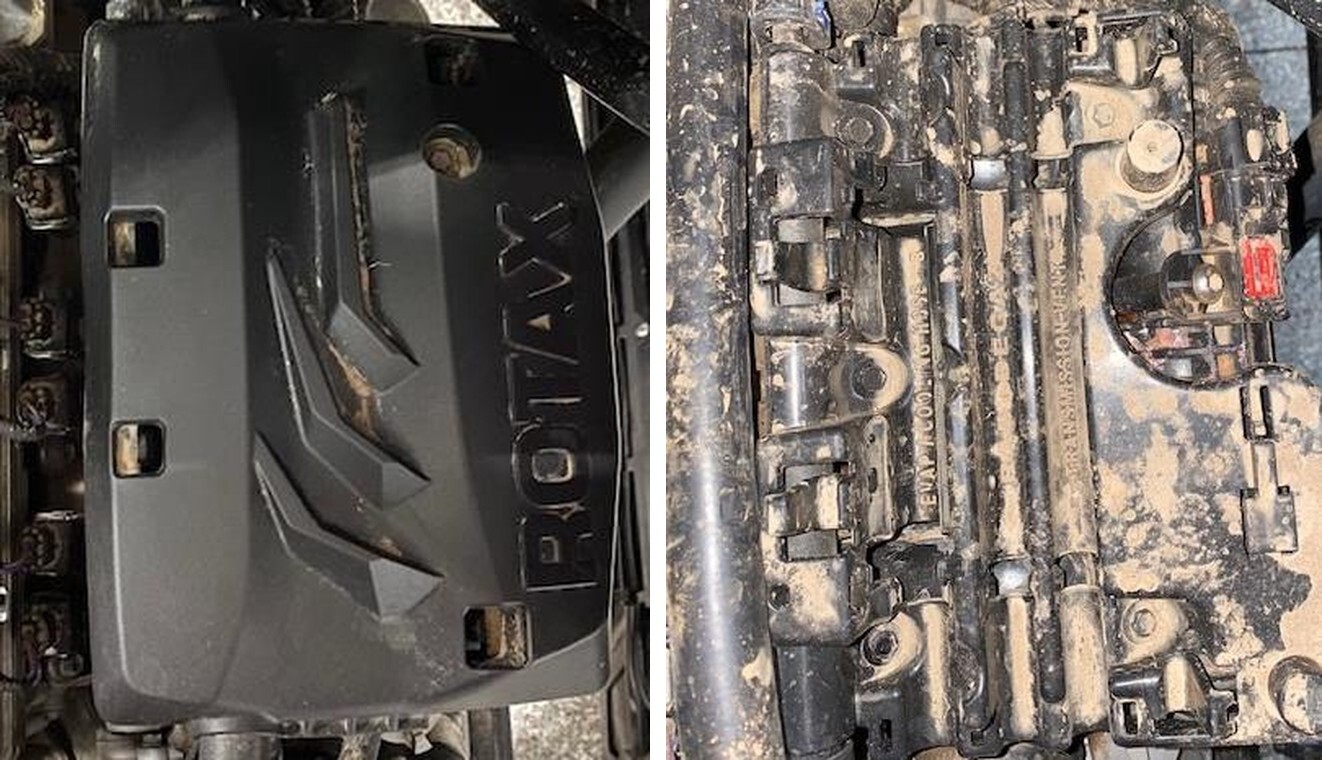

Remove the upper plastic cover on the plenum. (1) 8mm screw.

Remove the coolant hose, transmission hose, and EVAP hose if your model is equipped. Remove the lower plastic tray by removing (5) 8mm screws.

Spray all injector ports and plenum with brake cleaner and compressed air. You do NOT want anything falling into the injector ports. Remove (2) 8mm screws.

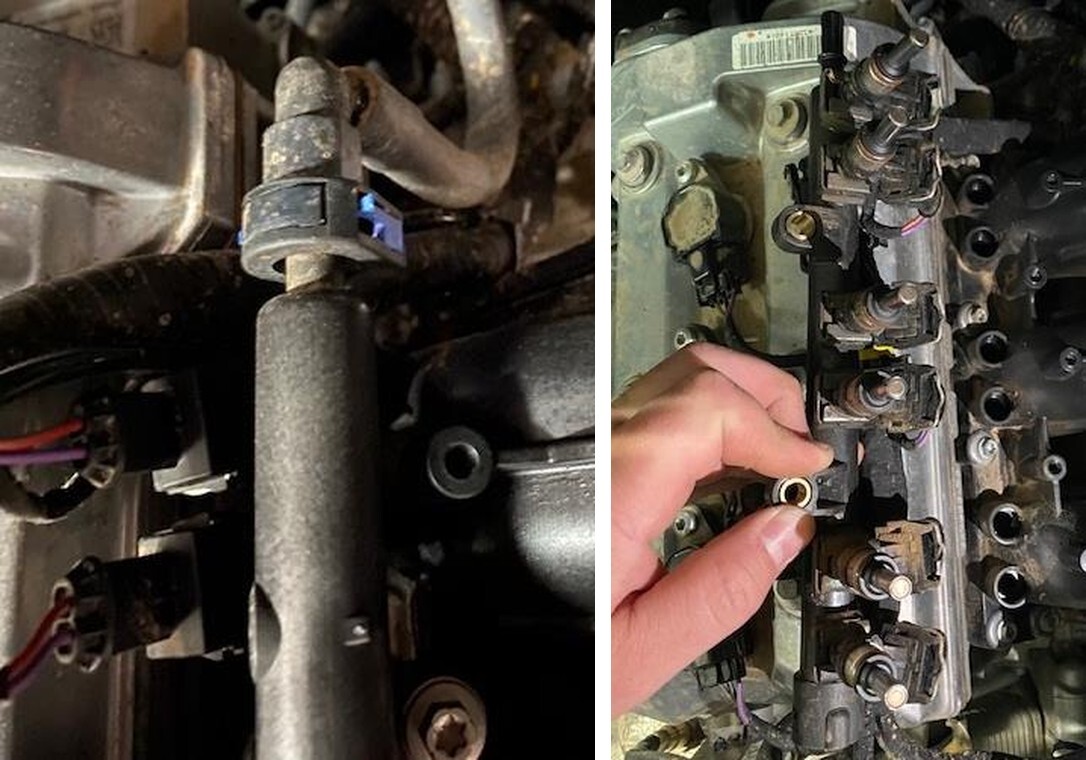

Carefully push down and remove the blue safety clip on the fuel quick connector. DON’T BREAK IT. Press down on the top black connector and remove the fuel hose from the fuel rail.

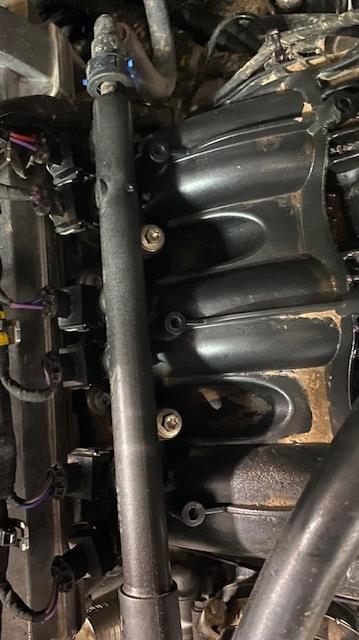

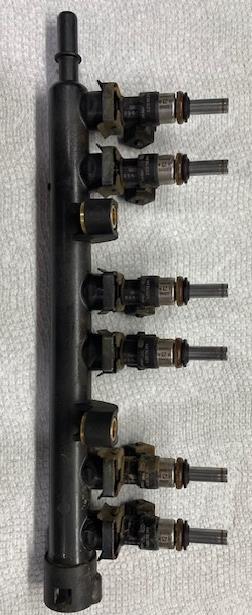

Remove the fuel rail with injectors attached. Flip the fuel rail 180 degrees. Unclip all injector electrical connectors.

Remove all (6) injector clips. Remove injectors and clean O-rings.

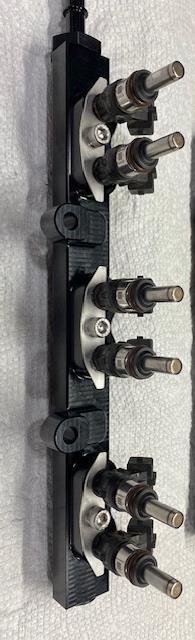

Install the 3/8 quick connect fitting (or -8an) and 8an plug. Make sure the O-rings are seated and not pinched. Use dielectric grease on all injector O-rings. Install the injector clips into the small cut outs on the injectors. They will sit flush. Tighten down with supplied socket cap screws.

Reinstall all (6) injector electrical connectors. Make sure they click into place.

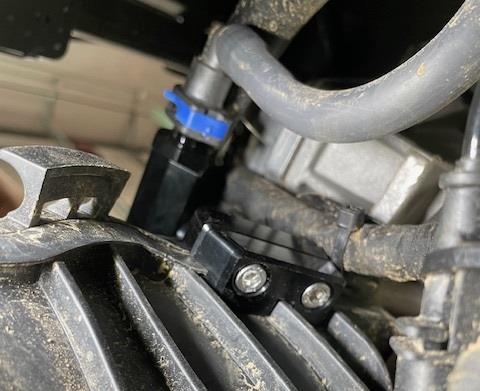

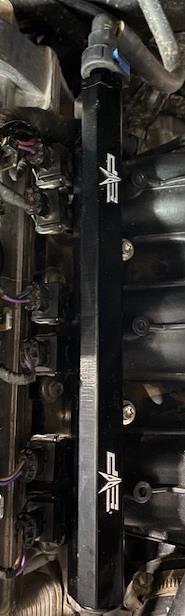

Reinstall the quick connect fuel line to the fuel rail. Reinstall the blue safety clip. Mount the fuel rail using (2) OEM screws. Cycle the key a few times and check for leaks.

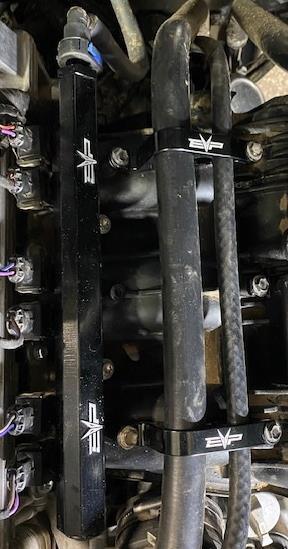

Reinstall the plastic hose supports if you prefer. You can also install the billet hose supports, reusing OEM hardware.

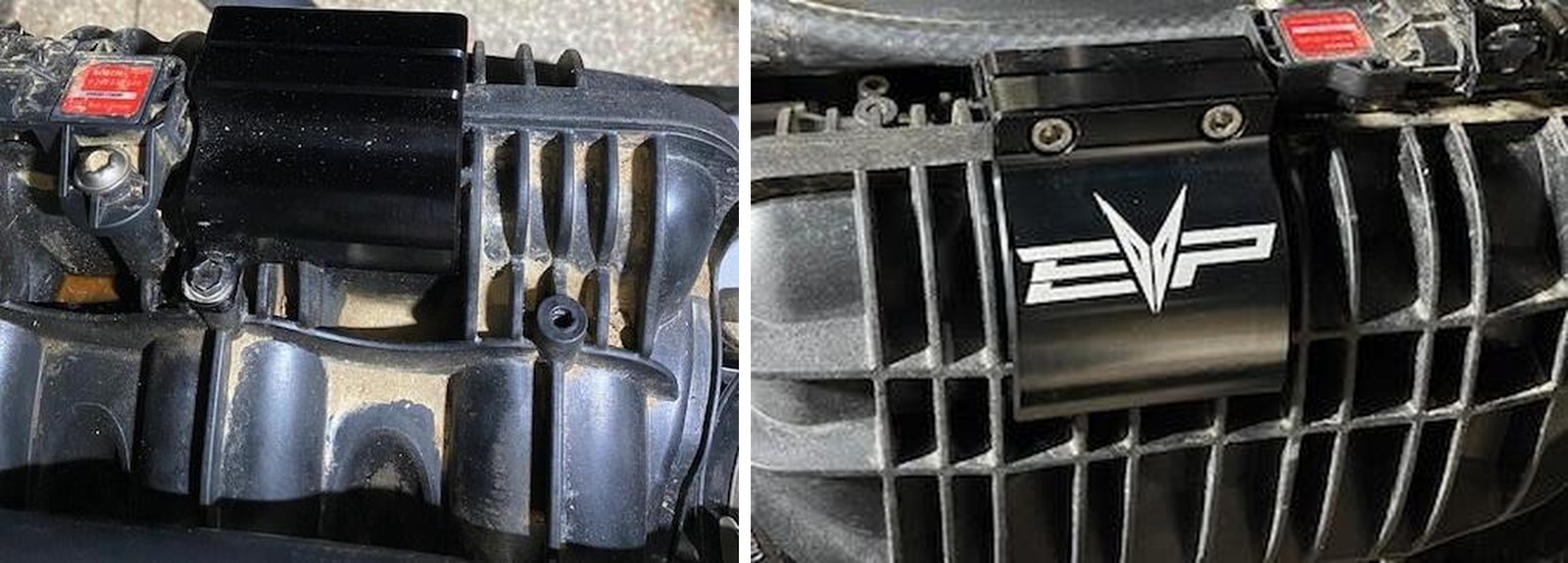

Install the top clamp, logo on the outside and inside clamp reuses (1) 8mm screw.

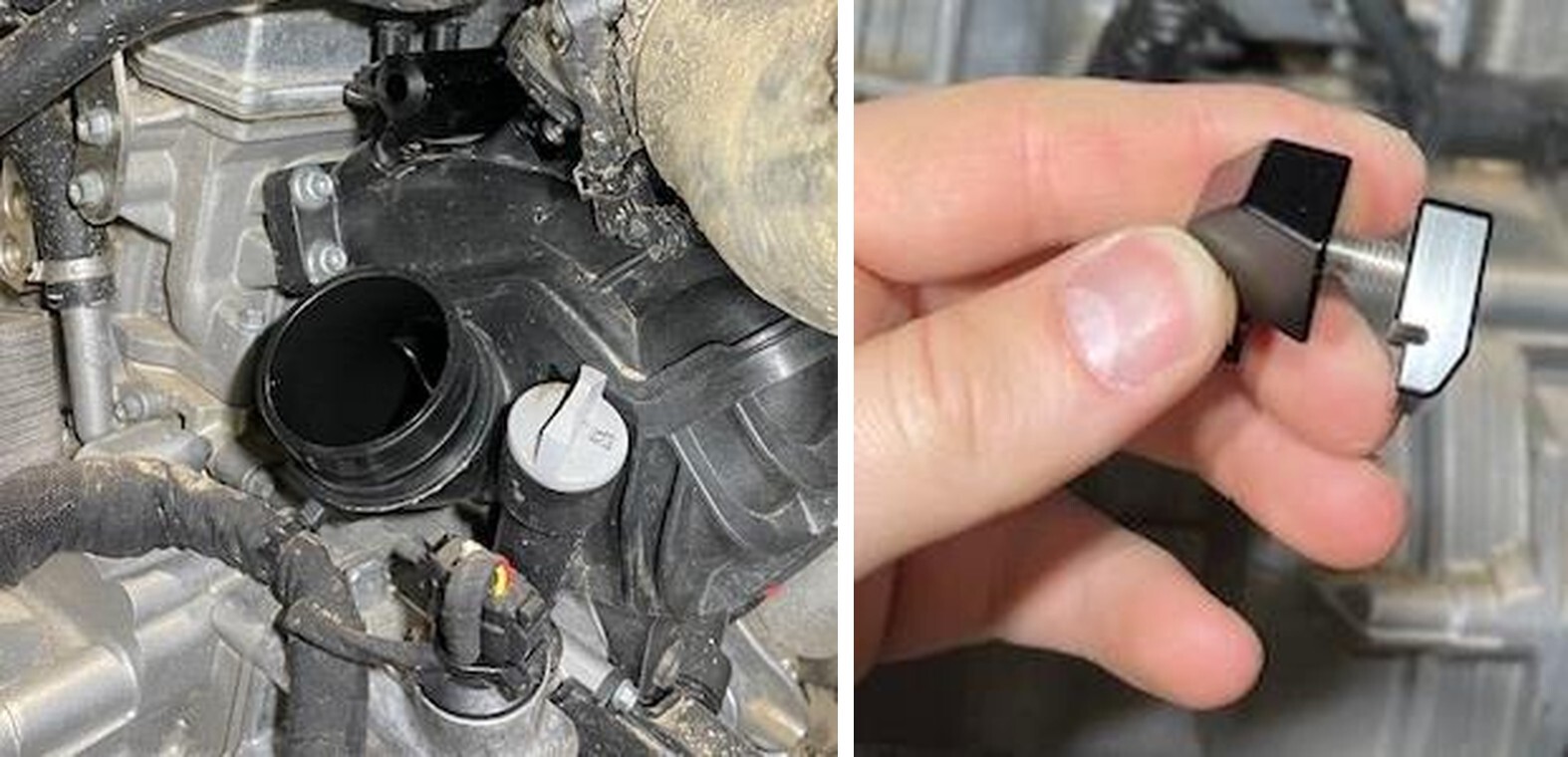

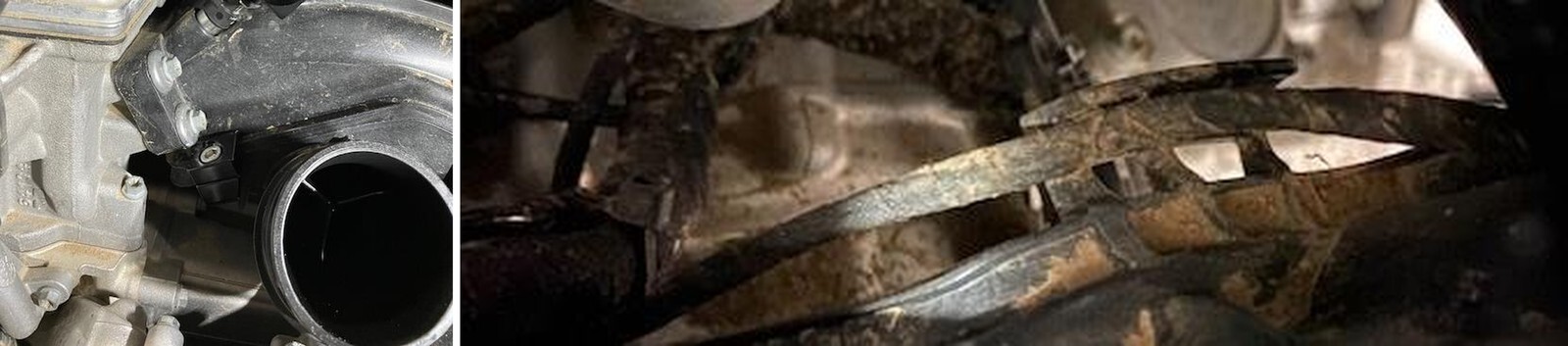

Remove the throttle body from the plenum. Install the smallest clamp with the screw facing up. It is easiest to thread the screw onto the back of clamp for installation.

Cut the zip tie on the front of the plenum holding the map sensor harness. Install the medium size clamp on the front of the plenum underneath the fuel rail.
