Can-Am Maverick R Exhaust Fascia Trim Plate — Install Guide

Can-Am · Maverick R · SKU 925FC0783

What's in the Box

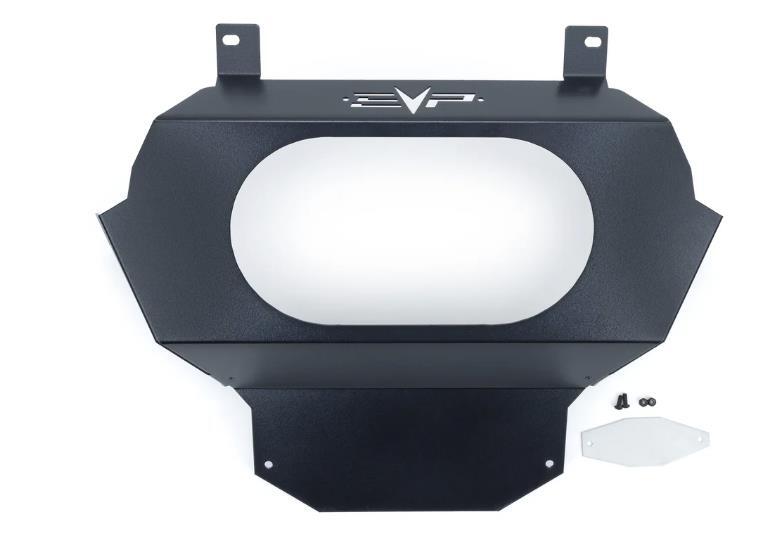

Can-Am Maverick R kit contents
Included parts
Exhaust Fascia, Black Qty 1
Backer Plate, Raw Qty 1
M4 Screw Qty 2
M4 Washer Qty 2
M4 Nyloc Nut Qty 2
Required tools
7, 10, 18mm Socket
T-30 Socket
18mm Wrench

Installation

1

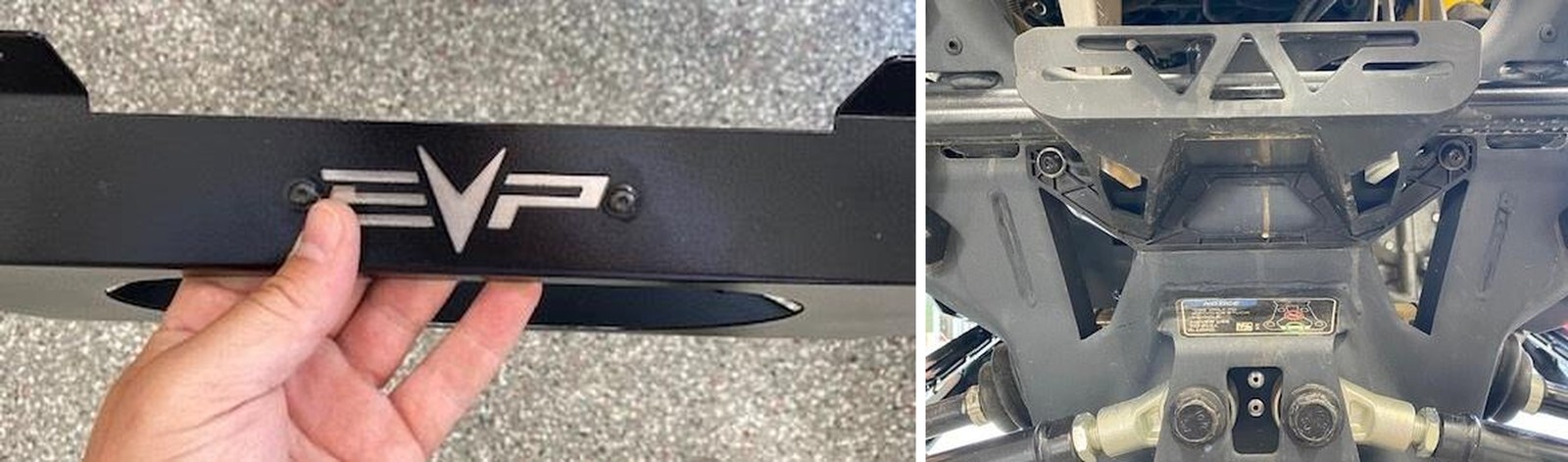

Install the backer plate to the rear fascia using supplied M4 hardware. Place washers under the head of the screw. Don’t over tighten.
2
With a T-30 socket, remove the sway bar plastic trim.
Can-Am Maverick R installation
3

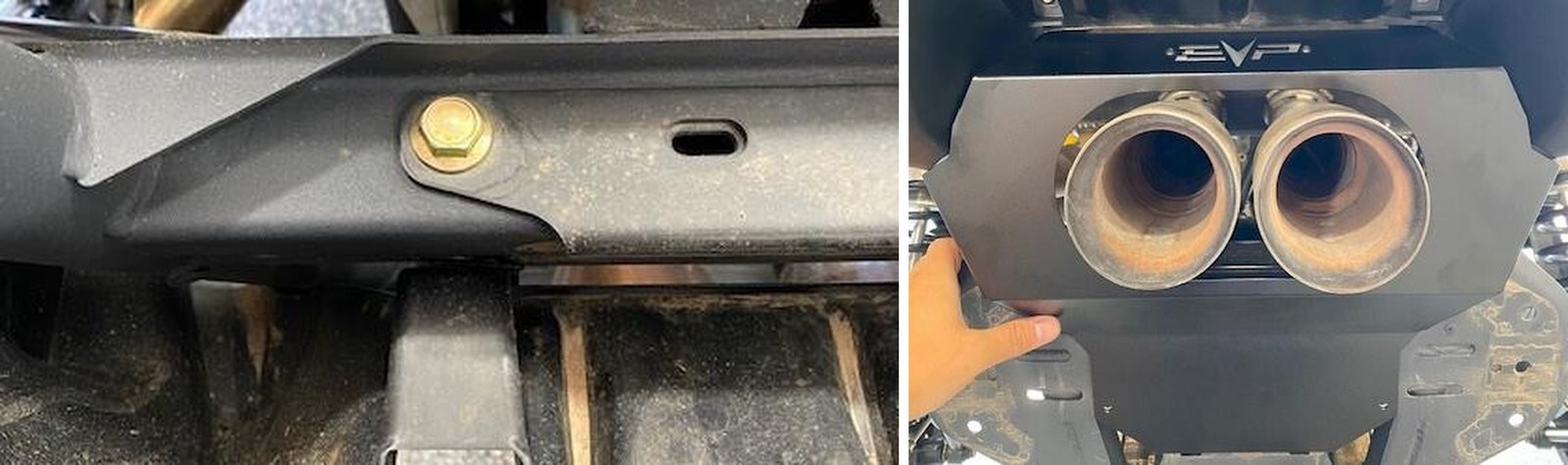

Remove (4) 18mm bolts and nuts holding the sway bar to the rear frame.
4

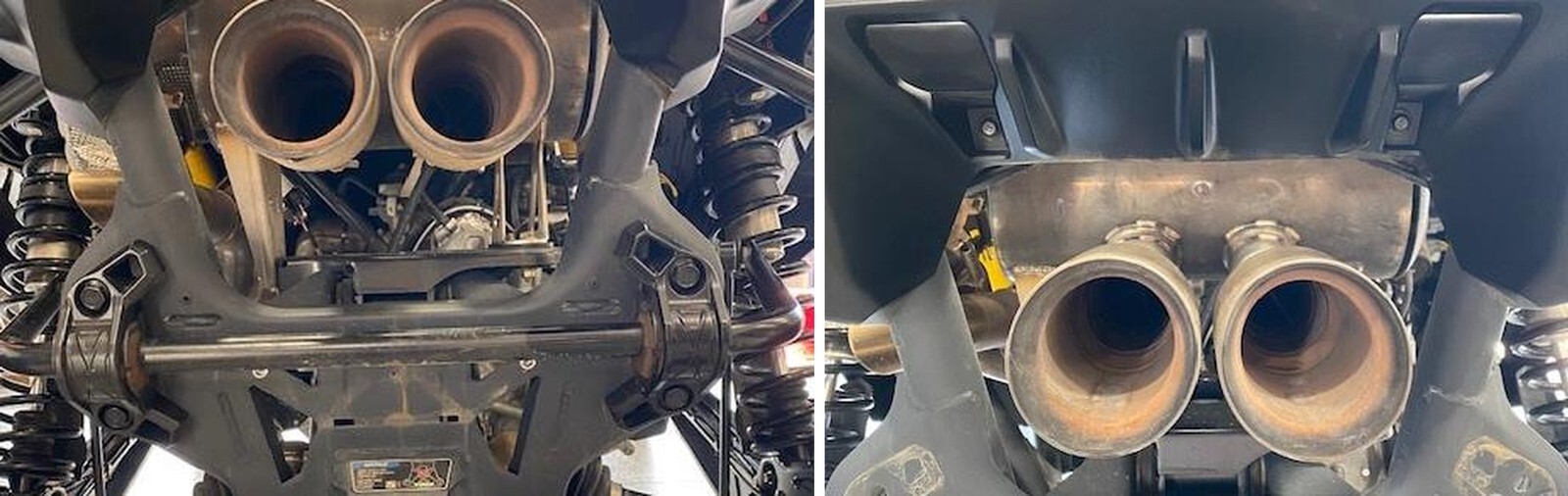

Remove (2) 10mm screws above the exhaust, holding the plastic to the frame.
Can-Am Maverick R installation
5
Install the fascia around the exhaust tips, start by aligning the top tabs behind the plastic, and in front of the frame. Reinstall OEM hardware.
6

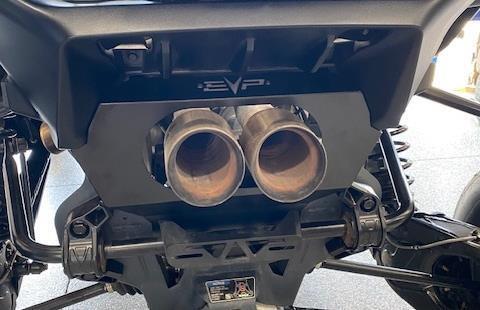

Reinstall the sway bar mounts and plastic guard. Reuse OEM hardware on the bottom, fastening the lower portion of the fascia.
Can-Am Maverick R installation
Can-Am Maverick R installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
