Can-Am Maverick R Front Grille Assembly — Install Guide

Can-Am · Maverick R · SKU 925FC0752

What's in the Box

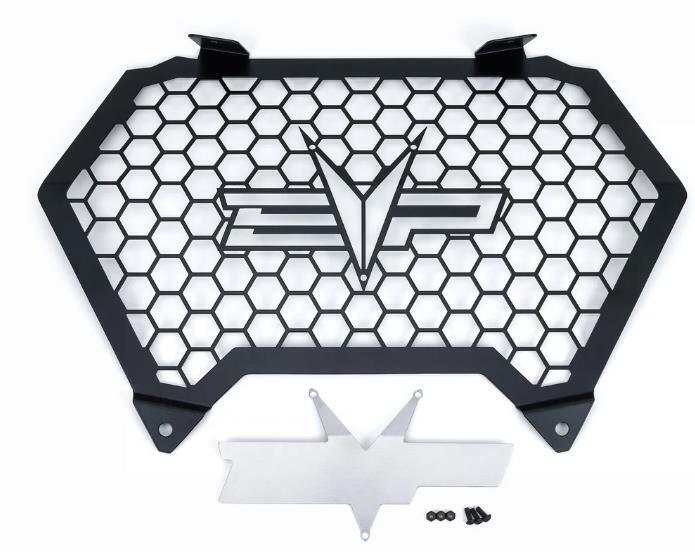

Can-Am Maverick R kit contents
Included parts
Front grille, Black Qty 1
Backer Plate, Raw Qty 1
M4 Screw Qty 3
M4 Nyloc Nut Qty 3
M6 Screw Qty 2
Required tools
7mm Socket
T-30, T-15 Socket
4mm Allen

Installation

1

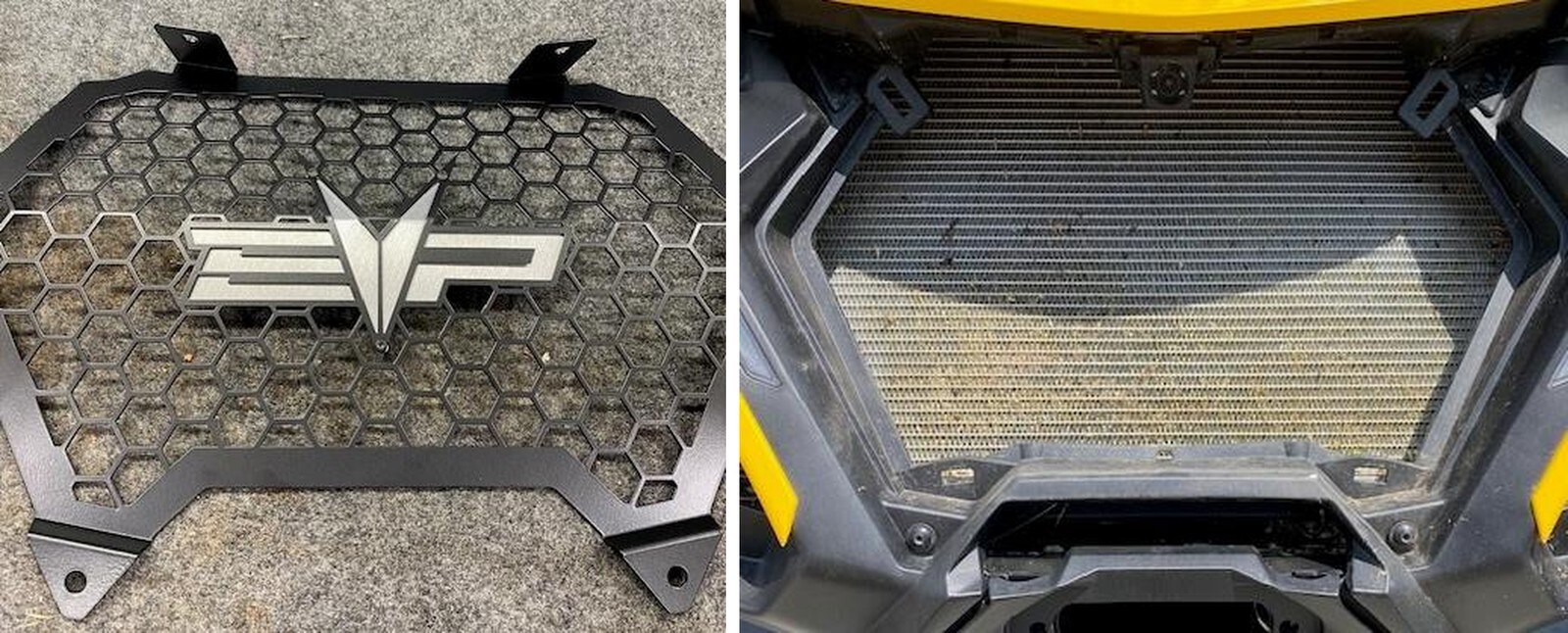

Install the backer plate to the grille, use M4 hardware. Use a 7mm socket and T15.
2
Remove the OEM grille by pulling straight out, out of (4) clips.
3
Remove (2) T-30 screws on lower part of grille.
Can-Am Maverick R installation
4

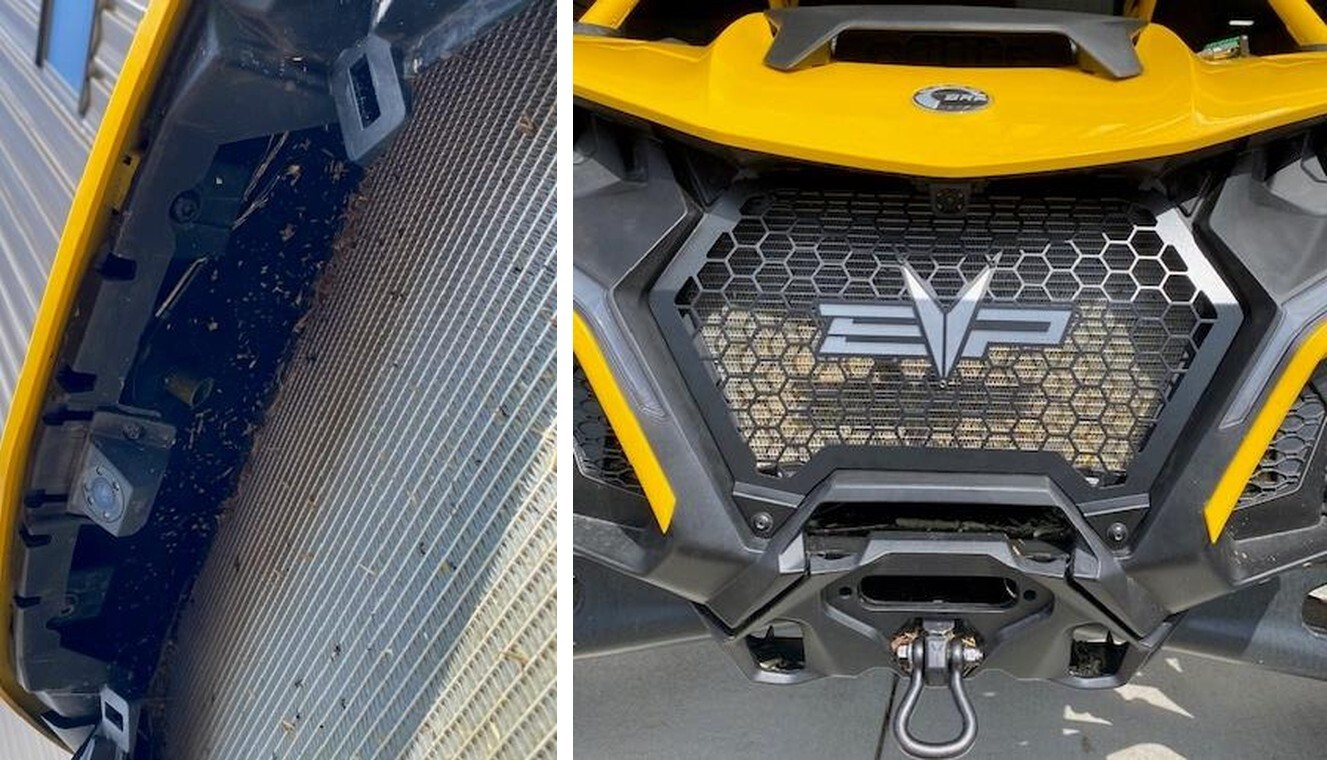

Remove (2) T-30 screws on the upper part of the grille.
5
Install the upper part of the grille first, making sure it’s above the black plastic but below the nutsert in the hood plastic. Use supplied M6 hardware, reuse the OEM washers for the top. Reuse the OEM hardware for below.
Can-Am Maverick R installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
