Can-Am Maverick R Oil Change Kit — Install Guide

Can-Am · Maverick R · SKU 804FC0271 (7100 5W-40), 804FC0272 (7100 10W-50), 804FC0273 (300V 5W-40),

What's in the Box

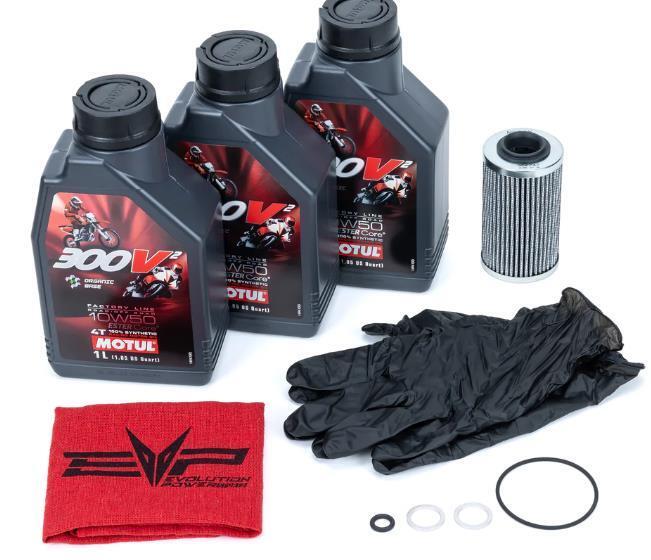

Can-Am Maverick R kit contents
Included parts
Motul 1 Liter Jug Qty 3
OEM Oil Filter Qty 1
Sealing Rings Qty 2
O-Rings Qty 2
Shop Rag Qty 1
Set of Gloves Qty 1
Required tools
Torque Wrench
8, 17mm Socket
Drain Pan
Screwdriver

Installation

1
CHANGING OIL: Start the vehicle and let it idle for minimum 2 minutes, park it on a level surface. CHECKING ENGINE OIL: To properly check the engine oil, the engine oil should be check after riding or letting the vehicle idle for 10 minutes or until the temperature reading shows 5 bars. Shut the engine down and check the oil dip stick within 1 minute of shutting the vehicle off.
2

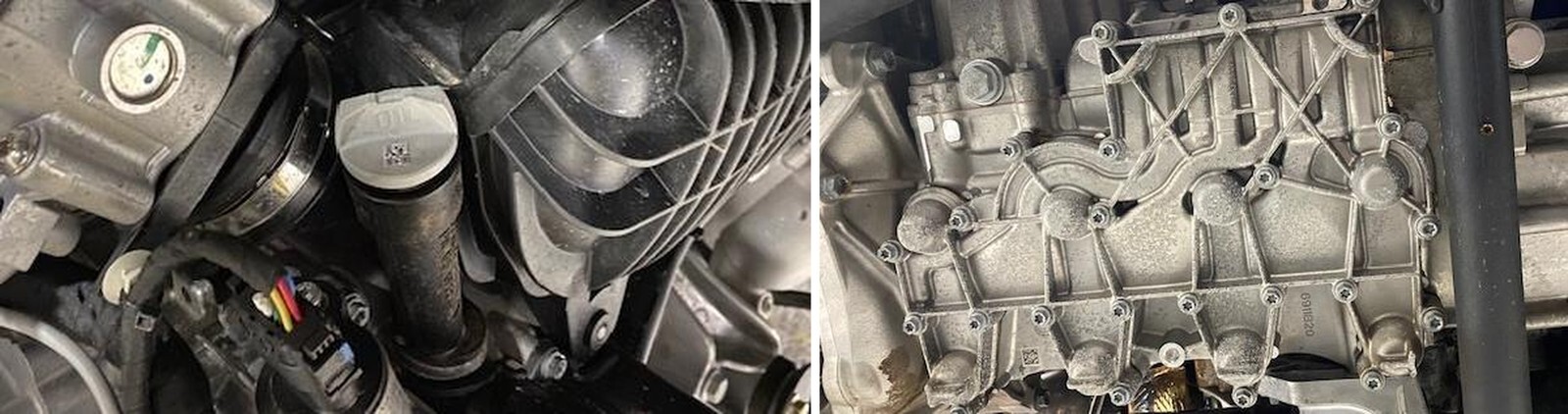

Remove or loosen the dip stick.
3
For these photos we removed the skid plate for better photos. This step is NOT needed. Underneath the vehicle you will locate (2) oil drains. On the right is the magnetic oil drain plug. One the left is the magnetic magneto drain plug. Remove both with a 17mm socket.
Can-Am Maverick R installation
4

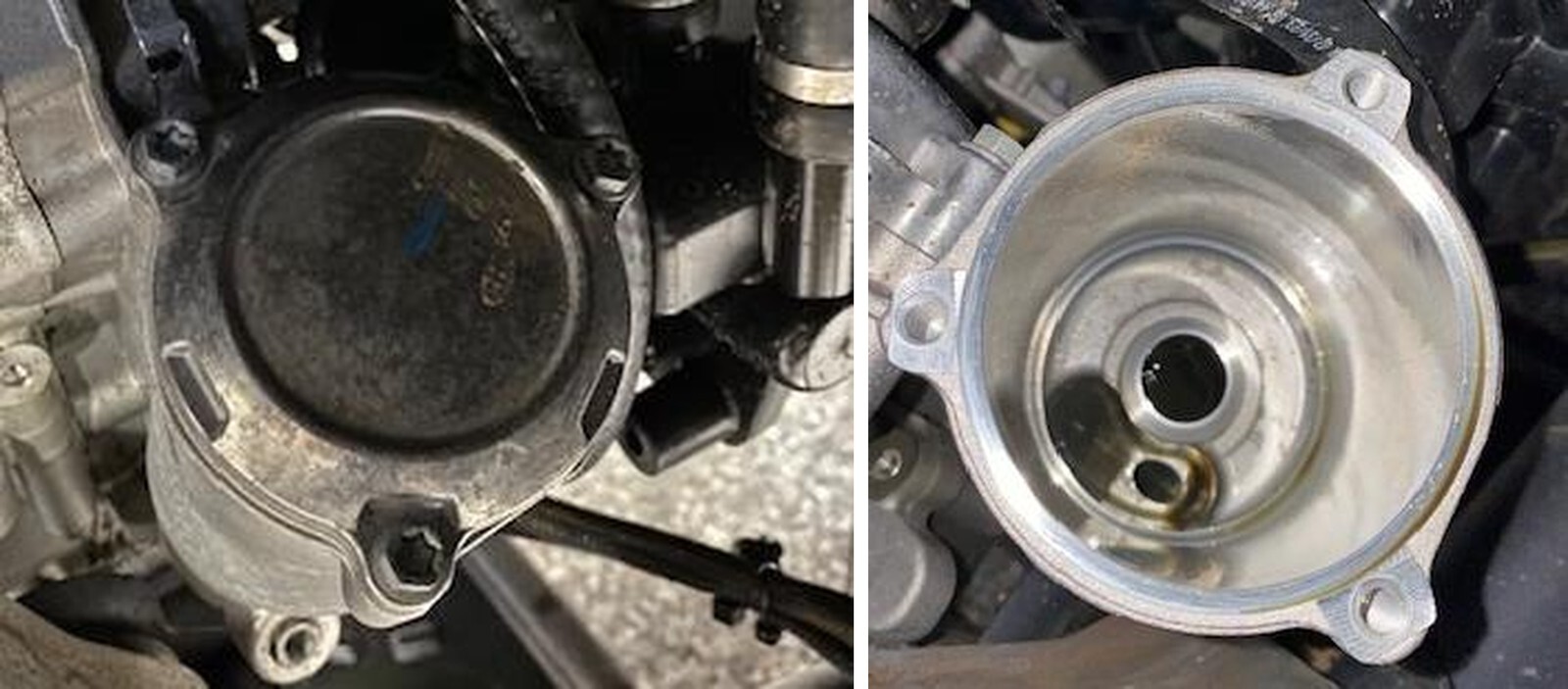

Locate the oil filter housing, remove (3) 8mm screws. Remove cap with O-Ring.
5
With a screwdriver lightly pry the oil filter out of the housing, there is a suction force which will allow more oil to drain out. Wipe the inside of the oil filter housing.
6

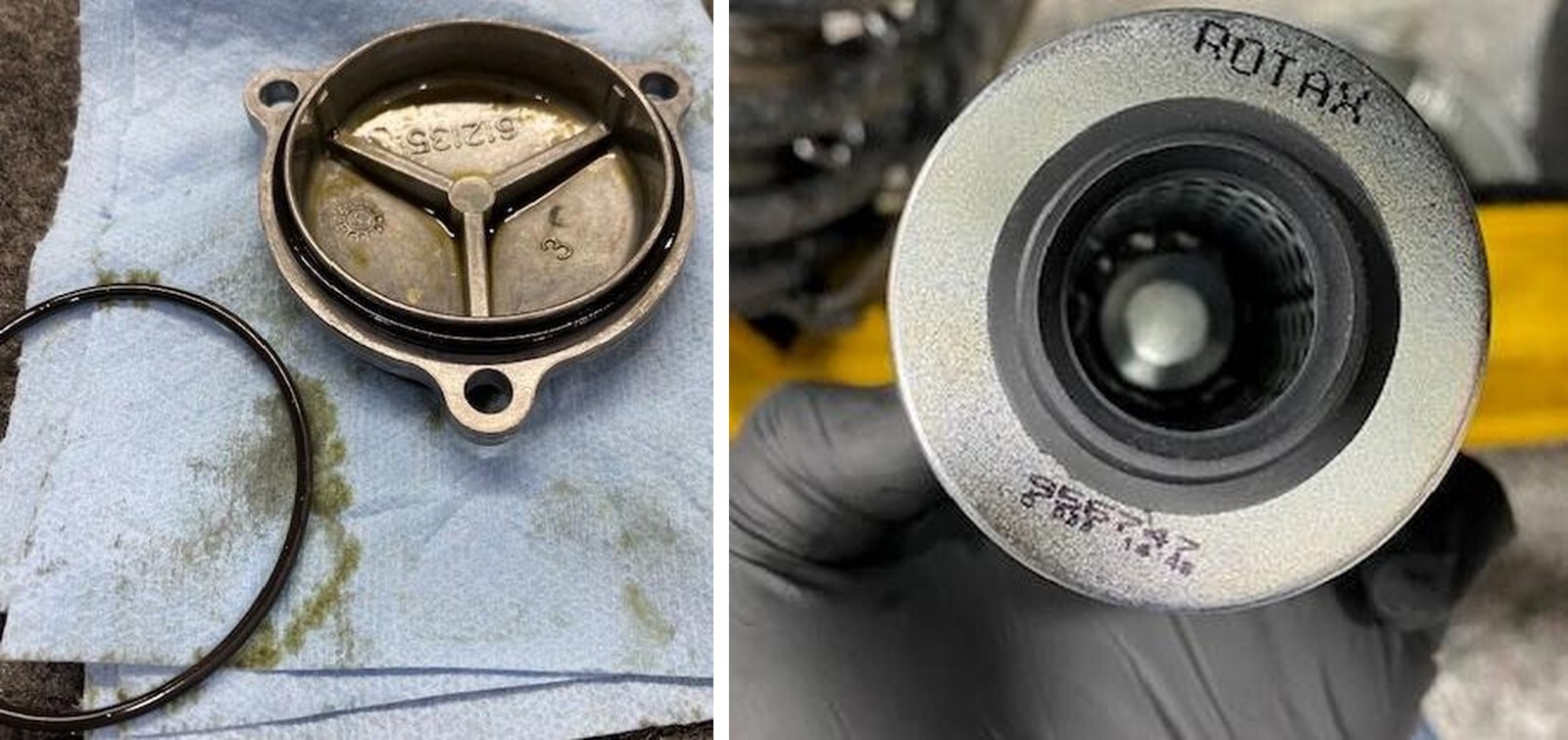

Remove and discard the oil filter cap O-ring. Install supplied O-ring and apply oil around the O-ring.
Can-Am Maverick R installation
7
Install the new oil filter into the housing, notice this filter is different from the transmission and only has one hole. Install the hole down into the housing. Reinstall the oil filter cap and torque the 8mm screws to 80 in-lb.
8

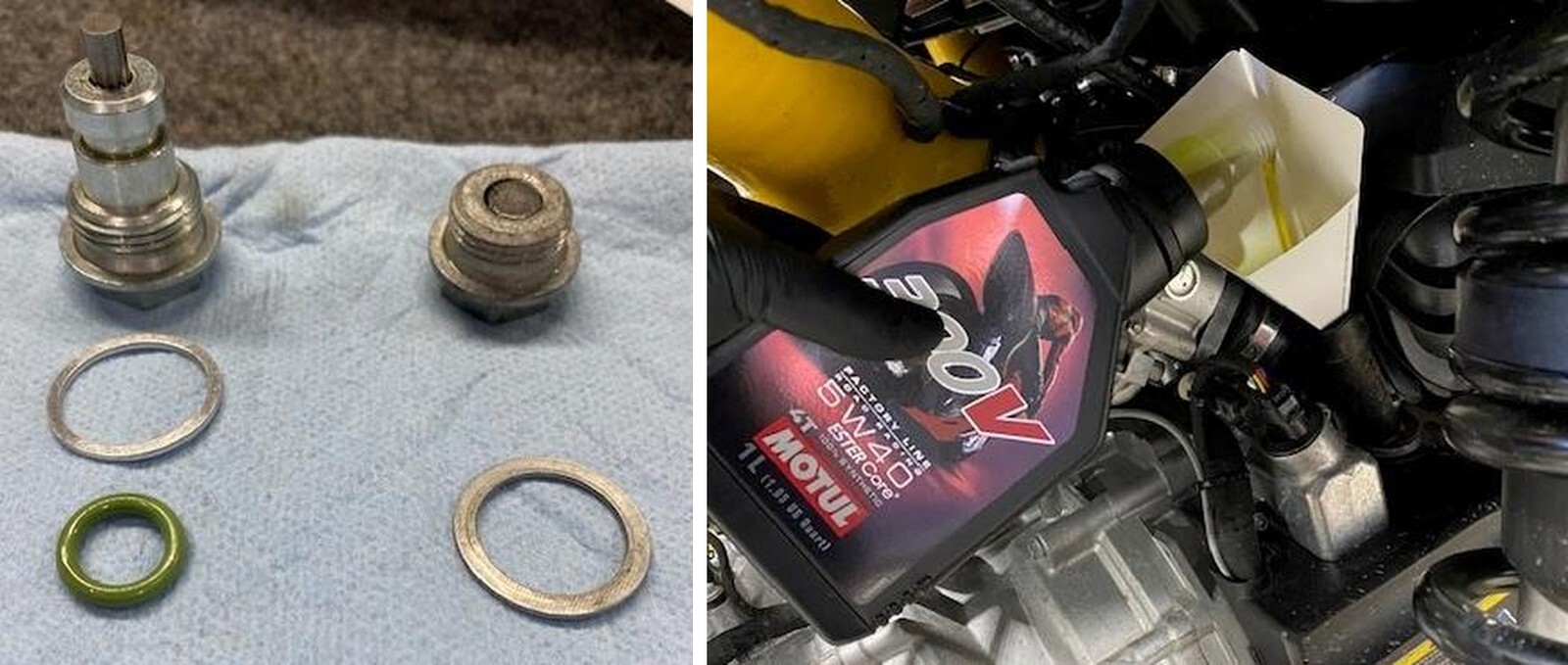

Clean off debris from the magnets on the oil drain plugs. Remove the sealing washers and O-rings. Install the smaller sealing washing onto the magneto drain plug. Install the larger sealing ring and O-ring onto the oil drain plug. Reinstall both plugs and torque to 22 ft-lb.
9
Pour in 3 liters (2.96 qt) through the dipstick tube.
Can-Am Maverick R installation
10
(OPTIONAL) before initial start-up, you can drown the engine by turning on the ignition, push the gas pedal to the floor, and turn the car over for 8 seconds. This will build oil pressure before initial start-up. You can start the vehicle and let it idle for 1 minute. Check oil level. It may not read MAX until you check when vehicle is at operating temperature.
Can-Am Maverick R installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
