Can-Am Maverick R Plenum Clamp — Install Guide

Can-Am · Maverick R · SKU 203FC0127

What's in the Box

Can-Am Maverick R kit contents

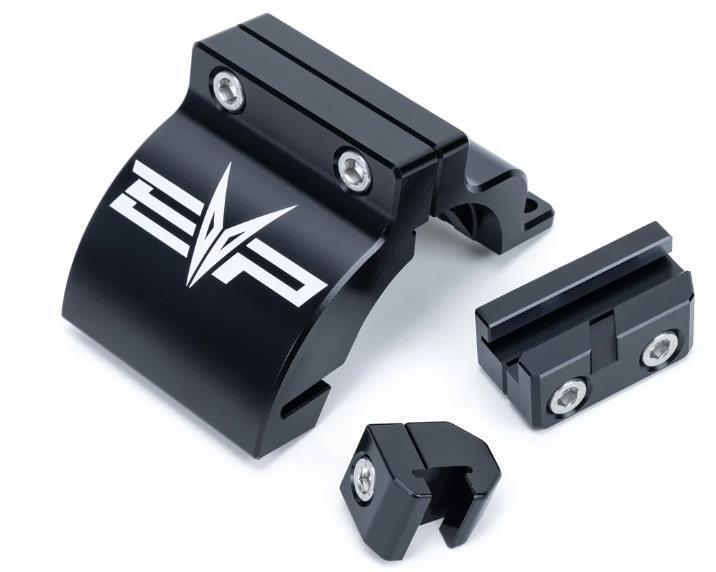

Included parts
Top Plenum Clamp Qty 1
Throttle Body Plenum Clamp Qty 1
Side Plenum Clamp Qty 1
M6 x 14 Socket Cap Screw Qty 5
For these instructions we remove
section of instructions is not ne
Required tools
8, 10mm Socket
T-30 Socket
M5 Allen Wrench
Cutting Tool
d the bed and intercooler for better photos. This
eded but does allow for more room. Skip to step 9.

Installation

1

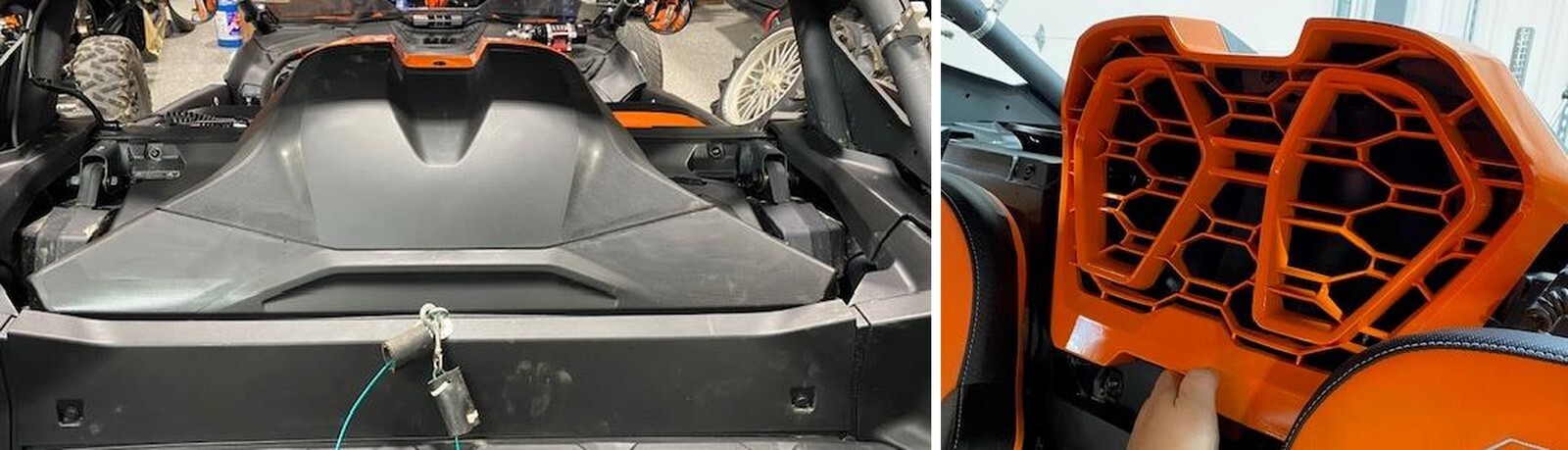

Remove wind dam. (2) push darts and (2) T-30 screws. Pop the front grill out of (4) grommets.
2

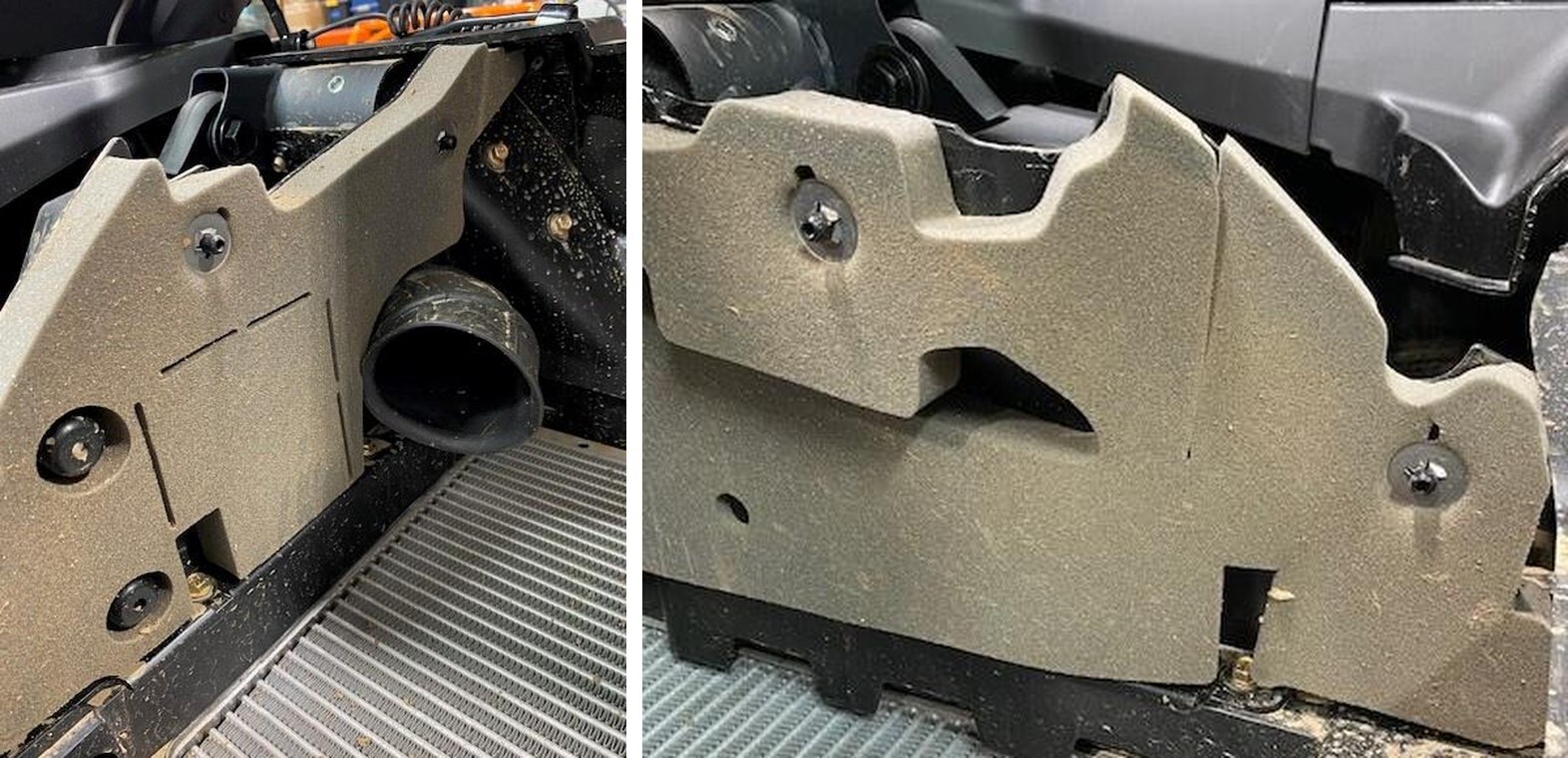

Remove the driver side foam insert. (4) 10mm screws, (1) T-30, push out the intake duct.
Can-Am Maverick R installation
3
Remove the passenger side foam insert. (3) 10mm screws, (1) T-30.
4

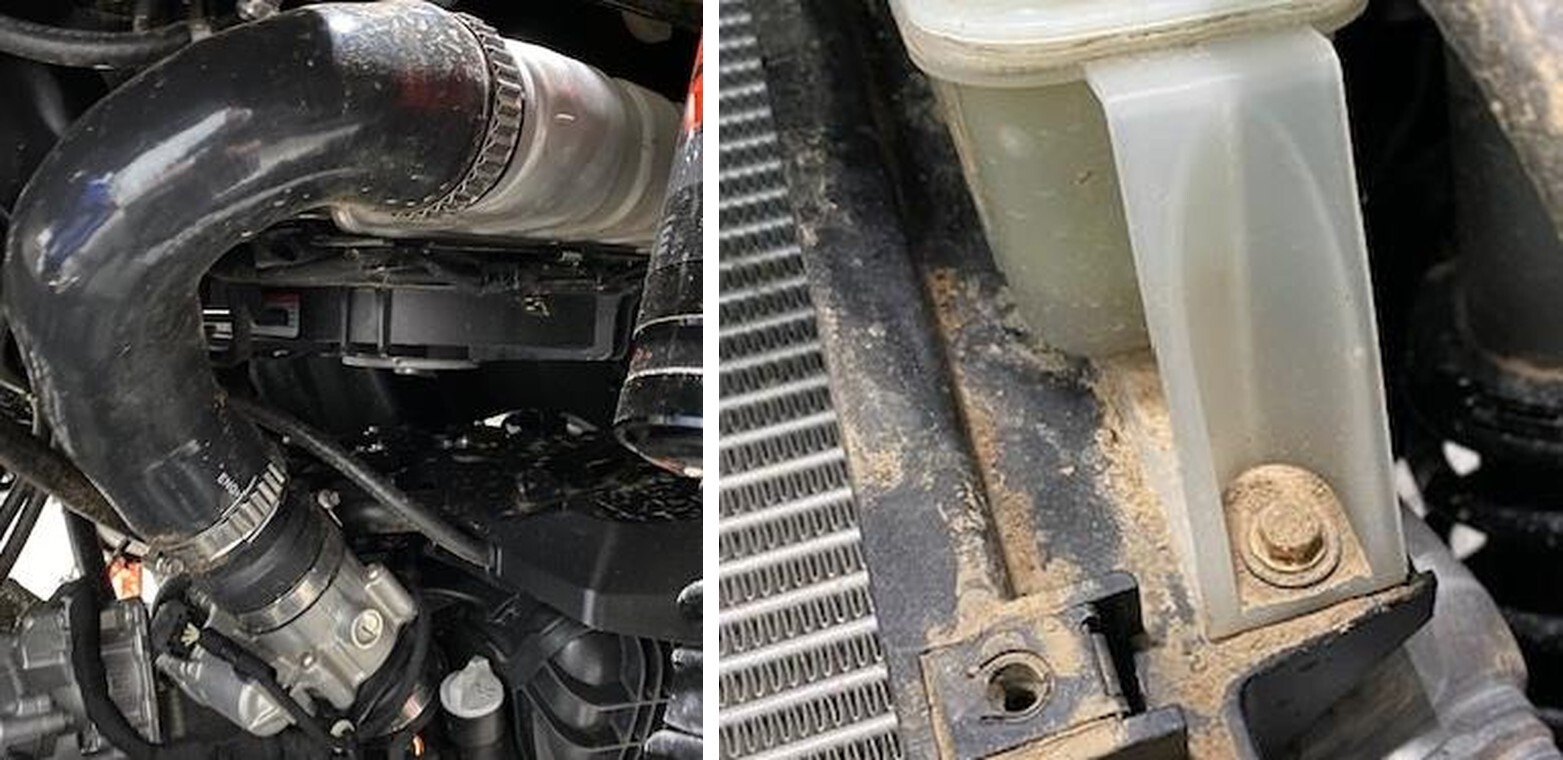

Remove the charge tubes from the intercooler.
Can-Am Maverick R installation
5

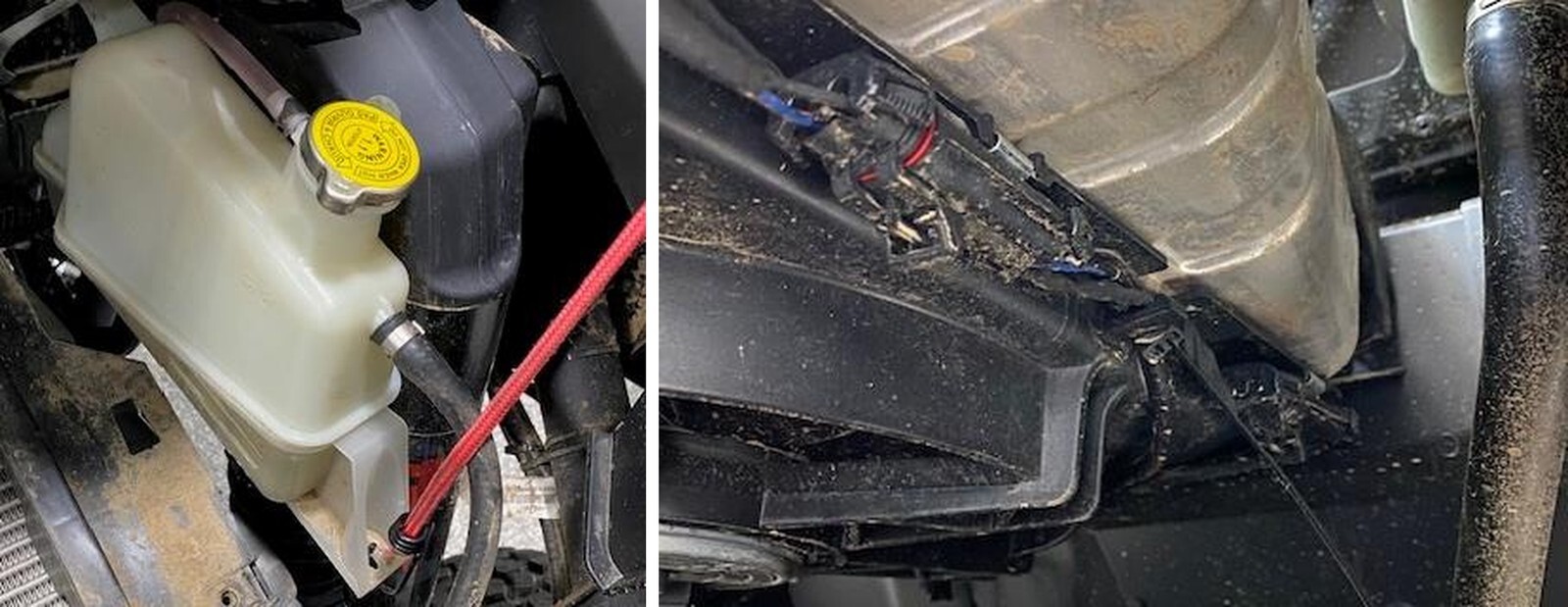

Remove (1) 10mm screw holding the coolant reservoir to the intercooler tray. Pull the reservoir back from the firewall, out of the clip. Strap the reservoir up.
6
Disconnect both intercooler fans from the OEM harness.
Can-Am Maverick R installation
7

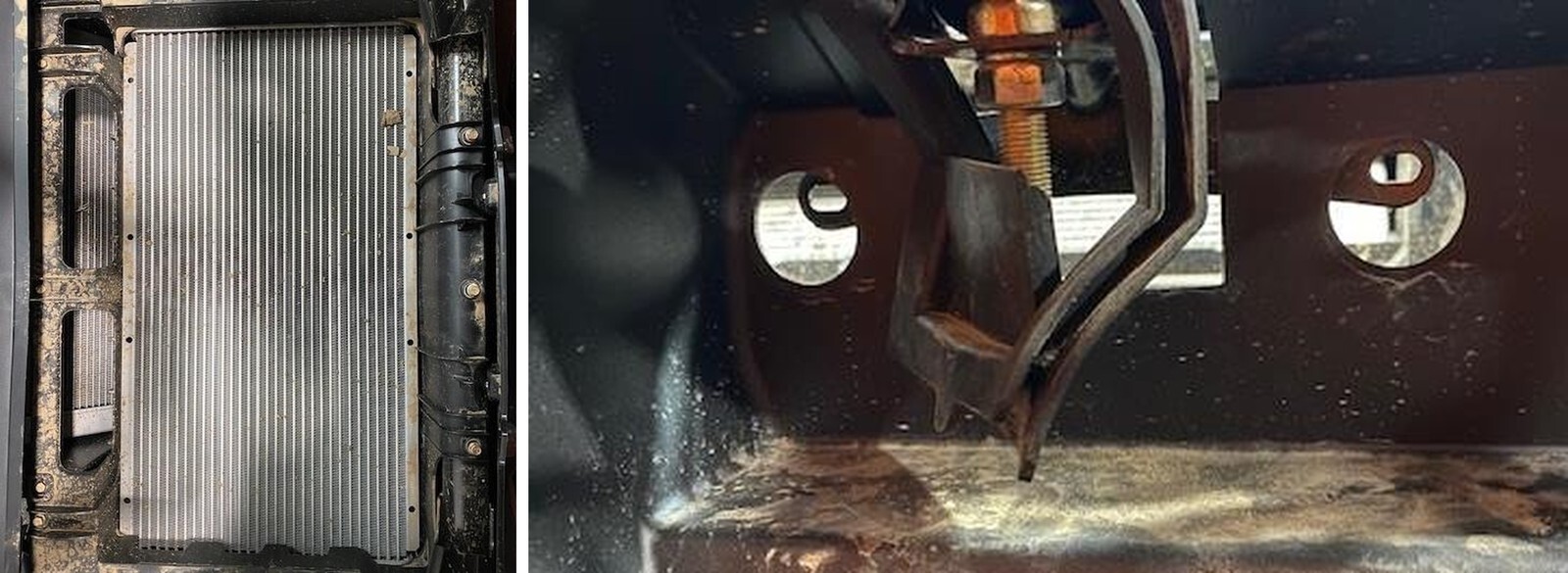

Remove (6) 10mm screws on the intercooler tray. Behind the seats, remove (4) rubber plugs and access (4) 10mm screw. Total of 10 screws.
8

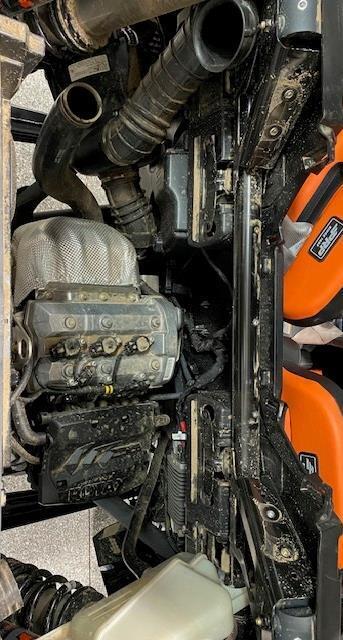

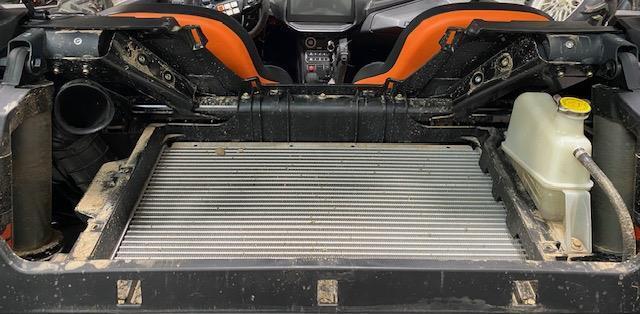

Remove the intercooler.
Can-Am Maverick R installation
9
Remove the upper plastic cover on the plenum. (1) 8mm screw.
10

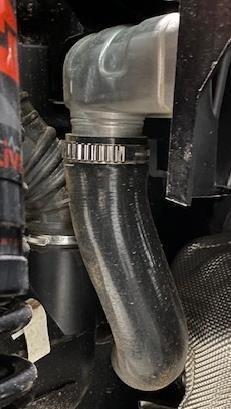

Remove the coolant hose, transmission hose, and EVAP hose if your model is equipped. Remove the lower plastic tray by removing (5) 8mm screws.
Can-Am Maverick R installation
11

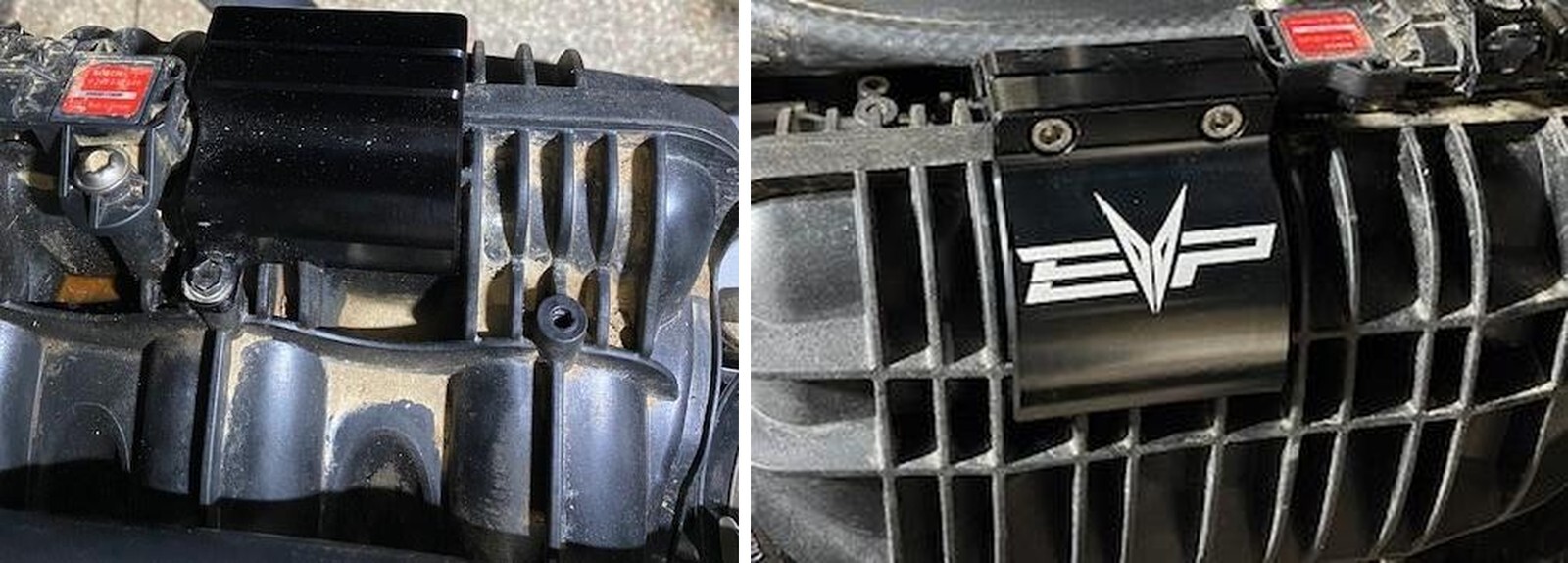

Install the top clamp, logo on the outside and inside clamp reuses (1) 8mm screw.
12

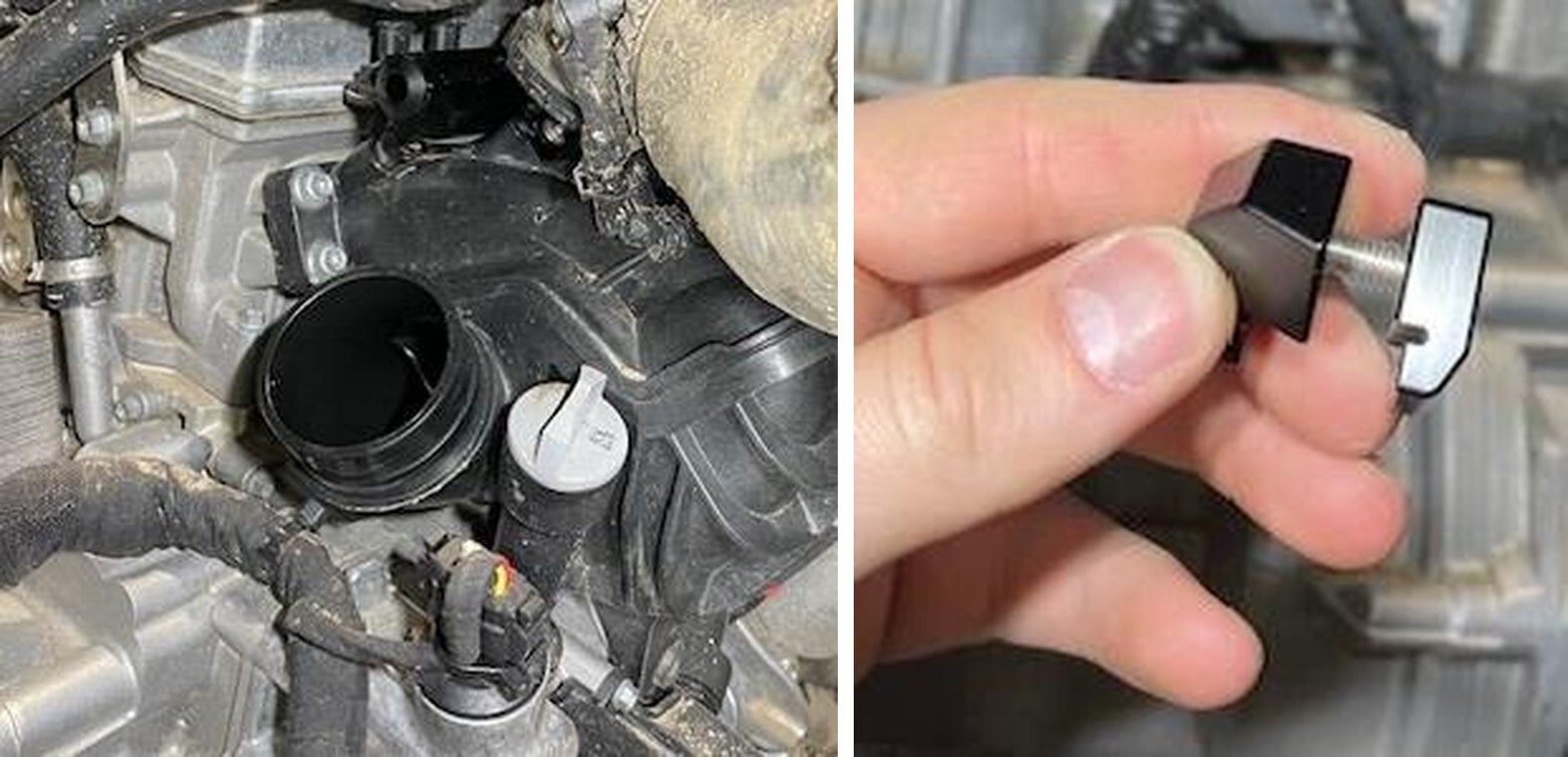

Remove the throttle body from the plenum. Install the smallest clamp with the screw facing up. It is easiest to thread the screw onto the back of clamp for installation.
Can-Am Maverick R installation
13
Cut the zip tie on the front of the plenum holding the map sensor harness. Install the medium size clamp on the front of the plenum underneath the fuel rail.
14

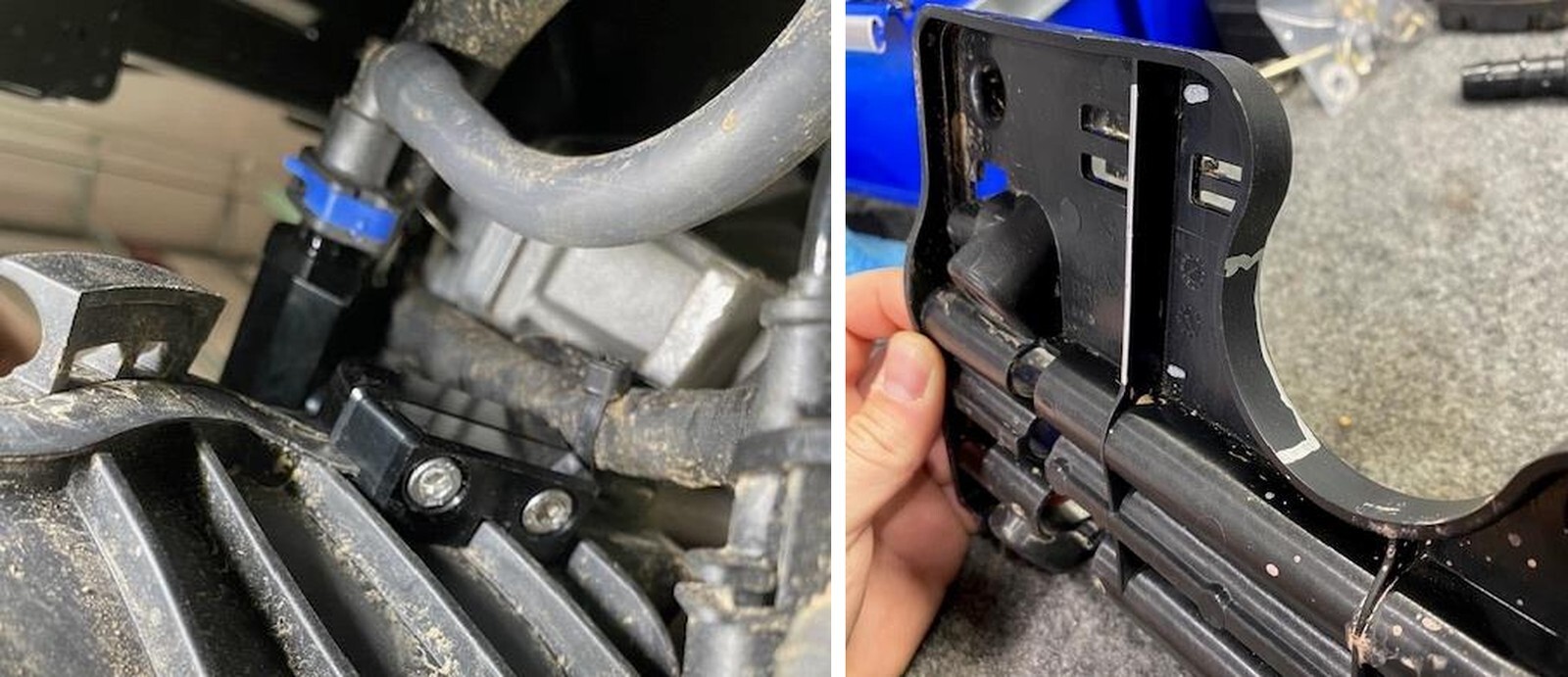

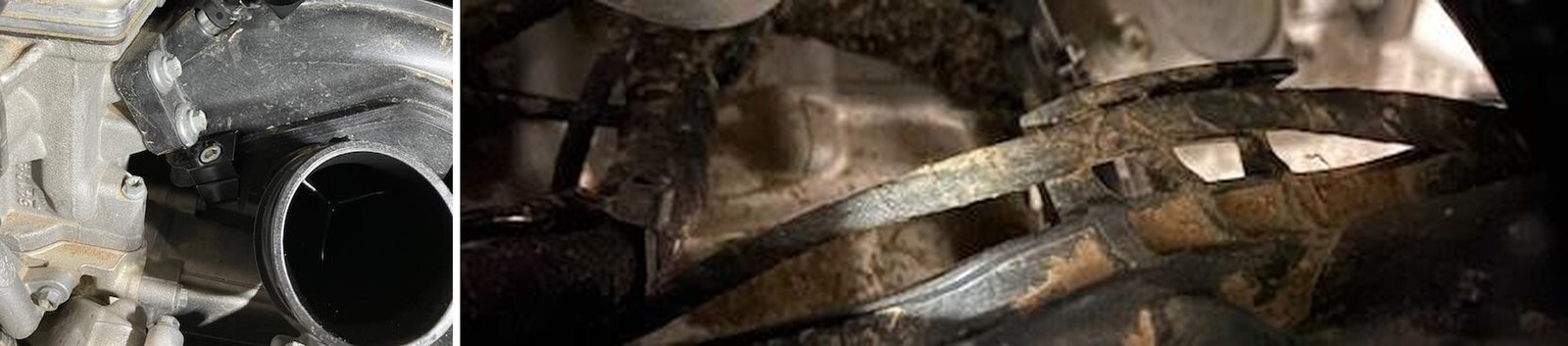

If you plan on running the OEM hose support bracket with the plenum clamps, you will have to notch out two areas shown below. Remove the support rib and notch a “C”.
Can-Am Maverick R installation
15
Reinstall all components in reverse order.
Can-Am Maverick R installation
Can-Am Maverick R installation
Can-Am Maverick R installation
Can-Am Maverick R installation
Can-Am Maverick R installation
