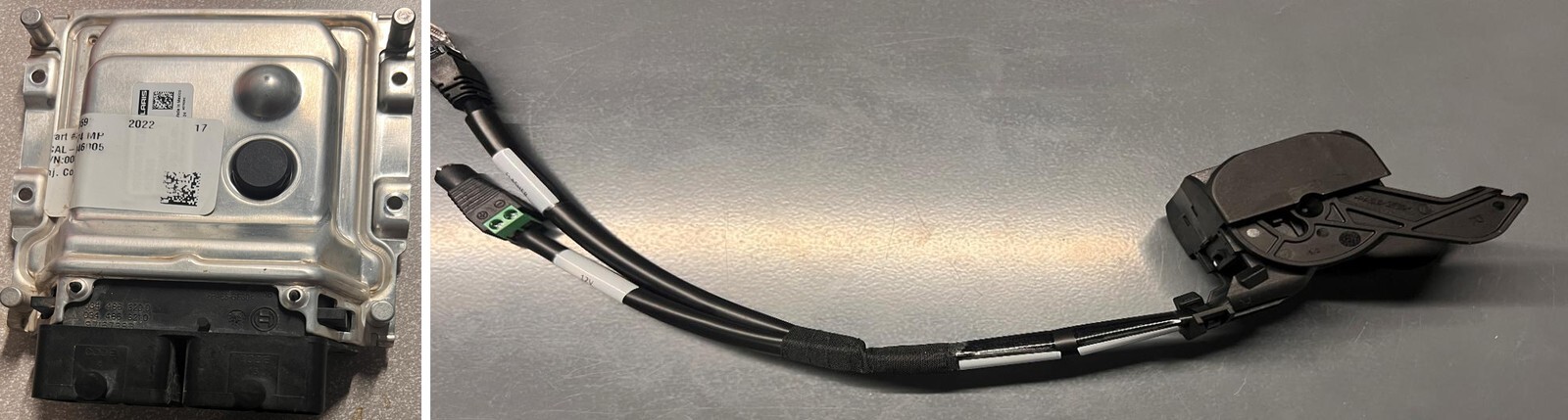

Materials Polaris MG1 ECU Removed from vehicle (required).
The ECU must have an Evolution Powersports Unlock to flash with Codeshooter (check for EVP sticker). The below image has no EVP stickers so it would require an unlock.
Polaris MG1 Bench Flash Harness.

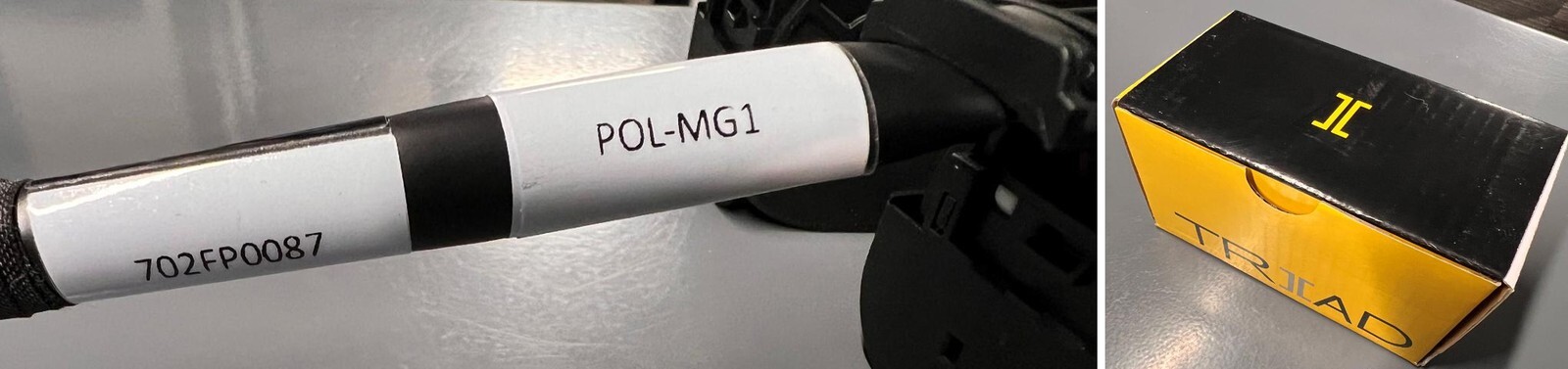

Ensure the tags on the harness are correct SKU (702FP0087).
Provided 12V wall power supply with Barrel Jack.
(Use this exact power supply to prevent electrical damage).
Your Codeshooter must be set up for dealer flashing. If you require further Codeshooter help, please see our Tuning Instructions on our website or contact Evolution Powersports. https://evopowersports.com/pages/evp-installation-instructions

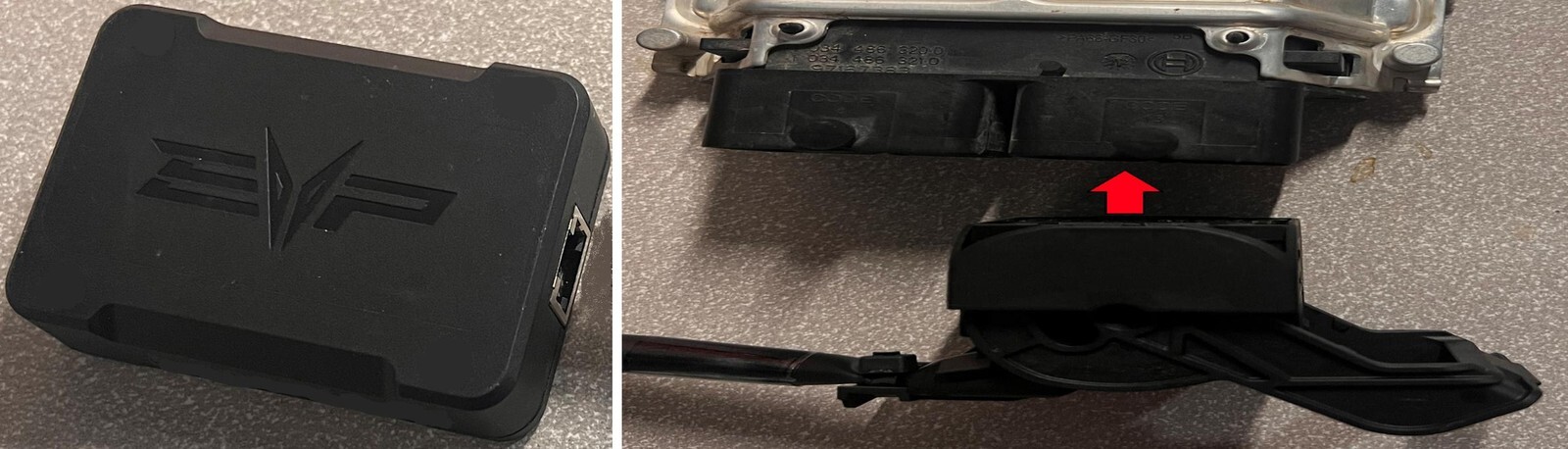

Setup Connect to the ECU header as shown below. Ensure the latch is open and the connector is fully pressed on and covering the tabs. The Polaris connection is on the RIGHT header.

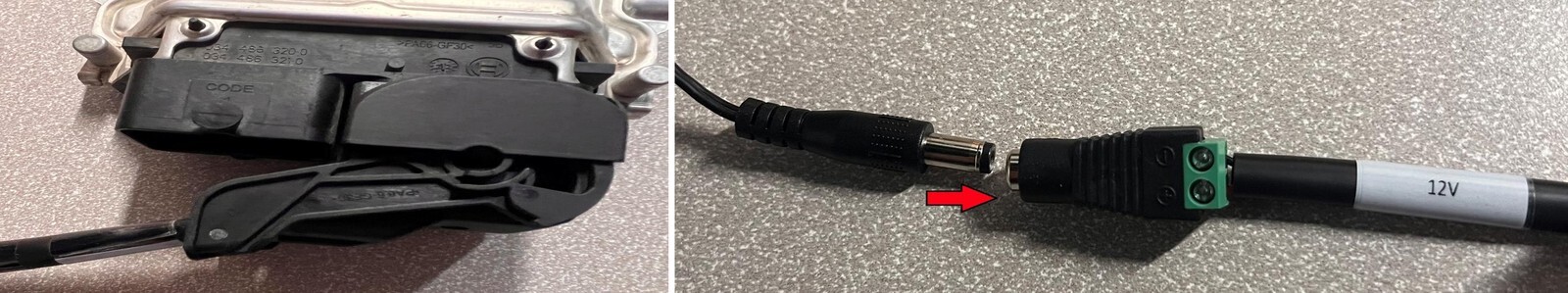

Close the latch once the connector is fully pressed onto the ECU header.
Connect the provided 12V barrel connector to the harness as shown.

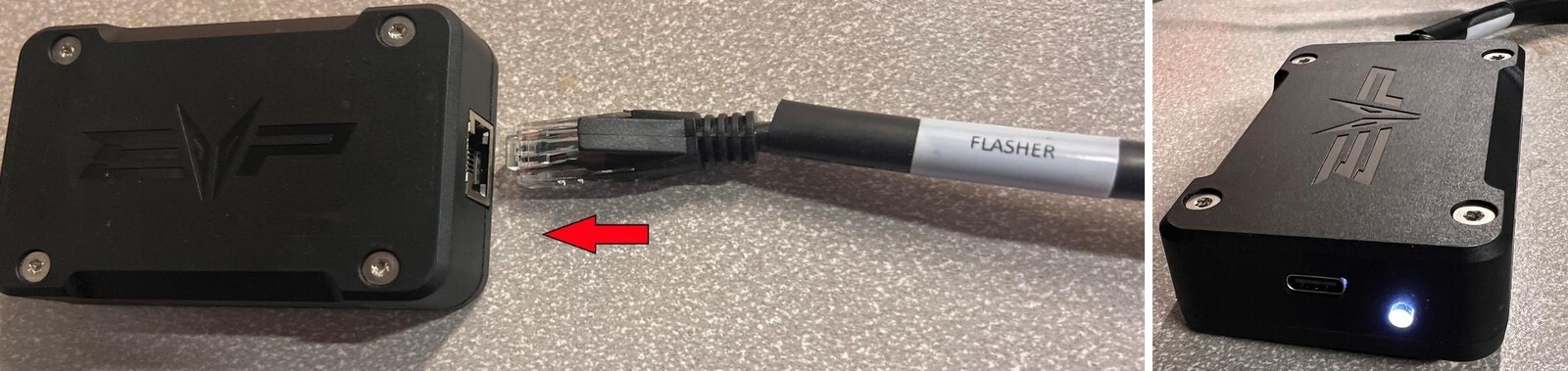

Connect the Codeshooter to the harness as shown.
Ensure the Codeshooter LED turns on and settles on either white or green.
Flash ECU The Codeshooter can now flash the ECU using the Codeshooter app on your mobile device. Please see our tuning instructions for further information on Codeshooter flashing.
https://evopowersports.com/pages/evp-installation-instructions
Disconnect To remove power First disconnect the 12V barrel jack power supply.
The Codeshooter and ECU can be removed in any order after.
Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
