Polaris Pro R Magnum Header Exhaust — Install Guide

Polaris · Pro R (RZR) · SKU Raw (300DP0186), Black (300DP0187), Header Gasket (300DP0206)

What's in the Box

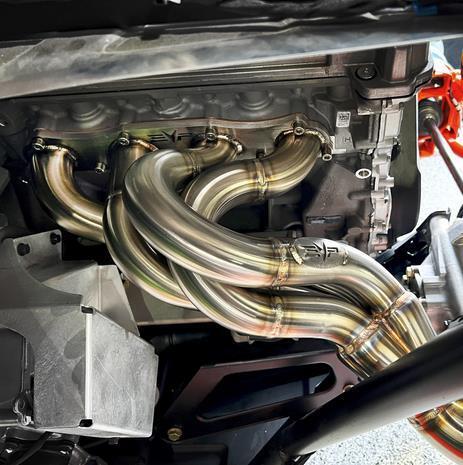

Polaris Pro R (RZR) kit contents
Included parts
EVP Header Qty 1
Header Gasket (optional) Qty 1
Required tools
10, 14mm Socket
M6 Allen Socket/Wrench
Torque Wrench
Anti-Seize
7/8 Open End Wrench

Installation

1
Make sure your vehicle is cold. Remove the two 14mm bolts with springs that seal the header to the muffler.
2
With the 7/8” open end wrench, remove the 02 sensor. Be sure not to damage the tip of the sensor.
3

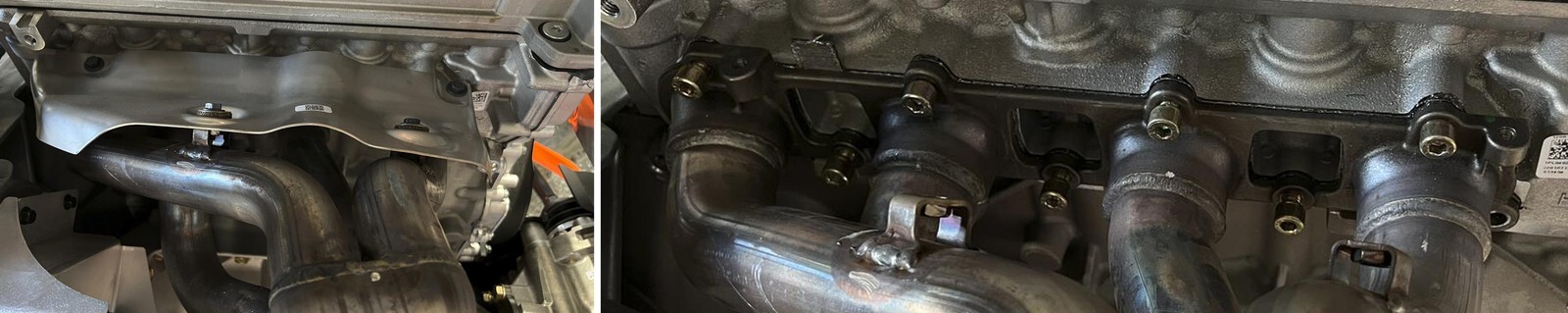

Remove the (4) 10mm bolts holding the heat shield down.
Polaris Pro R (RZR) installation
4
Remove the (9) M6 socket head cap bolts holding the header on. You can remove the header now.
5

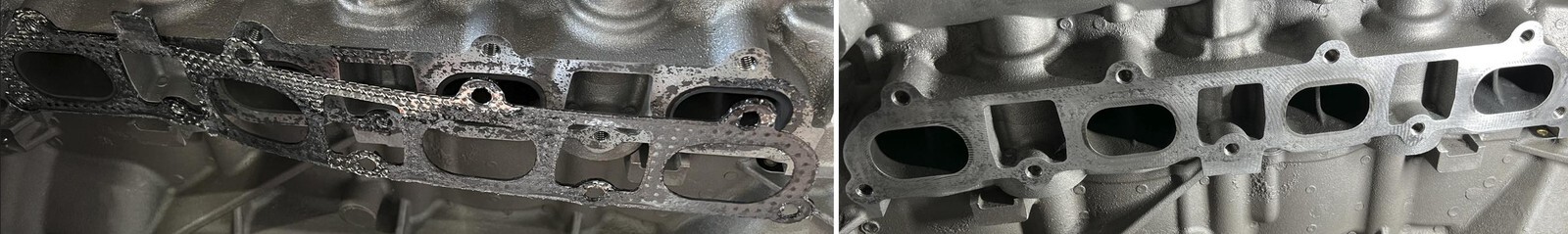

Remove the old gasket between the header and engine. Make sure to clean all the old gasket off. You can use scotch brite and break cleaner.
6

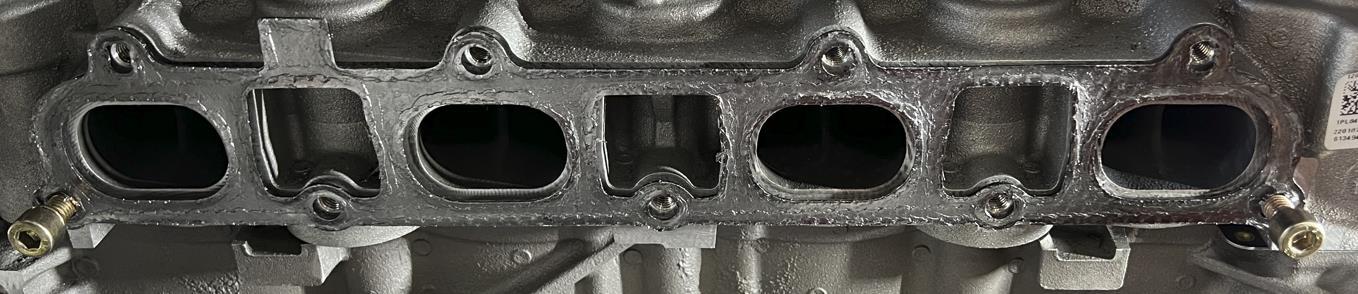

Once clean, add anti-seize to your (9) mounting bolts. Hold the gasket against the engine block and thread in bolts #6 and #9, leaving them a 1/4" out of the block. This will allow the EVP header to rest on them.
Polaris Pro R (RZR) installation
7
Install the EVP header and the rest of your mounting bolts along with the donut gasket between the header and muffler. Torque each bolt within sequence shown below. First torque all (9) mounting bolts to 60 in-lbs (7Nm). Second torque all (9) mounting bolts to 22 ft-lbs (30Nm).
8
Torque the header pipe to muffler down to 18 ft-lbs. It helps to put anti-seize on these on bolt threads and end of spring.
Polaris Pro R (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
