Polaris Pro R Catch Can Kit — Install Guide

Polaris · Pro R (RZR) · SKU 803FU0011

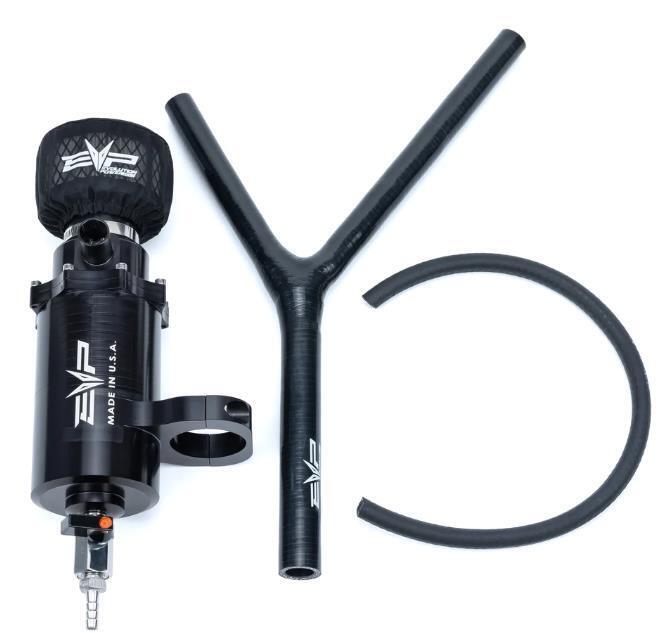

What's in the Box

Polaris Pro R (RZR) kit contents
Included parts
EVP Breather Tube Qty 1
13.3mm Pinch Clamp Qty 1
Pro R Catch Can Assembly Qty 1
22mm Pinch Clamps Qty 2
Pro R Catch Can
Required tools
6mm Allen and Screwdriver
Pinch Clamp Tool
Cutter/Pliers

Installation

1

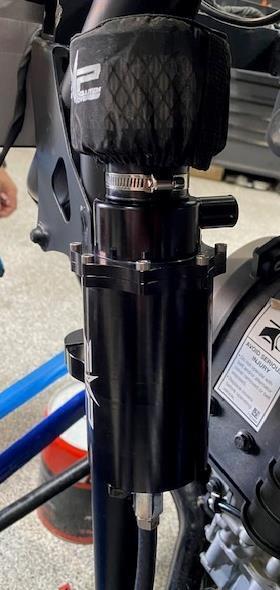

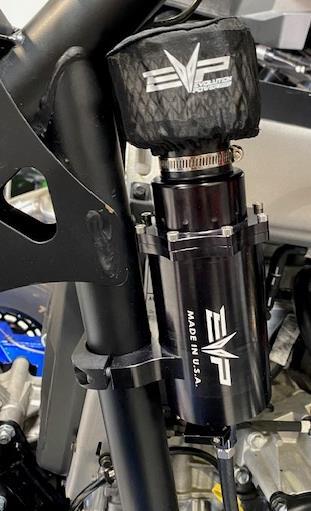

Install the catch can on the left-rear frame. Tighten down the clamp around the tube frame. The port on the cap will face the engine bay. Install the 1/4" rubber hose to the barb located on the bottom of the catch can. Run it down into the belly pan.
Polaris Pro R (RZR) installation
2

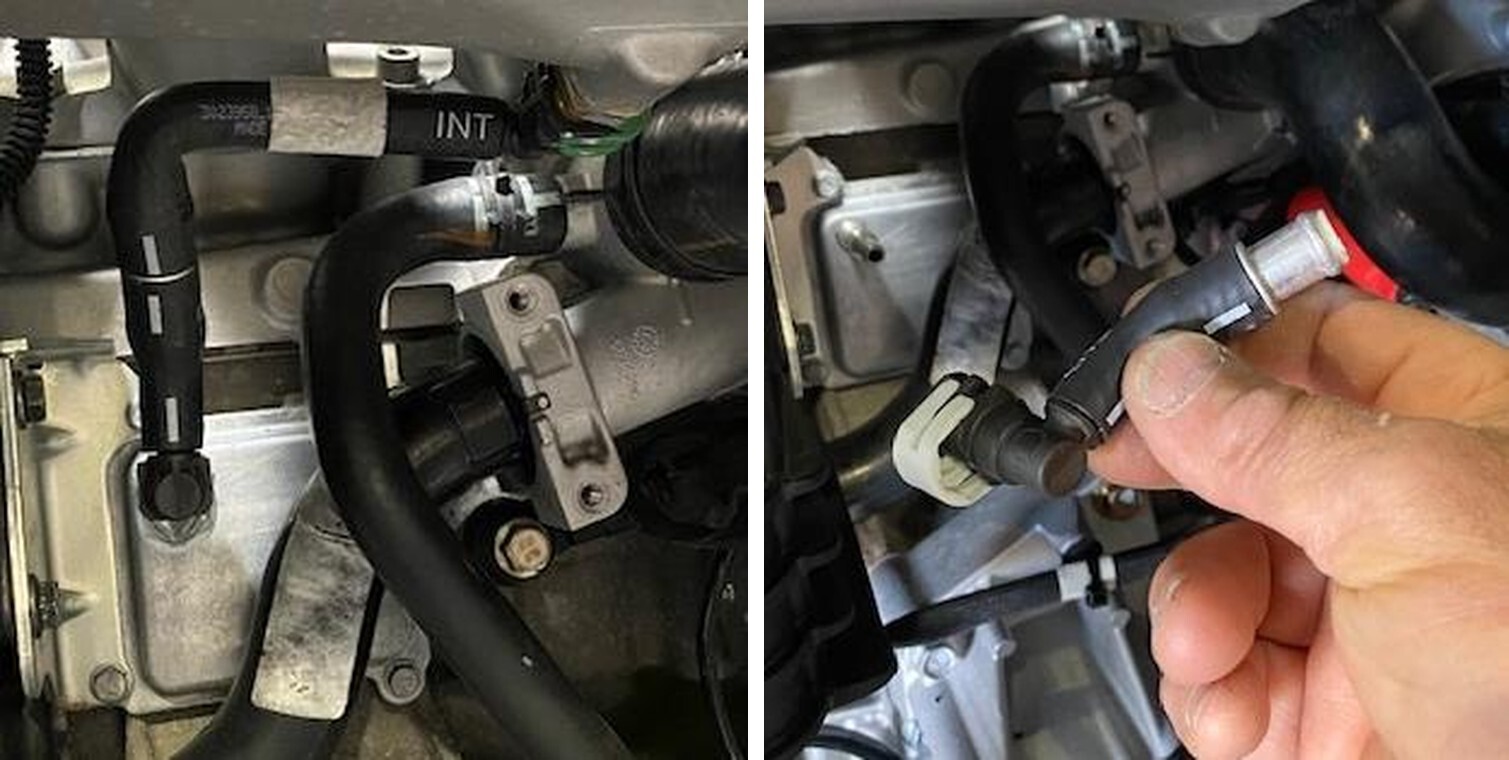

Locate the engine breather hose going to the plenum (which is currently removed). Remove the hose from the engine. Remove the longer piece of hose. Keep the small piece with the connector and one-way-ball valve. Reconnect the small piece to the engine.
Polaris Pro R (RZR) installation
3

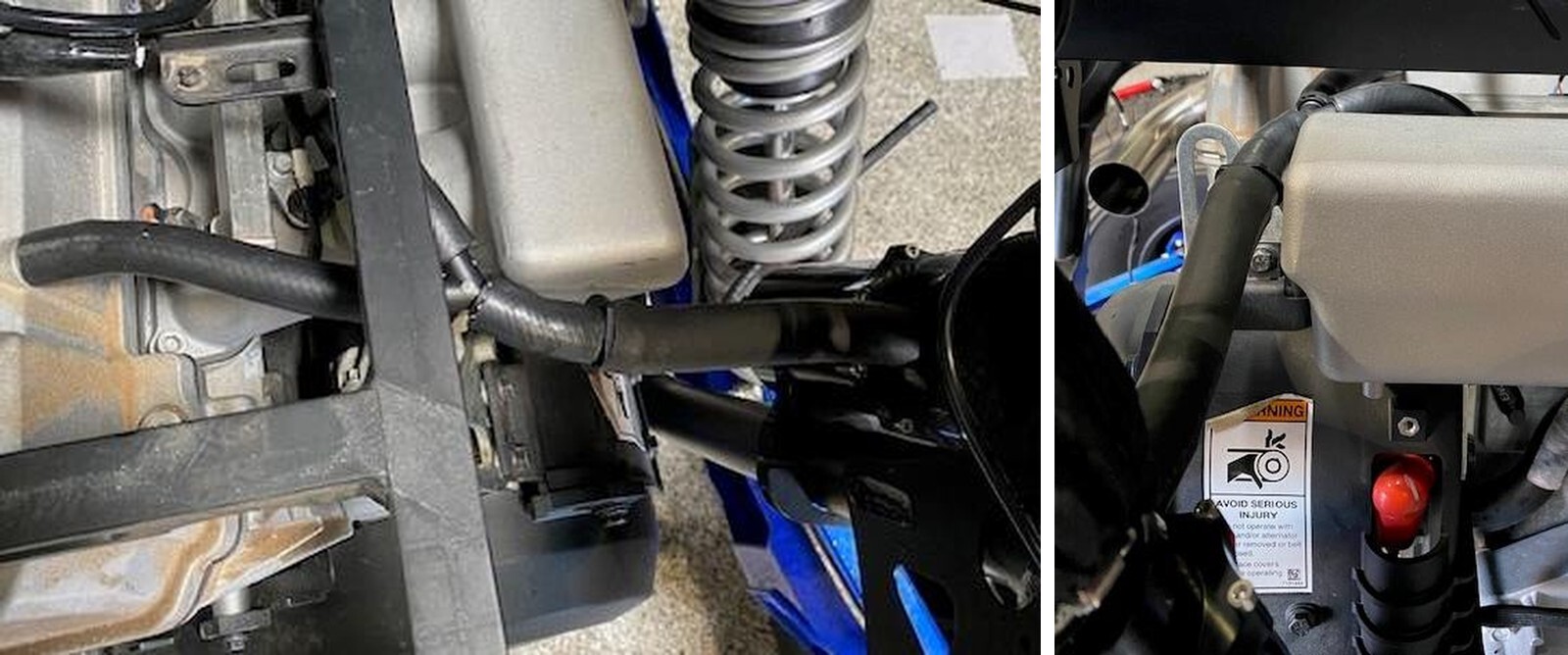

Install the catch can hose. The “Y” portion of the hose will go to the small connector on the engine and the valve cover.
Polaris Pro R (RZR) installation
4

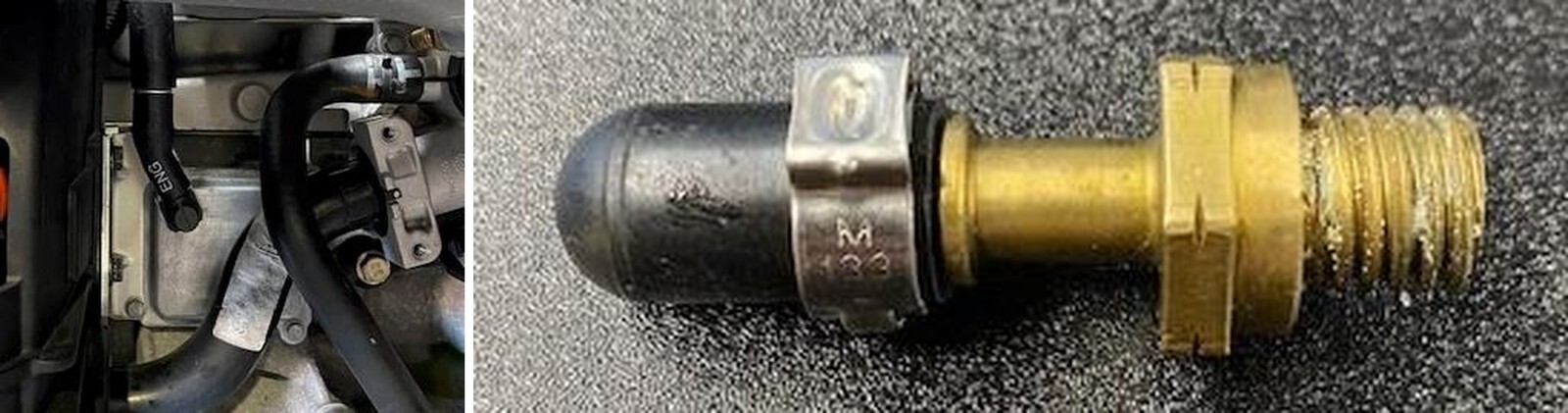

If you’re NOT running a blow off valve, install supplied 5/16” cap and 13.3mm pinch clamp on the plenum brass quick disconnect.
Polaris Pro R (RZR) installation
Polaris Pro R (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
