Polaris Pro R Fuel Rail — Install Guide

Polaris · Pro R (RZR) · SKU 501FP0019 (OEM Fitting), 501FP0020 (-8AN Fitting)

What's in the Box

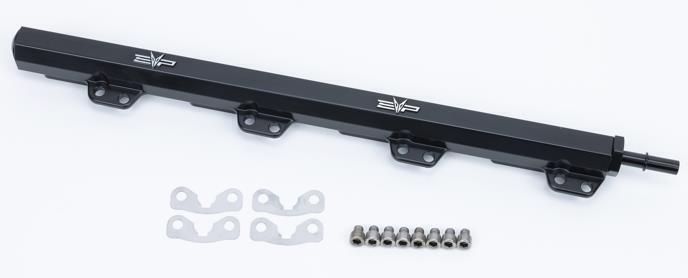

Polaris Pro R (RZR) kit contents
Included parts
Pro R Fuel Rail Qty 1
Injector Clip Qty 4
Socket Cap Screws Qty 8
8AN ORB Plug Qty 1
Zip Tie Qty 4
Optional: 8AN ORB to 8AN Fitting
Optional: 8AN ORB to 3/8 Quick
Fitting
Required tools
8mm Socket
8AN Wrench
Cutting Tool

Installation

1
NOTE: clean intake plenum with compressed air, especially around the injector ports. Remove (4) injector connectors, cut the zip-ties holding the injector harness to the intake plenum and remove from the fuel rail. Remove the blue clip and fuel hose connector from the fuel rail.
2

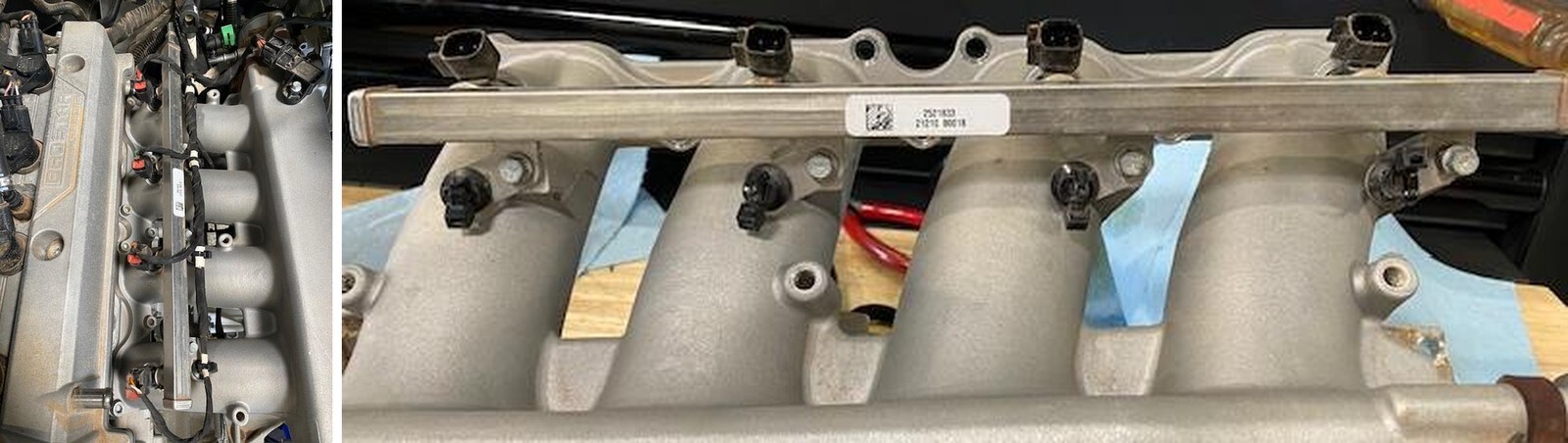

Remove the (4) 8mm screws holding the fuel rail to the plenum. Remove the fuel rail.
Polaris Pro R (RZR) installation
3
Remove the injector clips, remove the injectors. Blow out the fuel rail with all injectors removed.
4

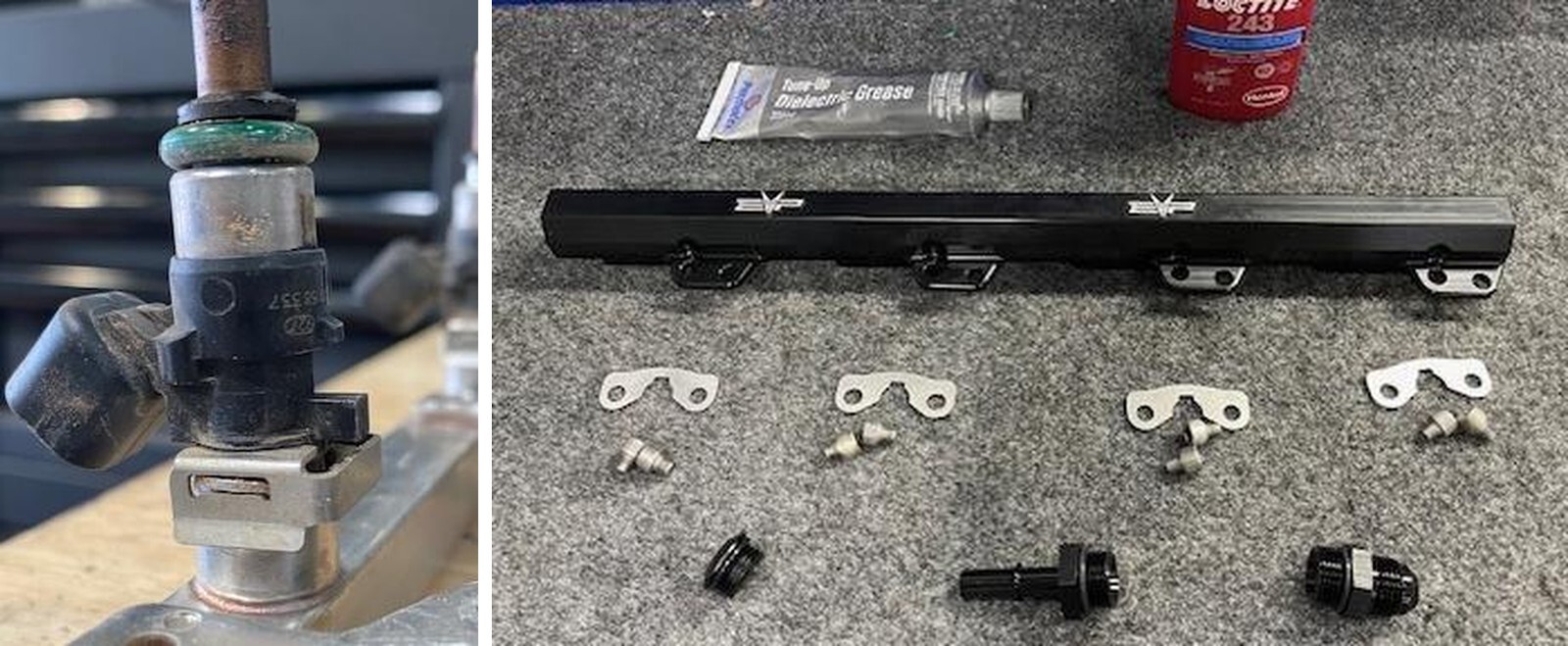

With your parts laid out, install your fuel plug and fittings.
Polaris Pro R (RZR) installation
4

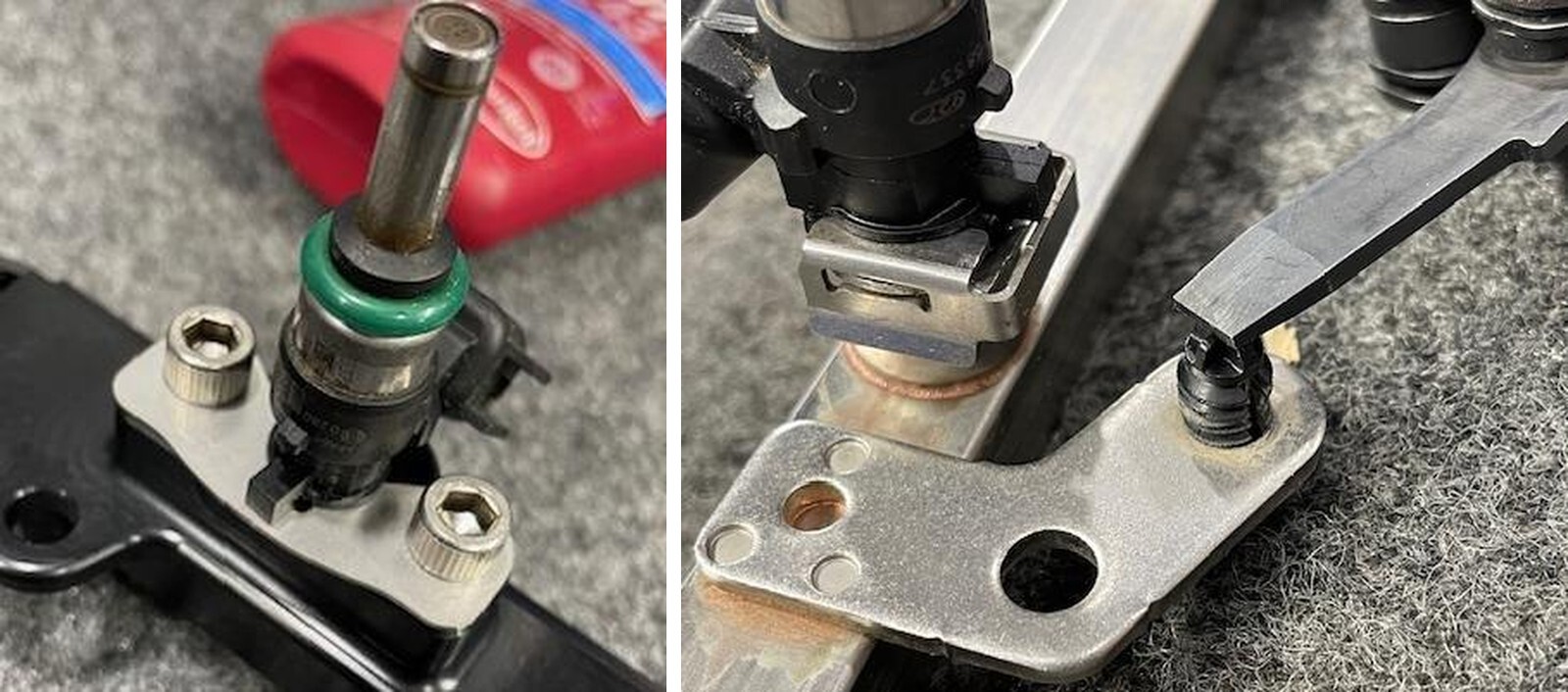

Install the (4) injectors. Apply dielectric grease to the O-ring on the injector. Install the new injector clip around the injector, use supplied hardware with BLUE Loctite. Make sure the injector is properly seated.
5
With a flat blade, push out (4) zip tie holders, install into the new fuel rail.
Polaris Pro R (RZR) installation

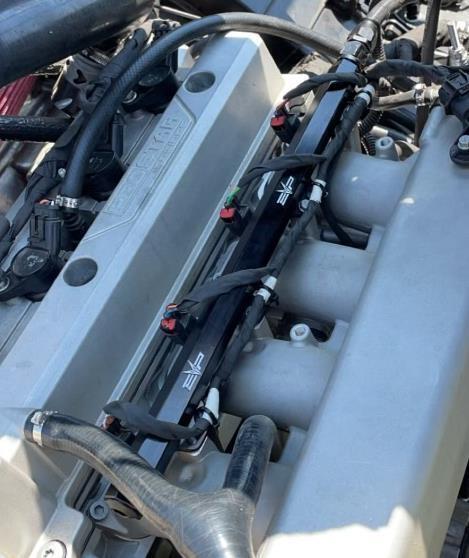

6
Install the fuel rail and injectors, torque the fuel rail to 7 ft-lb. Reinstall the injector clips. Use supplied zip ties to secure the injector harness, cut off excess zip tie.
Polaris Pro R (RZR) installation
