Polaris Pro R High Pressure Fuel Pump with Surge Tank Kit — Install Guide

Polaris · Pro R (RZR) · SKU 500FP0044

What's in the Box

Polaris Pro R (RZR) kit contents

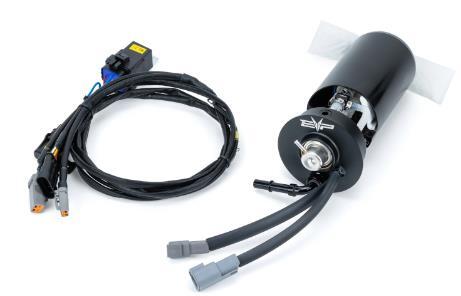

Included parts
EVP Surge Tank Assembly Qty 1
20amp Mini Fuse Qty 1
RZR Fuel Pump Relay Qty 1
2” Heat Shrink Qty 1
Required tools
EVP Fuel Pump Tool
Knife
Solder Gun
Heat Gun
Pinch Clamp Tool

Installation

1

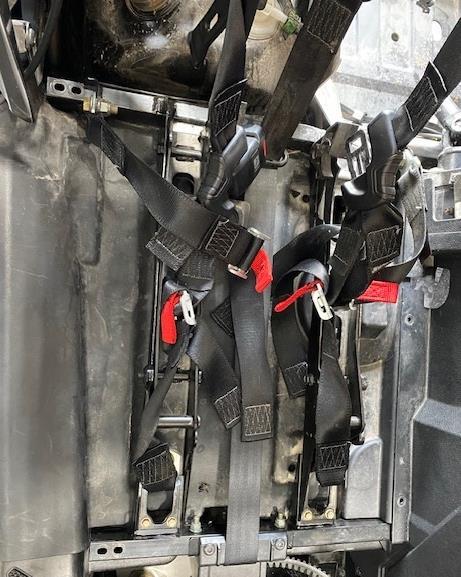

Remove the entire interior, rear seats if 4 door. Remove the firewall, seats, CVT ducts, under tray etc.
2

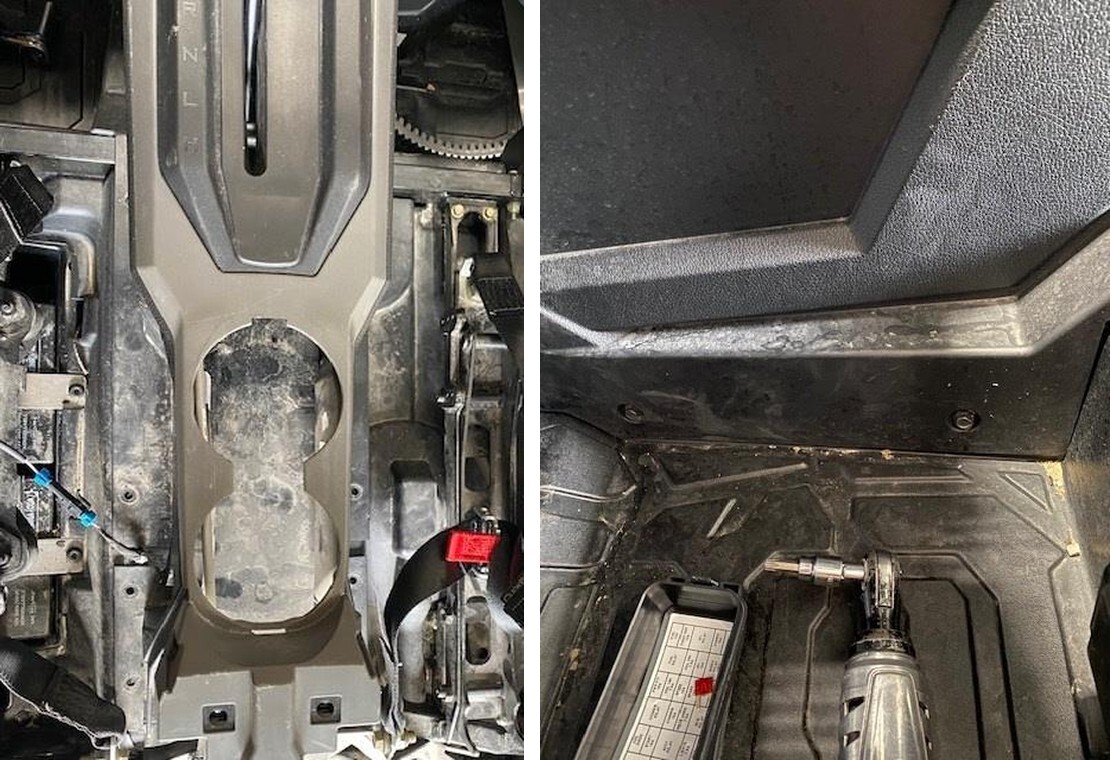

Remove the center console,12v connectors, cup holders, side panels take a T40 socket.
Polaris Pro R (RZR) installation
3

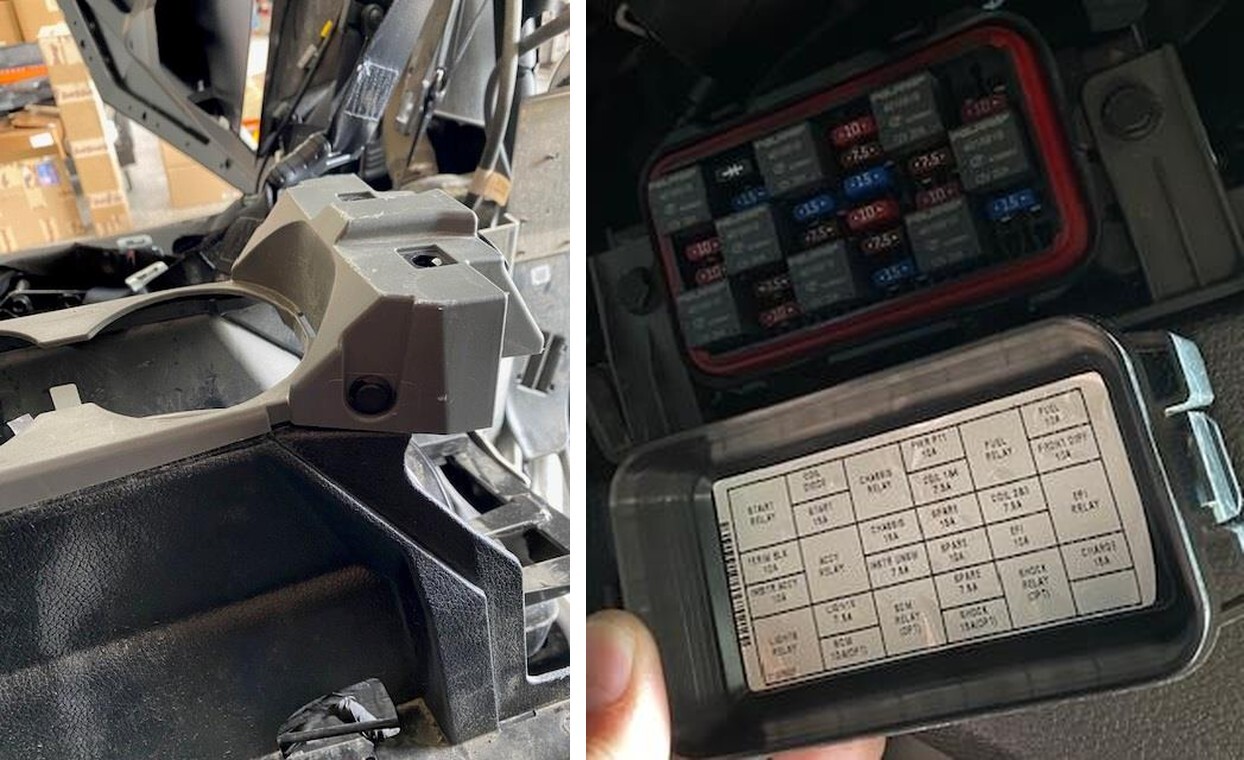

Locate the fuse block and exchange the 10amp fuel fuse for a 20amp.
4

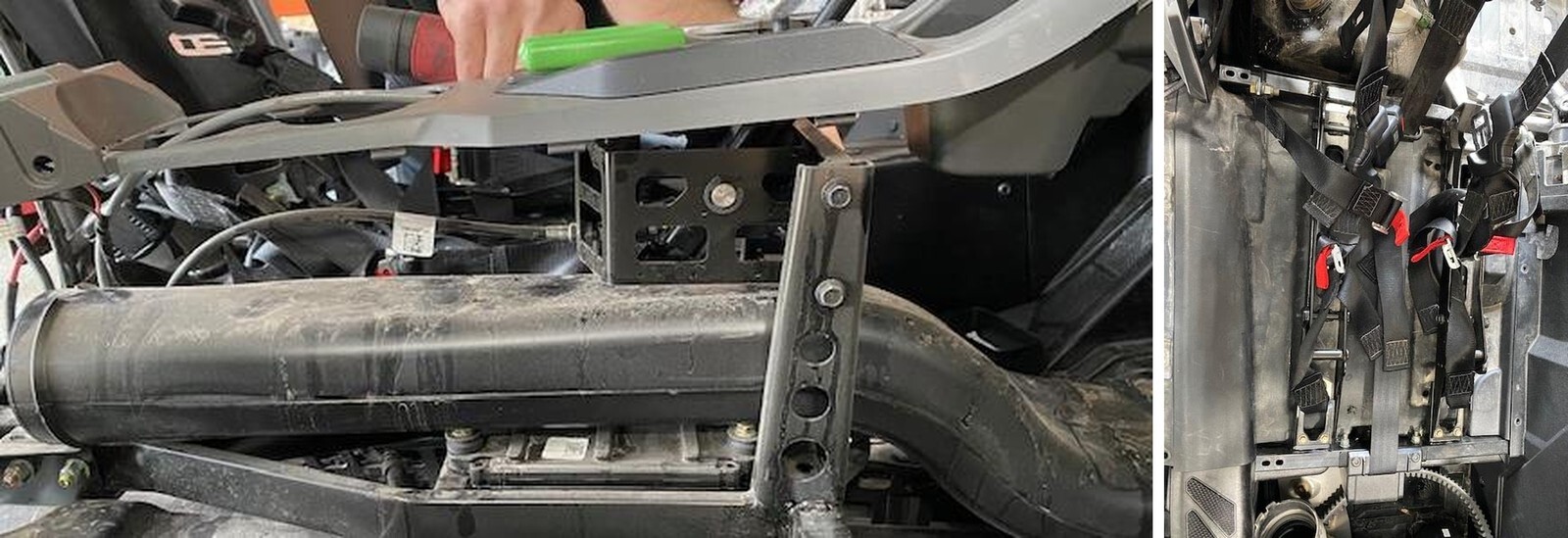

Remove the shifter from the seat frame, (4) 10mm bolts.
Polaris Pro R (RZR) installation
5

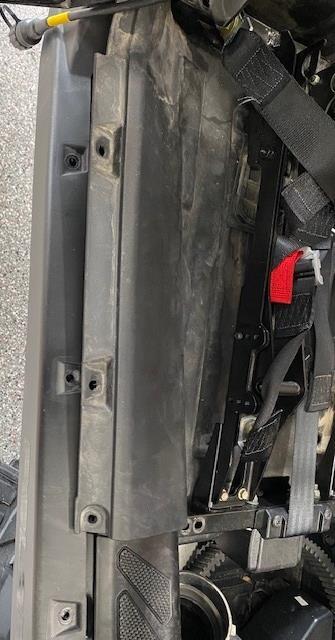

Remove the (8) 13mm bolts holding the seat frame in. One bolt holding the OEM scatter shield onto the frame. Now you can lift up and remove the plastic tray underneath the passenger seat.
6
Remove the blue safety clip on the fuel line and push in the black clip to remove the fuel line.
Polaris Pro R (RZR) installation
7

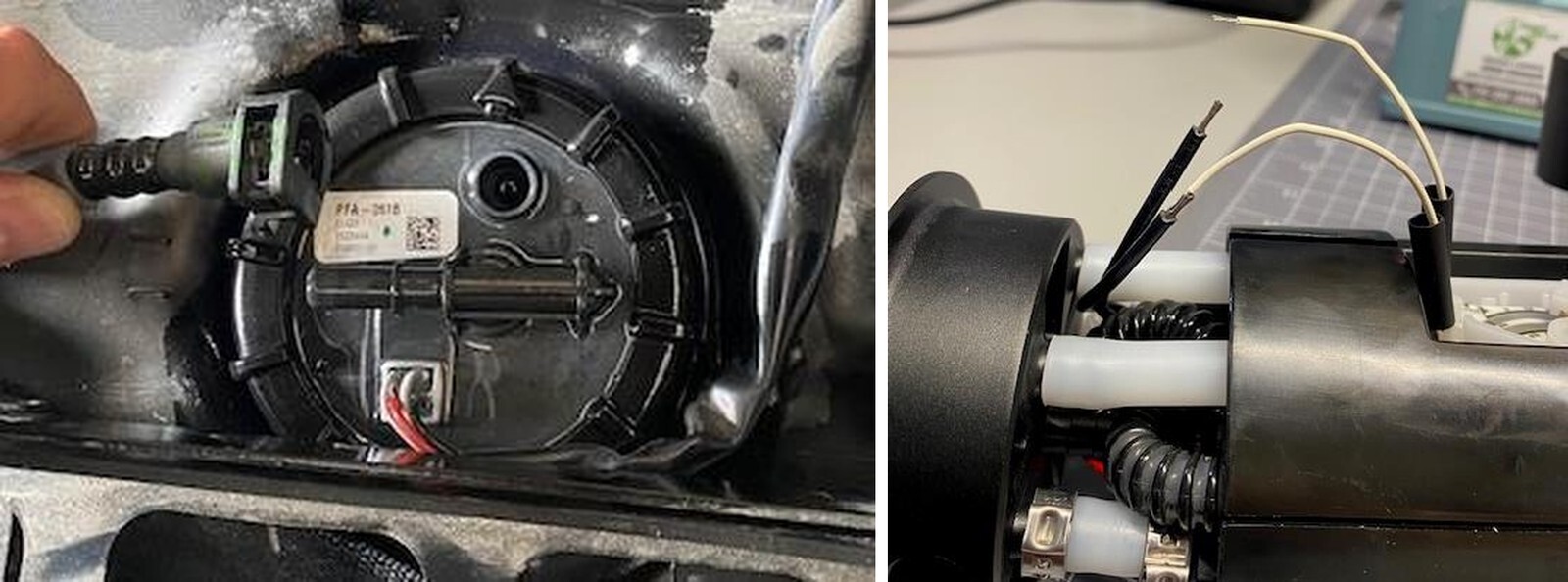

Remove the fuel pump nut, lift up the seat frame and remove the OEM fuel pump assembly. Remove the OEM float module and install it onto the EVP fuel pump assembly. Solder the float module to the EVP float wires. Orientation doesn’t matter.
8
Install the new fuel pump assembly, connect the fuel line and safety clip.
Polaris Pro R (RZR) installation
9

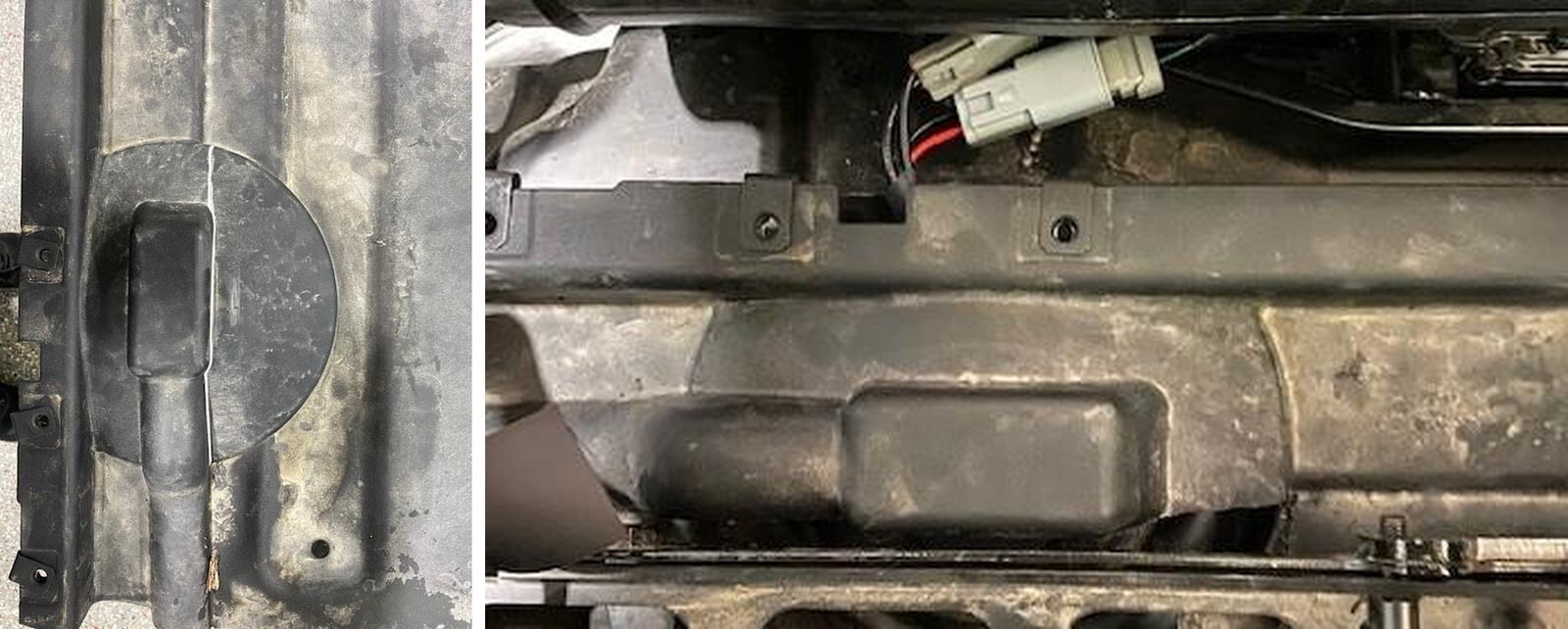

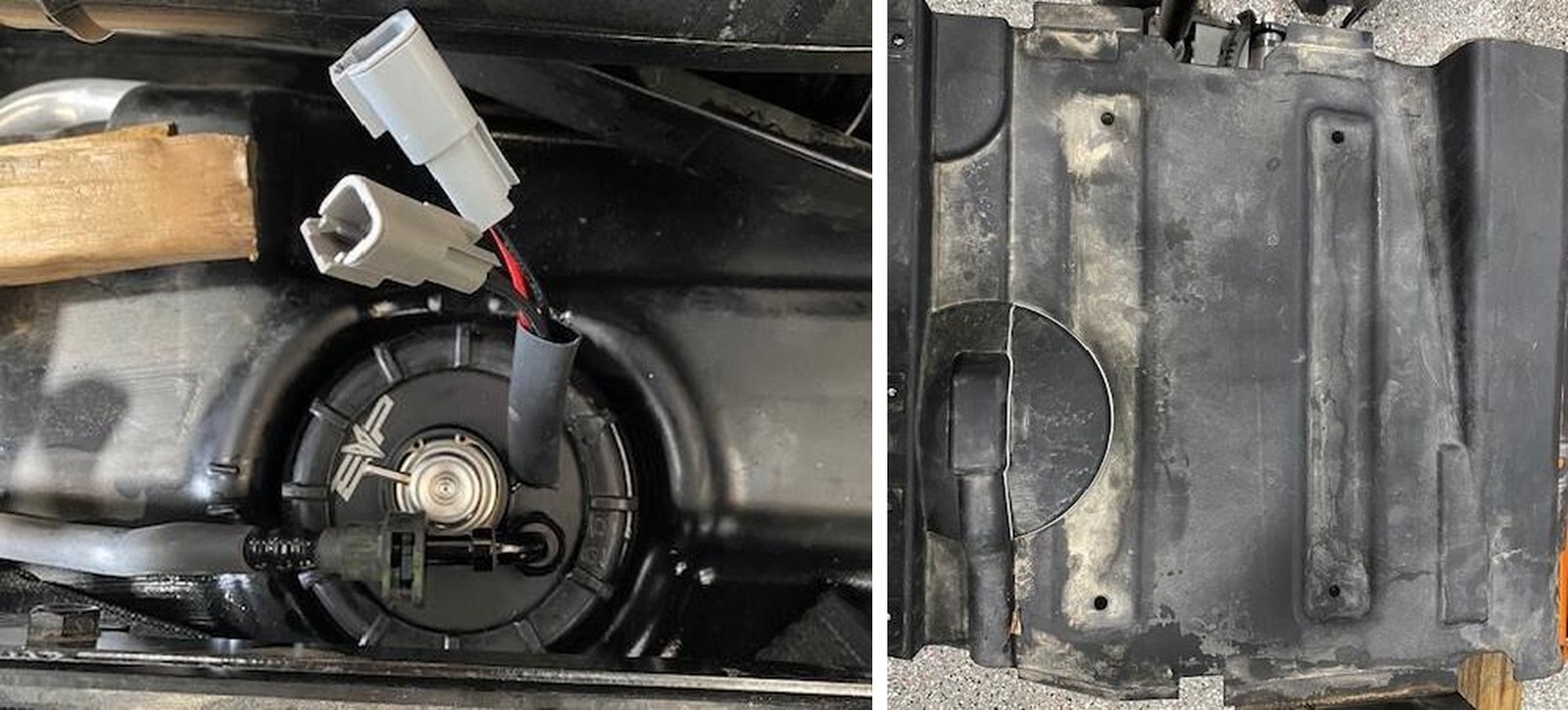

With the lower tray out, cut out on the white line. Then reinstall.
10
Reinstall and hook up the fuel pump relay.
Polaris Pro R (RZR) installation
11

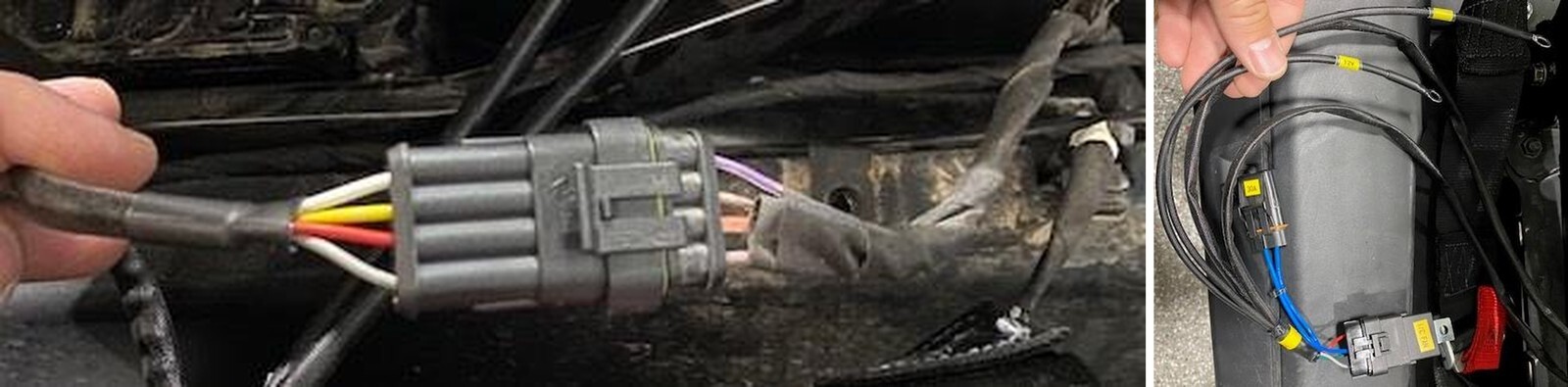

Plug the relay harness into the OEM fuel pump harness.
12
Install the ground and positive leads to the battery from the relay harness. Mount the relay to a nearby stud or screw.
Polaris Pro R (RZR) installation
Polaris Pro R (RZR) installation
Polaris Pro R (RZR) installation
Polaris Pro R (RZR) installation
