Polaris Pro XP Shift-Tek Essential Low Engagement Clutch Kit — Install Guide

Polaris · Pro XP (RZR) · SKU 402FP0041

Stock Injector- Stages 1-3 Big Injector- Stages 2RWI-5RWI

Clutch Setup
                                                                              STAGE        STAGE         STAGE
                         STAGE 1      STAGE 2      STAGE 3     STAGE 2RWI     3RWI         4RWI          5RWI
Stock Primary Spring
     Engagement           2300         2300         2300           2300       2300         2300          2300
Silver Primary Spring
     Engagement            2600         2600         2600         2600         2600         2600          2600
        Hole 1               0            0            0            0            0            0             0
        Hole 2          2. 1/4" ss   2. 1/4" ss   2. 1/4" ss   2. 1/4" ss   2. 1/4" ss   2. 3/8" ss    2. 3/8" ss
                                                  2. 3/16"     2. 3/16"     2. 3/16"
       Hole 3               0            0            ss           ss           ss       2. 1/4" ss    2. 1/4" ss
                                                  2. 3/16"     2. 3/16"     2. 3/16"
      Hole 4               0            0             ss           ss           ss       2. 1/4" ss    2. 1/4" ss
      Hole 5               0            0              0            0            0            0             0
 Secondary Spring        stock        stock         stock        stock        stock        stock         stock
      Helix              stock        stock         stock        stock        stock        stock         stock
                         8400-        8400-         8400-        8400-        8400-        8400-         8400-
  Operating RPM          8600         8600           8600         8600         8600         8600          8600

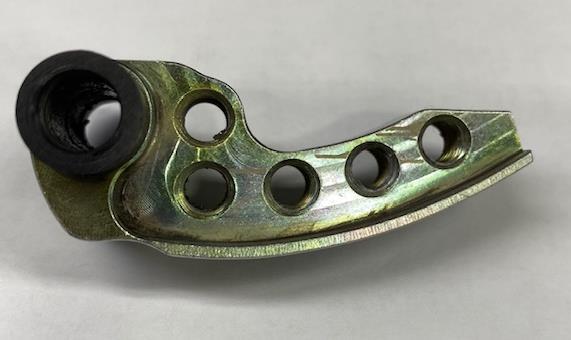

1 5

Clutch Setup
                                              2      3         4
NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent, making sure the screws are installed with an equal amount of thread engagement.
Polaris Pro XP (RZR)

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
