Polaris Pro XP Shift-Tek Ultimate Clutch Kit — Install Guide

Polaris · Pro XP (RZR) · SKU 402FP0047

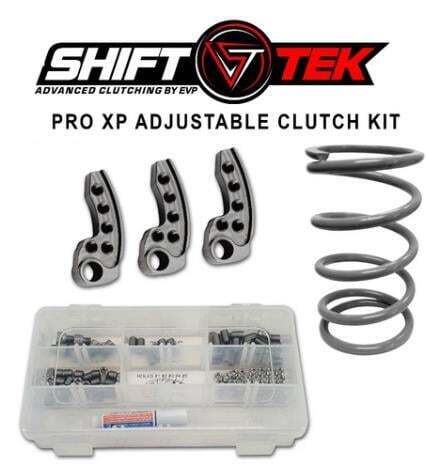

What's in the Box

Polaris Pro XP (RZR) kit contents
Included parts
Silver Primary Spring Qty 1
Notched Primary Clutch Weights Qty 3
Variety of Different Weights
Required tools
10mm Socket
Torque Wrench

Installation

1
Remove the primary and secondary outer cover. Locate the primary clutch.
2

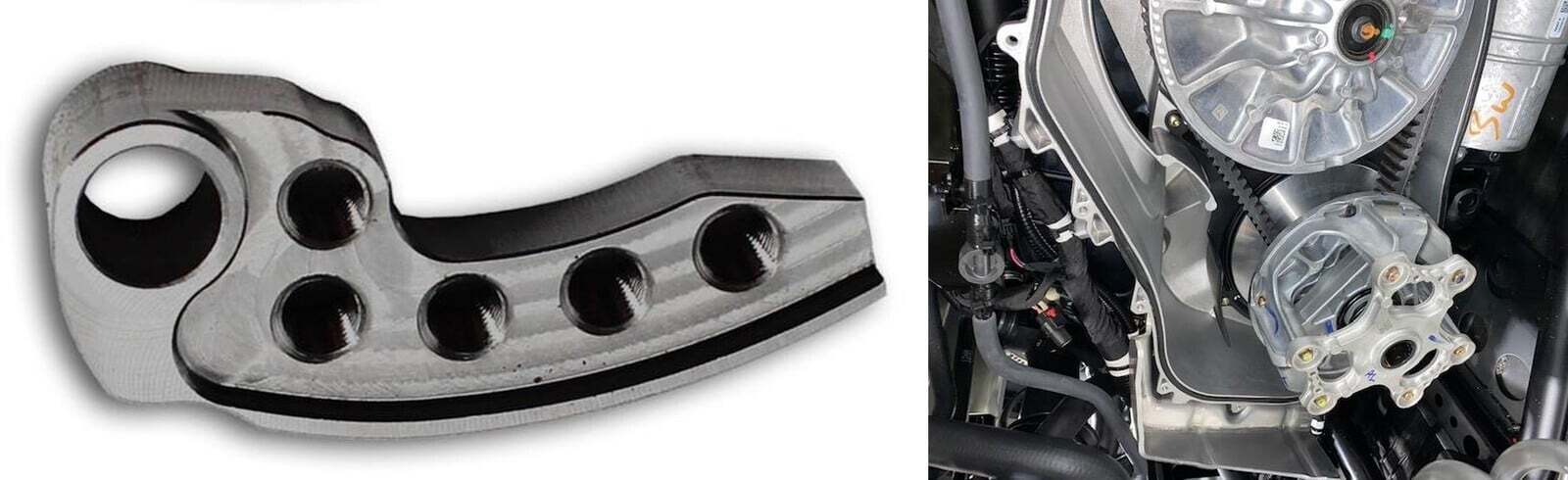

Either pull the belt and primary clutch or loosen all (6) M6 primary clutch cover bolts with the primary clutch still in the car. Only take (3) all the way out. NOTE: Apply pressure to the primary clutch cover when removing the last (3) bolts.
Polaris Pro XP (RZR) installation
3

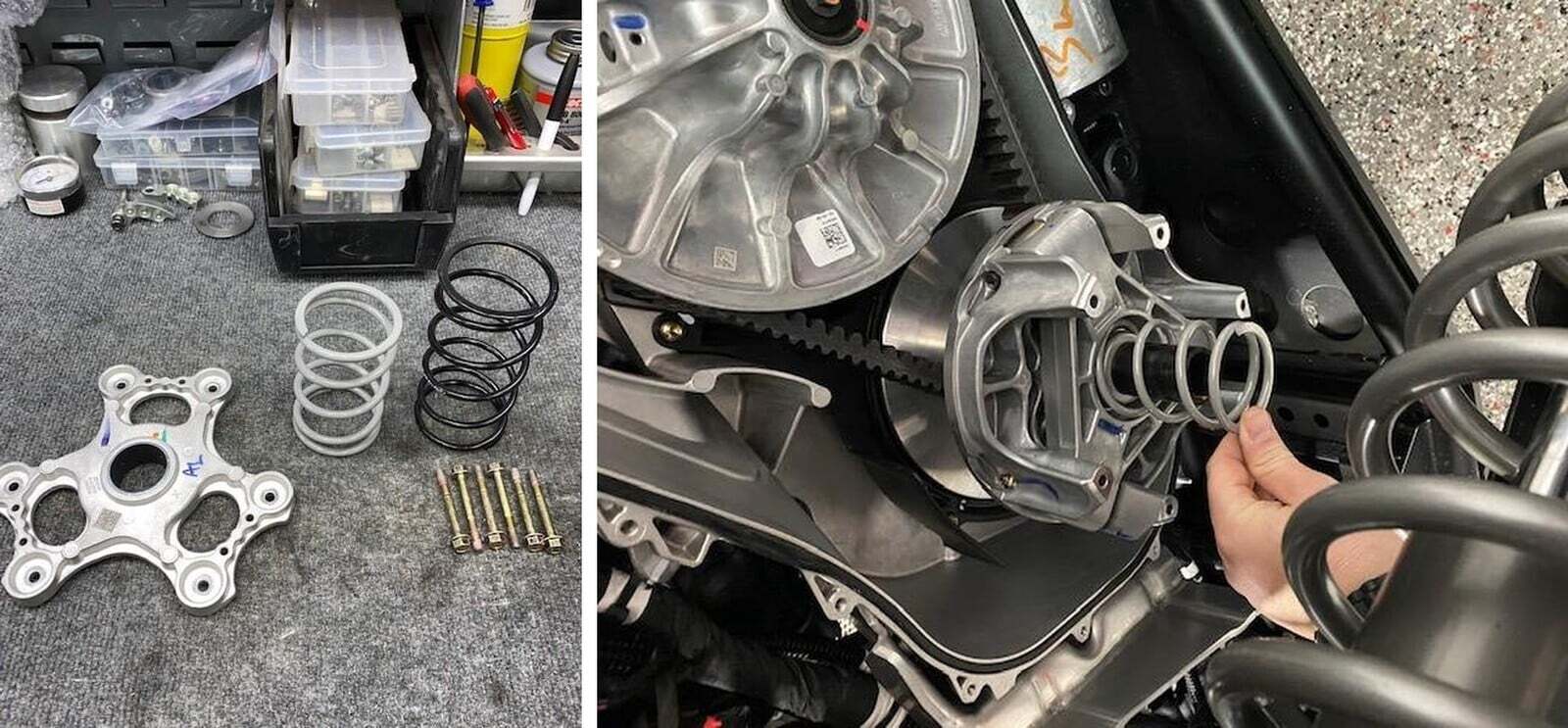

Place your new EVP Shift-Tek Silver Spring onto the primary clutch. If you are not changing out the OEM weights you can re-install the primary clutch cover.
4

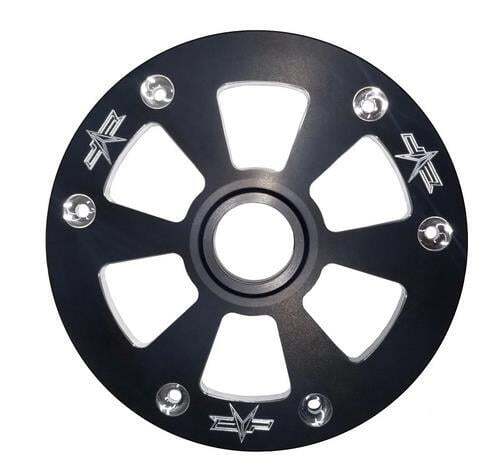

Reuse the OEM (6) M6 bolts to mount the primary clutch cover. NOTE: We recommend replacing the OEM primary clutch cover with the EVP Shift-Tek Billet Clutch Cover. Sku number (401FP0014).
Polaris Pro XP (RZR) installation
5
Torque the M6 bolts down to 100in-lbs (8.3 ft-lbs).
Polaris Pro XP (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
