Polaris Pro XP V-Flow Intake Kit — Install Guide

Polaris · Pro XP (RZR) · SKU Black (203FP0034), Red (203FP0055), Blue (203FP0056), Orange

What's in the Box

Polaris Pro XP (RZR) kit contents
Included parts
V-Flow Intake Qty 1
32-20 Worm Drive Clamp Qty 4
90-Degree Elbow Qty 2
Required tools
7mm Socket
11mm Socket Deep Well
Side Cutters
T30 Socket
Di Electric Grease

Installation

1
Remove (4) T30 bolts on the back of the bed and take out the bed.
2

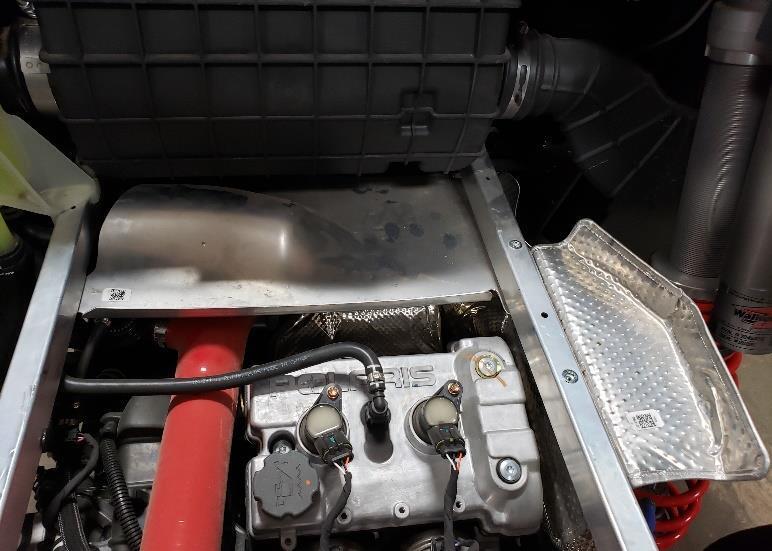

Remove heat shield over the turbo.
3
Use a side cutter, cut the clamps holding the crank case vent and the recirculating valve tube into the intake tube.
4
Using an 11mm deep-well socket loosen the clamps holding the intake boot to the air box and at the turbo.
5
Unplug the map sensor and remove the intake tube.
6
Using the T30 remove the map sensor.
7
Put a small amount of di-electric grease on the O-ring in the map sensor and install it in the new intake tube. Use the M6 bolt to secure it.
8
Install the 90-degree elbows into the intake tube. For a better fit cut about 1” lower than the bend in the factory hose. NOTE: If you are using a blow-off valve and/or a catch can you will NOT use the 90-degree elbows.
9
Install the intake tube using the OEM clamps and tighten them down and plug in the map sensor.
10
Reinstall the heat shield and the bed.

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
