Polaris RZR 200 EVP Steering Wheel Kit — Install Guide

Polaris · RZR · SKU 925FC0346

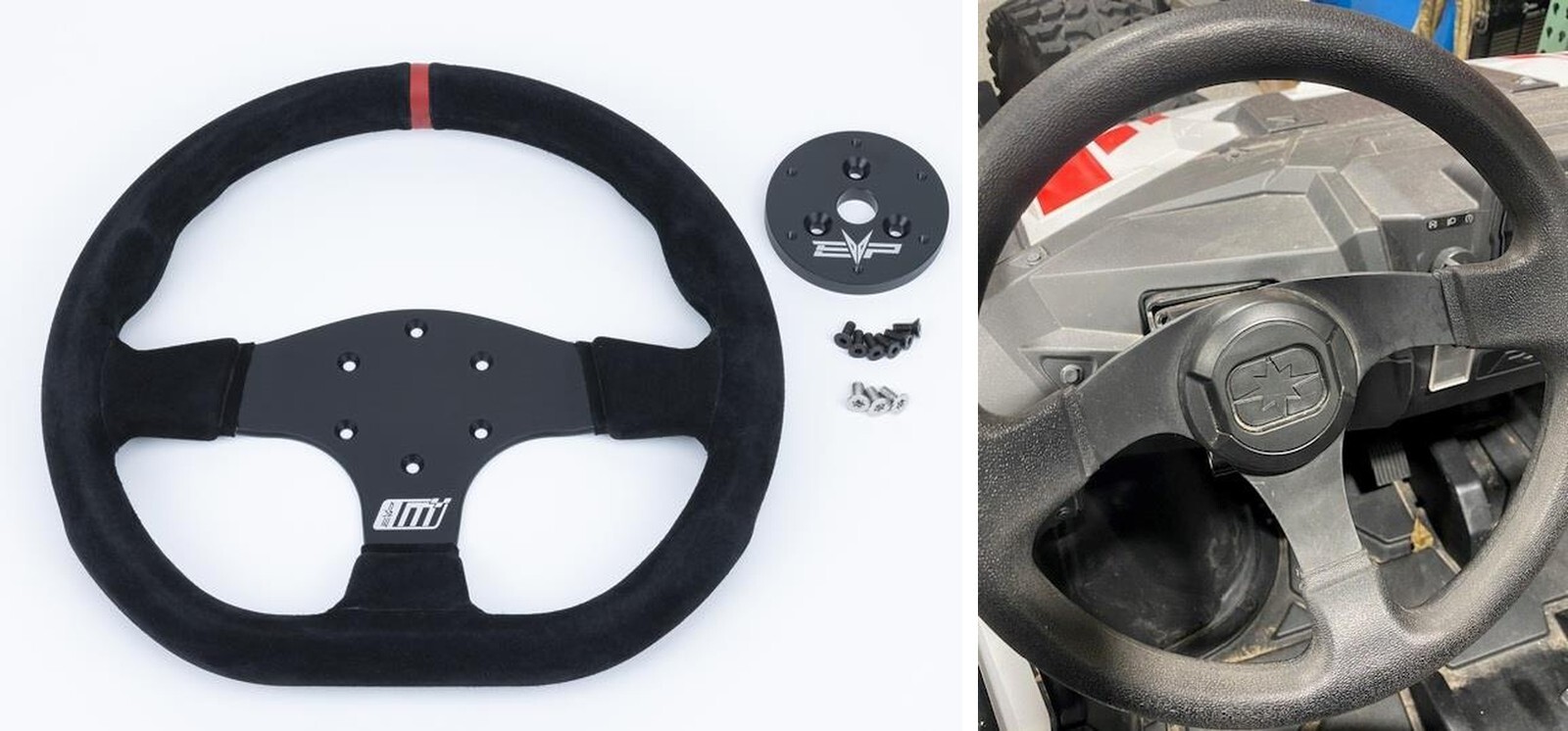

What's in the Box

Polaris RZR kit contents
Included parts
EVP Steering Wheel Qty 1
Steering Wheel Adaptor Qty 1
M6x16mm Torx Screws Qty 3
M4 Torx Screws Qty 6
Required tools
8mm Socket
Blue Loctite
Allen/torx sockets

Installation

1
Remove the OEM steering wheel hub cap. Clip on the top.
2

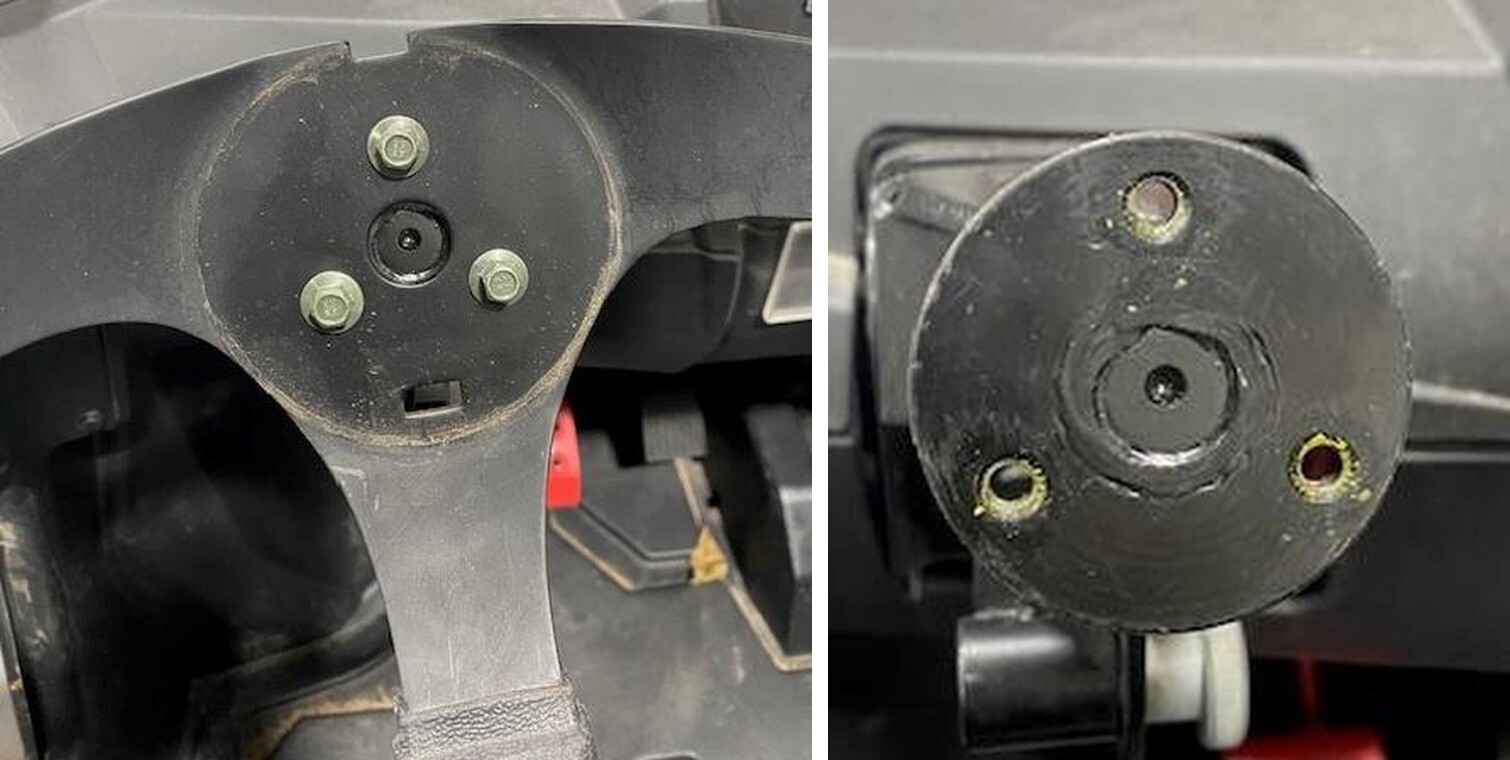

Remove the (3) steering wheel screws using a 8mm socket.
Polaris RZR installation
3
Remove the OEM steering wheel. Install the EVP steering wheel adaptor. Use blue Loctite on the threads of the Torx flat head screws.
4
Install the steering wheel to the adaptor using supplied (6) screws. Use blue Loctite to on threads.
Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
