Polaris RZR 200 Front Bumper Kit — Install Guide

Polaris · RZR · SKU 925FP0200 (black)

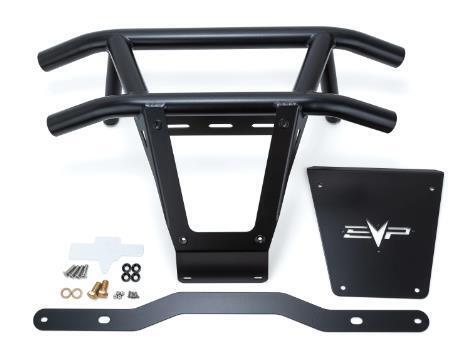

What's in the Box

Polaris RZR kit contents
Included parts
Front Bumper Qty 1
Backer Plate Qty 1
Lower Plate Qty 1
Hardware Kit Qty 1
Required tools
T-40 Socket
1/16”, 1/4" Allen Wrench
1/4" Socket
14mm Socket

Installation

1

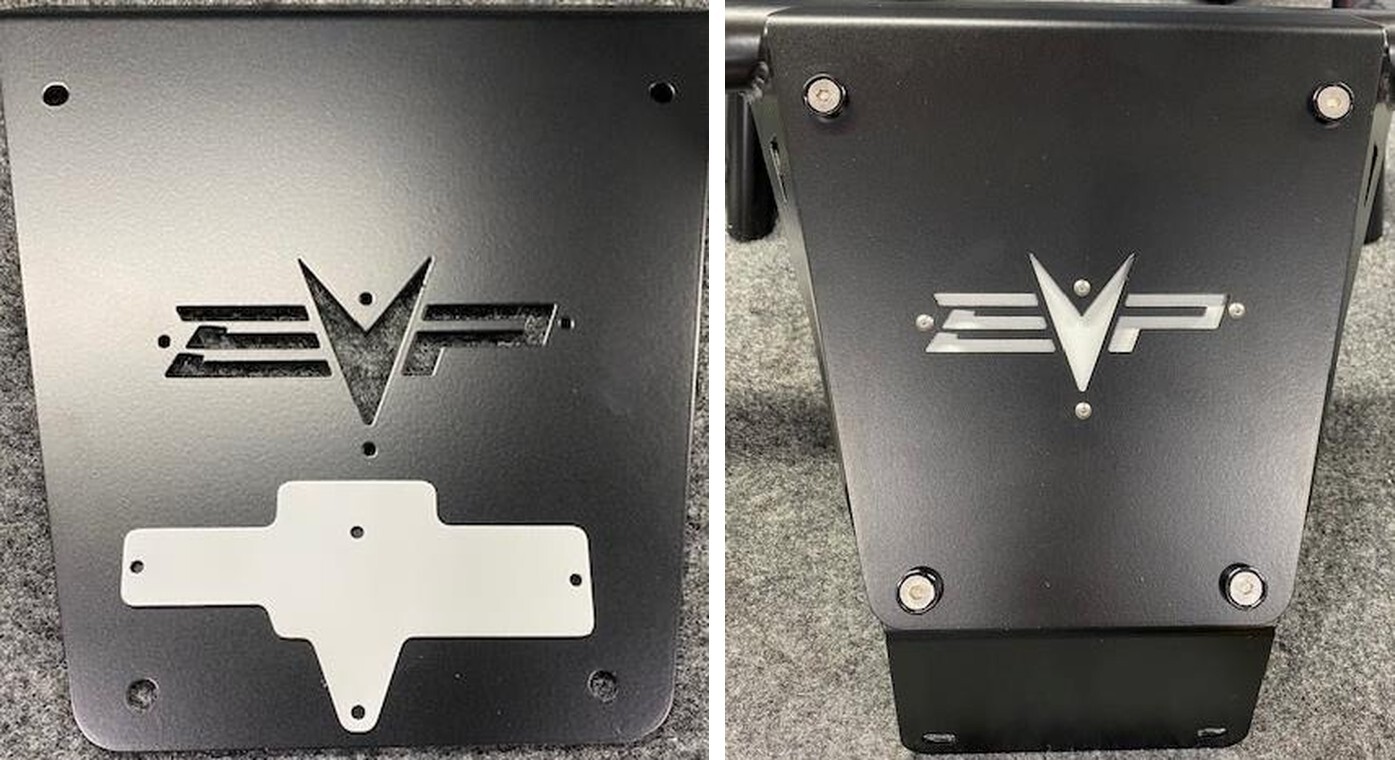

Install the backing plate to the lower plate. Use supplied hardware.
2
Install the lower plate to the front bumper. Use supplied bevel washers and Allen screws.
Polaris RZR installation
3
Remove (2) screws holding the front clip on. Use a T-40 socket.
4
Install the bumper support behind the front clip, make sure the bend goes underneath the brake block. Reinstall the OEM hardware.
Polaris RZR installation
5

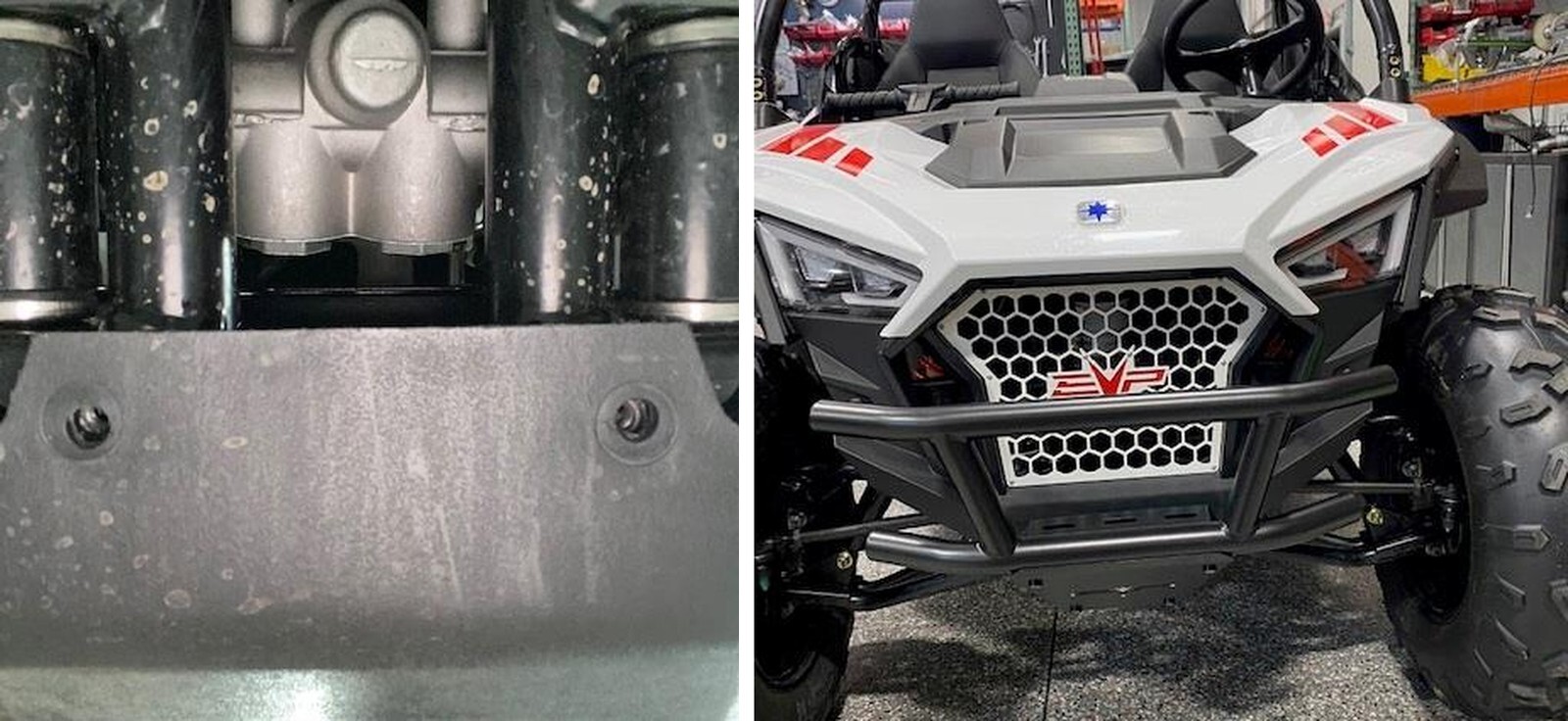

Remove (2) screws underneath the car where the front clip attaches.
6

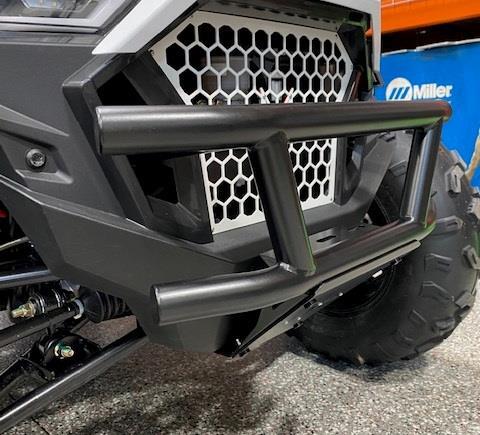

Install the bumper onto the car. Reuse the bottom two screws to mount the bumper to the frame. Use (2) supplied bolts and washers to mount the bumper to the support in the front of the car.
Polaris RZR installation
Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
