Polaris RZR 200 Front Grille Bezel Kit — Install Guide

Polaris · RZR · SKU 925FP0201 (raw), 925FP0202 (red), 925FP0203 (white)

What's in the Box

Included parts
Grille Bezel Qty 1
Hardware Kit Qty 1
Required tools
Push Dart Tool
T-40 Socket
1/16” Allen Wrench
1/4" Socket
7/64” Drill Bit

Installation

1
Remove (2) push darts holding the hood center piece on. Remove (2) push darts underneath the hood center piece.
2

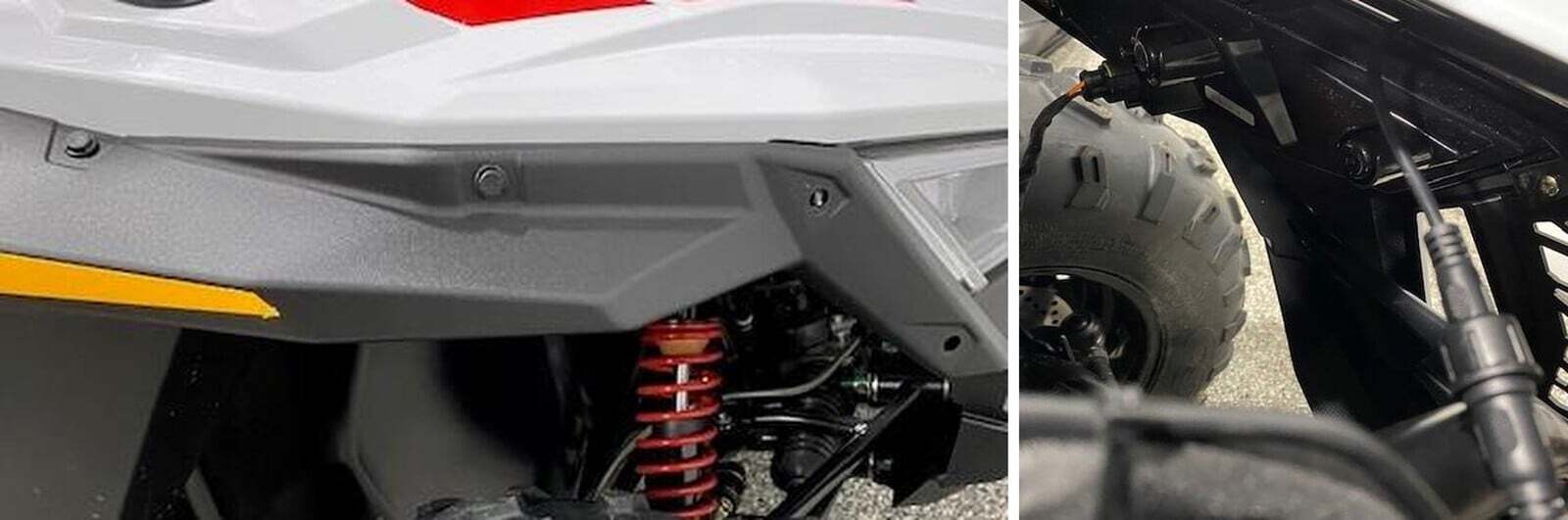

Remove (3) push darts on both front fenders.
3
Unplug both low/high beam connectors, located underneath the hood.
Polaris RZR installation
4

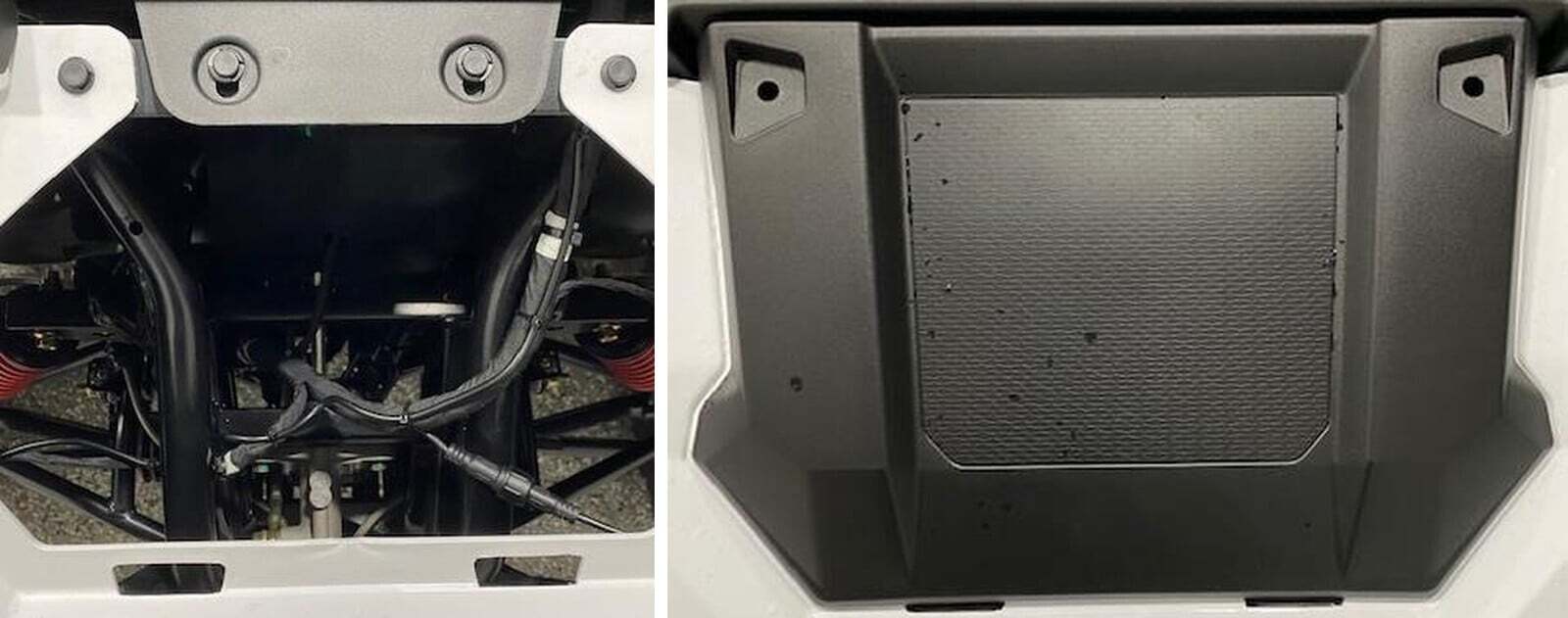

Remove (4) T-40 screws holding the front clip onto the vehicle. (2) are located in the front of the vehicle under the headlights. The other (2) are located underneath the car where the A-arms connect to the frame. Now remove the front clip.
5

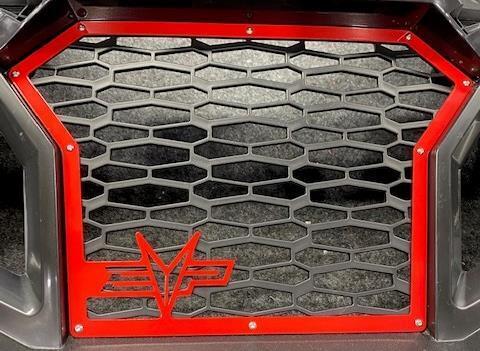

Bring the front clip to a work bench. Lay the grille bezel in place. With a 7/64” drill bit, drill through each hole one by one, installing hardware after each hole is drilled.
6
With a 1/16” Allen wrench and 1/4" socket, fasten down all hardware. DO not over tighten.
Polaris RZR installation
7
Reinstall the front clip with all hardware. Don’t forget to reconnect the low/high beam connectors.
Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
